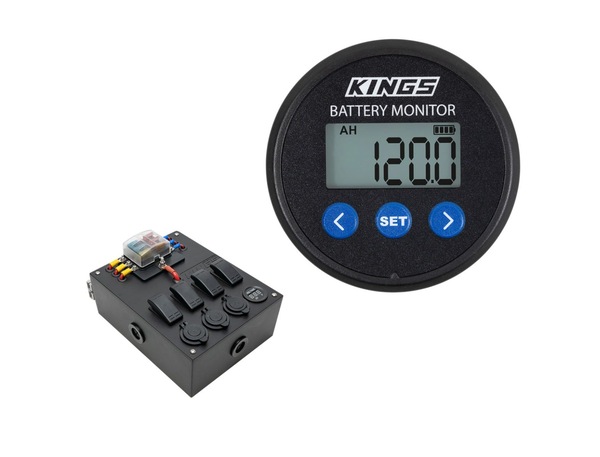

Kings 500A Battery Monitor with Shunt + 12V Compact Control Box

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$143.95

Collect 143 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
Backlit LCD Display so you can check your battery capacity at a glance. Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %

• Lithium or AGM, 12V or 24V Compatible. 500A Shunt and temperature sensor included

• Settable over/under-voltage, over-current and over-temperature alarms

• compact all-in-one power box! Get easy access to your battery’s power with multiple switches, sockets, and plugs. ABS plastic housing

• 10 power in and out connections for easy device powering. Ultra-compact 250mm (H) x 210mm (W) x 130mm (D) size - perfect for tight spots!

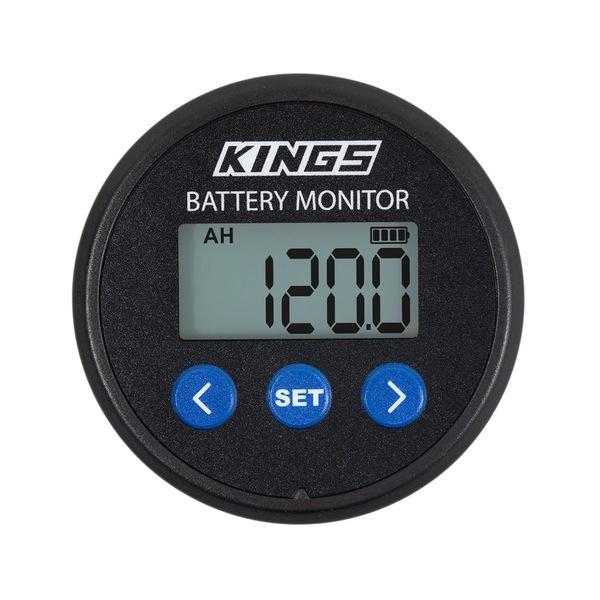

KINGS 500A BATTERY MONITOR WITH SHUNT


Backlit LCD Display so you can check your battery capacity at a glanceBacklit LCD Display so you can check your battery capacity at a glance
Lithium or AGM, 12V or 24V Compatible

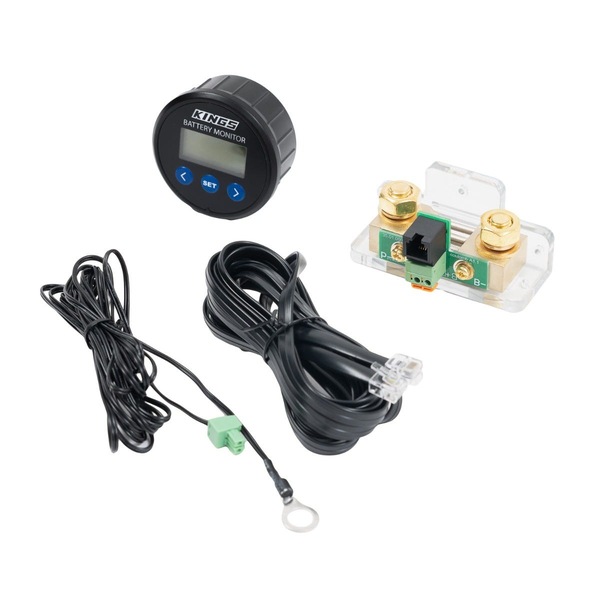

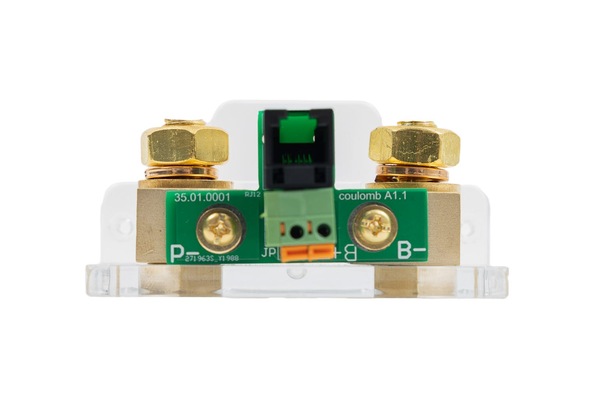

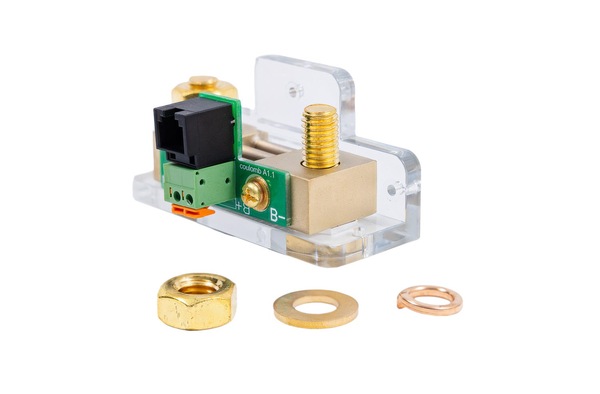

500A Shunt and temperature sensor included
Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %
Settable over/under-voltage, over-current and over-temperature alarms

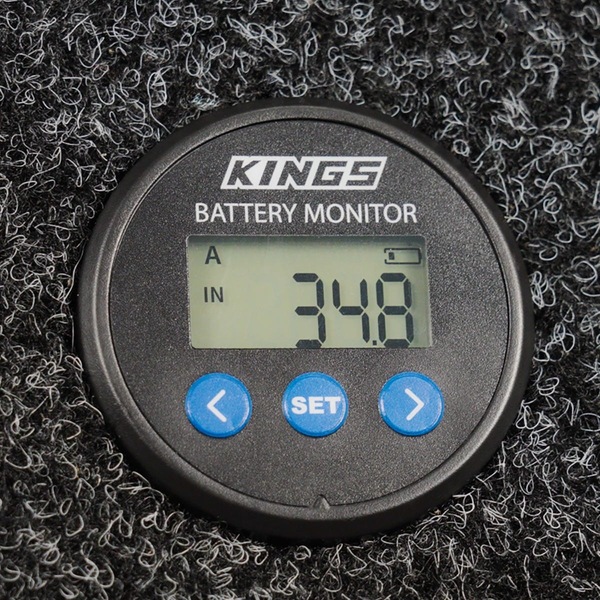

Check battery voltage, charging/discharging current, power, temperature or battery capacity percentage.


Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm
Temperature Sensor Yes, 3m length

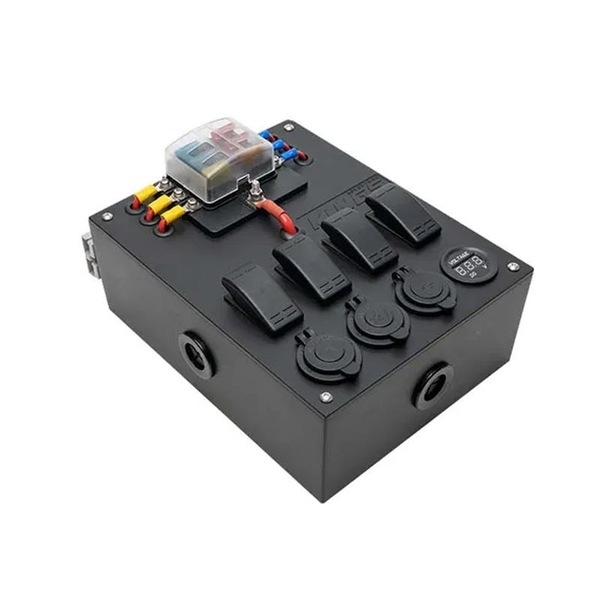

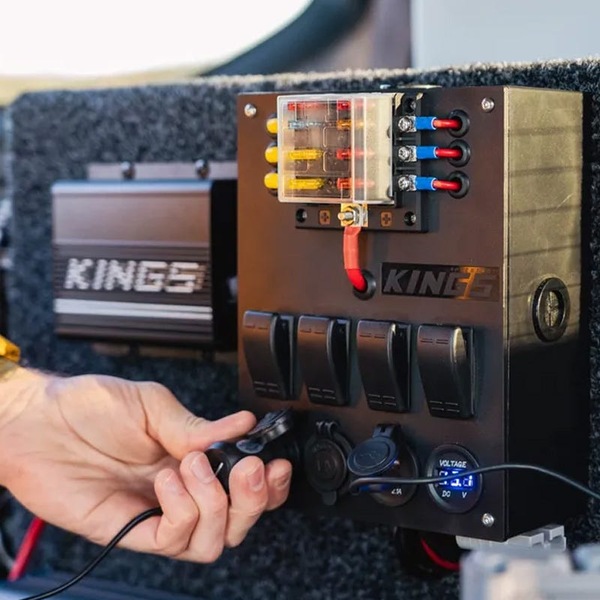

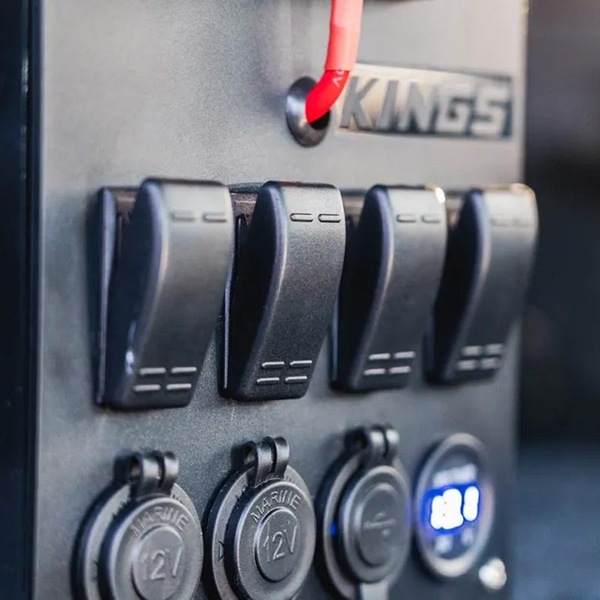

Kings 12V Compact Control Box

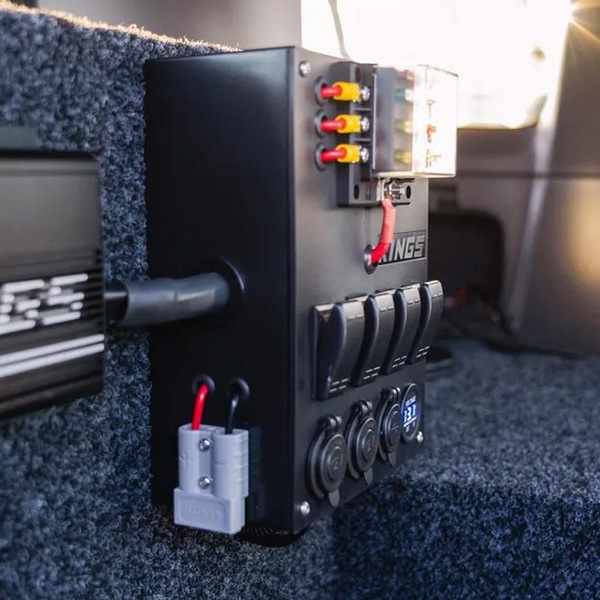

The twin 50A quick-connect plugs are both directly connected to your battery, meaning you can run power in from a Kings 50A Wiring Kit (sold separately) or your solar blanket or panel.
Box Material ABS Molded Plastic
Box Size 230 * 180 * 85 mm
Product Size 250 * 210 * 130 mm
Weight 0.90 KG
Lid Thickness 3mm
Box Thickness 3mm
Recommended Fuse Size for Batteries 40A
Recommended Cable Size for Batteries Depending on Length
0 - 2m = 8 Gauge Battery Cable (8mm2)
2 - 4m = 6 Gauge Battery Cable (13mm2)

MPN: SC-CO-BATTMONS-CONTROLBOXCOMP
