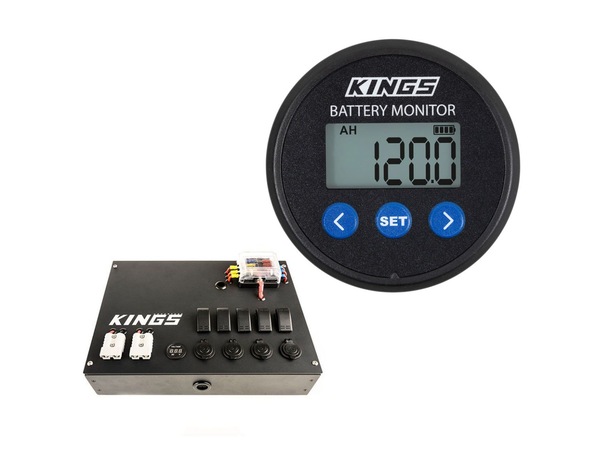

Kings 500A Battery Monitor with Shunt + 12V Control Box

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$163.95

Collect 163 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

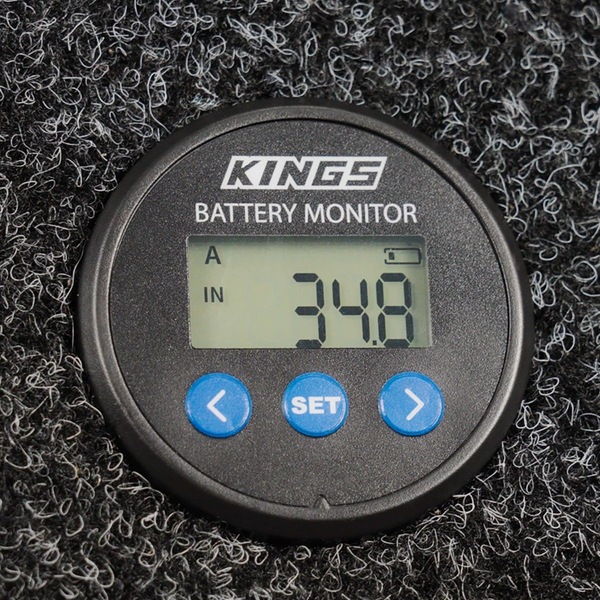

Backlit LCD Display so you can check your battery capacity at a glance. Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %

• Lithium or AGM, 12V or 24V Compatible. 500A Shunt and temperature sensor included

• Settable over/under-voltage, over-current and over-temperature alarms

• Control Box - 5x 16A pre-wired switches, 3x Cig Sockets and 2x USB ports to Control all your 12V Equipment

• Digital Voltage Indicator. Ideal for your 4WD, Canopy, Caravan or Cargo Area

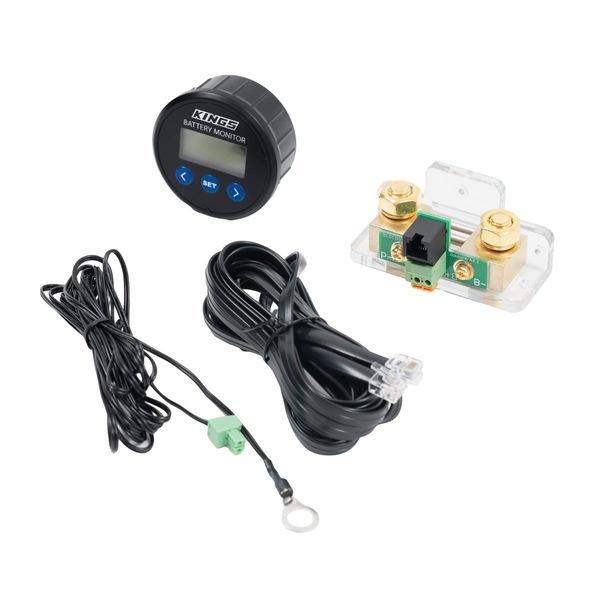

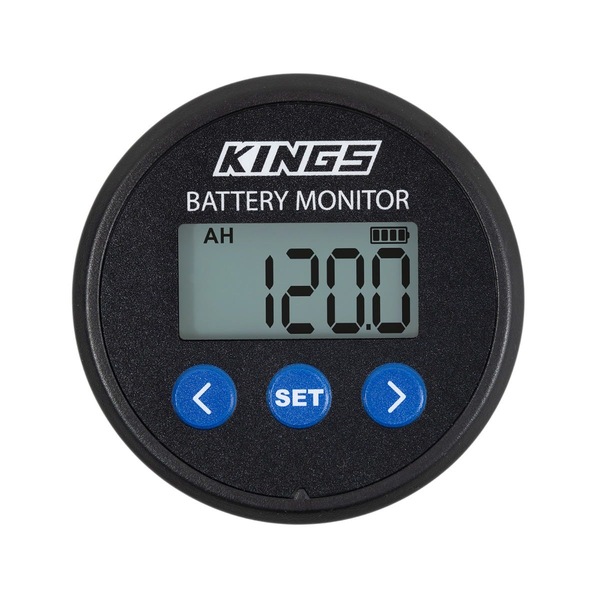

KINGS 500A BATTERY MONITOR WITH SHUNT


Backlit LCD Display so you can check your battery capacity at a glanceBacklit LCD Display so you can check your battery capacity at a glance
Lithium or AGM, 12V or 24V Compatible

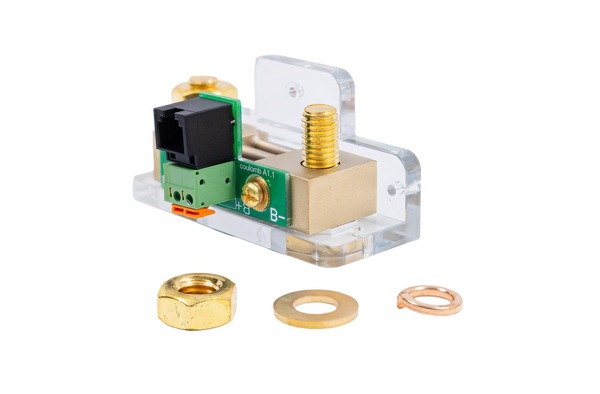

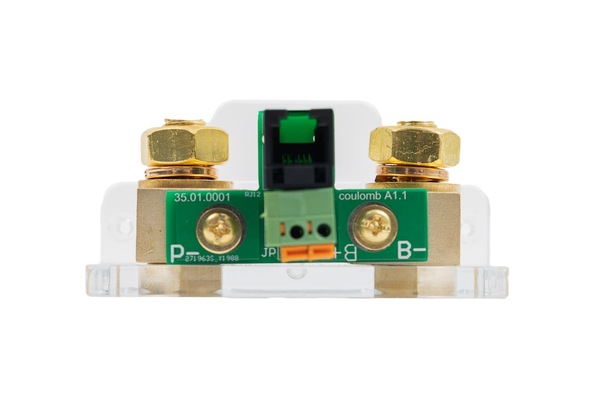

500A Shunt and temperature sensor included
Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %
Settable over/under-voltage, over-current and over-temperature alarms
Check battery voltage, charging/discharging current, power, temperature or battery capacity percentage.


Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm
Temperature Sensor Yes, 3m length

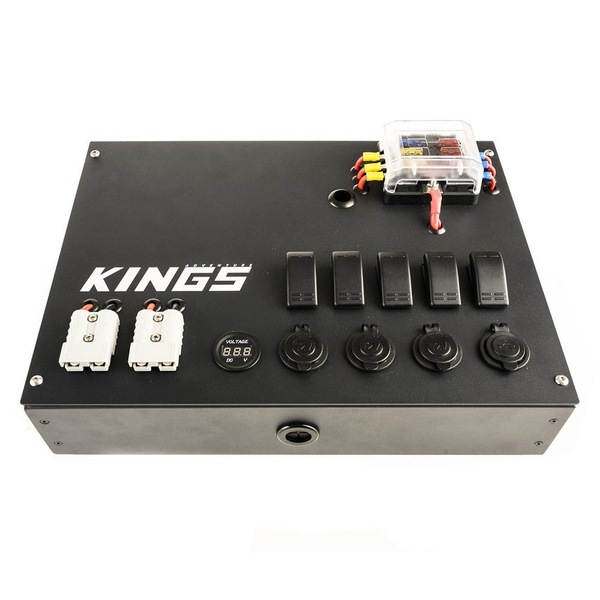

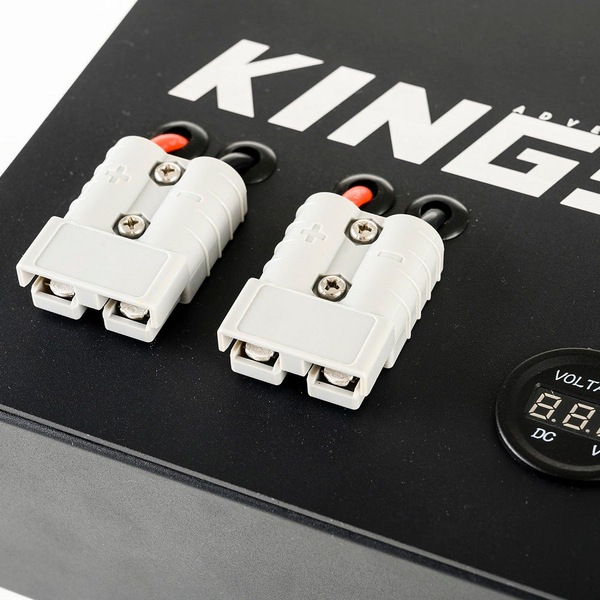

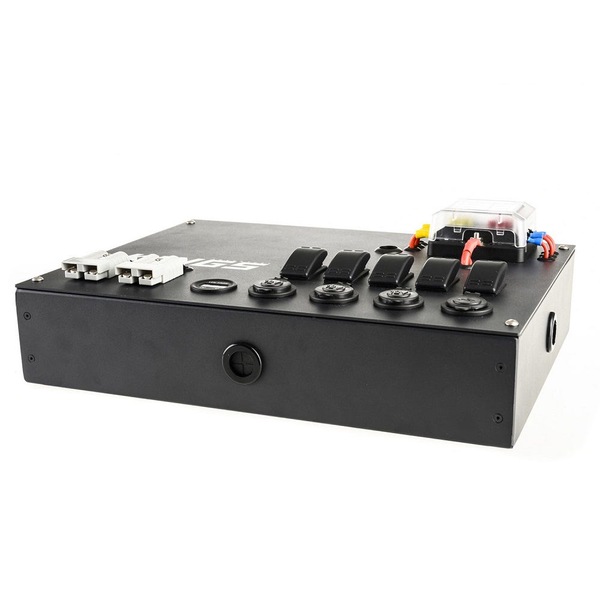

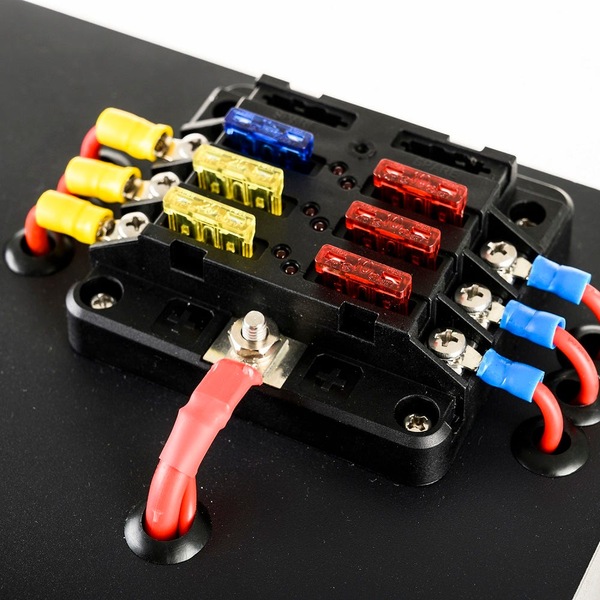

12V Control Box
Box Material: Black powder coated laser cut aluminium
Box Size: 400 x 305 x 80mm
Weight: 2.74kg
Lid Thickness: 2mm
Box Thickness: 1.5mm
DCDC Charger: Provisions for CTEK D250SA or Kings DCDC Charger
Coating: Black Powder Coating
Recommended Fuse Size for Batteries: 40A (Input cable from vehicle’s battery needs to be fused as close as possible to the battery using a 40A inline fuse or circuit breaker)
Recommended Cable Size for Batteries Depending on Length:0-1m = 8 Gauge Battery Cable
1-3m = 6 Gauge Battery Cable

MPN: SC-CO-BATTMONS-CONTROLBOX
