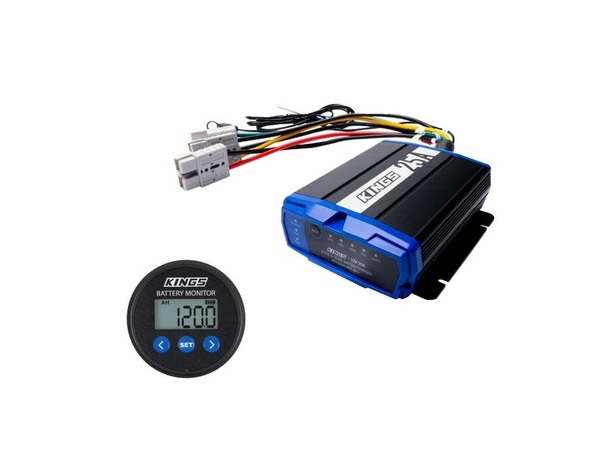

Kings 500A Battery Monitor with Shunt + 25A DCDC Charger

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$193.95

Collect 193 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
Backlit LCD Display so you can check your battery capacity at a glance. Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %

• Lithium or AGM, 12V or 24V Compatible. 500A Shunt and temperature sensor included

• Settable over/under-voltage, over-current and over-temperature alarms

• 25 Amp Multi-Stage Battery Charger. Built-in MPPT Solar Regulator with Solar Priority Charging.

• Push Button Battery Type Selection for Lithium or AGM. 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!

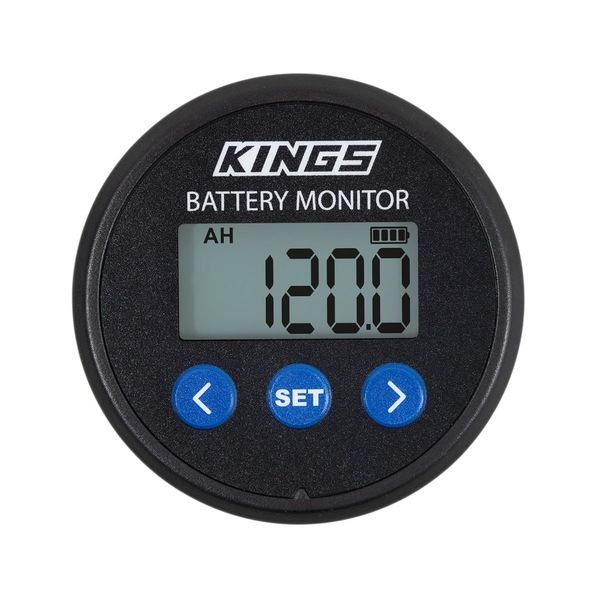

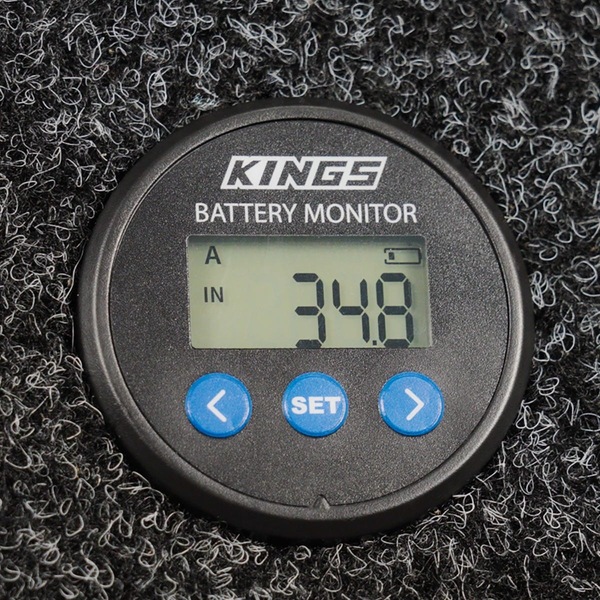

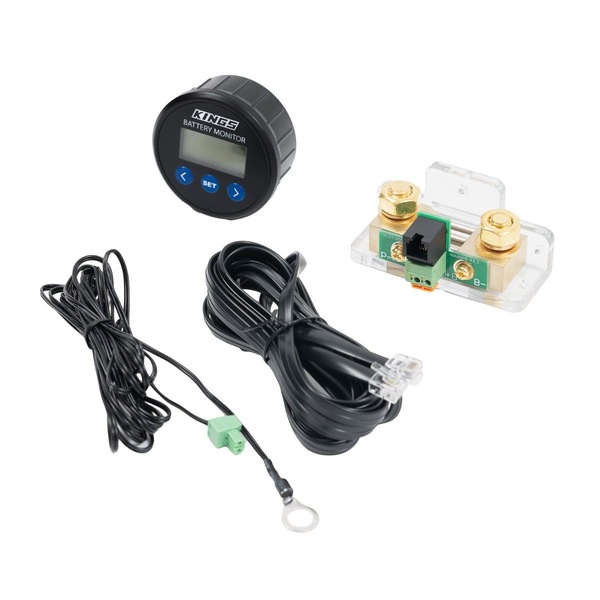

KINGS 500A BATTERY MONITOR WITH SHUNT


Backlit LCD Display so you can check your battery capacity at a glanceBacklit LCD Display so you can check your battery capacity at a glance
Lithium or AGM, 12V or 24V Compatible

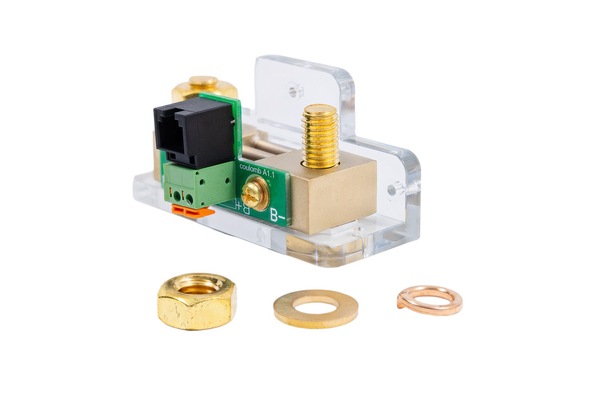

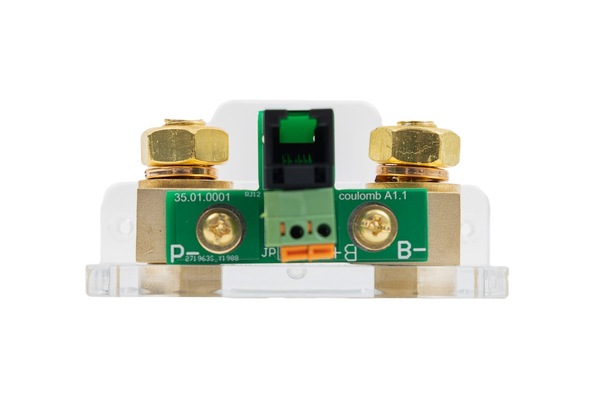

500A Shunt and temperature sensor included
Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %
Settable over/under-voltage, over-current and over-temperature alarms
Check battery voltage, charging/discharging current, power, temperature or battery capacity percentage.


Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm
Temperature Sensor Yes, 3m length

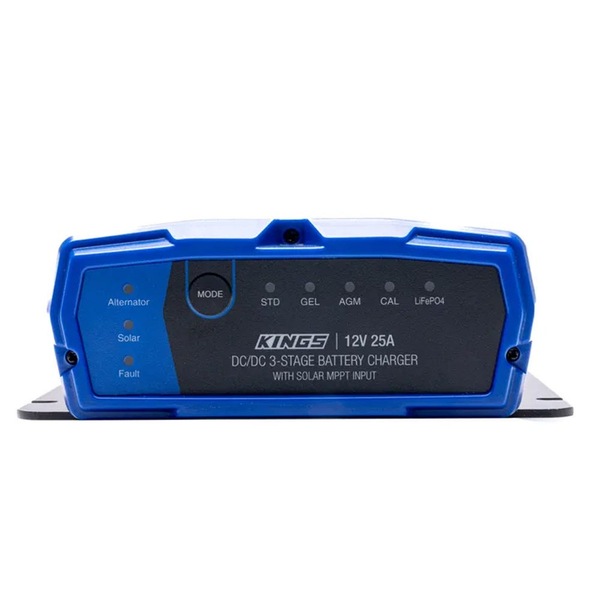

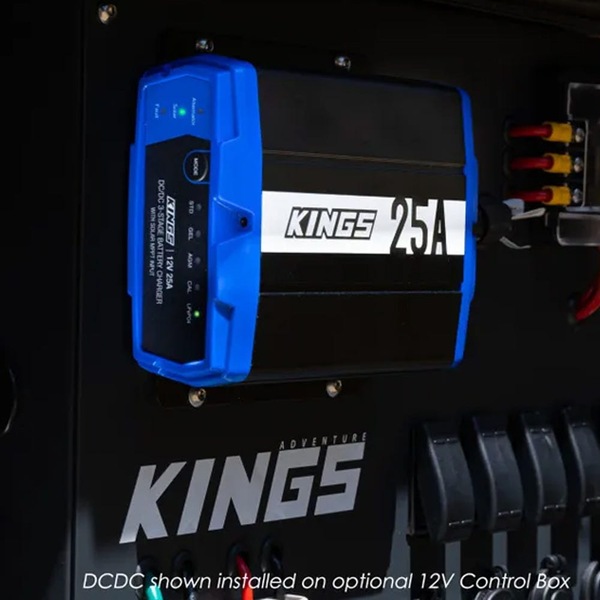

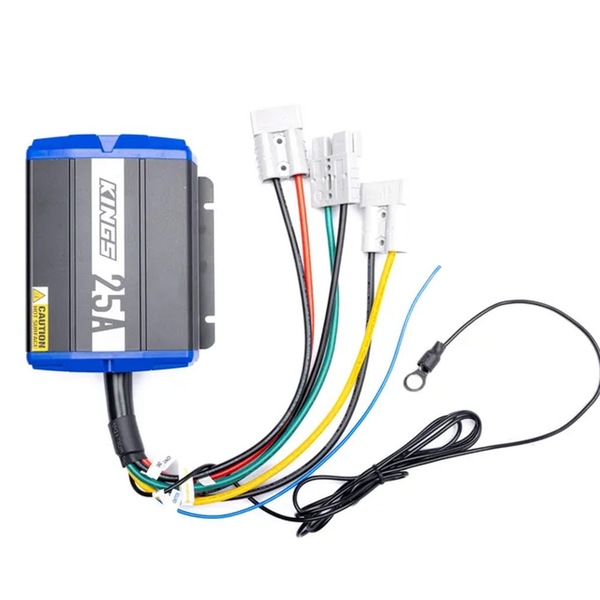

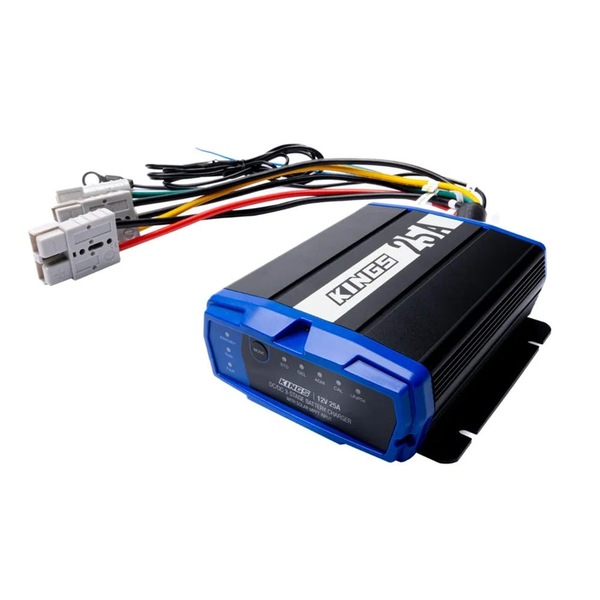

KINGS 25A DCDC CHARGER



Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C (with automatic 5-stage current derating)
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes, internal + external with M8 ring terminal for accurate battery temperature
Housing Powder coated aluminium
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66

MPN: SC-CO-BATTMONS-DC25A02
