Kings 500A Battery Monitor with Shunt + 300Ah Lithium LiFePO4 Battery Prismatic Cell

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$818.95

Collect 818 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The 300Ah capacity allows you to truly create your ultimate off grid set up to help power all of your power hungry creature comforts without the fuss of needing to wire up multiple batteries in series or in parallel to achieve the same capacity. The Adventure Kings 300Ah Deep Cycle lithium battery is perfect for power hungry setups, including large fridges, camping lights, induction cooktops, and inverters that will run your 240V appliances off grid.

• The BMS ensures safe and reliable operation. intelligently monitors each individual cell and balances their use to ensure your battery is charging and discharging evenly. The quality BMS in this Adventure Kings 300Ah deep cycle lithium battery is rated to output a continuous 300 amps, meaning you can easily connect and power any Kings inverter to run any 240V gear without a worry in the world!

• SUPER SAFE LITHIUM IRON PHOSPHATE CHEMISTRY (LiFePO4) PARALLEL AND SERIES CONNECTION You can connect up to 2 deep cycle lithium batteries together in parallel to double the rated capacity, or connect up to 4 lithium batteries in series for increased voltage, the choice is yours!

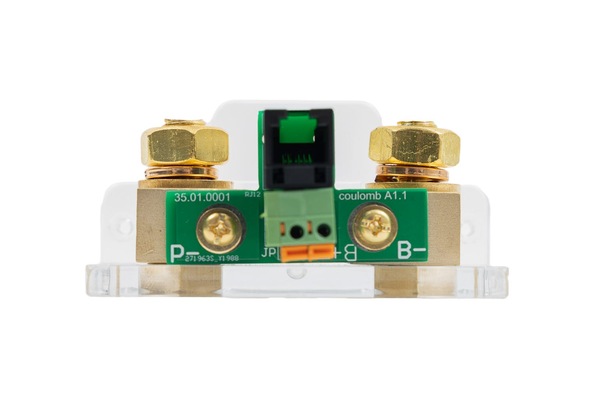

• The Adventure Kings Battery Monitor uses battery voltage readings, and a high precision 500A shunt to measure current and calculate Amp hours in and out - this means it can accurately display your battery’s capacity whether it’s AGM, Flooded Lead Acid or Lithium - and regardless of whether it’s 12V or 24V.

• With the included 500 Amp shunt, the Kings Battery Monitor can measure the power draw of 12V accessories up to ~6000W - so it’s ideal for inverters. It not only gives you a real-time read out of the power being used, but also the Amp hours that you’ve taken out of your battery and the estimated time until discharged or recharged.

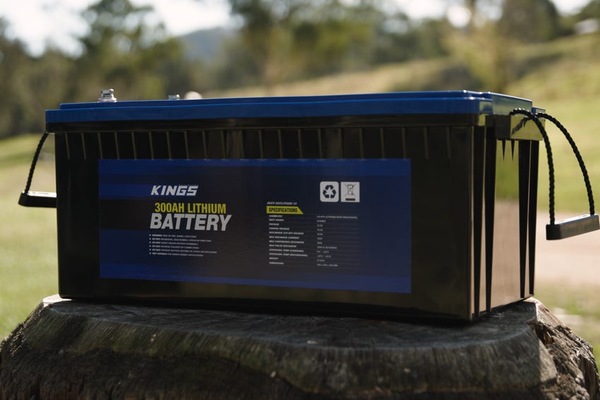

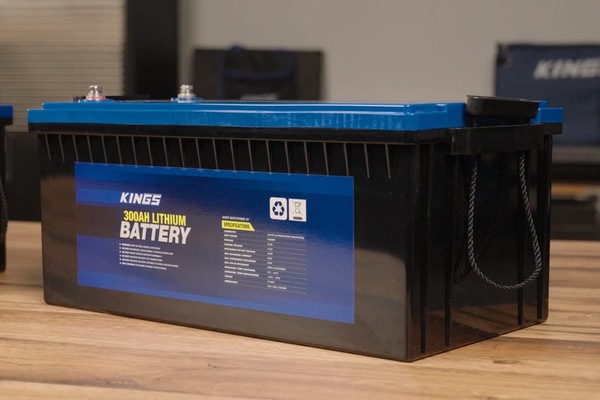

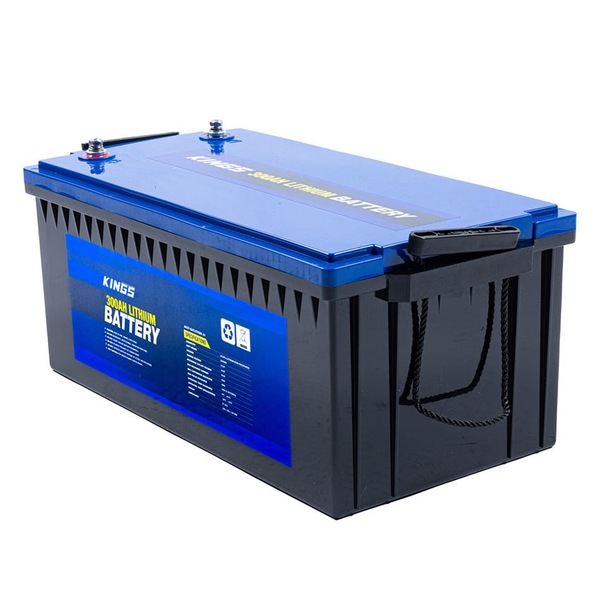

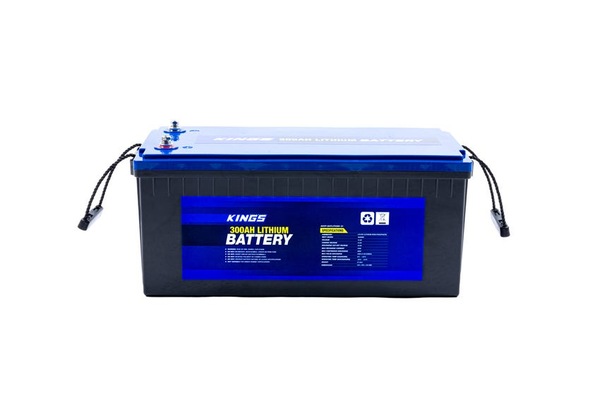

KINGS 300AH DEEP CYCLE LITHIUM LIFEPO4 BATTERY


The 300Ah capacity allows you to truly create an off grid set up to help power all of your power hungry devices without needing to wire up multiple batteries in series or in parallel. The Adventure Kings 300Ah Deep Cycle lithium battery is perfect for power hungry setups, including large fridges, camping lights, induction cooktops, and inverters that will run your 240V appliances off grid.


Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 300Ah
Rated Energy 3840Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Rated Float Charge Voltage 14.4V
Discharge Cut off Voltage 10V
Max Continuous Discharge Current 300A
Max Pulse Discharge (5 Seconds) 360A
Operating Temperature - Charging 0 - +50°C
Operating Temperature - Discharging -20 - +60°C
Life Cycles >2000
Cell Construction Prismatic
Case Material ABS

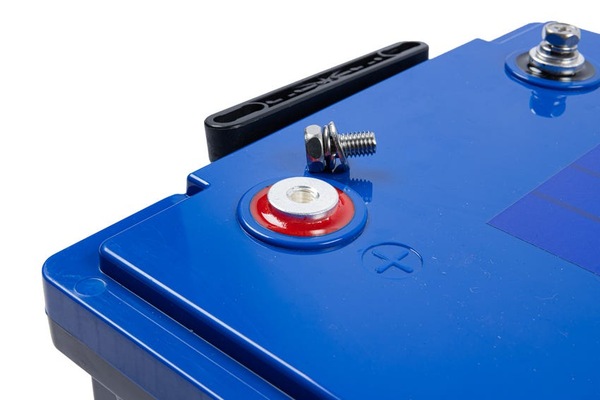

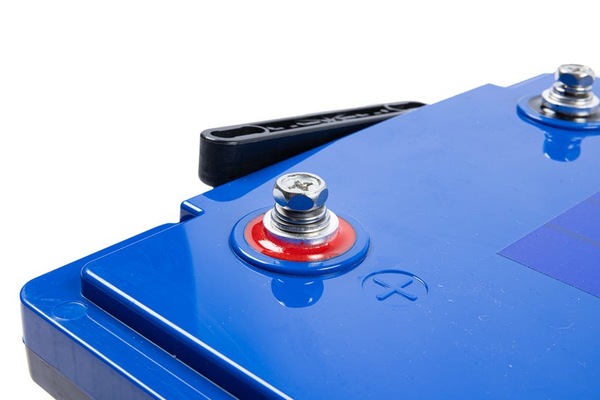

Terminals M8 Threaded
Allowed Batteries Connected in Series Bank (Same Batch) 4
Allowed Batteries Connected in Parallel Bank (Same Batch) 2
Dimension (LxWxH) +-1cm ~520 x 269 x 220mm
Weight +-3kg ~38.2kg

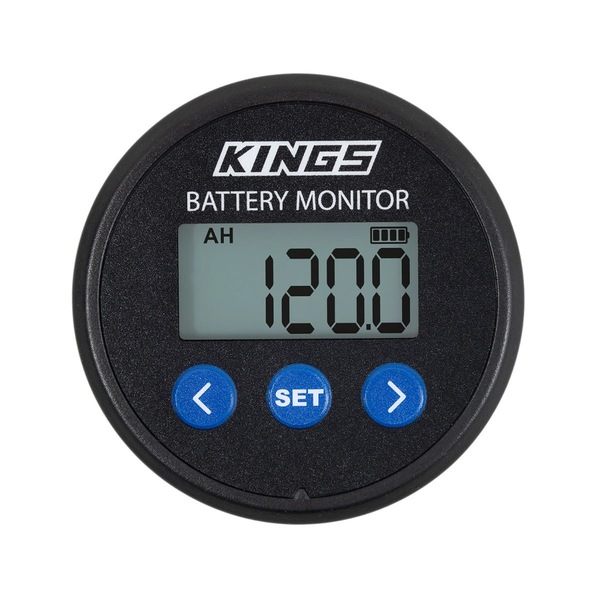

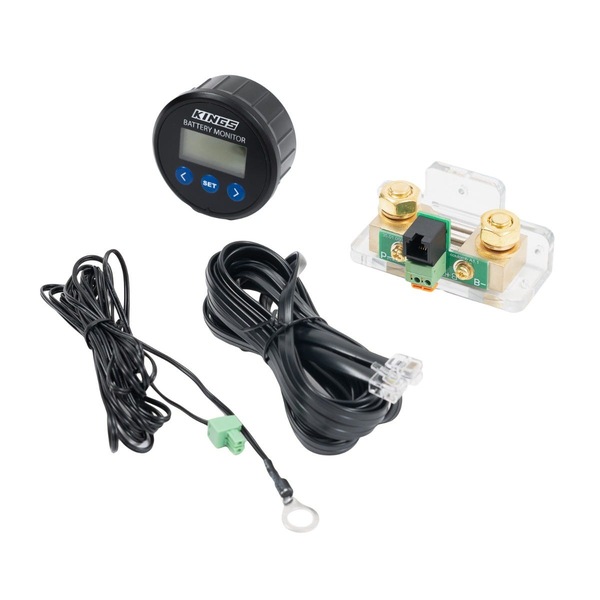

KINGS 500A BATTERY MONITOR WITH SHUNT

LITHIUM OR AGM COMPATIBLE  - 12V, 24V, 36V AND 48V SYSTEMS


Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm
Temperature Sensor Yes, 3m length

MPN: SC-CO-BATTMONS-BATLITH300
