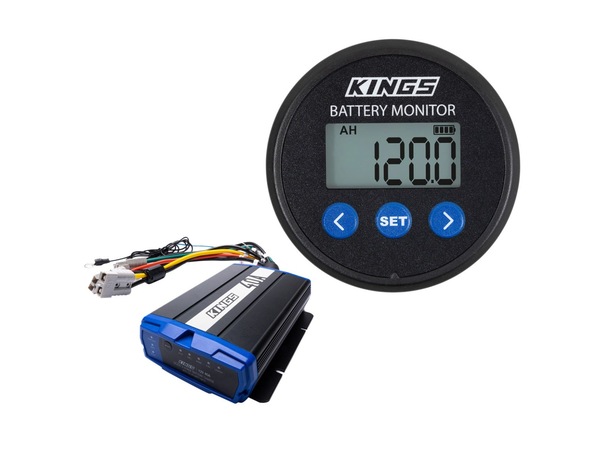

Kings 500A Battery Monitor with Shunt + 40A DCDC Charger

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$253.95

Collect 253 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

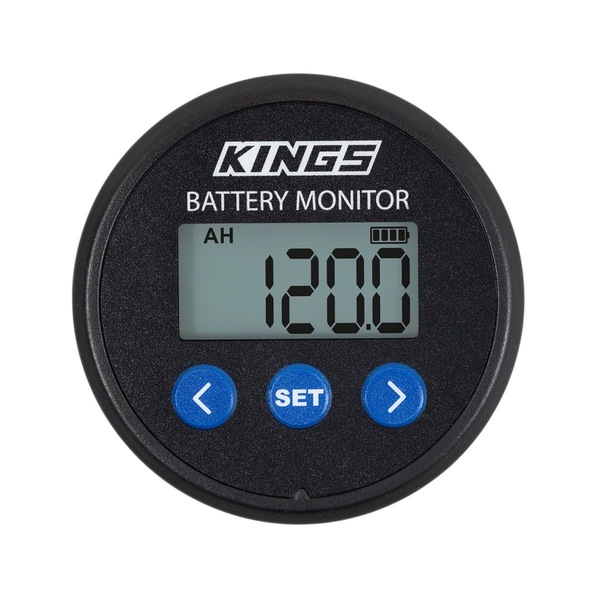

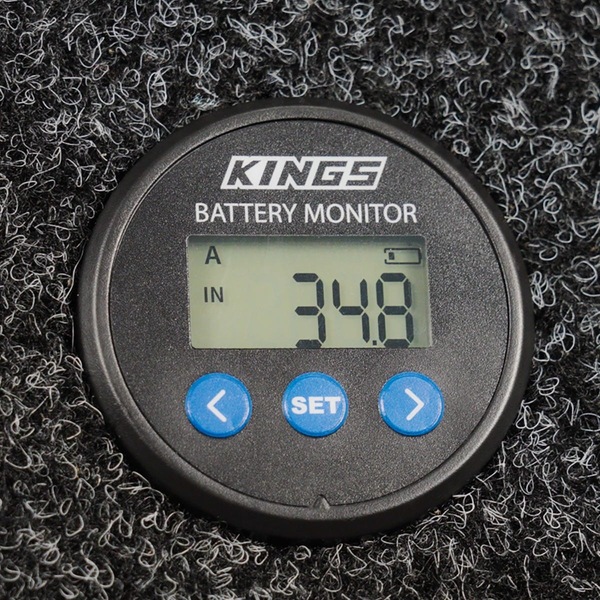

Backlit LCD Display so you can check your battery capacity at a glance. Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %

• Lithium or AGM, 12V or 24V Compatible. 500A Shunt and temperature sensor included

• Settable over/under-voltage, over-current and over-temperature alarms

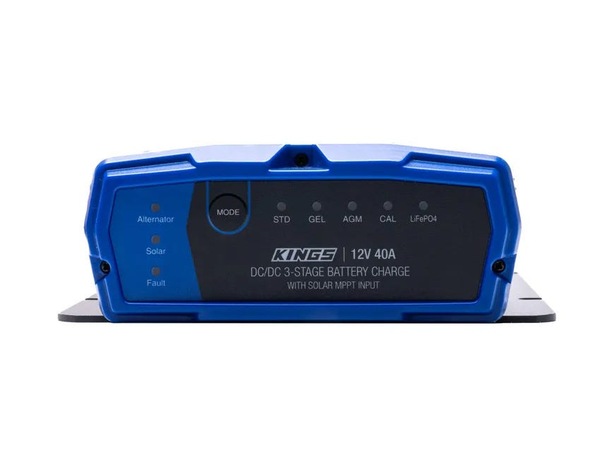

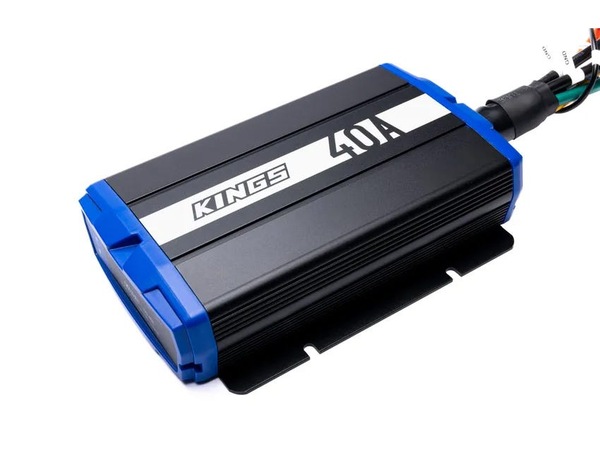

KINGS 40A DCDC CHARGER

Max. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start )
Solar Input Range 10 - 32V (Minimum 12V to start)
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 18V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C (automatic 5-stage current derating)
Dimensions (LxWxH) 191mm x 131mm x 47mm
Weight ~1.3kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes,
Housing Powder coated aluminium

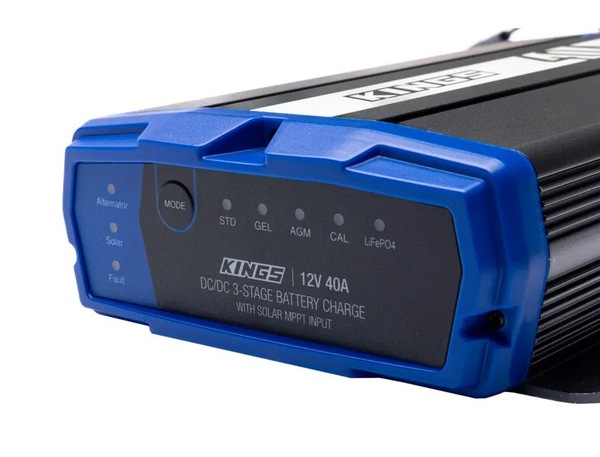

LED Indicator lights Yes – for connection, charging status and errors
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

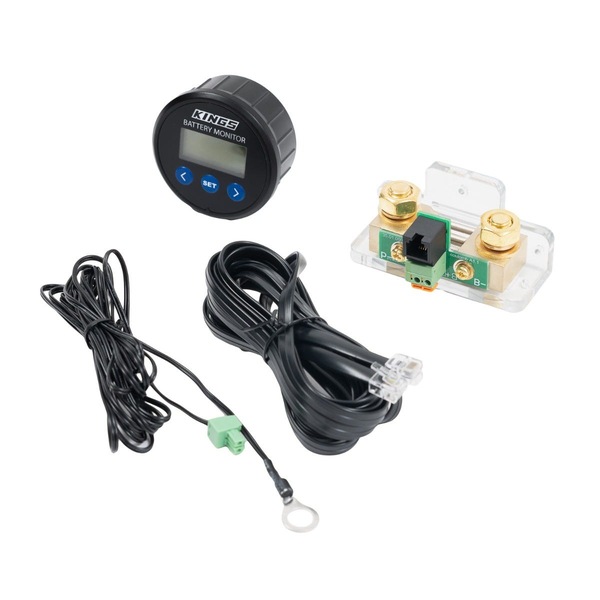

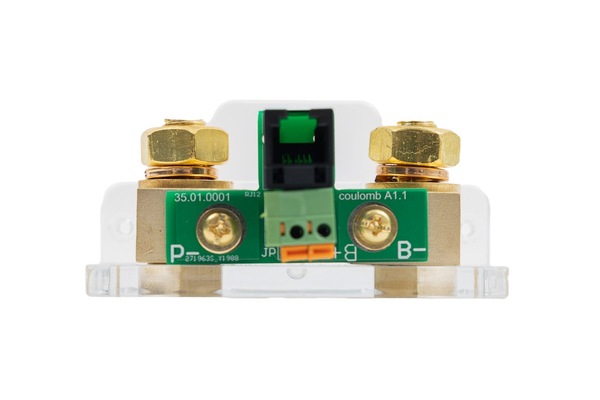

KINGS 500A BATTERY MONITOR WITH SHUNT

Lithium or AGM, 12V or 24V Compatible


Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm
Temperature Sensor Yes, 3m length

MPN: SC-CO-BATTMONS-DC40A
