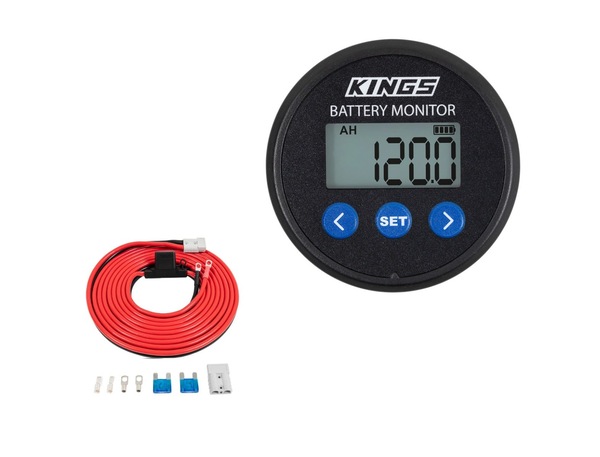

Kings 500A Battery Monitor with Shunt + 6 m 50A Wiring Kit 6 AWG

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$148

Collect 148 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

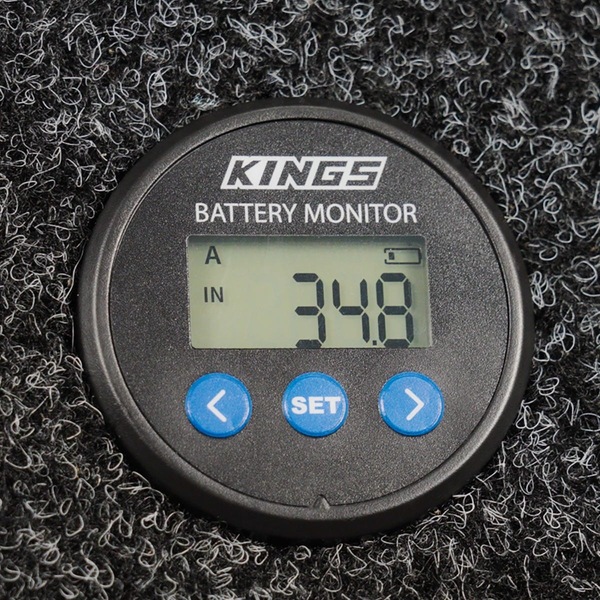

Backlit LCD Display so you can check your battery capacity at a glance. Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %

• Lithium or AGM, 12V or 24V Compatible. 500A Shunt and temperature sensor included

• Settable over/under-voltage, over-current and over-temperature alarms

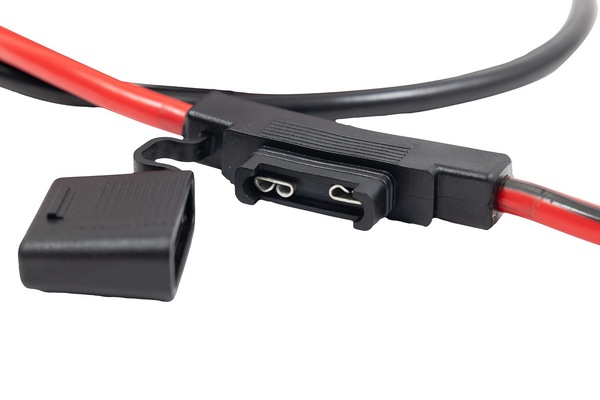

• Wiring with 6m of 6AWG twin-core wire allows for high current with low voltage drop. Pre-connected in-line fuse holder with 50A fuse

• M8 Eye terminal connections for easy wiring direct to battery terminals. Ideal for DIY dual battery setups or trailer power wiring

KINGS 500A BATTERY MONITOR WITH SHUNT

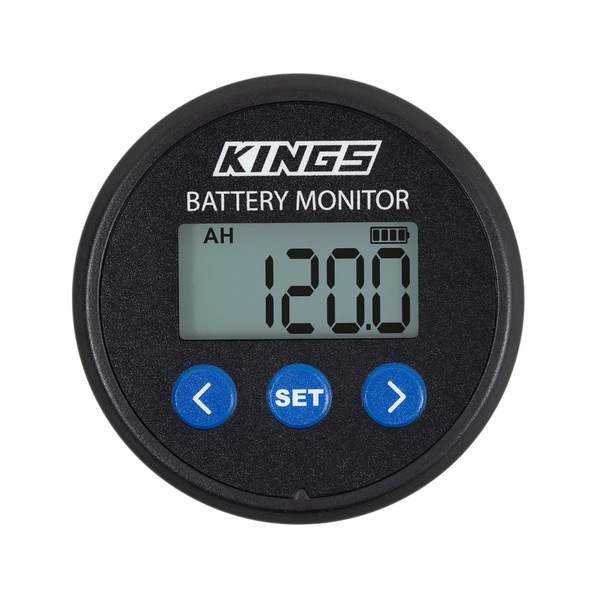

Backlit LCD Display so you can check your battery capacity at a glanceBacklit LCD Display so you can check your battery capacity at a glance
Lithium or AGM, 12V or 24V Compatible

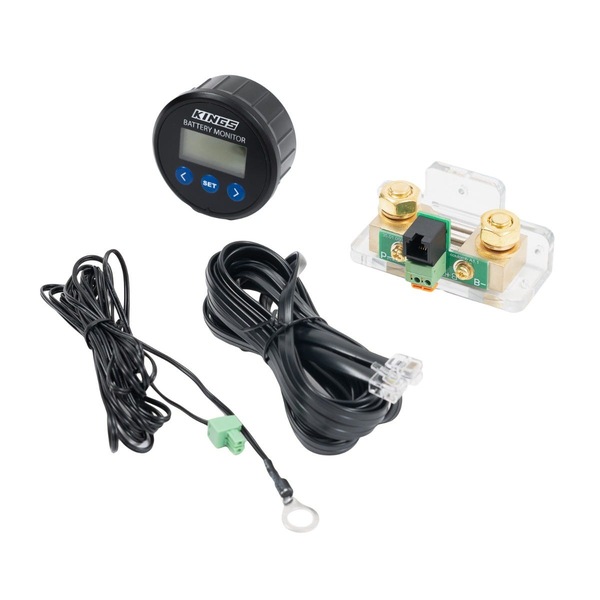

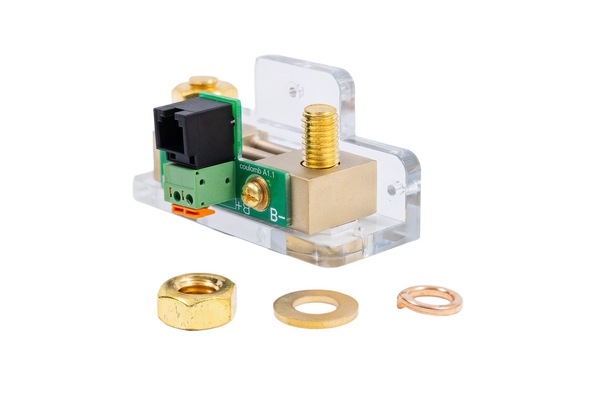

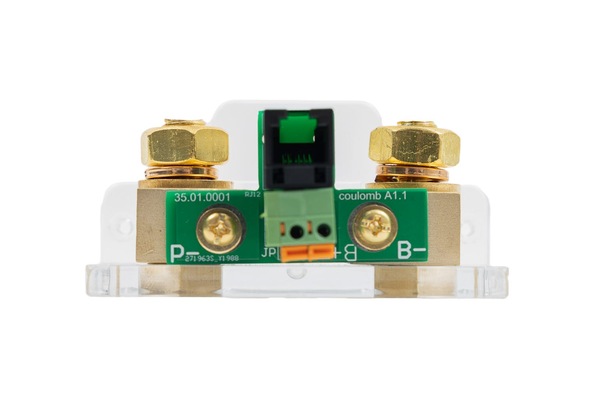

500A Shunt and temperature sensor included
Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %
Settable over/under-voltage, over-current and over-temperature alarms
Check battery voltage, charging/discharging current, power, temperature or battery capacity percentage.


Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm
Temperature Sensor Yes, 3m length








KINGS 50A WIRING KIT



The Adventure Kings 50A Wiring Kit is the easy way to run power from the front to the rear of your vehicle or connect up any accessories that require high power. It’s an all in one kit for running power to your draw bar, plus it’s the perfect base if you’re making a DIY 12V system. this kit has just abot everything you need to connect up to most DC-DC chargers. It’s the perfect base for a permanent 12V install.
Wire Length 6m
Wire gauge Twin Core 6 AWG (16mm2)

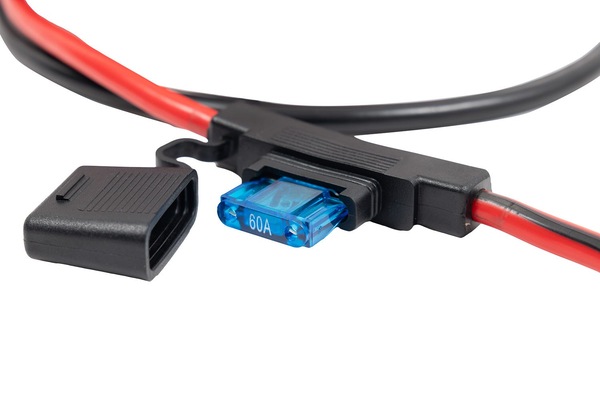

Fuse Type / Rating Maxi Blade Fuse / 60A

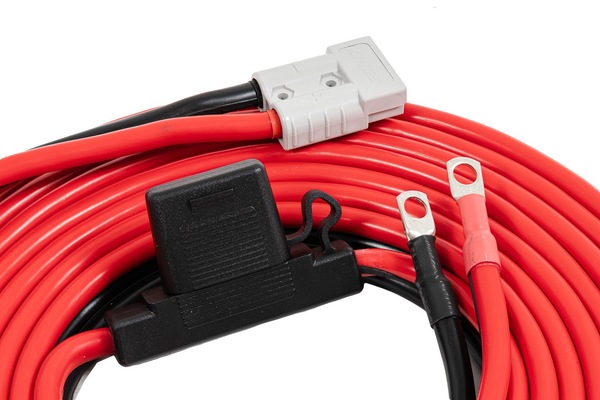

Fitted plug/ terminal types Pre-fitted anderson style plug and 8mm eye terminals

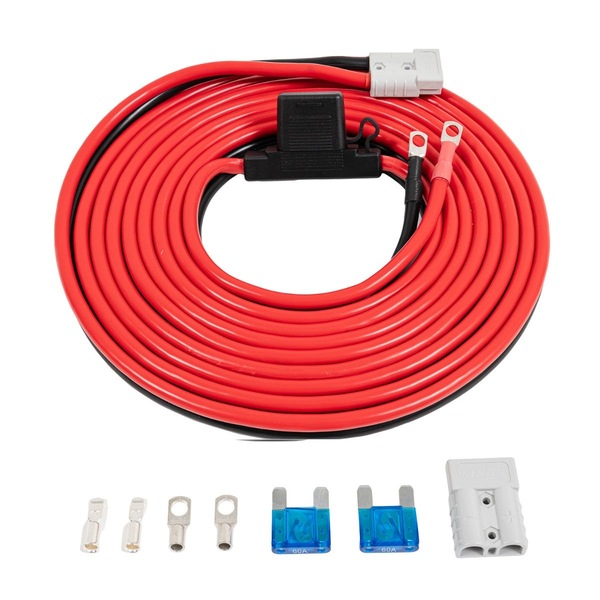

Extra terminals included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Spare Fuse included 2 x 60A maxi blade fuses

MPN: SC-CO-BATTMONS-WIRING50A
