Kings 500A Battery Monitor With Shunt - Lithium Compatible - Backlit LCD Display - 500A Shunt - Temperature Sensor

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
$89

Collect 89 Everyday Rewards points

Log in to MyDeal to link your card
$10.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

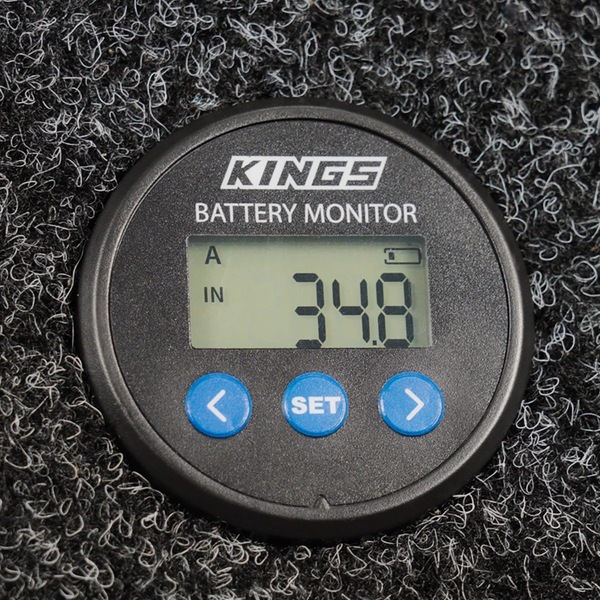

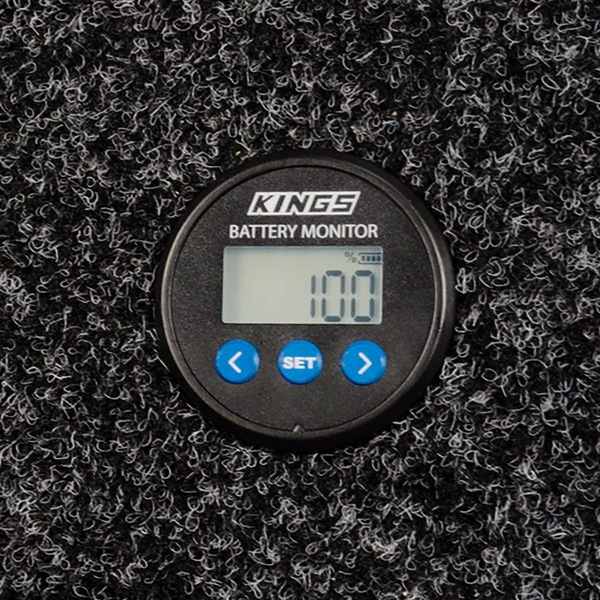

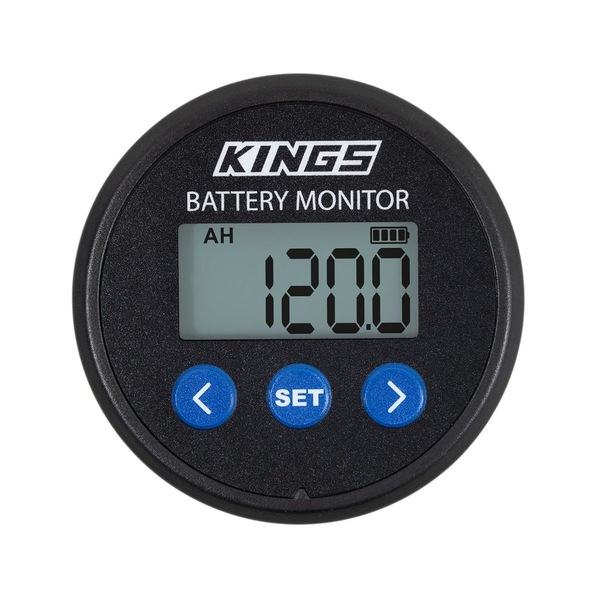

Backlit LCD Display so you can check your battery capacity at a glance

• Lithium or AGM, 12V or 24V Compatible

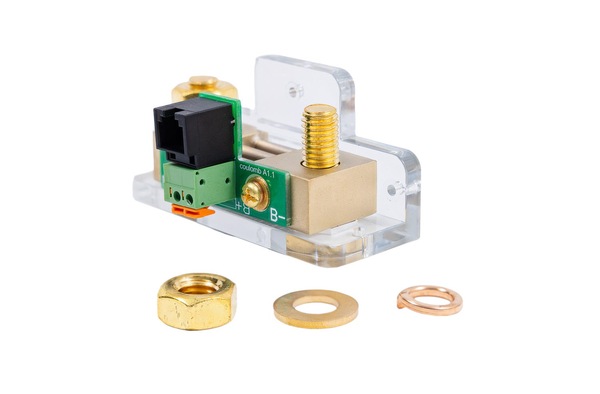

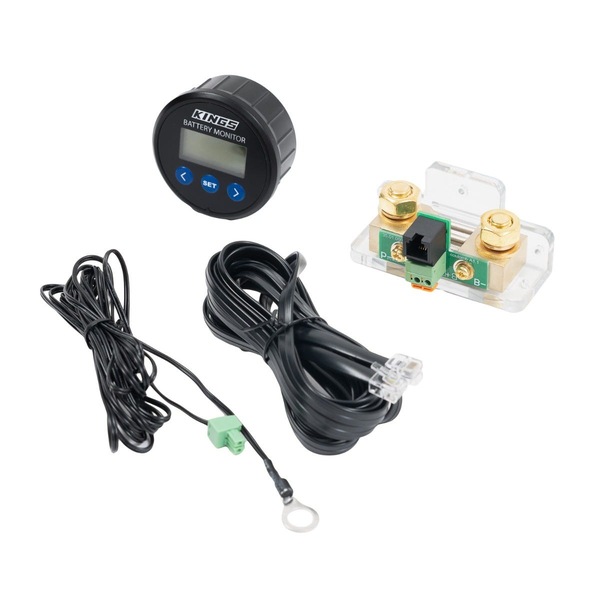

• 500A Shunt and temperature sensor included

• Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %

• Settable over/under-voltage, over-current and over-temperature alarms

Kings 500A Battery Monitor With ShuntKings 500A Battery Monitor With Shunt


Backlit LCD Display so you can check your battery capacity at a glanceBacklit LCD Display so you can check your battery capacity at a glance
Lithium or AGM, 12V or 24V Compatible
500A Shunt and temperature sensor included
Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %
Settable over/under-voltage, over-current and over-temperature alarms


Check battery voltage, charging/discharging current, power, temperature or battery capacity percentage.


Display your battery’s capacity whether it’s AGM, Flooded Lead Acid or Lithium - and regardless of whether it’s 12V or 24V.


With the included 500 Amp shunt, the Kings Battery Monitor can measure the power draw of 12V accessories up to ~6000W - so it’s ideal for inverters. It not only gives you a real-time read out of the power being used, but also the Amp hours that you’ve taken out of your battery and the estimated time until discharged or recharged.


You can program over/under-voltage, over-current or over-temperature alarms - helping to keep an eye on your electrical system in any conditions.



Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C

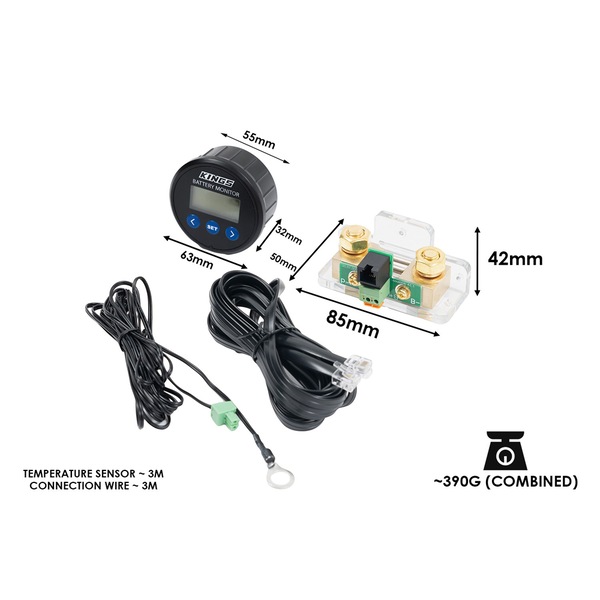

Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm
Temperature Sensor Yes, 3m length

GTIN: 660989704278
