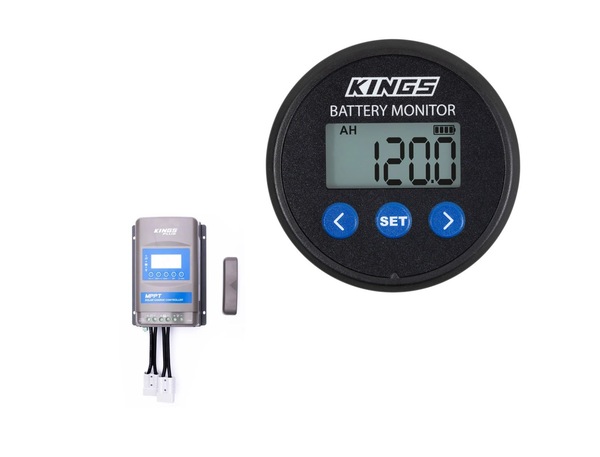

Kings 500A Battery Monitor with Shunt + Premium MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$163.95

Collect 163 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
Backlit LCD Display so you can check your battery capacity at a glance. Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %

• Lithium or AGM, 12V or 24V Compatible. 500A Shunt and temperature sensor included

• Settable over/under-voltage, over-current and over-temperature alarms

• standalone solar regulator for your 12V or 24V system. push-button switching between Lithium, Sealed (AGM), Gel and Flooded charge profiles

• 20A charge rating! Accepts up to 390W of solar on 12V Systems . digital display shows real-time amps, volts, watts and battery capacity percentage. Includes 2 x 50A Kings Quick-Connect plugs plus plug-in temperature sensor

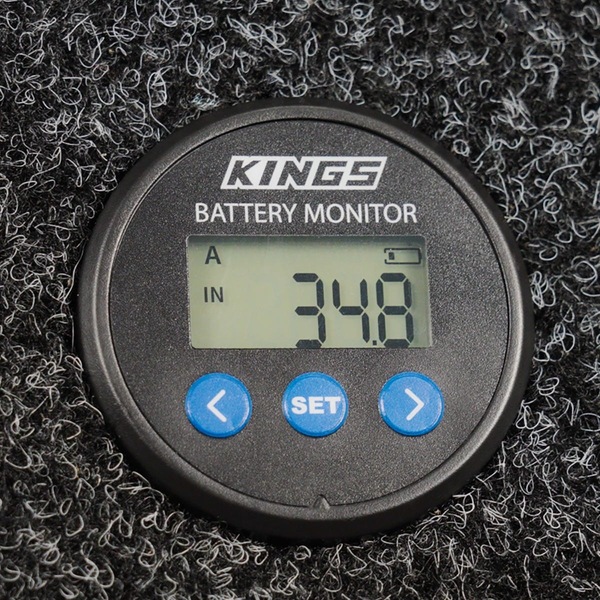

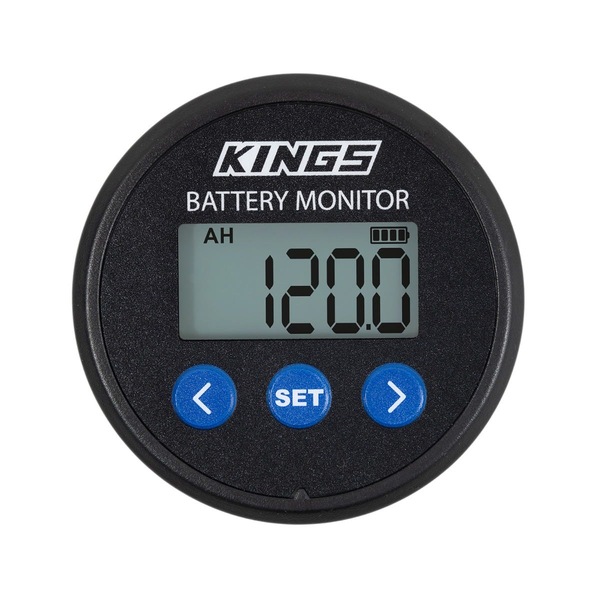

KINGS 500A BATTERY MONITOR WITH SHUNT


Backlit LCD Display so you can check your battery capacity at a glanceBacklit LCD Display so you can check your battery capacity at a glance
Lithium or AGM, 12V or 24V Compatible

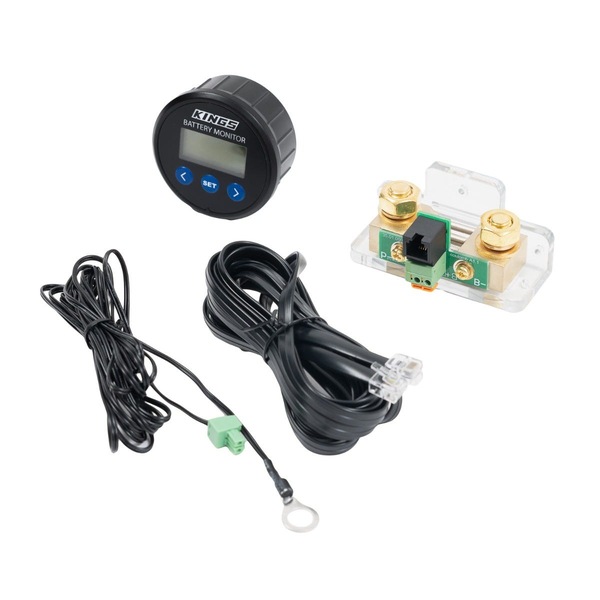

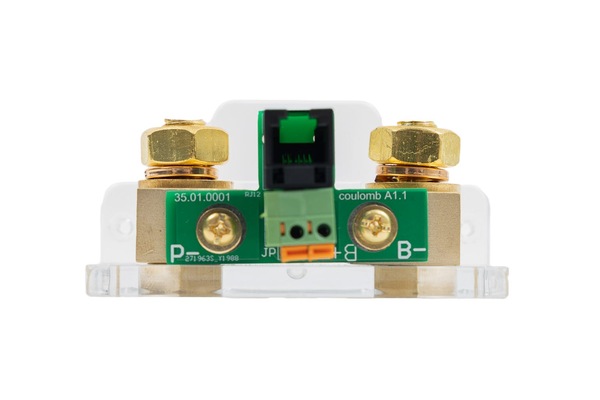

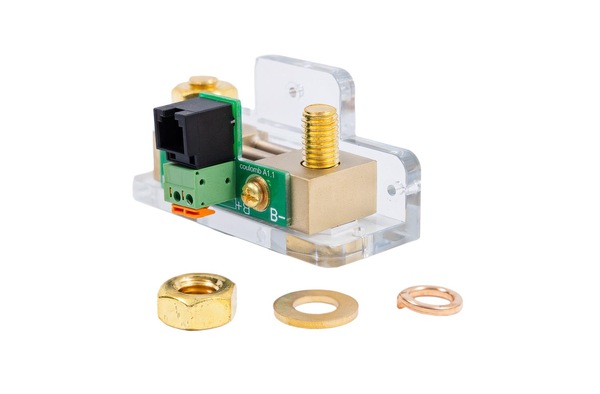

500A Shunt and temperature sensor included
Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %
Settable over/under-voltage, over-current and over-temperature alarms
Check battery voltage, charging/discharging current, power, temperature or battery capacity percentage.


Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm
Temperature Sensor Yes, 3m length

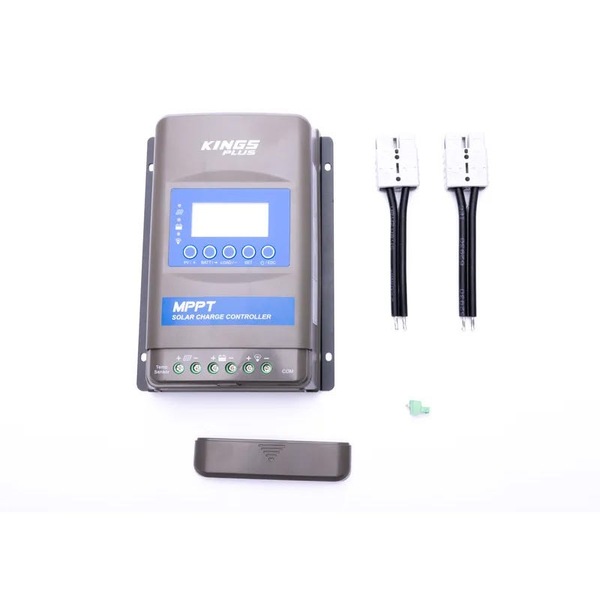

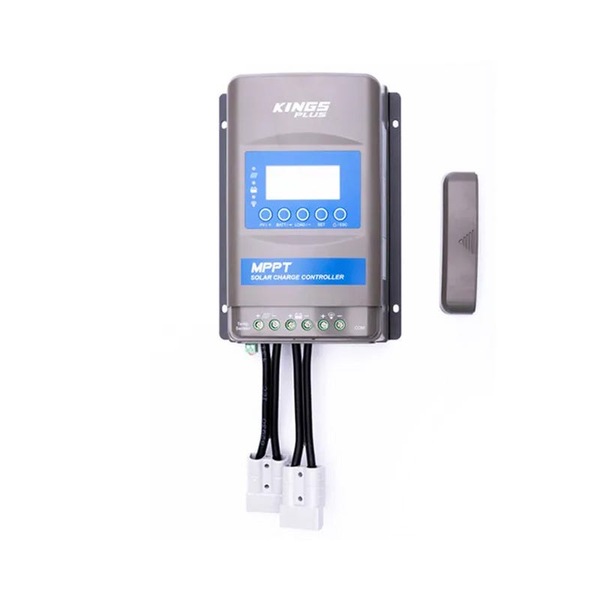

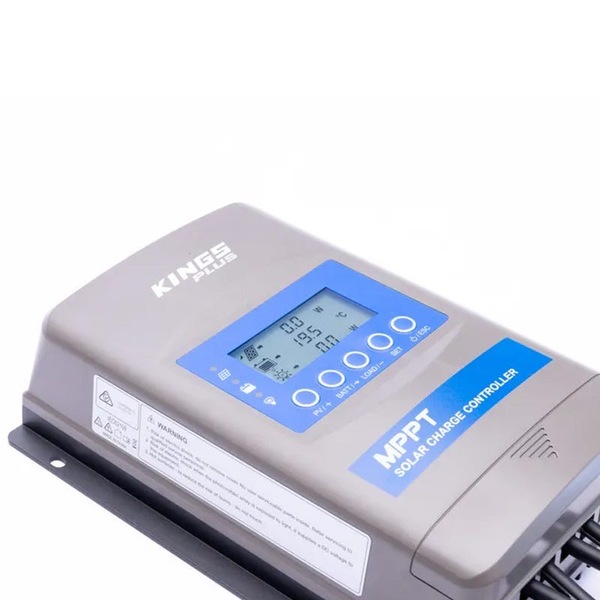

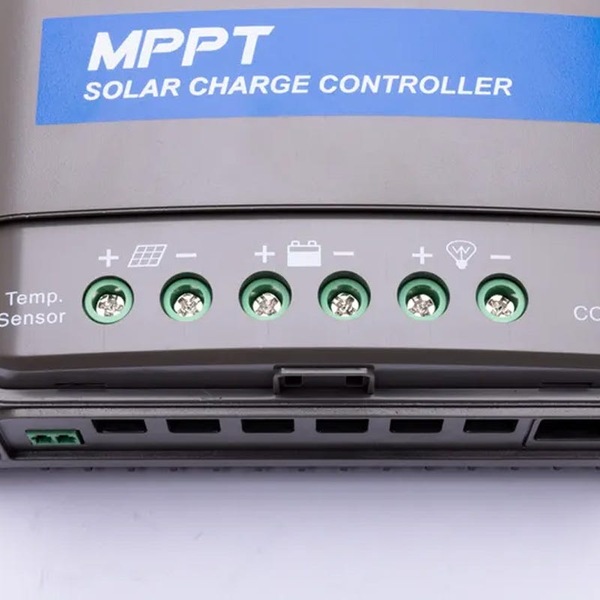

KINGS PLUS PREMIUM 20A MPPT SOLAR REGULATOR




AGM And Lithium Compatible (12V/24V) Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Wire Specification 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings

MPN: SC-CO-BATTMONS-PMPPTREG
