Kings 50A Wiring Kit 6 m 6AWG 16mm2 + 6m Solar Extension Lead 2.5mm2 Copper

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
$108.95

Collect 108 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

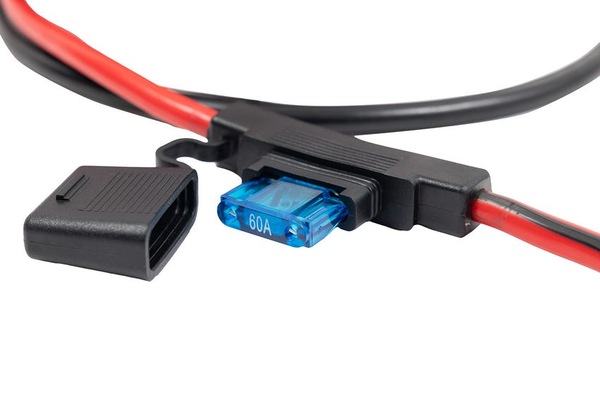

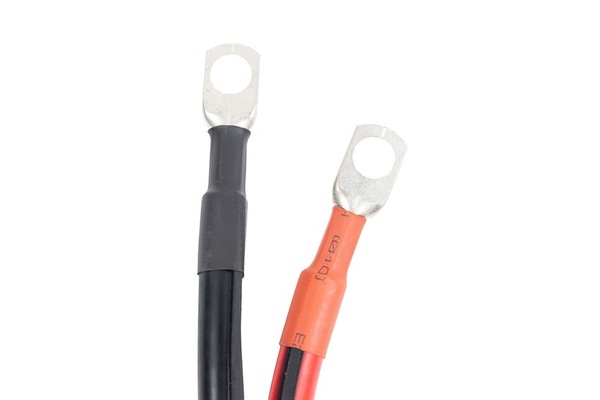

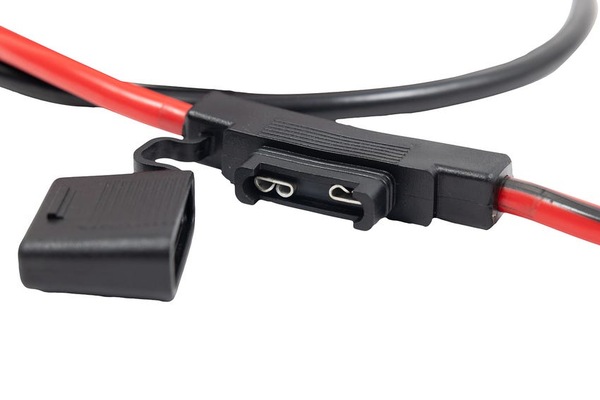

50A Wiring Kit - a cost-effective way to wire up a DCDC Charger, a dual battery OR get power down to your towbar for your caravan or camper trailer. The Kings 50A Wiring Kit perfectly suits the Kings 40A DC-DC Charger and measures in at a thumping six metres long. Built with 16mm2, 6AWG twin-core wiring, to minimise voltage drop. pre-terminated with 8mm ring terminals on one end to suit all sizes of Kings lithium and AGM batteries, and an in-line maxi blade fuse holder with two 60A fuses.

• The perfect partner for your portable solar blankets or panels, the 6 metre cable length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.

KINGS 50A WIRING KIT

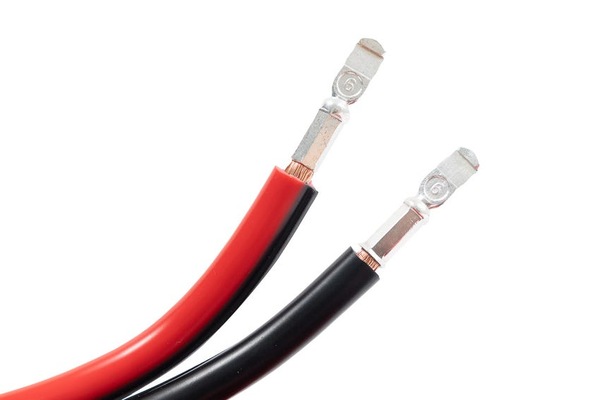

Wire up a DC Charger, a dual battery or, get power to your 12v control box or from your solar panel - the Adventure Kings 50A Wiring Kit! Six metres long it’s built with 16mm2, 6AWG twin-core wiring.The Kings 50A Wiring Kit comes pre-terminated with 8mm ring terminals on one end to suit all sizes of Kings lithium and AGM batteries, and an in-line maxi blade fuse holder with two 60A fuses The other end of the cable is pre-terminated with Anderson-style quick connect plug terminals.


Kings 50A Wiring Kit
Wire Length 6 Metres
Wire Gauge Twin Core 6AWG / 16mm2
Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted Plug / Terminal Types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals

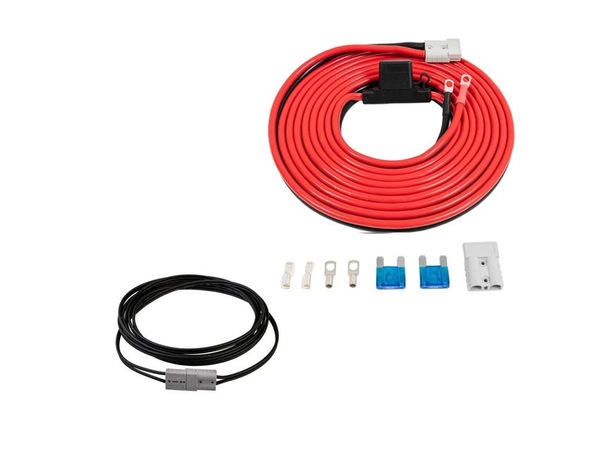

Extra Terminals Included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Included Fuses 2 x 60A maxi blade fuses

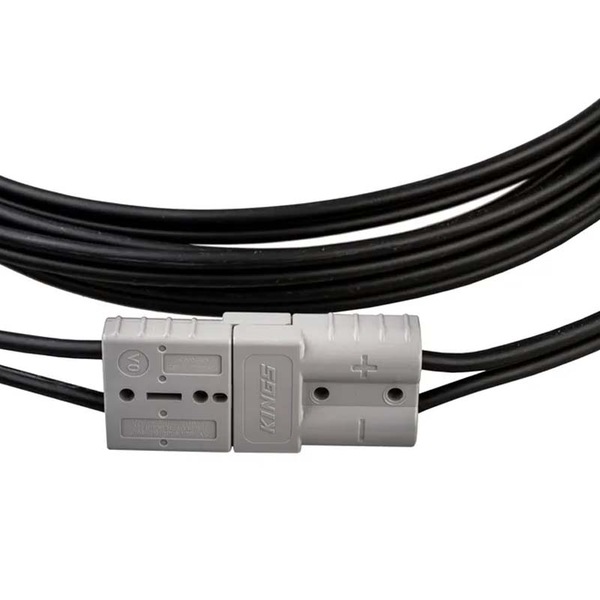

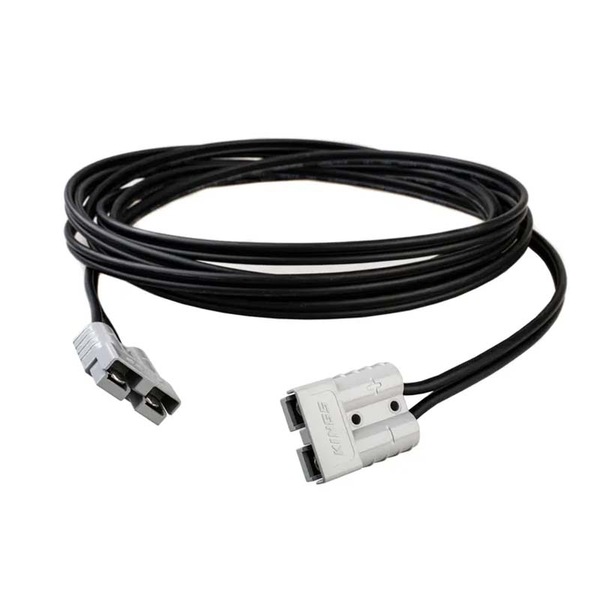

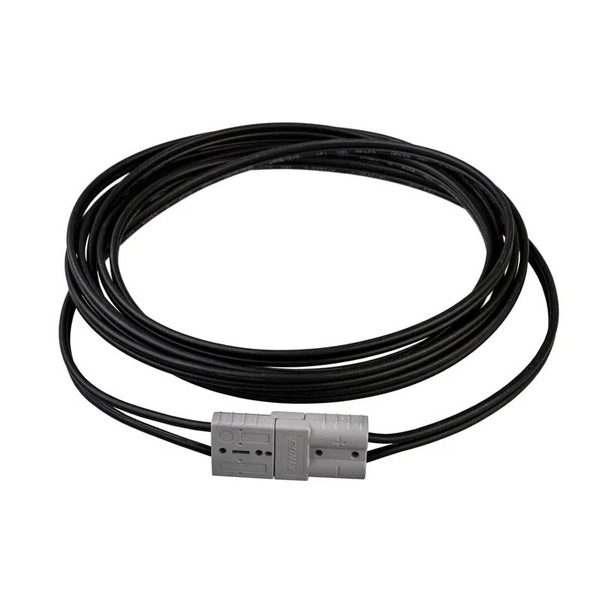

ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
2.5MM2 HIGH QUALITY COPPER | HEAVY DUTY


Allows you to camp in the cool shade and still set up your solar in full sun.


Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too


Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

MPN: SC-CO-WIRING50A-6MLEAD
