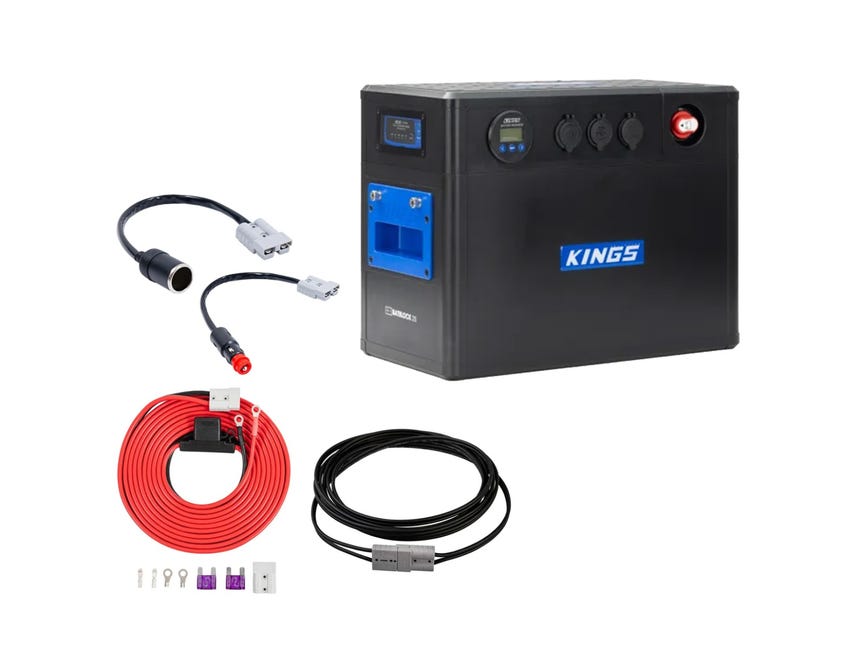

Kings BatBlock25 + Wiring Value Pack 6m lead+ 25A wiring kit +Anderson Cig plug

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$498.80

Collect 498 Everyday Rewards points

Log in to MyDeal to link your card
$30.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

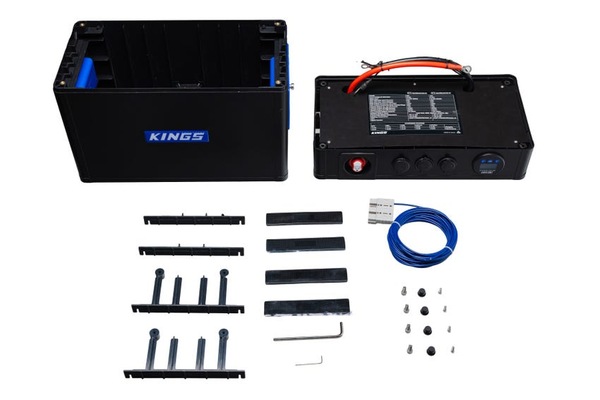

12 Volt made easy, just add a battery ( Suits Lithium and AGM batteries ) Includes 25A DC DC charger, Digital battery monitor. 1x solar input + 1x triple quick connect plug. Output - 4x USB charging ports + 1x cig socket, 2x Quick connect outputs. Inverter ready terminals. To make charging on the go easier - the BatBlock includes a Triple Quick Connect Anderson-Style Plug with 7m of wire to connect to modern vehicles. Add a 25A or 50A Wiring Kit to turn Batblock into a dual battery system.

• The perfect partner for your portable solar blankets or panels, the 6 metre cable length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.

• The Kings 25A DC Wiring Kit suits the Kings 25A DC Charger and measures six metres long, which gives you the length you need to reach from your starter battery right to the rear of your vehicle. 8mm2, 8AWG twin-core wiring, to minimise the voltage drop. Comes pre-terminated with 8mm ring terminals on one end to suit all sizes of Kings lithium and AGM batteries, and an in-line maxi blade fuse holder with two 35A fuses.The other end is terminated with Anderson-style quick connect plugs.

• The Kings Quick-Connect to Cig Socket Adapter is perfect for adding an additional 12v cig-style socket to any Quick-Connect Anderson-style connector. It’s perfect for adding to the Kings Battery Boxes and Compact Control Box, and gives you the ability to run a second cig-plug powered bit of camping gear, like an additional camp light kit to really brighten up your campsite! Or, grab the USB charger from your car and you’ve got extra ability to charge phones, speakers and tablets all at once.

• The Kings Quick-Connect to Cig Plug Adapter is perfect for setups where you have an available cig socket, but need a Quick-Connect Anderson-style plug - like running a 12v Adventure Oven, or the Kings Drawer or Upright Fridges without the need to hard-wire a quick-connect plug into your vehicle. 1 x adapter with a Quick-Connect Anderson-style connector on one end, and a 12v cig-socket style plug on the other

BATBLOCK25

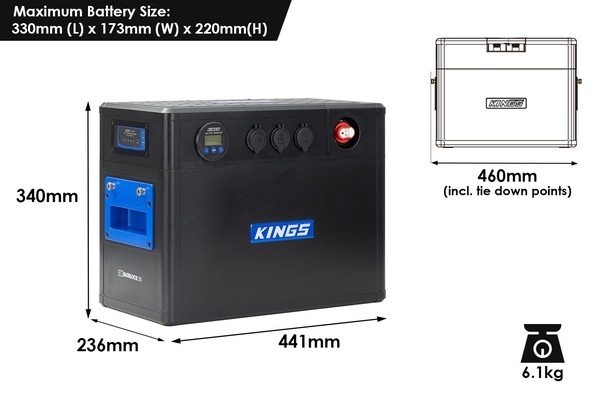

Max. Battery Size 330 x 173 x 220 mm
Max. DCDC Charging Current 25A
MPPT Solar Input Range 10 - 32V
Compatible Battery Types Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Shunt - 500A rated

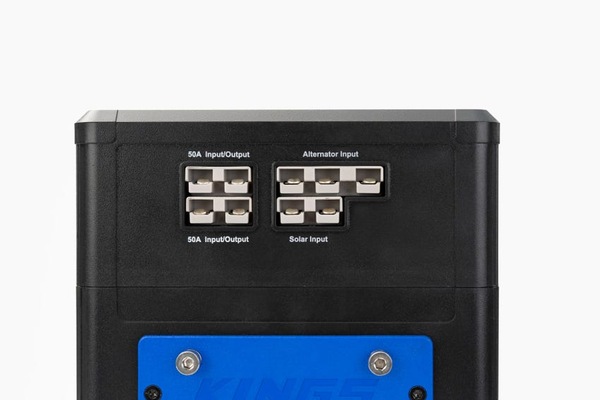

Input / Output 2x 50A Combined rating quick connect plugs (input/output), 120A rated M8 threaded terminals
Inputs 1x Quick connect solar input 1x triple quick connect alternator input

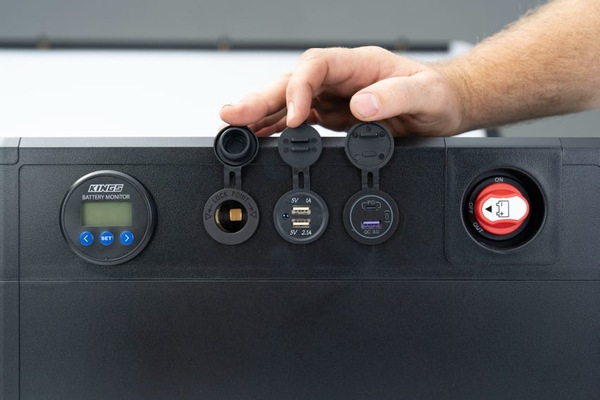

Outputs 1x 12V cig socket, 2x USB A, 1x USB QC, 1x USB C PD
Isolator Switch YES - with 200A fuse
Case Material Reinforced ABS
Weight 6.1kg
Dimensions 441 x 236 x 340 mm

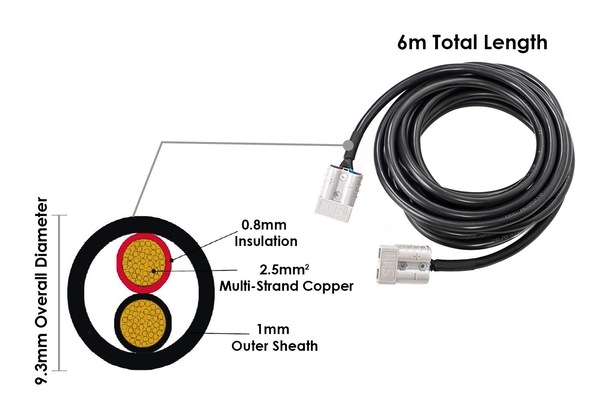

6M SOLAR EXTENSION LEAD


Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

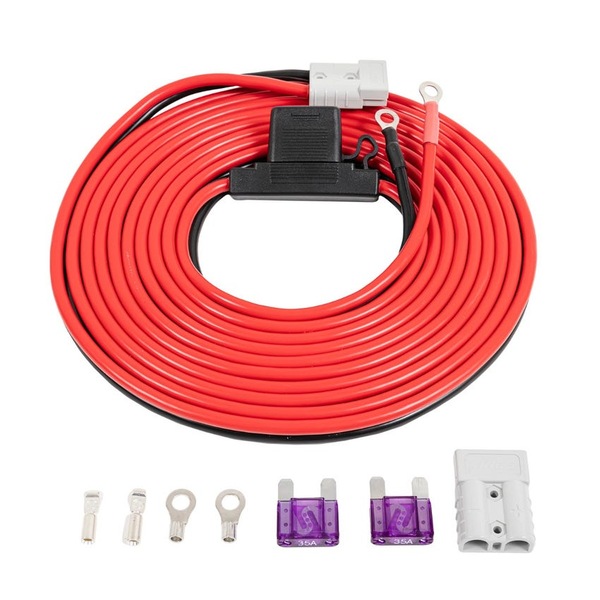

25A WIRING KIT



Wire Length 6 Metres
Wire Gauge Twin Core 8AWG / 8mm2
Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted Plug / Terminal Types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals
Extra Terminals Included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Included Fuses 2 x 35A maxi blade fuses

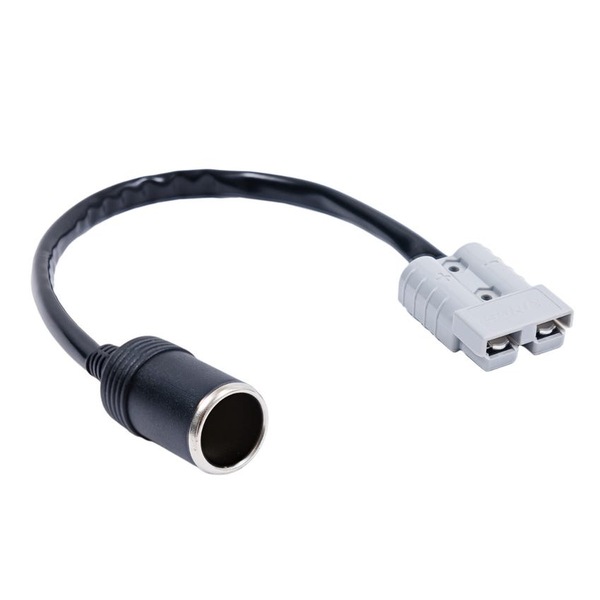

Quick-Connect to Cigarette Socket Adapter


Connections Quick-Connect (50A Anderson-style) to 12v Female Cig Socket


Length 30cm

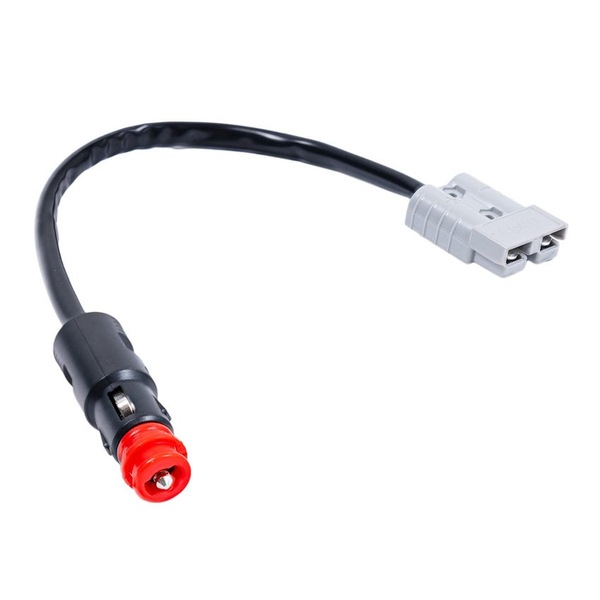

Quick-Connect to Cigarette Plug Adapter






• Connections  Quick-Connect (50A Anderson-style) to 12v Male Cig Plug
•Length 30cm
•Internal Fuse 15A

MPN: SC-CO-BATBLOCK25WIRINGPACK
