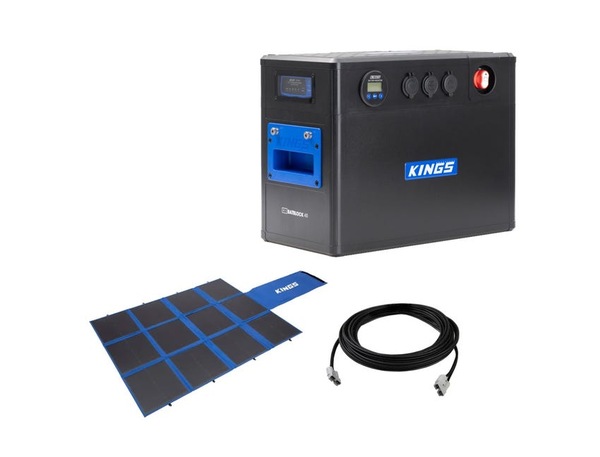

Kings BatBlock40 - 12V Plug and Play Battery Box + 360W Folding Solar Blanket + 12m Extension Lead

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$787.95

Collect 787 Everyday Rewards points

Log in to MyDeal to link your card
$35.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
keep your devices charged wherever you go. Designed with portability in mind, its lightweight and compact design makes it easy to transport and store without sacrificing power. Whether you're camping, traveling, or setting up a remote power system. It features ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film

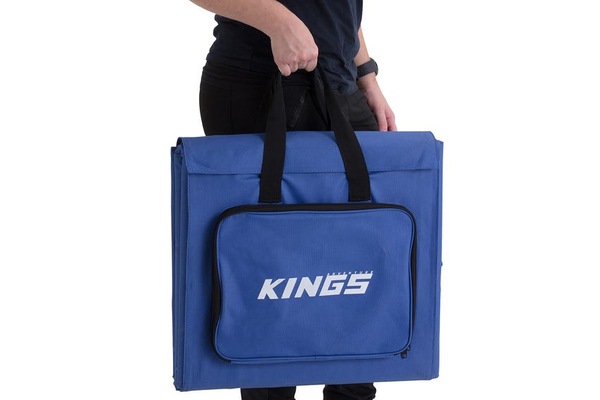

• 2.34m² surface area and thoroughly tested using our in-house solar simulator to meet industry standards. The 360W Solar blanket measures a generous 165cm long by 142cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 9cm with an inbuilt wrap-around cover, meaning it will fit just about anywhere in the back of your 4WD.

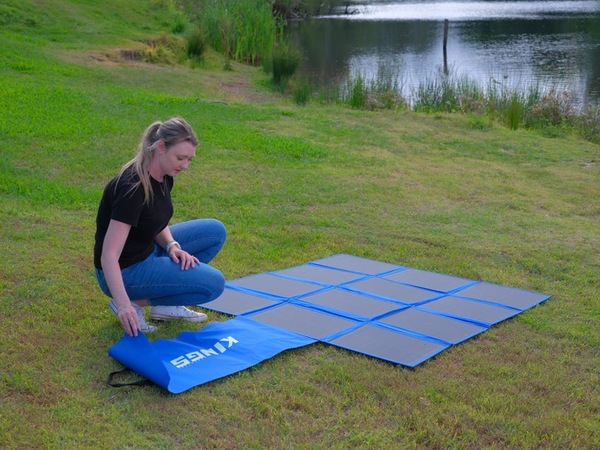

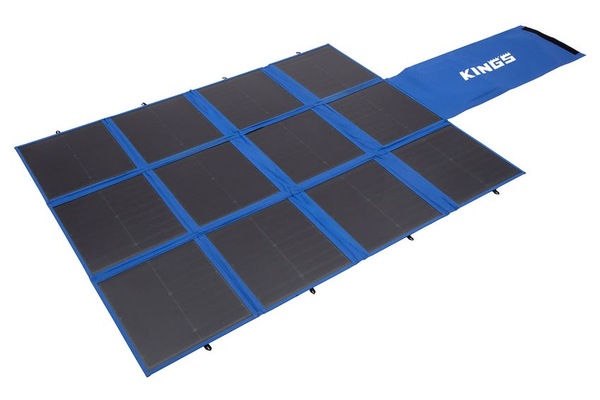

360W FOLDING SOLAR BLANKET





Power Tolerance +/- 5%


VOC (Open Circuit Voltage) 24.147V
ISC (Short Circuit Current) 18.85A
IMP (Maximum Power Current) 16.71A
VMP (Voltage at Maximum Power) 21.60V
ISC Temperature Coefficient 0.05%/°C
Pmax Temp Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5

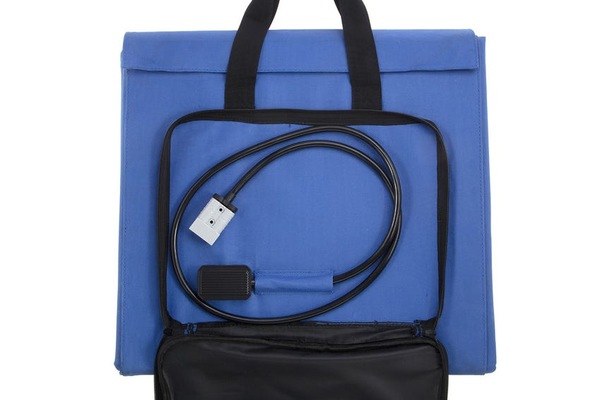

Kings Quick Connect (Anderson Style) Plug
Open 165 x 142 x 0.75cm
Folded 44 x 46 x 9cm
Weight 9.6kg

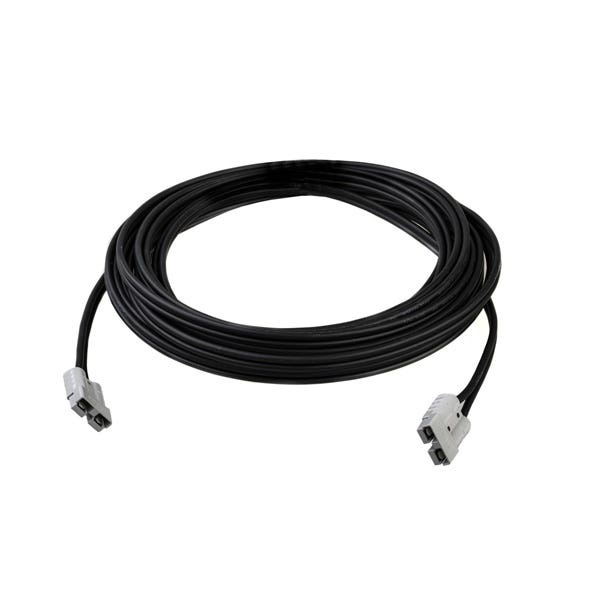

12m SOLAR LEAD



Conductor Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Section (each wire) 6mm2
Insulation 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Max Current 20A
Plug Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug UL94-V0 Flame Resistant Thermoplastic
Connector Copper
Maximum Rated Voltage DC 1500V

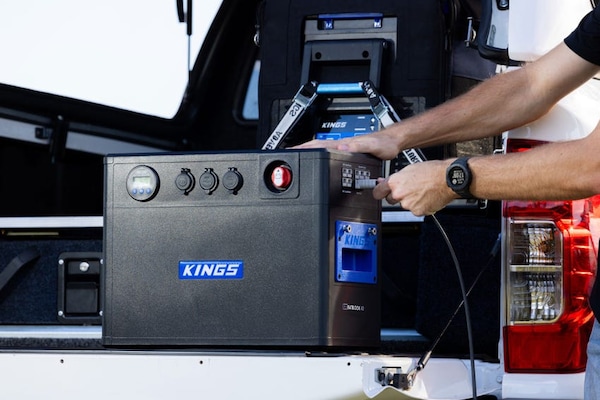

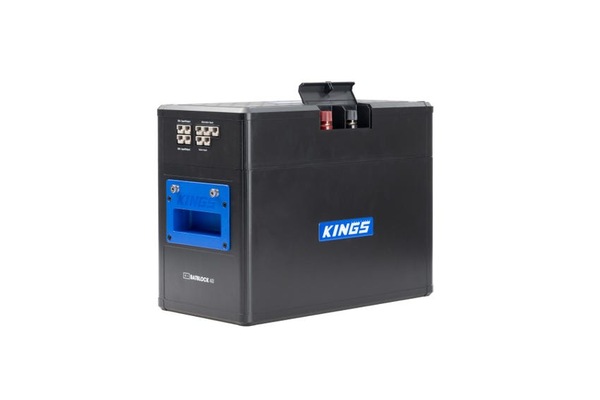

KINGS BATBLOCK40





Add a 12V battery and you have a ready-to-use solution to power your gear.


Max. Supported Battery Size 330 x 173 x 220 mm
Max. Continuous DCDC Charging Current 40A
MPPT Solar Input Range 10 - 32V
Compatible Battery Types Lithium (LiFePO4), AGM, wet lead acid, gel, calcium with push button selection

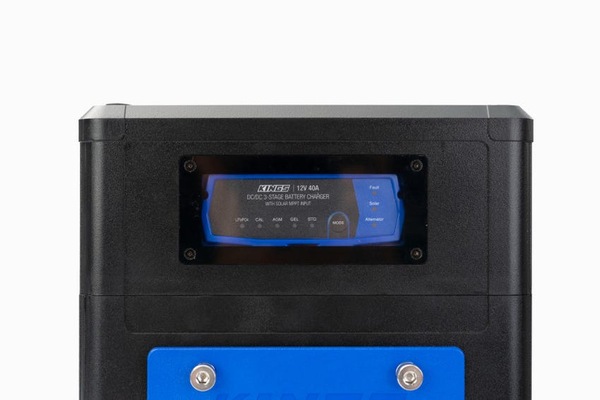

Battery Monitor Display YES - Backlit LCD (V, A, W, Ah, H, °C, %)
Shunt YES - 500A rated
Input / Output 2x 50A Combined rating quick connect plugs (input/output), 120A rated M8 threaded terminals
Inputs 1x Quick connect solar input 1x triple quick connect alternator input
Outputs 1x 12V cig socket, 2x USB A, 1x USB QC, 1x USB C PD
Isolator Switch YES - with 200A fuse
Tie Down Points- 4x M8 removable shoulder bolts
Case Reinforced ABS
Weight 6.4kg
Dimensions 441 x 236 x 340 mm (460mm length incl. tie down)


Note:  Battery not included

MPN: SC-CO-BATBLOCK40-360W-12MLEAD
