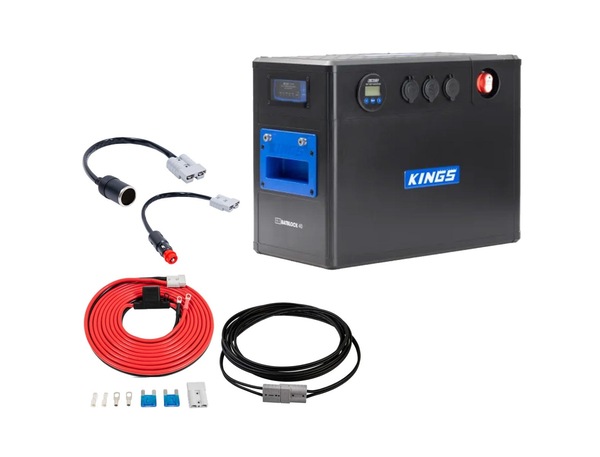

Kings BatBlock40 + Wiring Value Pack 6m lead+ 50A wiring kit +Anderson Cig plug

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$613.80

Collect 613 Everyday Rewards points

Log in to MyDeal to link your card
$30.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The BatBlock40 comes with a pre-wired 40A DCDC charger, it makes charging incredibly easy from your vehicle or solar panels! Featuring two 50A quick-connect plugs, a 12V Cig Socket, two standard USB A sockets and a USB QC3.0 and USB C outlet, you can run your portable fridge, camp lighting and 12V oven or charge your USB devices. It has inverter-ready terminals rated for up to 120 Amps of current. Its perfectly suited to add a Deep Cycle Lithium or AGM batteries up to 120Ah

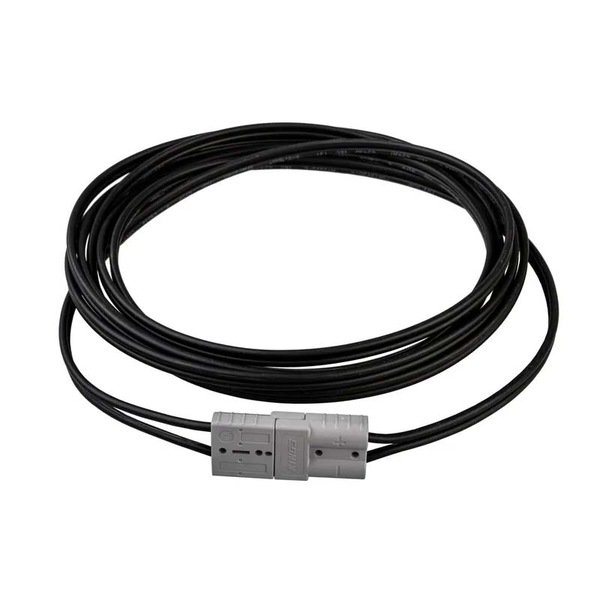

• The perfect partner for your portable solar blankets or panels, the 6 metre cable length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.

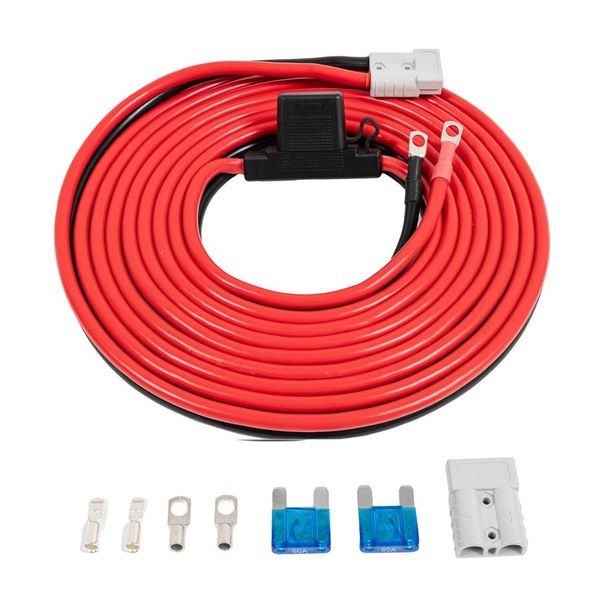

• 50A Wiring Kit - a cost-effective way to wire up a DCDC Charger, a dual battery OR get power down to your towbar for your caravan or camper trailer. The Kings 50A Wiring Kit perfectly suits the Kings 40A DC-DC Charger and measures in at a thumping six metres long. Built with 16mm2, 6AWG twin-core wiring, to minimise voltage drop. pre-terminated with 8mm ring terminals on one end to suit all sizes of Kings lithium and AGM batteries, and an in-line maxi blade fuse holder with two 60A fuses.

• Quick-Connect to Cig Socket Adapter is perfect for adding a 12v cig-style socket to any Quick-Connect Anderson-style connector. It’s perfect for adding to the Kings Battery Boxes and Compact Control Box, so you can run a second cig-plug powered camping gear, like an additional camp light kit! Or, grab the USB charger from your car and you can charge phones, speakers and tablets.1 x adapter with a Quick-Connect Anderson-style connector on one end, and a 12v cig-socket style plug on the other.

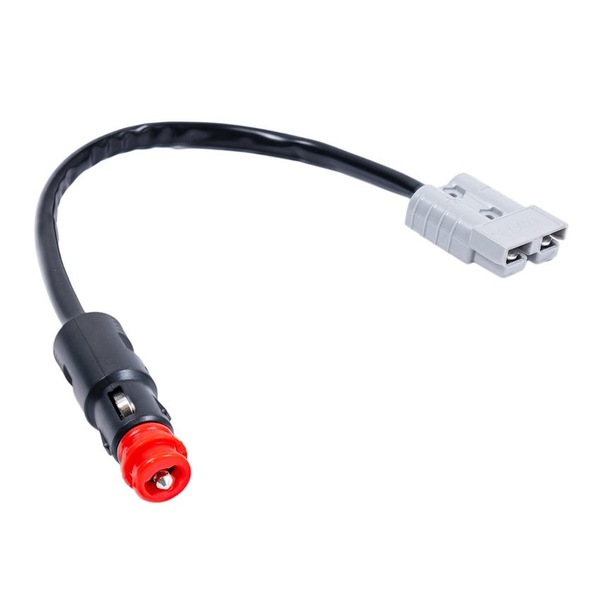

• The Kings Quick-Connect to Cig Plug Adapter is perfect for setups where you have an available cig socket, but need a Quick-Connect Anderson-style plug - like running a 12v Adventure Oven, or the Kings Drawer or Upright Fridges without the need to hard-wire a quick-connect plug into your vehicle. 1 x adapter with a Quick-Connect Anderson-style connector on one end, and a 12v cig-socket style plug on the other

BATBLOCK40





Max. Supported Battery Size 330 x 173 x 220 mm
Max. DCDC Charging Current 40A
MPPT Solar Input Range 10 - 32V
Compatible Battery Types Lithium (LiFePO4), AGM, wet lead acid, gel, calcium with push button selection
Battery Monitor Display YES - Backlit LCD (V, A, W, Ah, H, °C, %)
Shunt YES - 500A rated
Input / Output 2x 50A Combined rating quick connect plugs (input/output), 120A rated M8 threaded terminals
Inputs 1x Quick connect solar input 1x triple quick connect alternator input
Outputs 1x 12V cig socket, 2x USB A, 1x USB QC, 1x USB C PD
Isolator Switch - with 200A fuse
Case Material Reinforced ABS
Weight 6.4kg
Dimensions 441 x 236 x 340 mm





6M SOLAR EXTENSION LEAD


Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Rating 50A
Connector Material Copper
Maximum Rated Voltage 300V



50A WIRING KIT


Kings 50A Wiring Kit
Wire Length 6 Metres
Wire Gauge Twin Core 6AWG / 16mm2
Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted Plug / Terminal Types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals
Extra Terminals Included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2

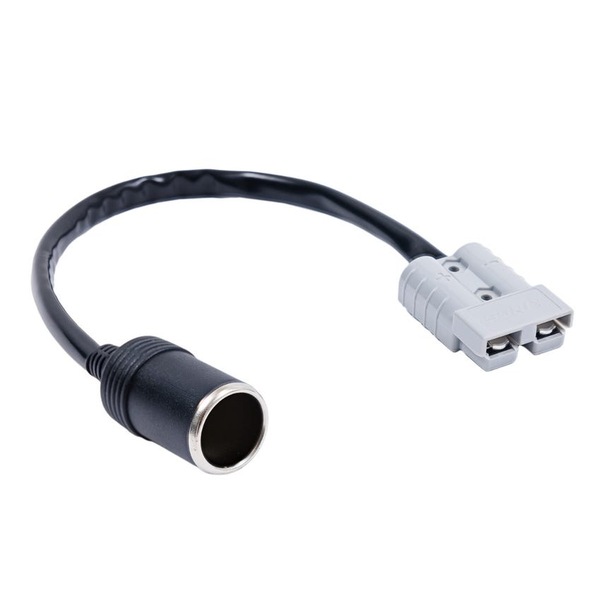

Quick-Connect to Cigarette Socket Adapter


30cm in length





Connections Quick-Connect (50A Anderson-style) to 12v Female Cig Socket


Length 30cm





Quick-Connect to Cigarette Plug Adapter



• Connections  Quick-Connect (50A Anderson-style) to 12v Male Cig Plug
•Length 30cm
•Internal Fuse 15A

MPN: SC-CO-BATBLOCK40WIRINGPACK
