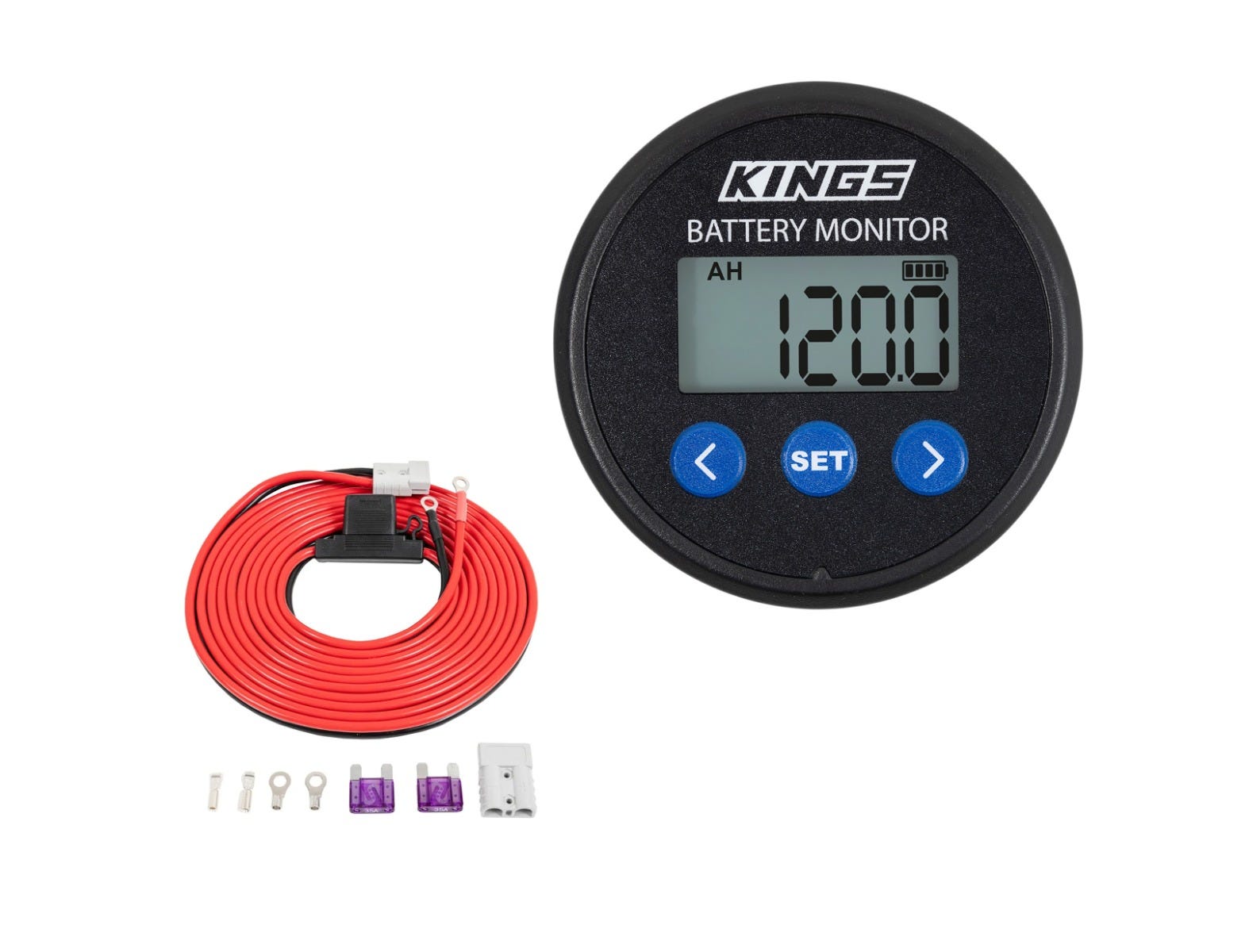

Kings Battery Monitor with Shunt + 25A Wiring Kit for DC chargers trailers

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$77.45

Collect 77 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

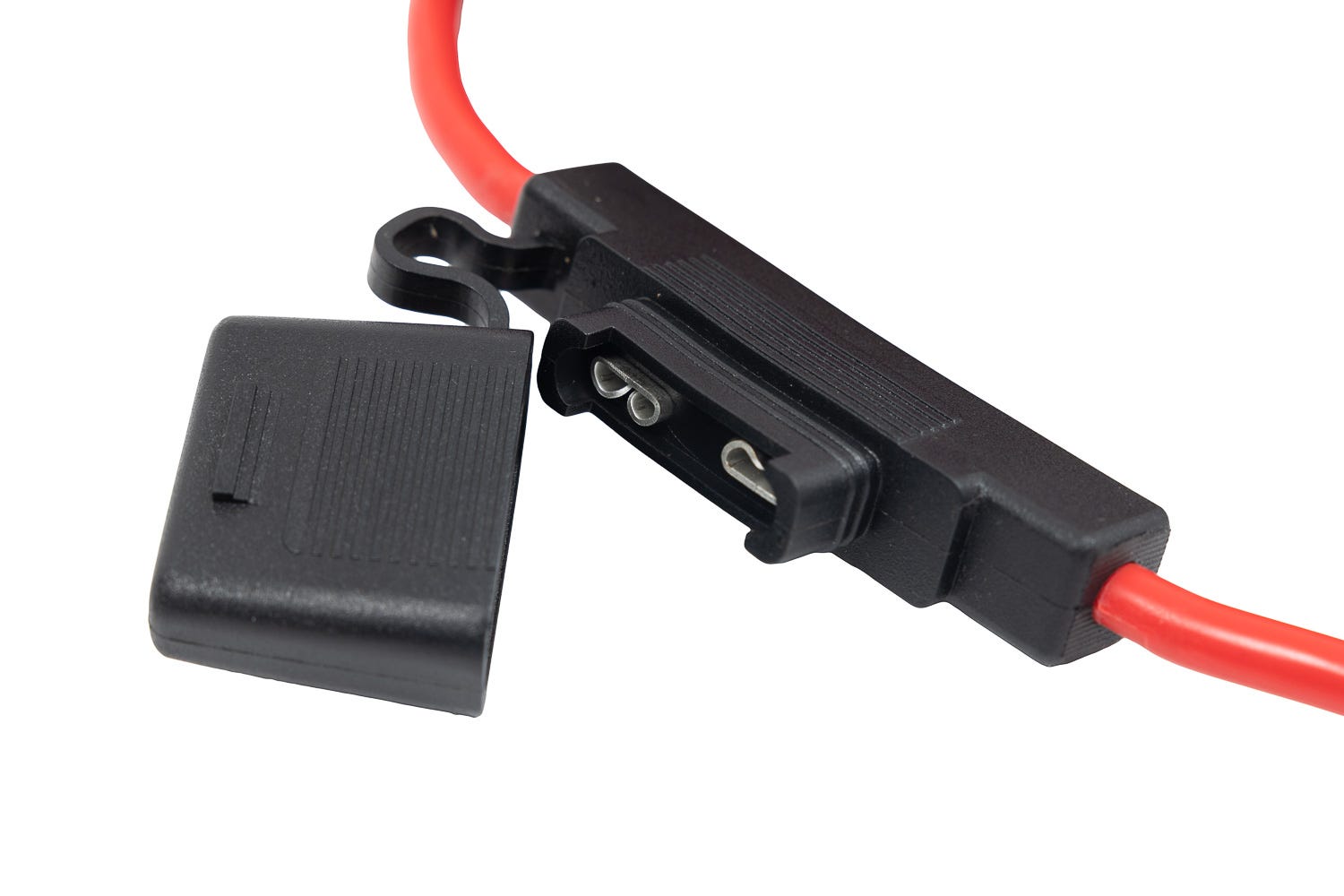

Six metres of 8AWG, 8mm2 twin-core wire, in-line fuse holder and fuses

• M8 ring terminals and quick connect terminals + spares, Ideal for running power to a towbar for trailer charging

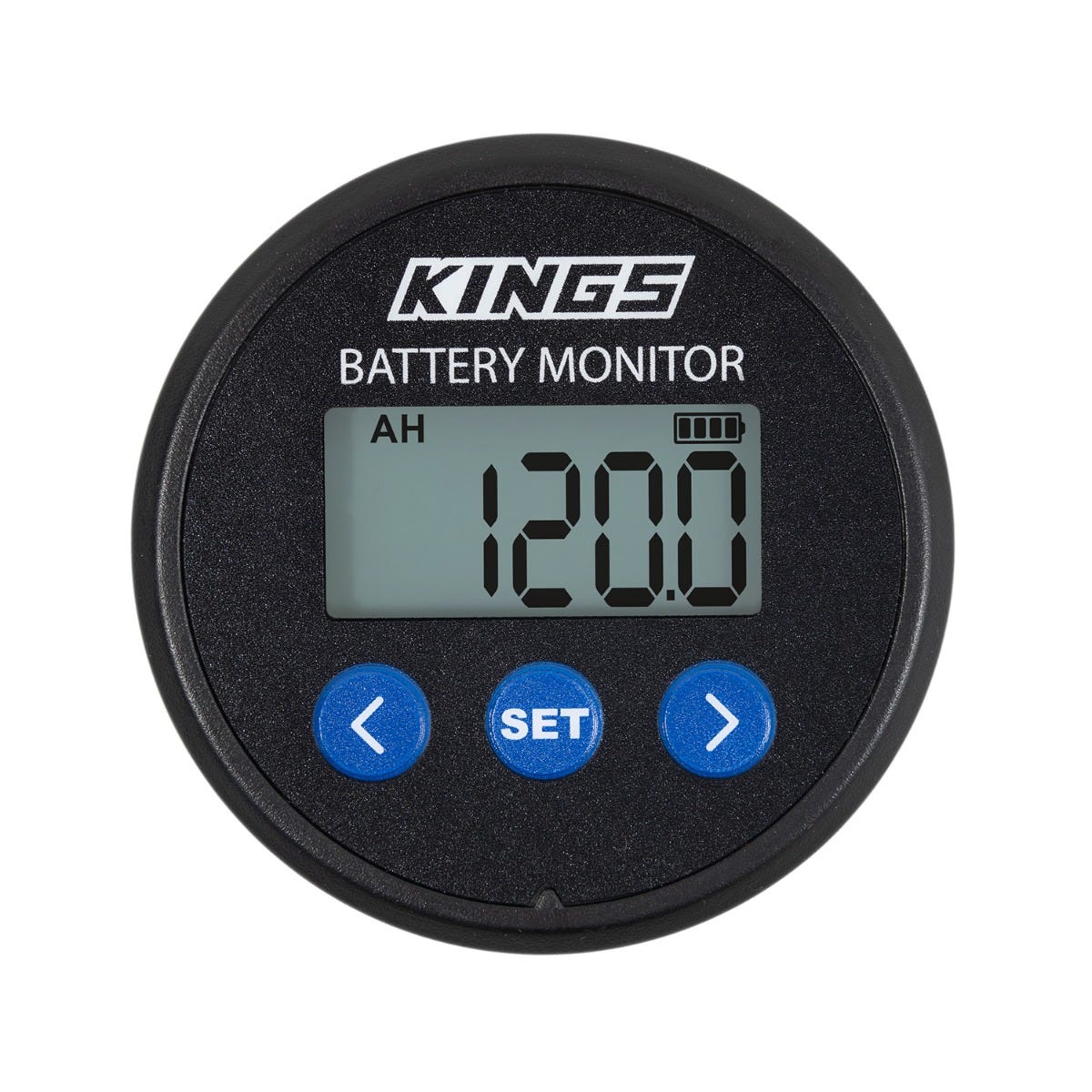

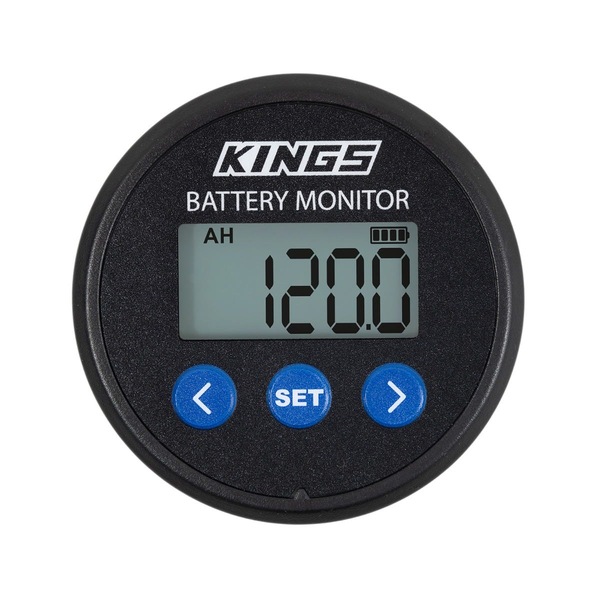

Kings 500A Battery Monitor With Shunt


Backlit LCD Display so you can check your battery capacity at a glanceBacklit LCD Display so you can check your battery capacity at a glance
Lithium or AGM, 12V or 24V Compatible

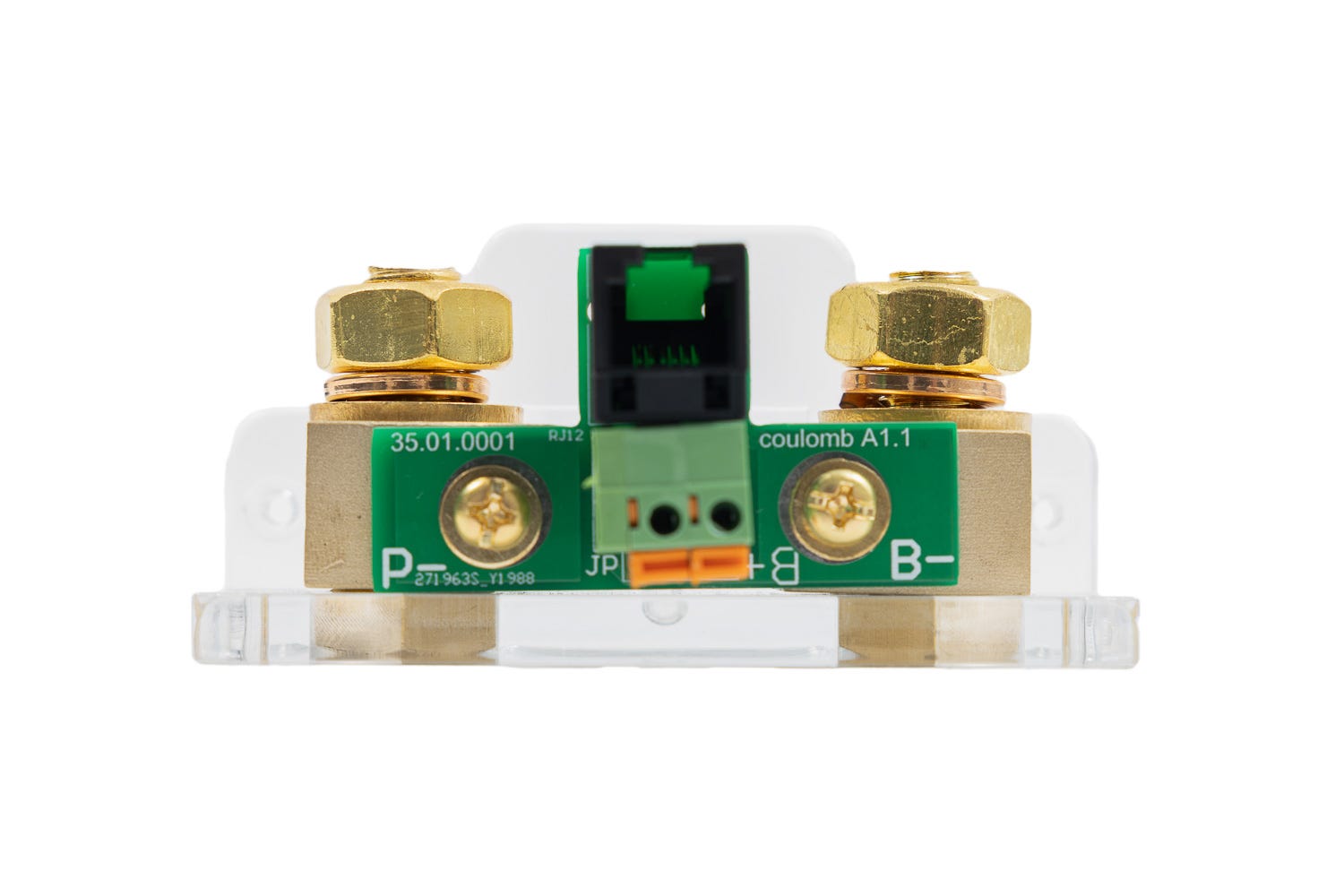

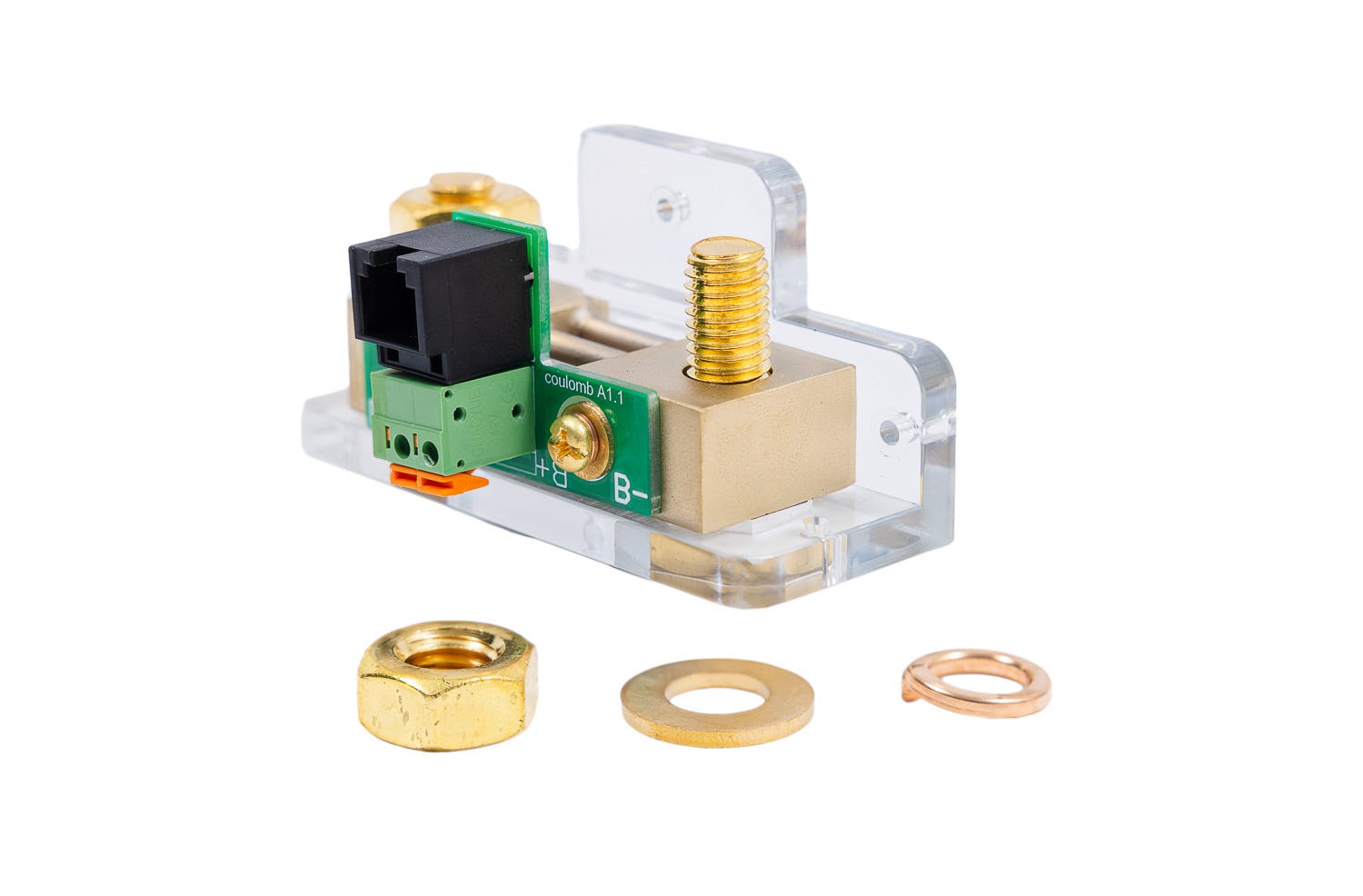

500A Shunt and temperature sensor included
Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %
Settable over/under-voltage, over-current and over-temperature alarms


Check battery voltage, charging/discharging current, power, temperature or battery capacity percentage.


Display your battery’s capacity whether it’s AGM, Flooded Lead Acid or Lithium - and regardless of whether it’s 12V or 24V.



Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm

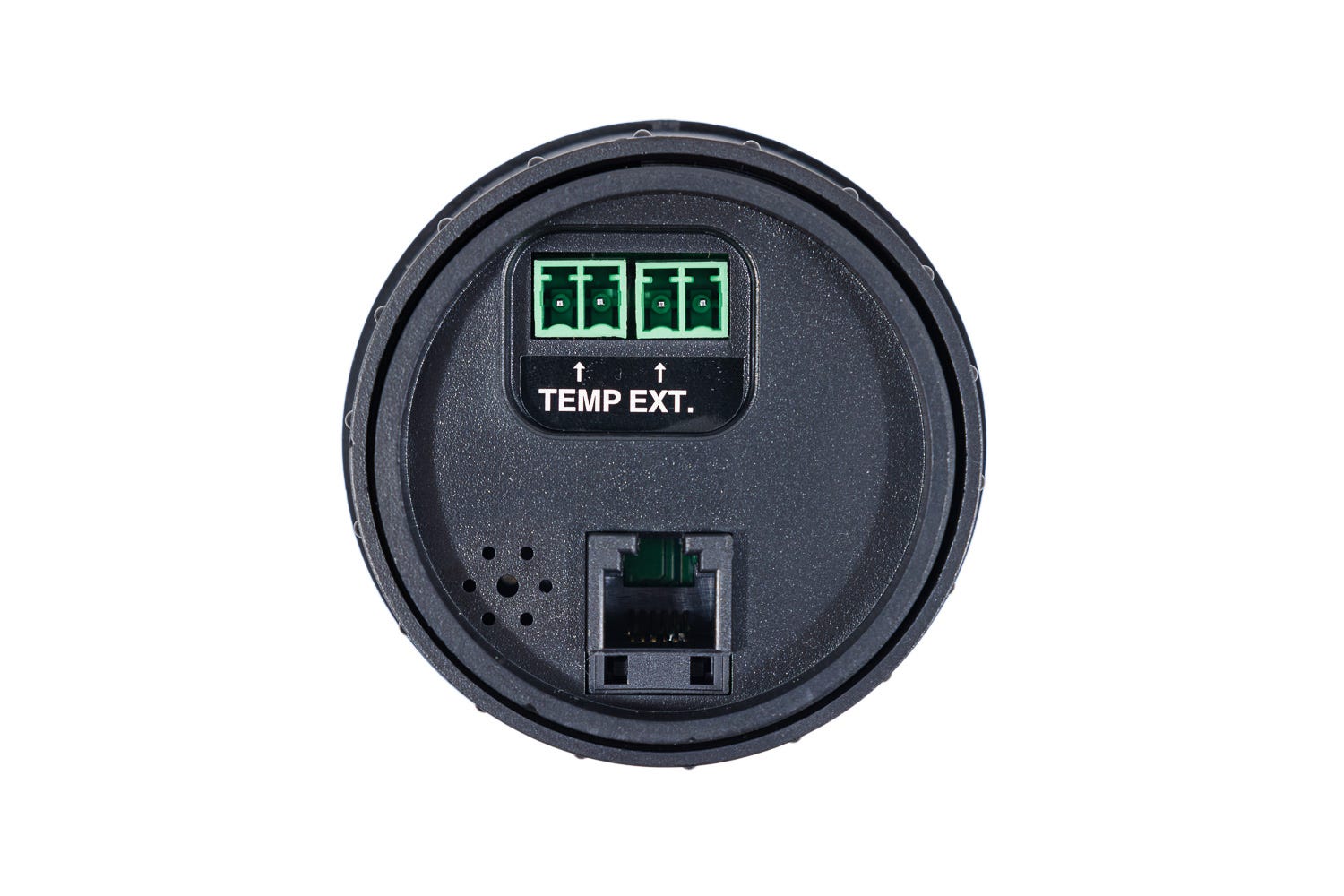

Temperature Sensor Yes, 3m length

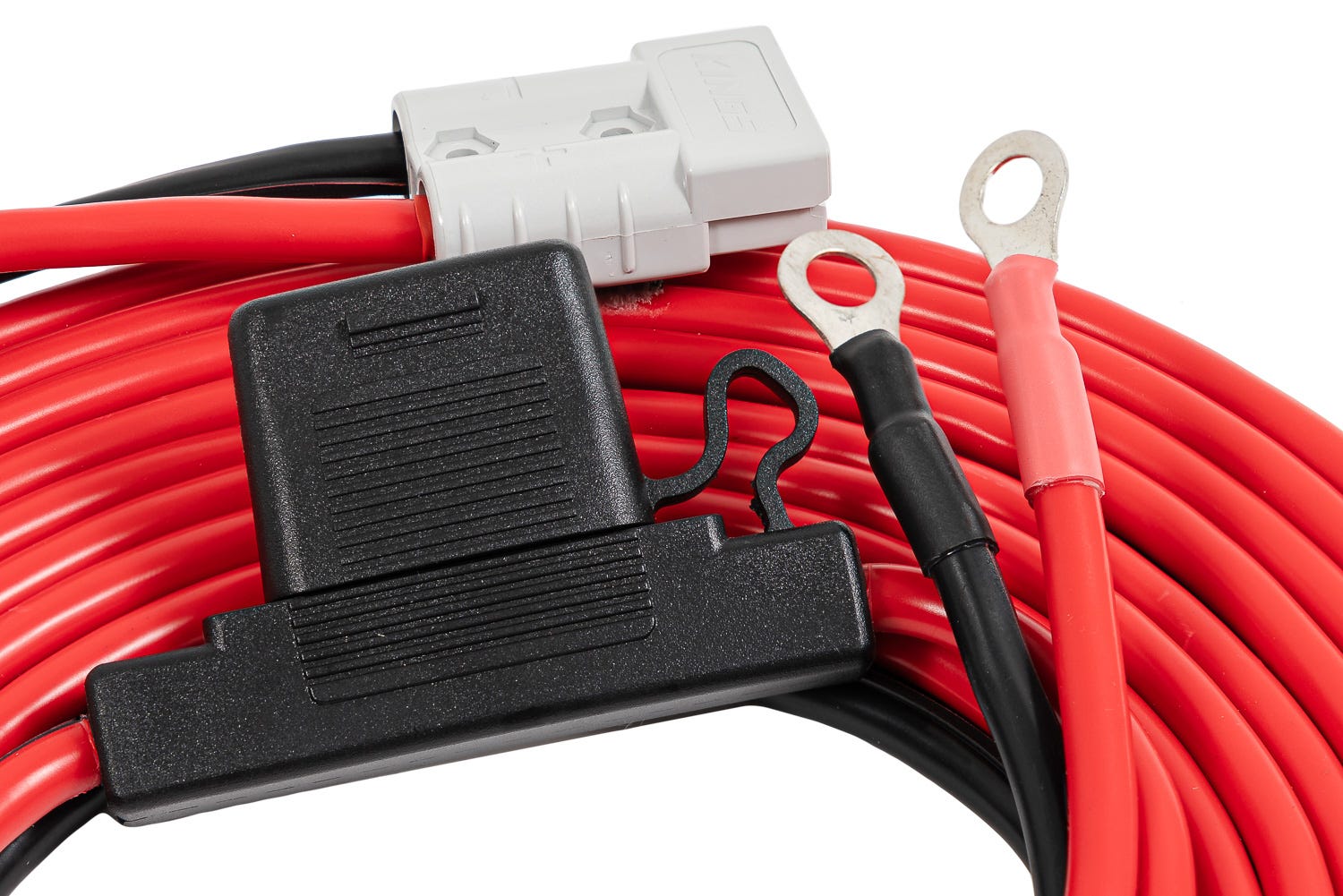

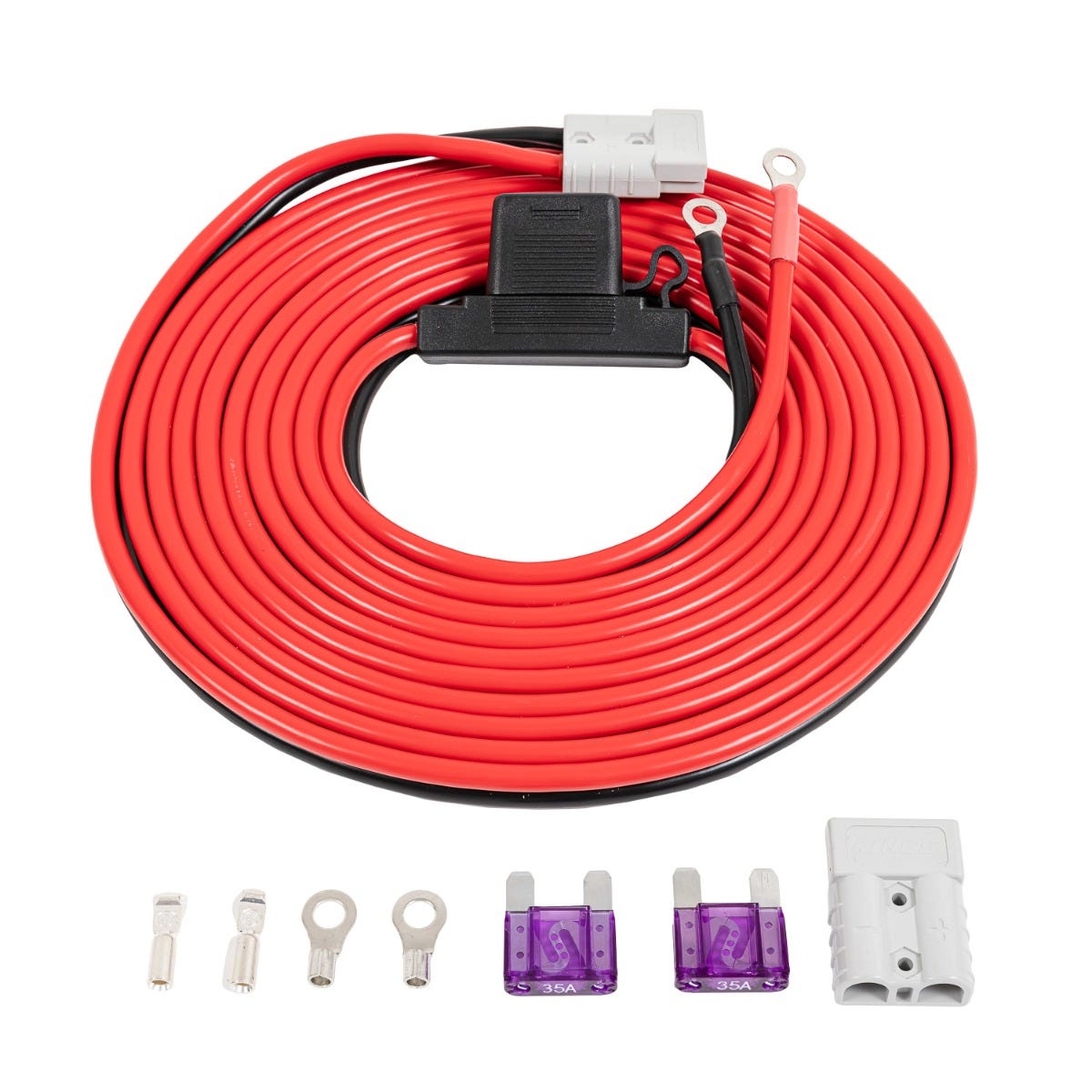

KINGS 25A WIRING KIT



Wire up a DC Charger, a dual battery or, get power to your 12v control box or from your solar panel - the Adventure Kings 25A Wiring Kit! Six metres long it’s built with 8mm2, 8AWG twin-core wiring.


Wire Length 6 Metres
Wire Gauge Twin Core 8AWG / 8mm2
Fuse Type / Rating Maxi Blade Fuse / 60A

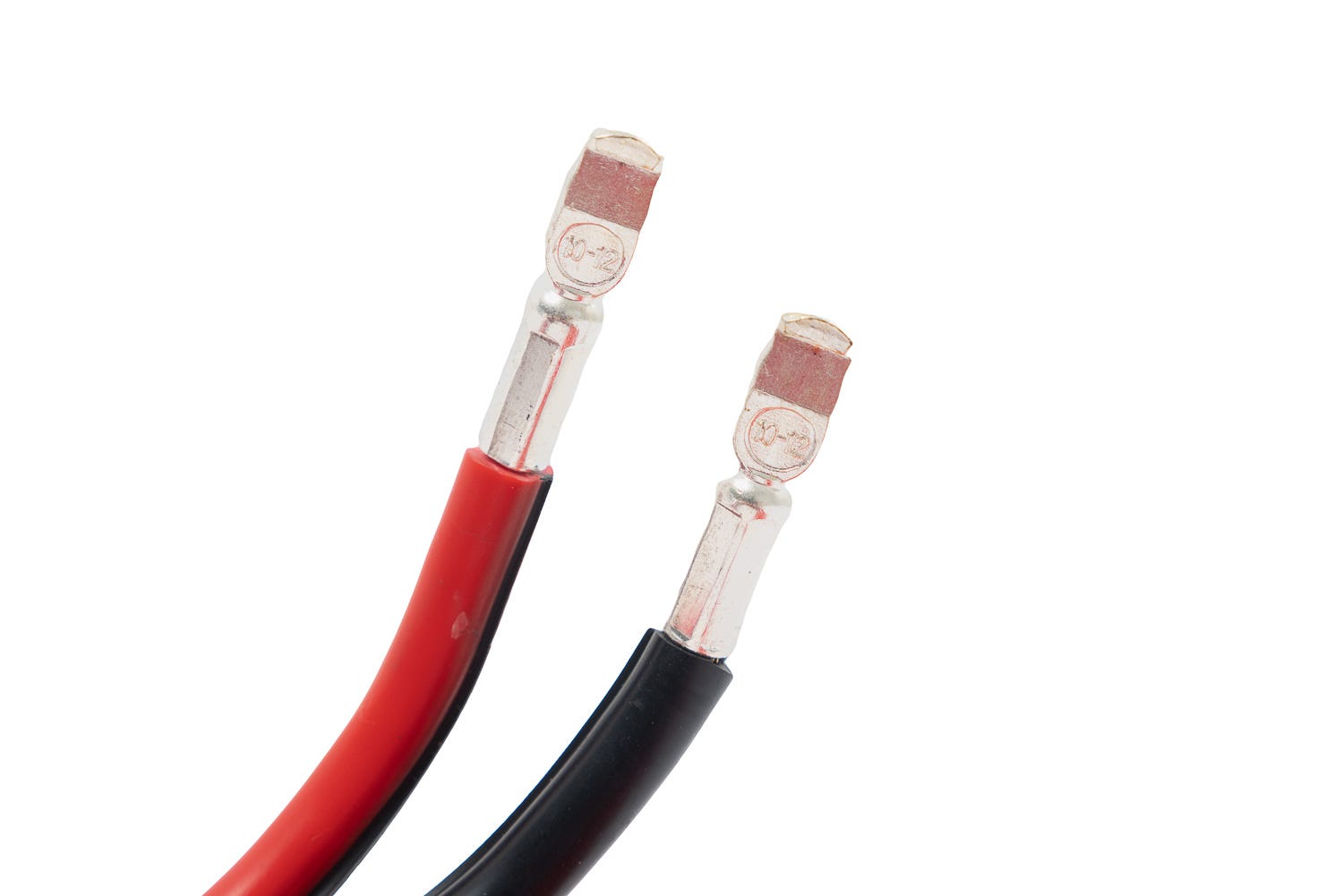

Fitted Plug / Terminal Types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals
Extra Terminals Included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2

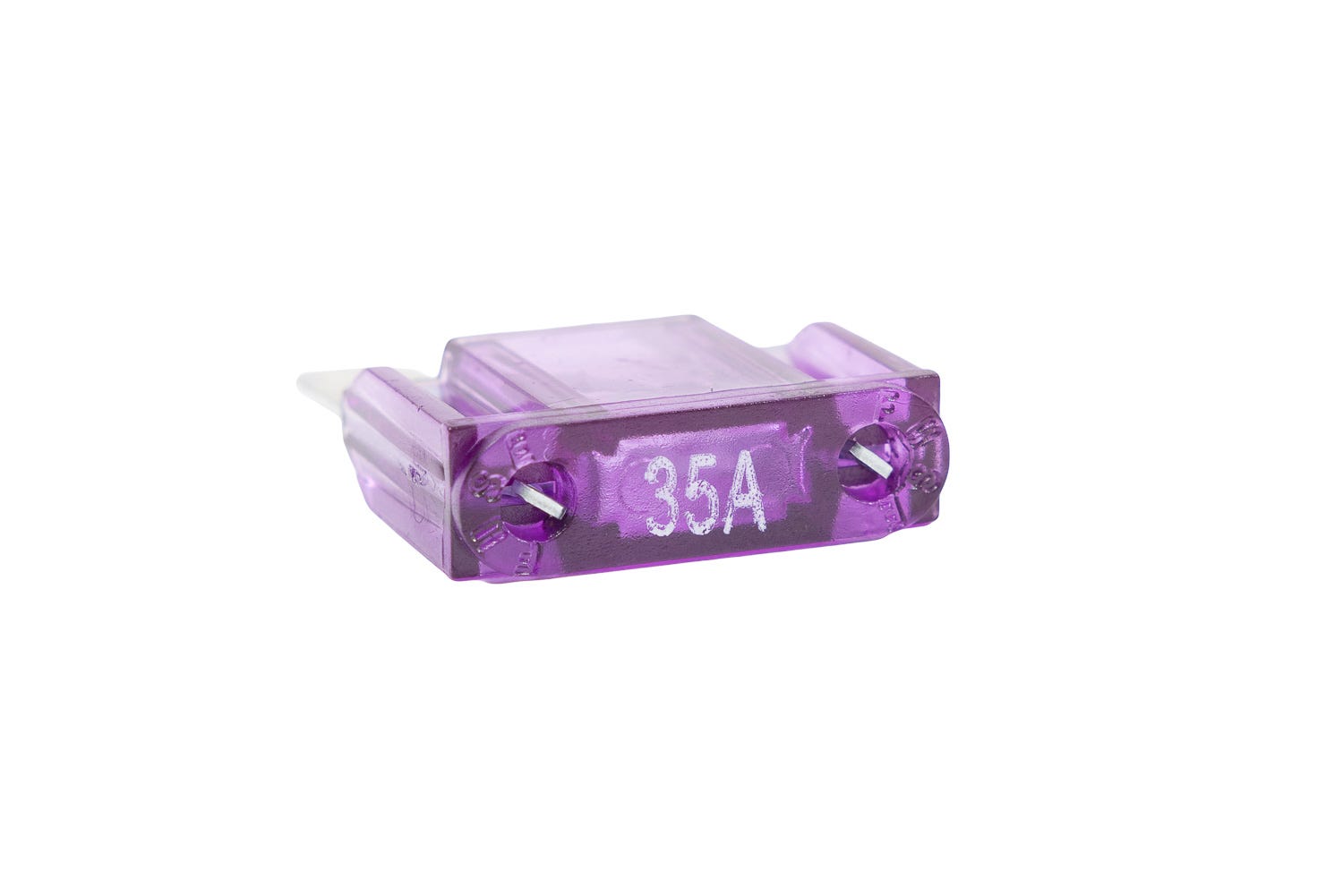

Included Fuses 2 x 35A maxi blade fuses

MPN: SC-CO-BATTMONS-WIRING25A
