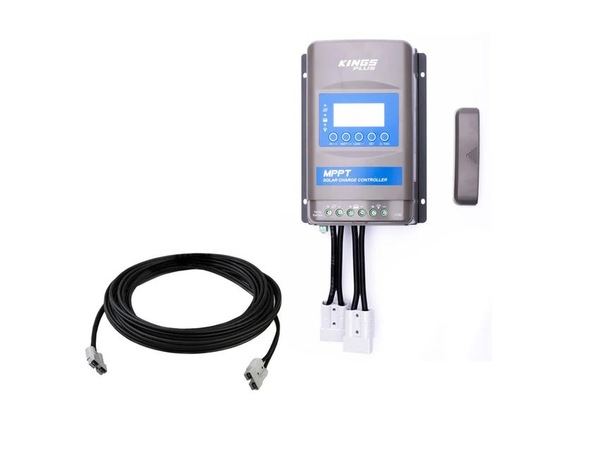

Kings Plus 20A MPPT Solar Regulator + 12m Solar Extension Lead

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$166.95

Collect 166 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 46V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating

• It's lithium compatible and even has specific profiles for Lithium Iron Phosphate batteries like the Adventure Kings range, plus 24V Lithium Iron Phosphate as well as 3 different profiles for lithium nickel cobalt manganese. Of course there are Sealed, GEL and Flooded battery settings too. With Sealed being the default - perfect for adventure Kings AGM batteries.

• For the solar input side, it will accept up to 390W of power from 12V nominal solar panels and 780W from 24V panels. With over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries!

• Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they’re up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there’s an extra 0.9mm thick XLPE protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!

• The 12-metre length and Kings quick-connect plugs make it easy to make the most of your solar – allowing you to camp in the cool shade and still set up your solar in full sun. The Anderson-compatible Kings quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy. Plus they ensure a weatherproof and solid electrical connection into your solar blanket, solar panel, Battery Box or 12V Control Box.

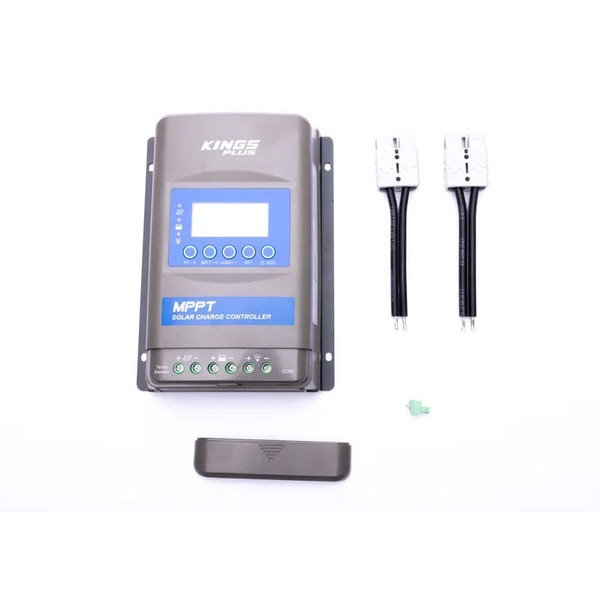

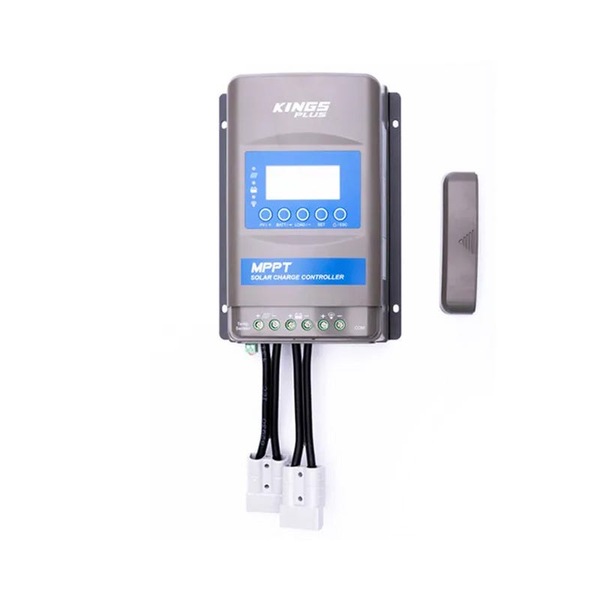

PREMIUM 20A MPPT SOLAR REGULATOR

It can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating.


AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable

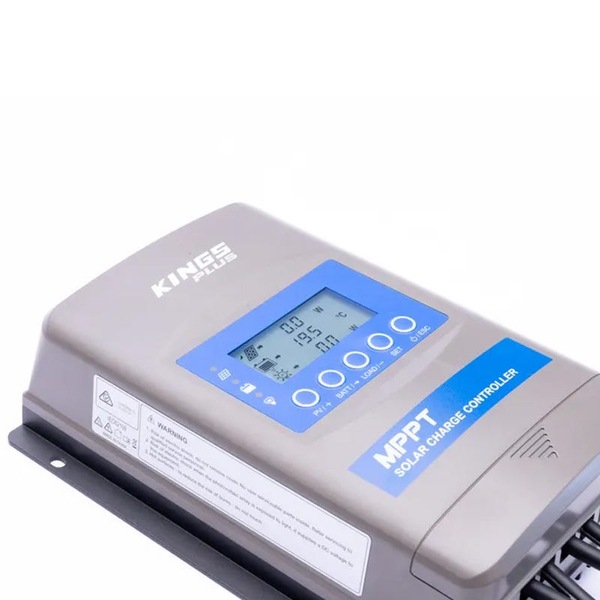

Display Backlit LCD + LED Indicator Lights
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs

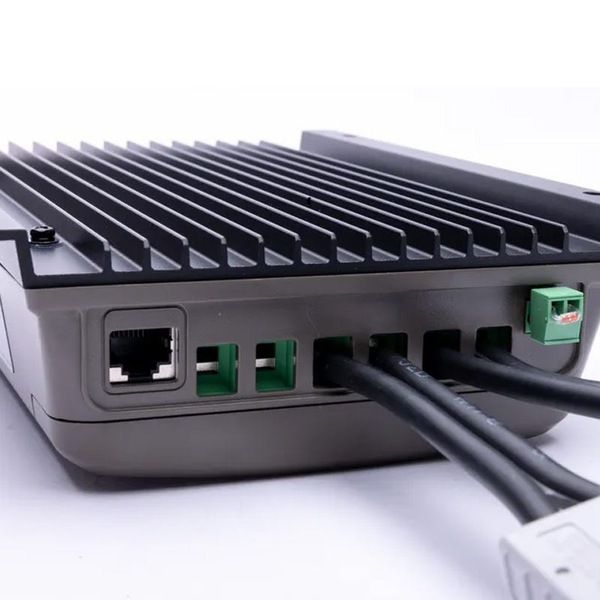

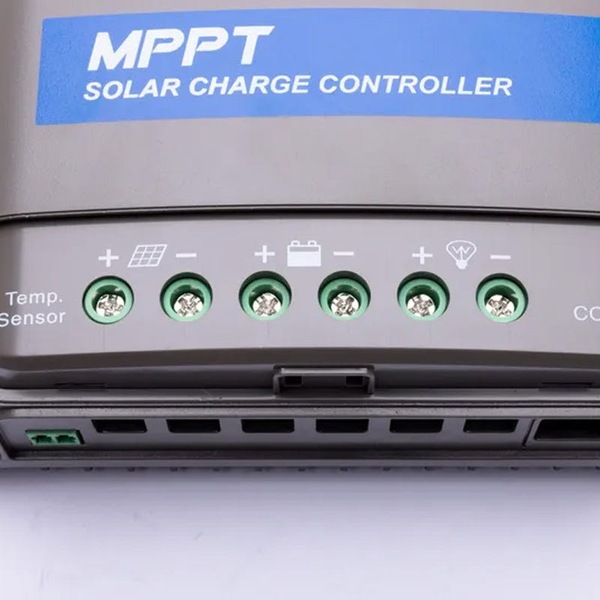

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings

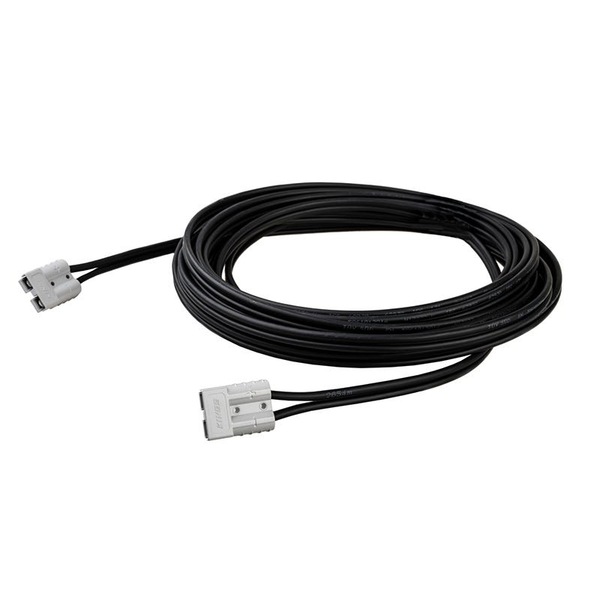

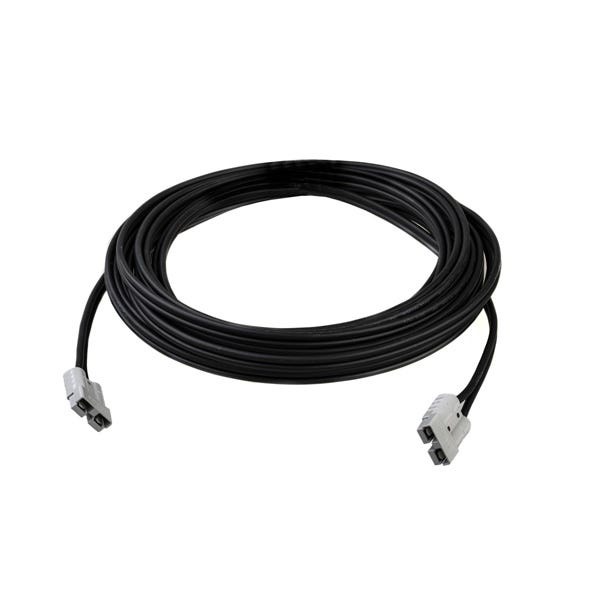

KINGS 12M EXTENSION LEAD

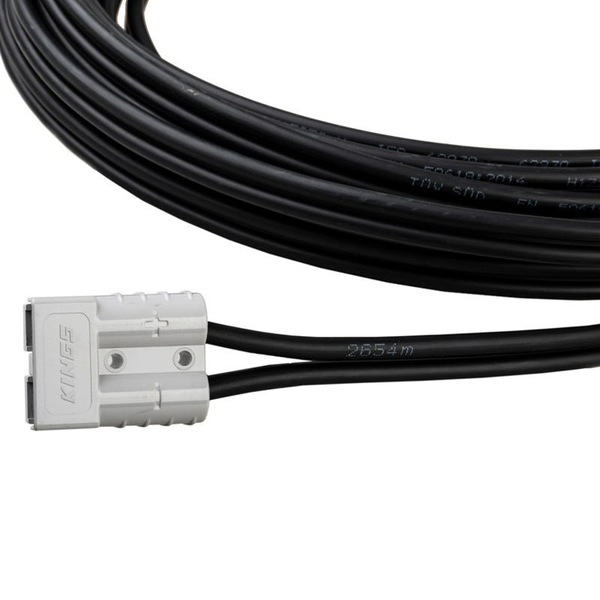

The 12m Solar Extension Lead is the perfect partner for your portable solar blankets and panels. The 12-metre length and Kings quick-connect plugs make it easy to make the most of your solar – allowing you to camp in the cool shade and still set up your solar in full sun.


Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Recommended Maximum Current 20A
Operating Temperature Range -40°C~+90°

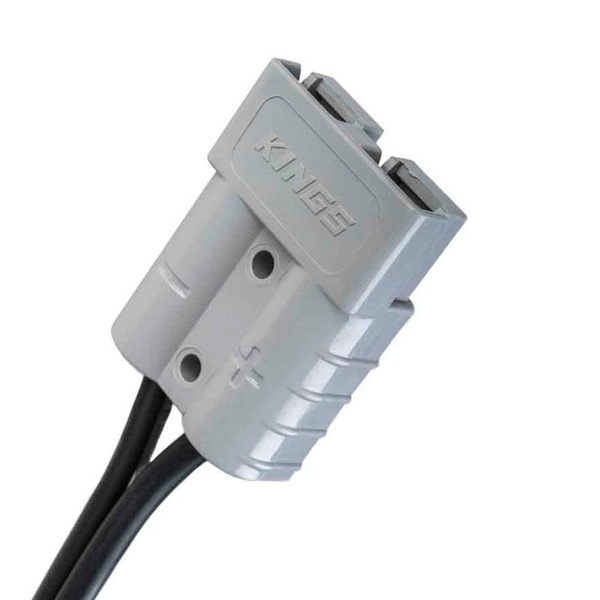

Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage DC 1500V




MPN: SC-CO-PMPPTREG-12MLEAD
