Kings 20A MPPT Solar Regulator Lithium & AGM Compatible

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
$169

Collect 169 Everyday Rewards points

Log in to MyDeal to link your card
$10.00 Australia-wide (per-item)

Dispatch in 24-48 hours

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
Pay in 4 interest-free payments of $42.25 with PayPal

Popular Products

The ultimate standalone solar regulator for your 12V or 24V system!

• User-programmable with push-button switching between Lithium, Sealed (AGM), Gel and Flooded charge profiles

• Powerful 20A charge rating! Accepts up to 390W of solar on 12V Systems!

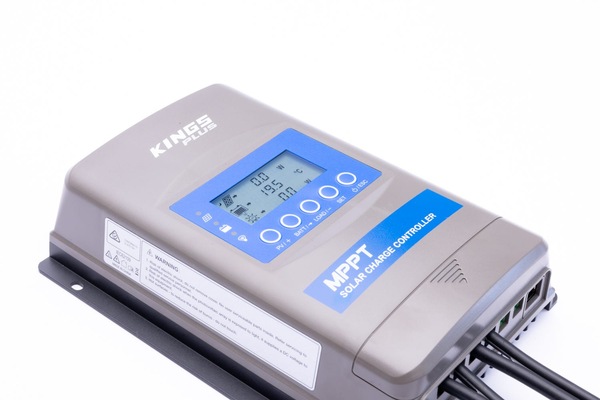

• Advanced digital display shows real-time amps, volts, watts and battery capacity percentage

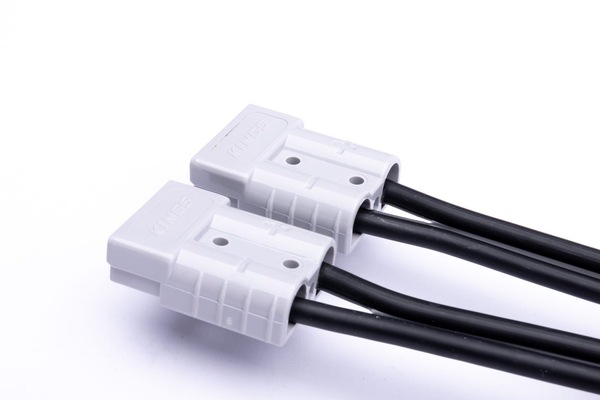

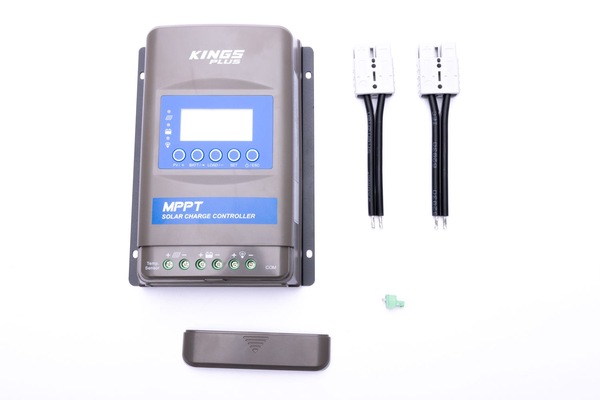

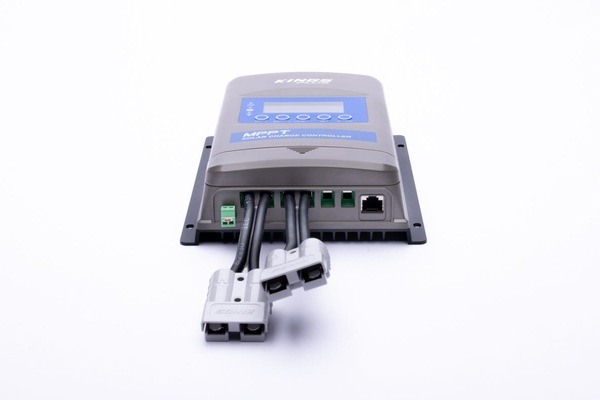

• Includes 2 x 50A Kings Quick-Connect plugs plus plug-in temperature sensor

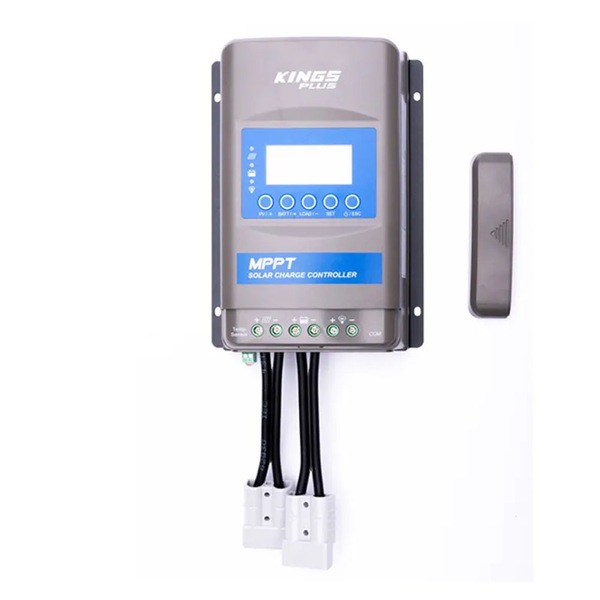

PREMIUM 20A MPPT SOLAR REGULATOR

This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 46V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating - and it has a 3 year warranty.


It has specific profiles for Lithium Iron Phosphate batteries like the Adventure Kings range, plus 24V Lithium Iron Phosphate as well as 3 different profiles for lithium nickel cobalt manganese. Of course there are Sealed, GEL and Flooded battery settings too.


ABLE TO ACCEPT UP TO 780W OF SOLAR POWER!


It accepts up to 390W of power from 12V nominal solar panels and 780W from 24V panels. With over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries!


AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs

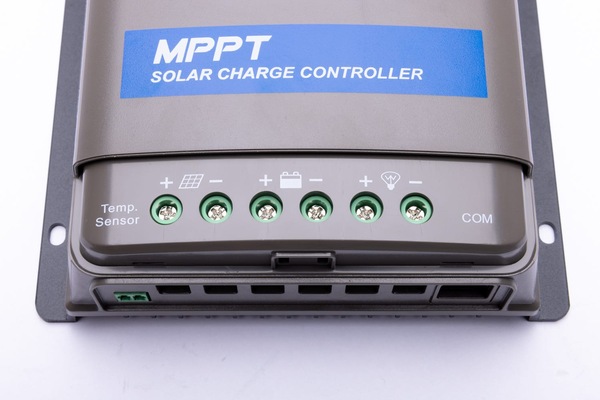

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant

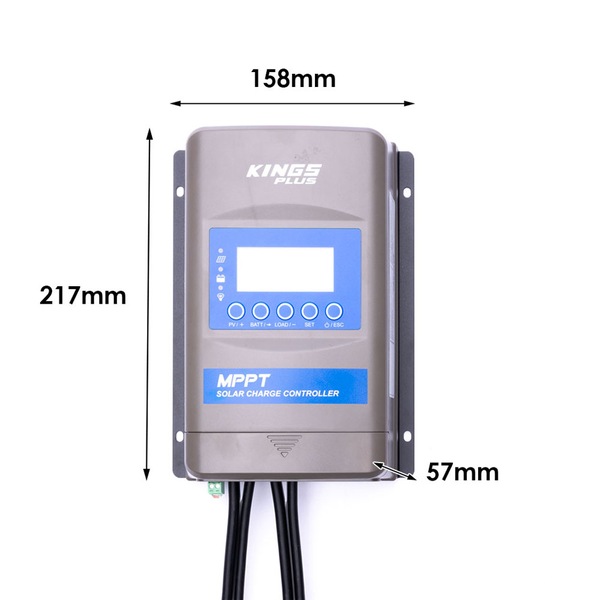

Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings

GTIN: 660989713874
