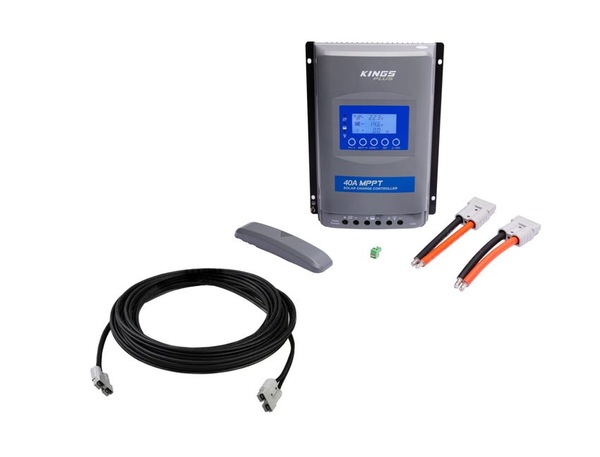

Kings Plus 40 AMP MPPT Solar Regulator + Solar Extension lead 12m

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
$238.95

Collect 238 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Kings Plus 40 Amp MPPT Solar Charge controller has you covered for most battery chemistries on the market! It is Lithium battery compatible and is specifically tuned to suit Adventure Kings Lithium Iron Phosphate batteries, plus 24V Lithium Iron Phosphate as well as 3 different profiles for lithium nickel cobalt manganese. Of course there are Sealed, GEL and Flooded battery settings too. With Sealed being the default - perfect for Adventure Kings AGM batteries.

• On the solar input side, it will make use of up to 520W of solar power as a 12V system and of up to 1,040W of solar power as a 24V system. It can also over power by 50%, meaning you can connect up to 780 Watts of solar panels when using this solar regulator as a 12 Volt system and a massive 1,560 Watt of solar panels when setting up a 24 Volt system. This is a super effective way of making the most in cloudy or low light conditions. With over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries!

• This 40 Amp solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 92V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, up to 780 Watts as a 12 Volt battery system or 1,560 Watts as a 24 Volt battery system with a 40 Amp charge rating

• Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they’re up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there’s an extra 0.9mm thick XLPE protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!

• The 12-metre length and Kings quick-connect plugs make it easy to make the most of your solar – allowing you to camp in the cool shade and still set up your solar in full sun. The Anderson-compatible Kings quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy. Plus they ensure a weatherproof and solid electrical connection into your solar blanket, solar panel, Battery Box or 12V Control Box.

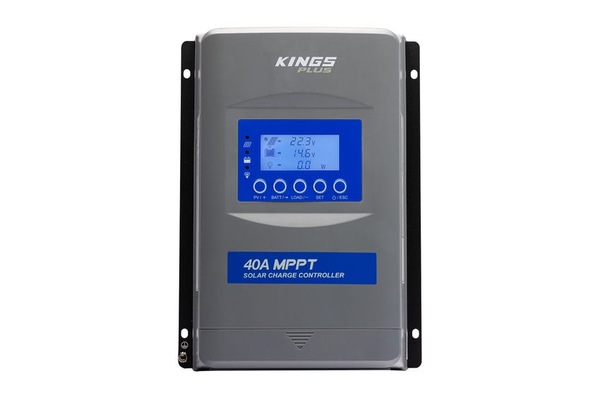

ADVENTURE KINGS PLUS PREMIUM 40 AMP MPPT SOLAR REGULATOR


It can accept up to 92V of solar input in standard conditions! It can suit just about any setup - AGM or lithium, up to 780 Watts as a 12 Volt battery system or 1,560 Watts as a 24 Volt battery system with a 40 Amp charge rating.


Battery Chemistry Options Sealed, Gel, Flooded, Lifepo4,Li(NiCoMn)O2, User Adjustable

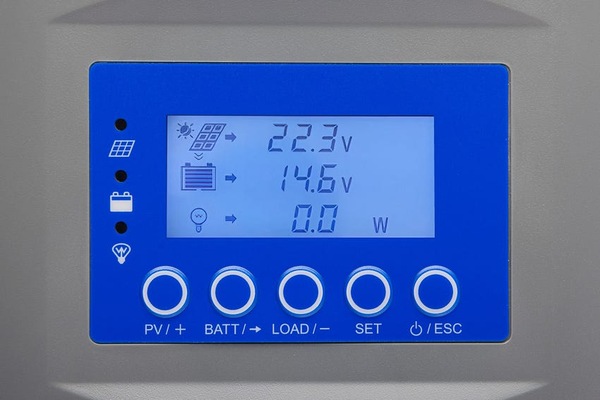

Display Backlit LCD + LED Indicator Lights
Included cables 100mm Double Insulated XLPO 16mm2 + Quick Connect Plugs

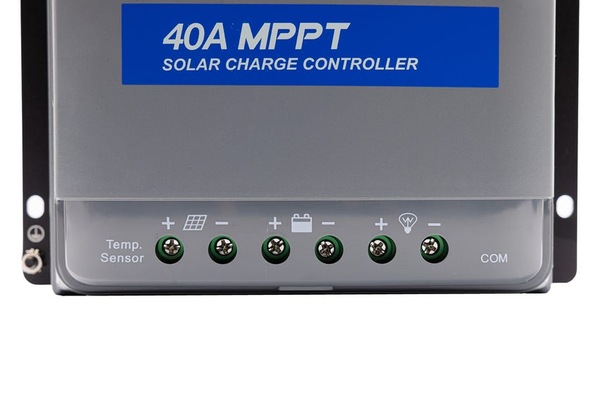

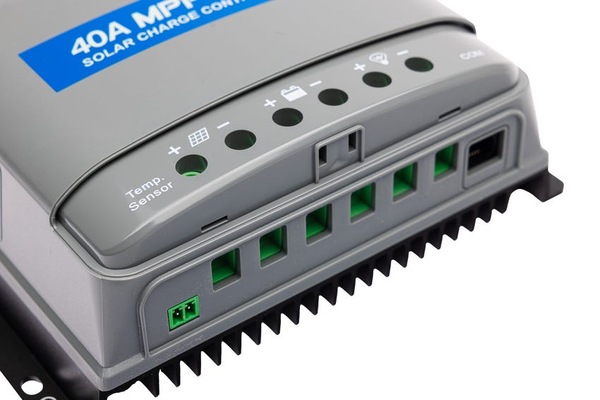

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 255 X 185 X 68mm (200 X 176 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 92V
Rated Solar Power Input 520W (12V) 1040w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings

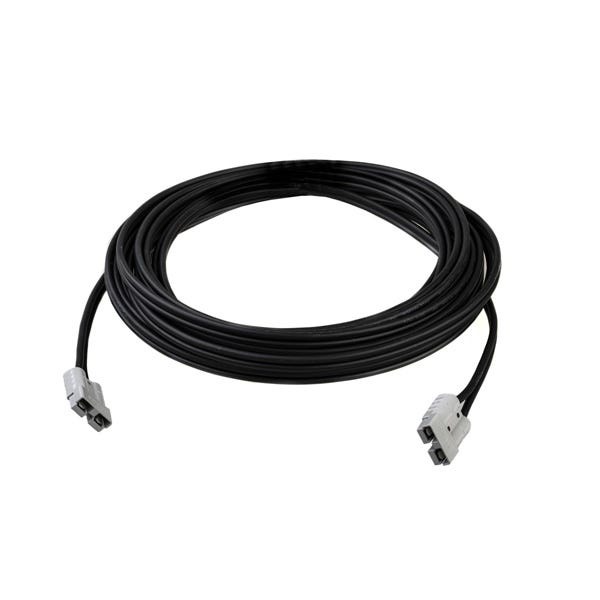

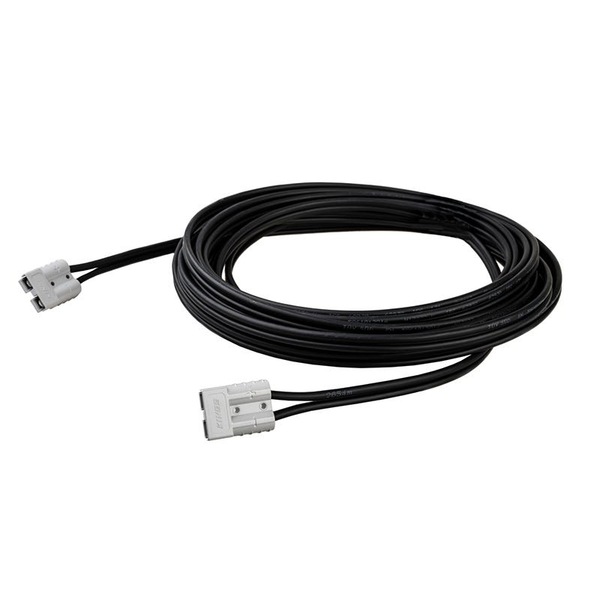

KINGS 12M EXTENSION LEAD


Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated. The sheath is heat and water resistant and offers extra abrasion resistance too


Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Recommended Maximum Current 20A
Operating Temperature Range -40°C~+90°
Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage DC 1500V

MPN: SC-CO-40MPPTREG-12MLEAD
