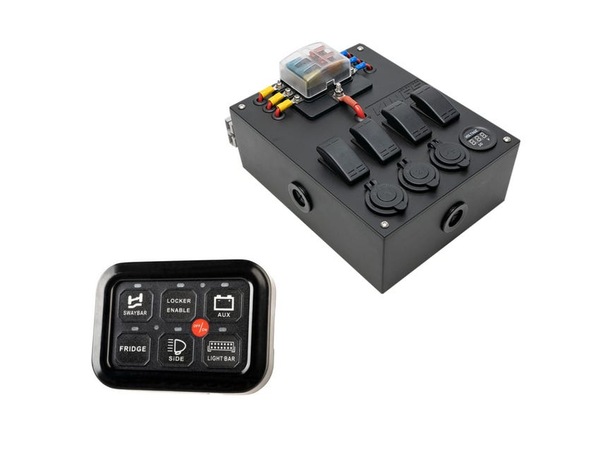

Kings Touch Pad Switch Panel + 12v Compact Control Box

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$218

Collect 218 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

Popular Products

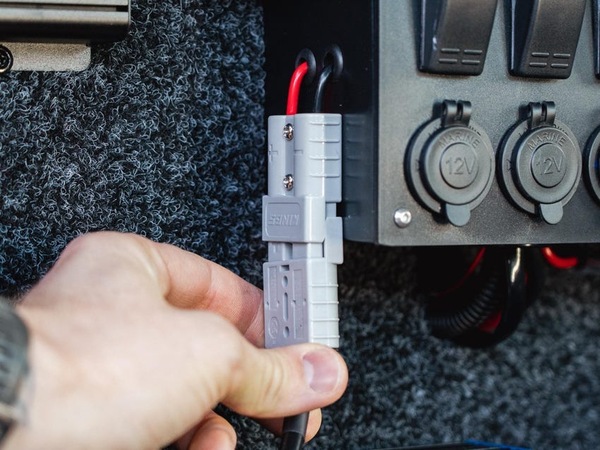

Ideal for vehicles, boats, camper trailers, caravans, and any other 12V system! Twin USB sockets, twin 12V cig-style sockets, twin 50A quick-connect plugs, and 4 pre-powered and fused switches make it so easy to access your battery’s power. The twin 50A quick-connect plugs are both directly connected to your battery, meaning you can run power in from a Kings 50A Wiring Kit (sold separately) or your solar blanket or panel.

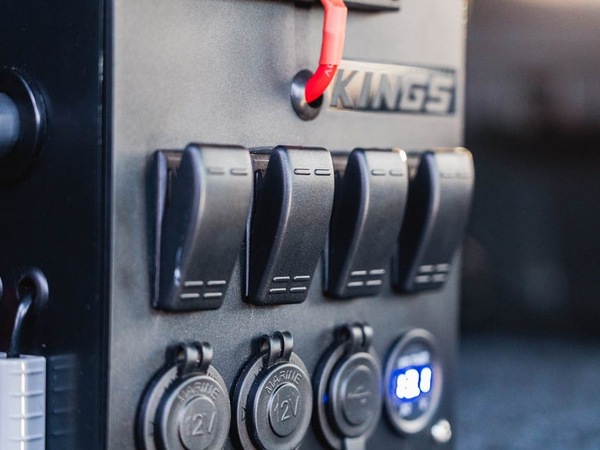

• Safely power your hardwired accessories like your fridge or LED camp lights at the flick of a switch with the 4 prewired and fused, 16A-rated rocker switches. Plus, never forget which switch is which, with the included switch sticker labels. Connect your fridge or lights to the switch by running the positive cable directly to the spare terminal on the back of the switch, and the negative to the negative bus bar - too easy!

• To connect it to a battery, simply run heavy-duty cabling up through one of the 4 cable access grommets. Connect the positive from your battery to the positive binding post, and the negative to the post on the end of the negative bus bar. Now the entire 12V Compact Control Box is powered! You’ll also love the super handy ability to reposition the lid 180 degrees to perfectly suit your setup, and the fact the switches and sockets are all pre-fused through the easy-access 6-way fuse block.

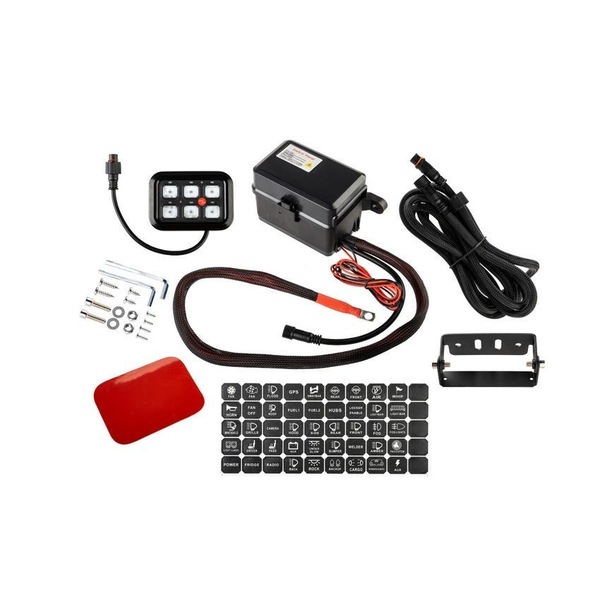

• The Adventure Kings Touch Pad Switch Panel is an all in one kit that allows you to easily connect and switch up to 6 different circuits or accessories on or off! The main Switch Panel can be connected directly to the fuse box or mounted approximately 3m away thanks to the included extension.

• Install the Switch Panel in your vehicle and you have easy access to the driving aids you need on the go – like off-road lighting, diff locks, sway bar disconnects or rock lights. Install it in the back of your vehicle or canopy for your camping setup and it is ideal for auxiliary power, camp lighting or you can even use it as a trigger for a separate relay to switch on high powered devices such as air compressors.

12V Compact Control Box
Quantity: 1


Touch Pad Switch Panel
Quantity: 1

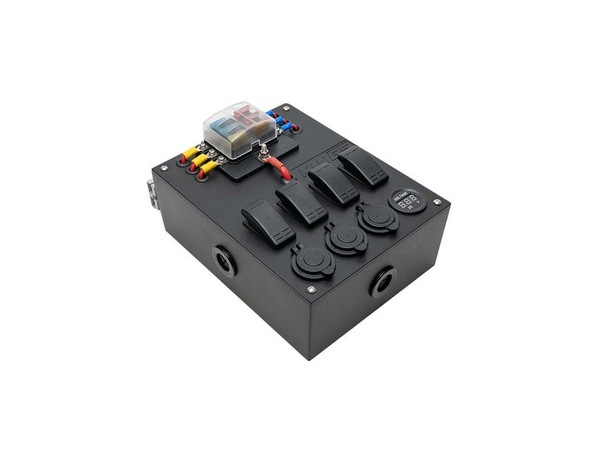

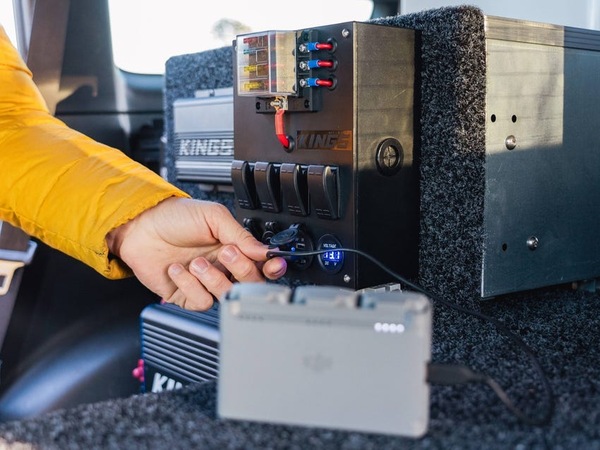

KINGS 12V COMPACT CONTROL BOX


10 Power Connections | 6 Way Fuse Block

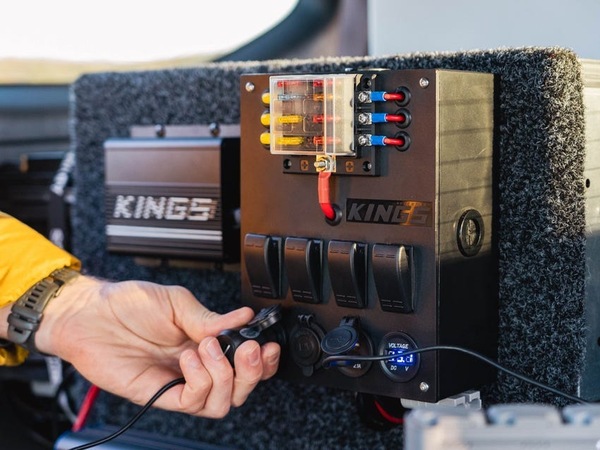

This compact pre-wired box is the perfect solution to complete your 12V set up. Ideal for vehicles, boats, camper trailers, caravans, and any other 12V system! 10 WAYS TO ACCESS THE POWER IN YOUR BATTERY - Twin USB sockets with 2.1A fast-charging and 1A outlets , twin  20A 12V cig-style sockets, twin 50A quick-connect plugs, and 4 pre-powered and fused switches make it so easy to access your battery’s power


Box ABS Plastic
Box Size 230 * 180 * 85 mm
Product Size 250 * 210 * 130 mm
Weight 0.90 KG
Lid Thickness 3mm
Box Thickness 3mm
Recommended Cable Size


0 - 2m = 8 Gauge (8mm2)
2 - 4m = 6 Gauge (13mm2)

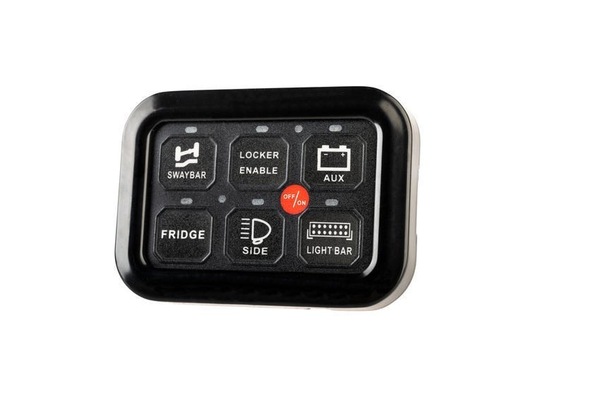

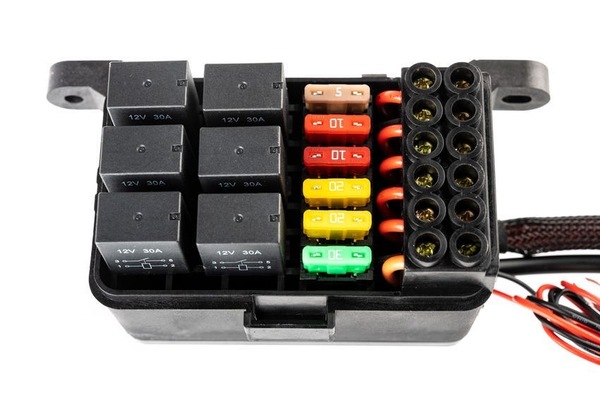

TOUCH PAD SWITCH PANEL


• All-In-One Kit to Power 6 Individual Accessories


• Use It In-Cab or For Your Camping Setup


• Backlit Touch Switches with Auto Dimming


• Max Power: 720W (12V, 60A)


• Input Voltage: 12V


• Number of circuits: 6


• Max Current (total): 60A


• Max Current (per relay): 30A (included 20A fuses)


• Switch Type: Touch Pad on/off with back lit blue LEDs


• Stickers: 45 Labelled, 5 Blank


• Master Switch: Push Button Type, controls all other circuits on/off


• Main power lead: 6 core 14AWG wire with M8 terminal


• Switch Panel Extension lead: 2.7m length, 8 core wire with easy threaded terminals


• Switch Panel Mounting Options: Two Piece Pivoting Bracket + double sided tape

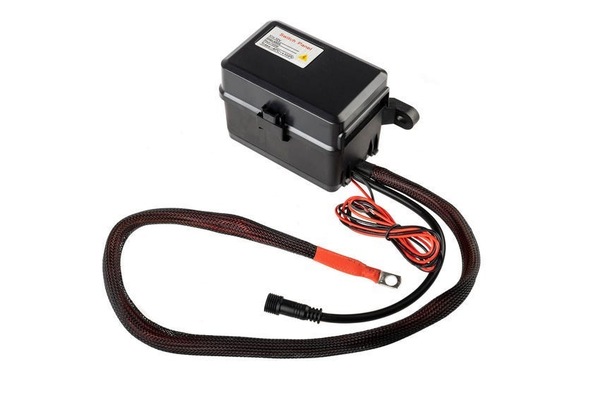

• Fuse/Relay Box Mounting Options: Integrated mounting holes and screws included


• Switch Panel Dimensions LxWxH: 95x65x10mm


• Fuse/Relay box Dimensions LxWxH:159x89x83mm

MPN: SC-CO-SWCHPANTP-CONTROLBOXCOMP
