Kingston KVR32S22S6/8 8GB 1x8GB DDR4 SODIMM 3200MHz CL22 1.2V 1Rx16 Unbuffered Value RAM

Image 1
Limited Stock
$80.06

Collect 80 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

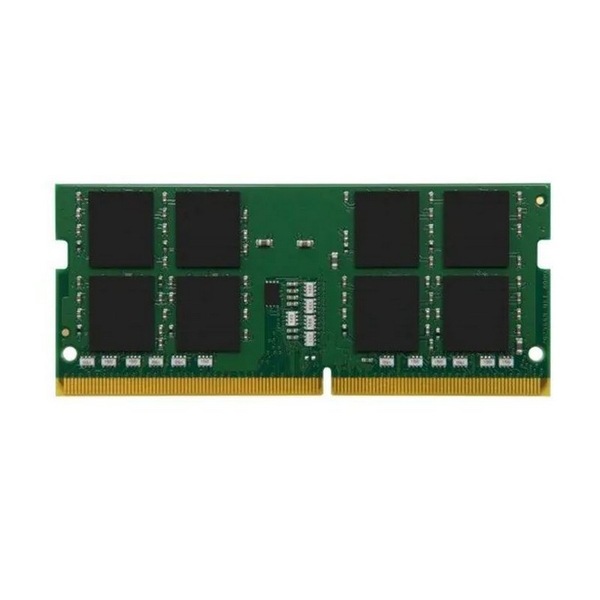

Kingston 8GB (1x8GB) DDR4 SODIMM 3200MHz CL22 1.2V 1Rx16 Unbuffered Value RAM Notebook Laptop Memory

This document describes Value RAM's KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features:
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
8 internal banks; 2 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.18' (30.00mm)
RoHS Compliant and Halogen-Free

SKU: LD4-KIN-08S22S6

Estimated Delivery Time Frame:1-7 business days
