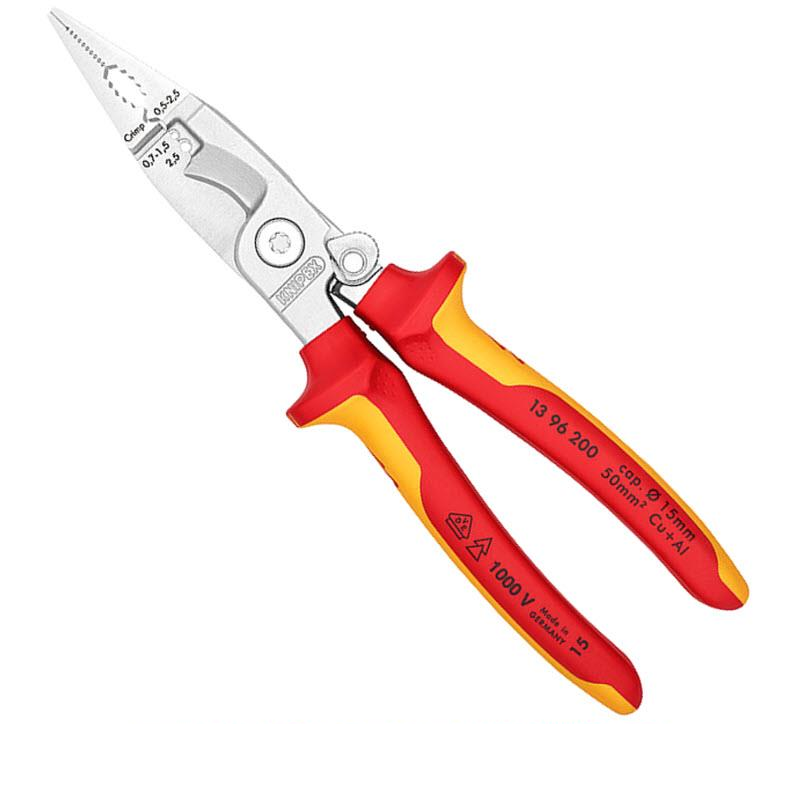

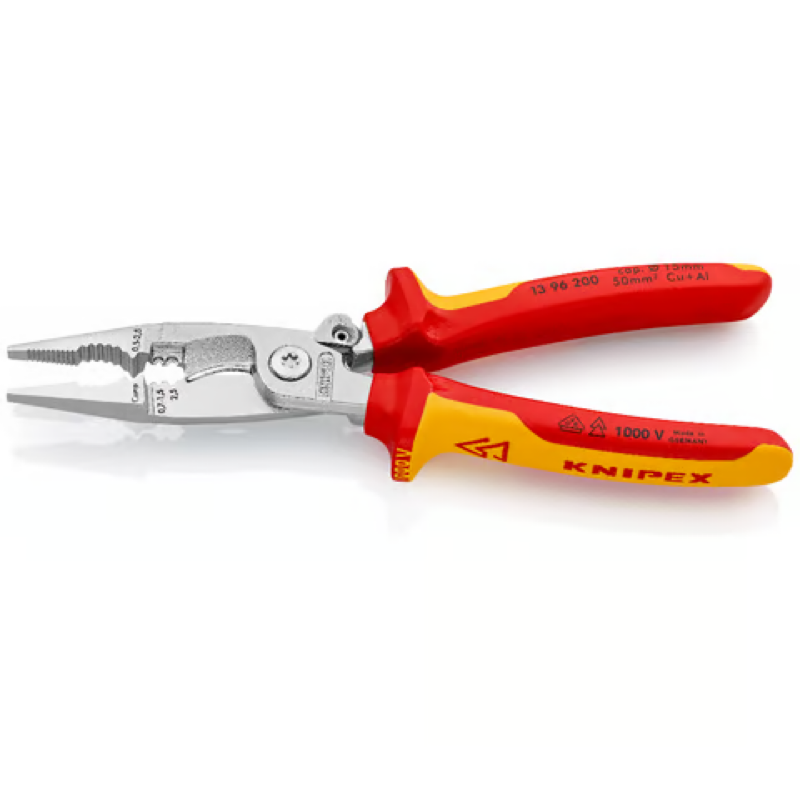

The Knipex 1396200 Electrical Installation Pliers are a great Multifunctional tool to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire end sleeves. It's a must have tool for any professional electrician. Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear cut outside edge on the jaw for working on flush mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75 - 1.5mm² and 2.5mm². Crimp die for wire end sleeves 0.5 - 2.5mm² and Cable shears with induction-hardened precision cutting edges for copper and aluminium cables up to 5 x 2.5mm² / dia. 15mm.

FEATURES:

• • • Precision Made in Germany.
    • 6 functions in one pair of pliers.
    • Multi-functional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire end sleeves.
    • Insulated with multi-component grips, VDE-tested Rate to 1000V AC.
    • Forged from High grade chrome vanadium multi-stage oil hardened steel with chrome plating for maximum durability.
    • Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material.

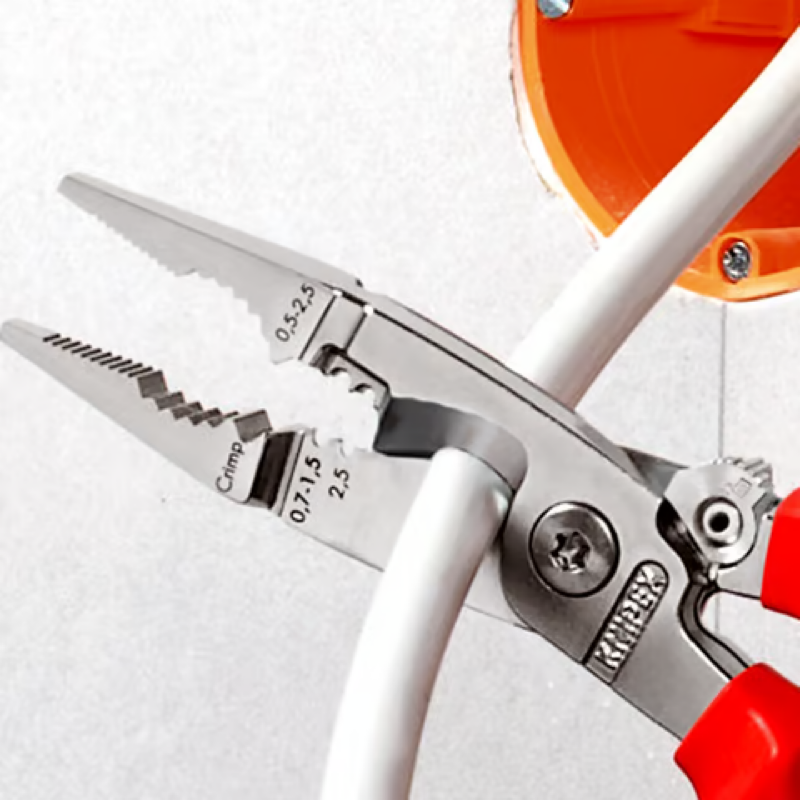

    • Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes.

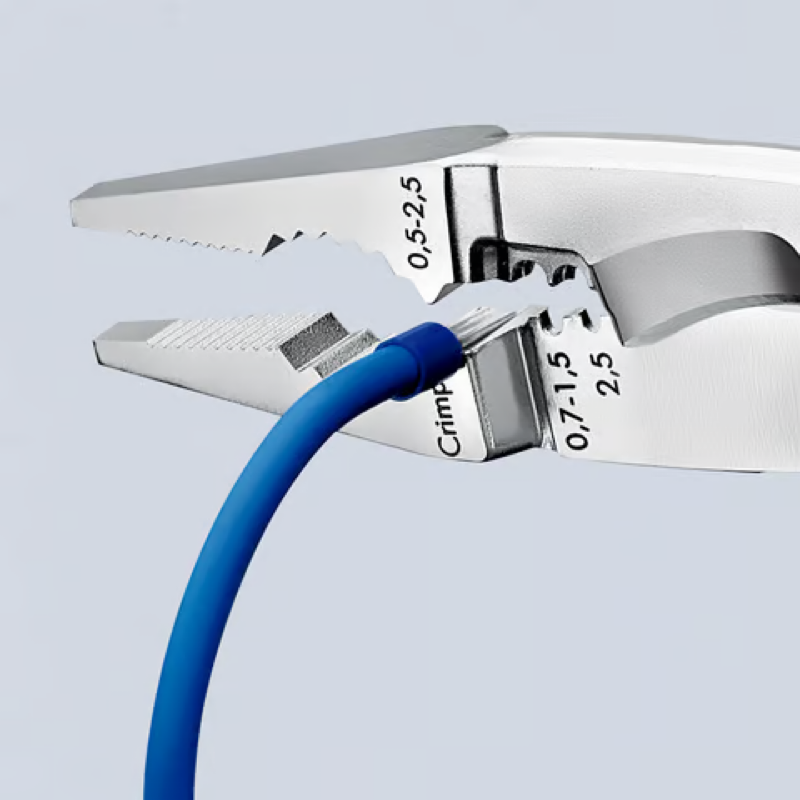

    • Stripping holes for conductors of 0.75 - 1.5mm² and 2.5mm².
    • Crimp die for wire end sleeves 0.5 - 2.5mm².

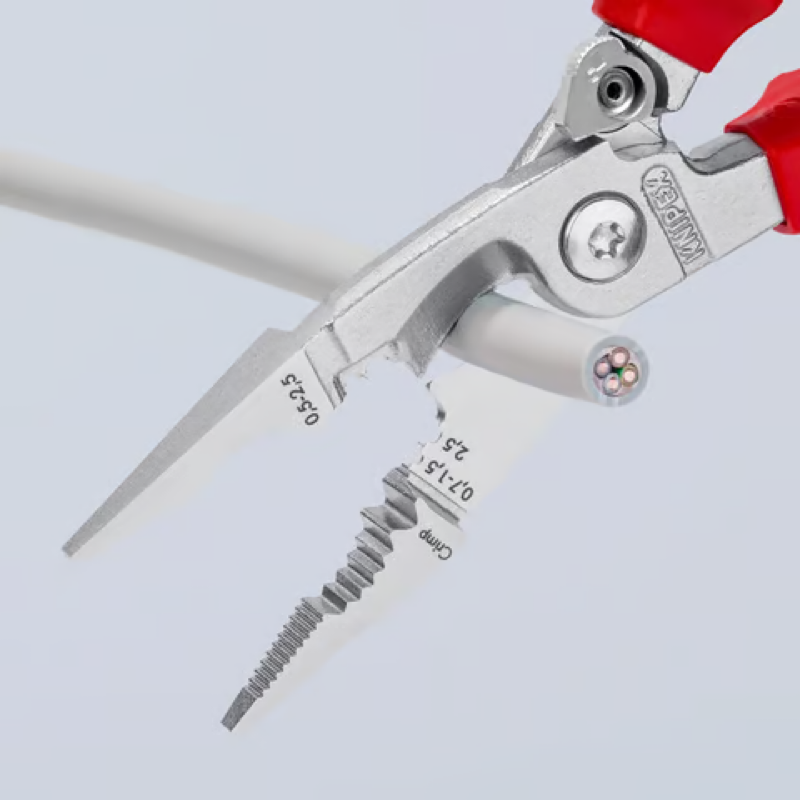

    • Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5mm² / dia. 15mm.
    • Slim dimensions for easy access.
    • Bolted joint: Precise, zero backlash operation of pliers.
    • Opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active.
    • The intelligent latching mechanism enables you to "grip" without opening the pliers. The cutting edge remains closed and protected.
    • Standard: DIN EN 60900 IEC 60900.
    • Cutting capacity copper cable, multiple-stranded Ø: 15mm.
    • Cutting capacity copper cable, multiple-stranded: 50mm².
    • Stripping capacity for cross-sections: 0.75 - 1.5 mm² / 2.5 mm².
    • Capacity in square millimetres: 0.5 - 2.5mm².
    • AWG: 1 / 0.
    • VDE tested: Yes.
    • Total Overall Length: 210mm.
    • Weight: 280g.
    • Meets or Exceeds: IEC 60900, DIN EN 60900


INCLUDES:

New KNIPEX 13 96 200 1000V VDE Electrical Installation Pliers
