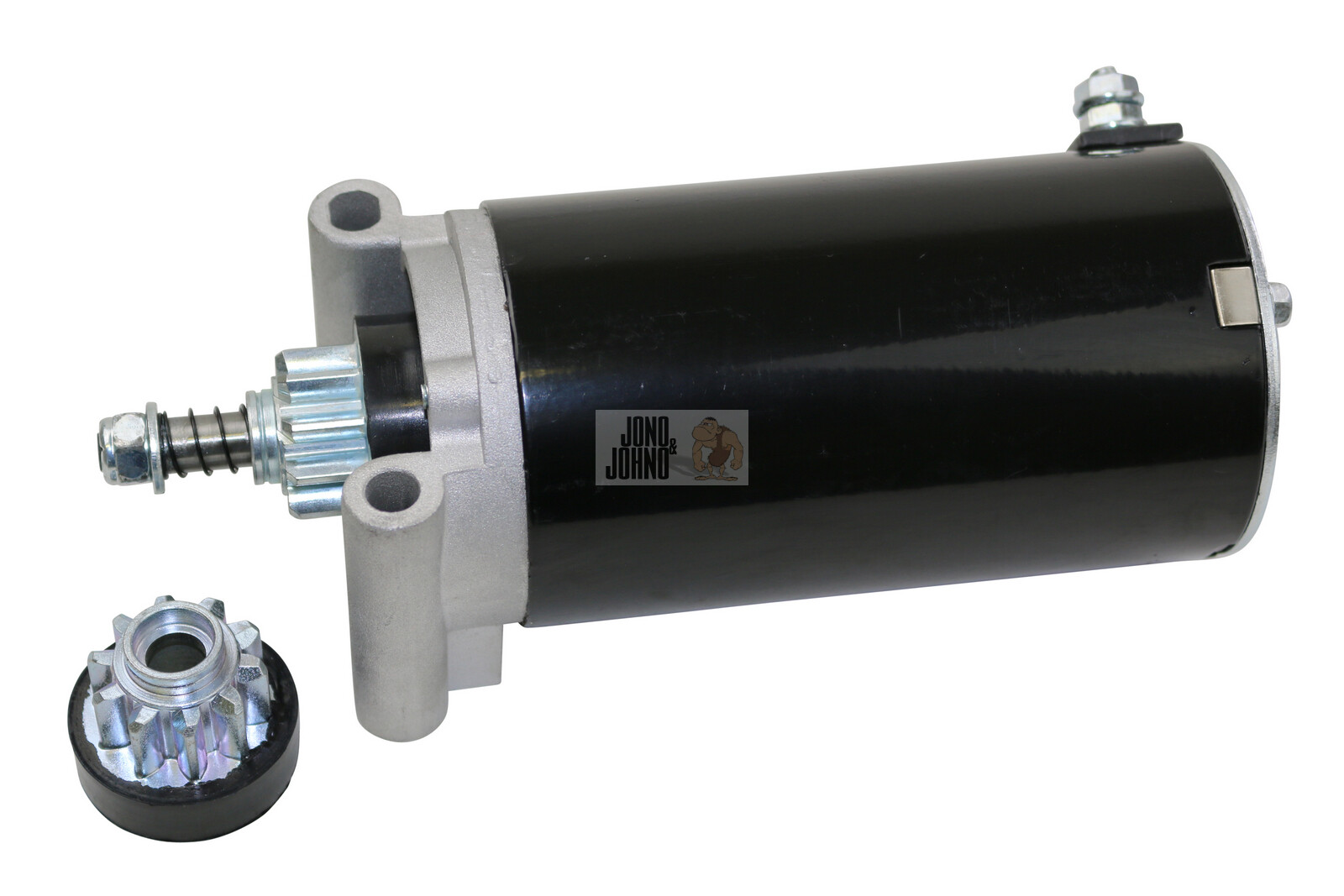

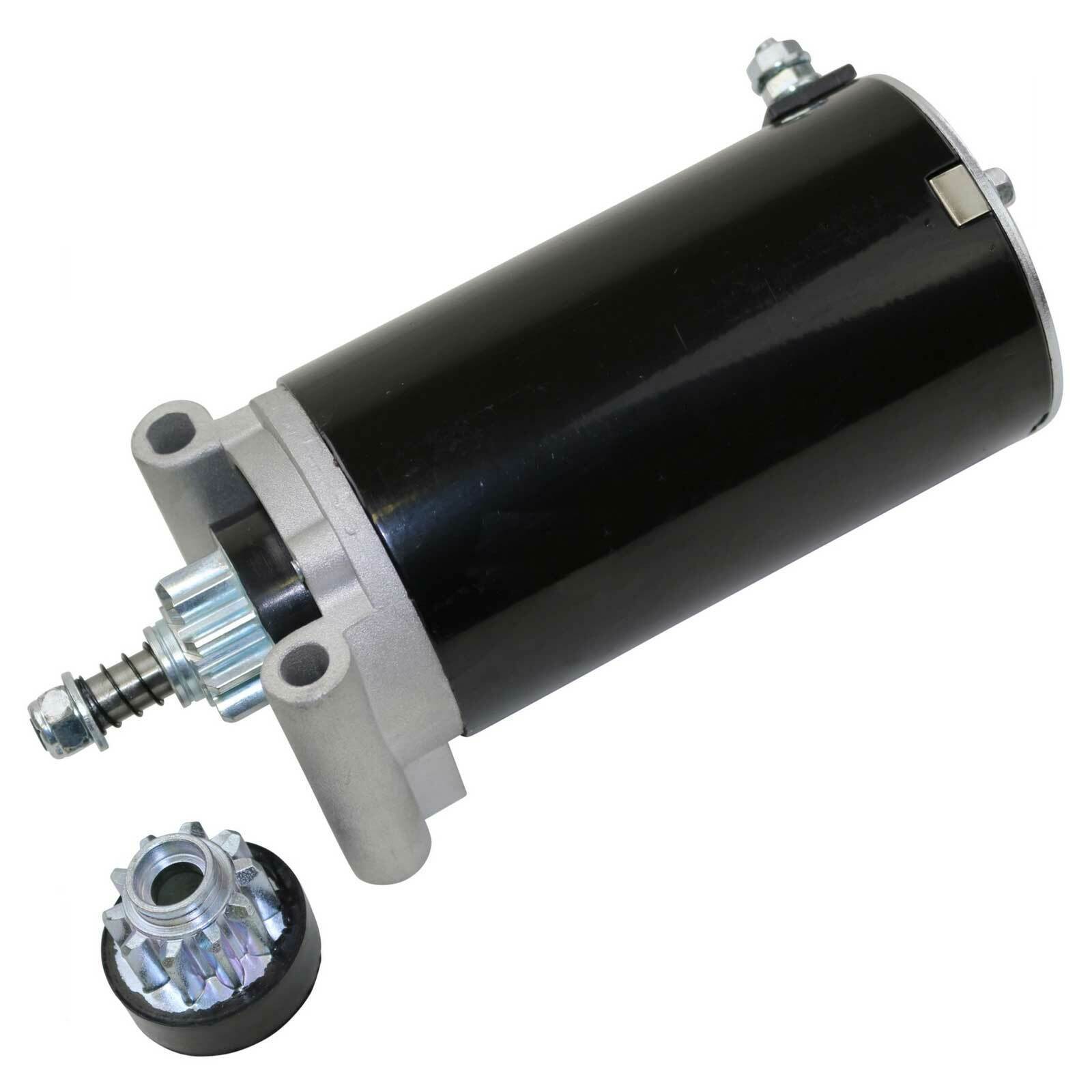

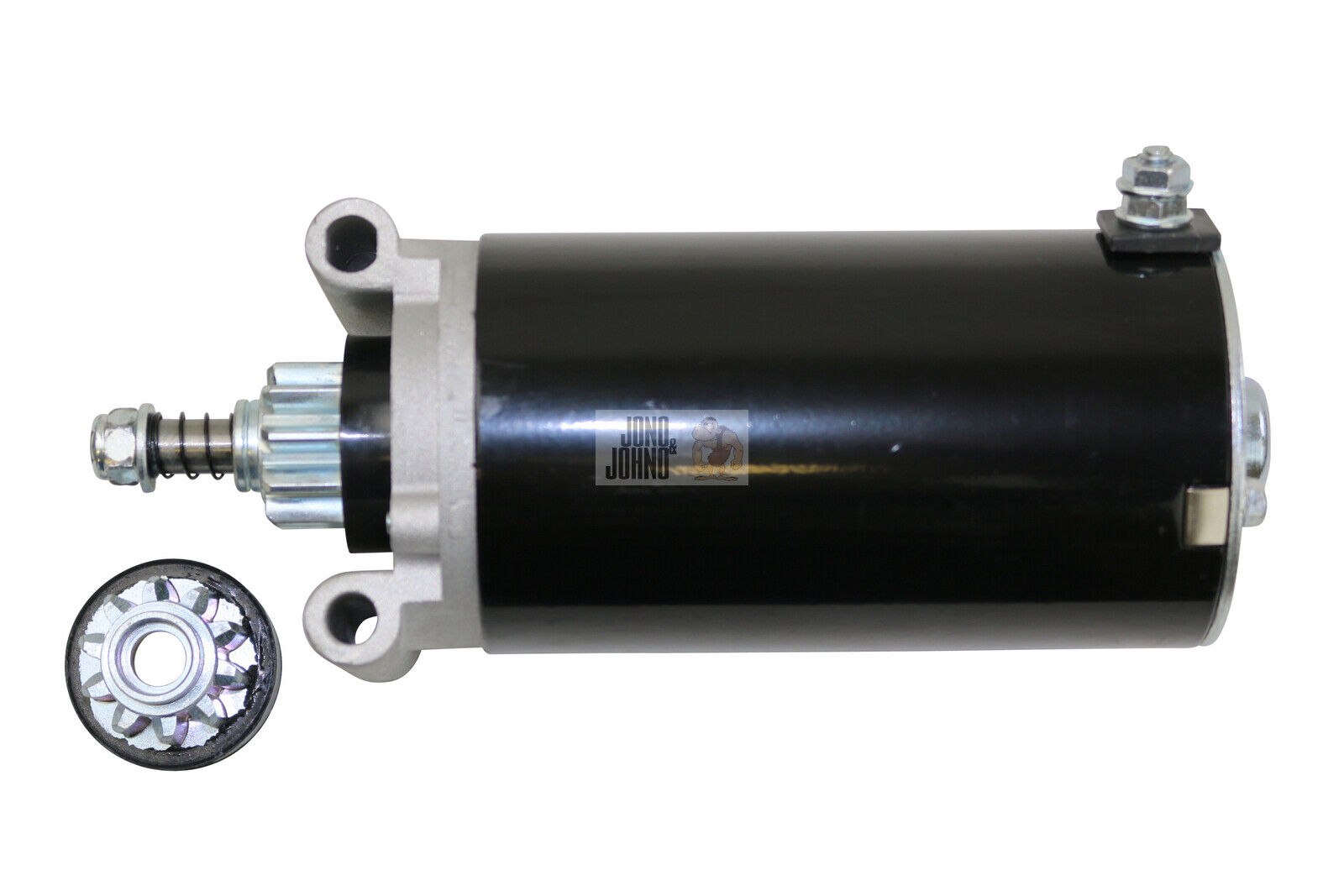

Replacement Kohler Courage Starter Motor

Brand New Replacement Starter to suit Kohler 20 to 27 HP engines with steel ring gear.

BONUS: 1 extra gear!

• Count the number of drive teeth on your starter motor’s drive gear. There should be 10 teeth.
• If you have a 9-tooth Kohler starter and the rest of the starter measurements are the same, our ten-tooth starter will still work. Our ten-tooth starter replaces the older style 9-tooth starter.
• Check what the drive gear on your old starter motor is made from. If it is steel then this starter is suitable.
• Measure the housing of your starter motor. If it is around 130mm then this starter is suitable.
• Measure the mounting bolt spacing. It should be approx. 68mm.

Email or call us with any questions using below contact details.

• 12 Volt

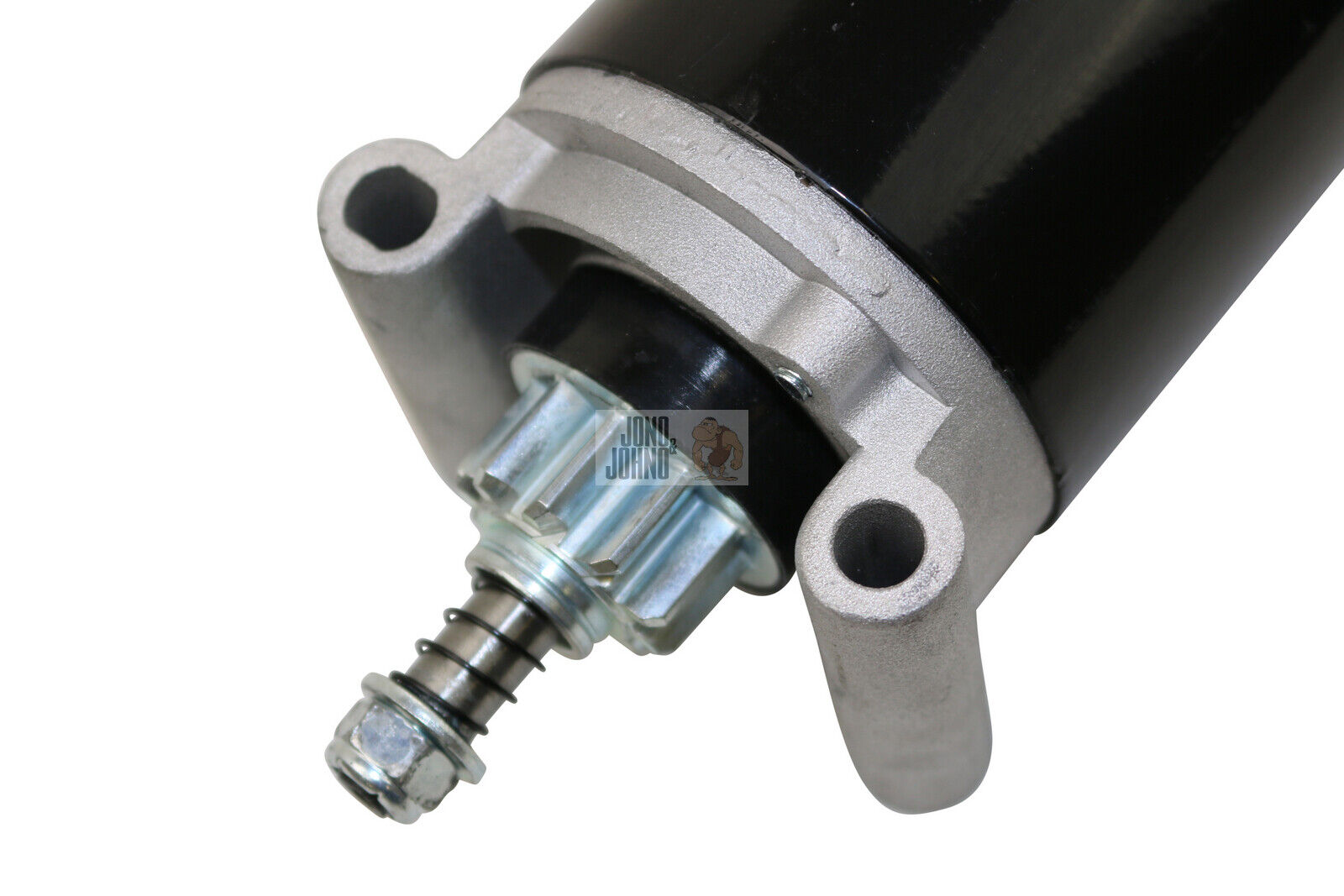

• 10 Tooth Steel Drive Gear - Counter Clockwise Rotation.
• If you have a 9-tooth Kohler starter and the rest of the starter measurements are the same, our ten tooth starter will still work. Our ten-tooth starter replaces the older style 9-tooth starter.

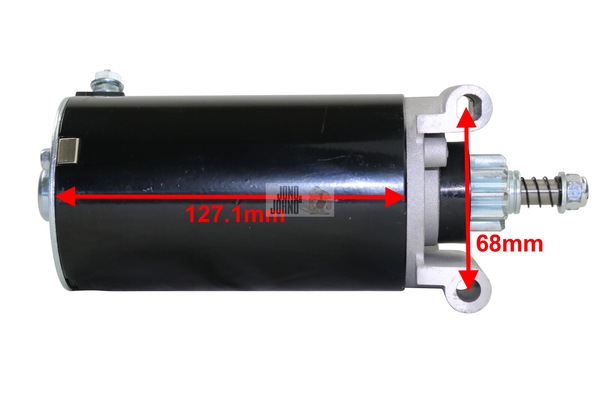

• Mounting hole Centres - 68mm
• Drive Pinion Dia. 32.6mm
• 5" (127.1mm) housing
• 12 month warranty from date of sale
• Replacement Aftermarket (non-genuine) part.

• Kohler: 32-098-01, 3209801, 32-098-01S, 3209801S
• Kohler: 32-098-03, 3209803, 32-098-03S, 3209803S
• Kohler: 32-098-04, 3209804, 32-098-04S, 3209804S
