Koop 12HP Diesel Engine with Electric Start - Keyway Shaft (Model 192FE)
Heavy-Duty Diesel Power for Pumps, Generators, Compressors, and More
The Koop 12HP Diesel Engine (Model 192FE) is a high-torque, air-cooled single-cylinder engine designed to deliver dependable, fuel-efficient performance across a wide range of applications. Whether you're powering a water pump on the farm, running a generator on-site, or operating industrial equipment, this engine is built to handle tough jobs with ease.
Compact yet powerful, it features a direct injection combustion system for maximum fuel efficiency and output, while the electric start system offers the convenience of key-turn ignition to get working faster.
Key Features:
12HP Air-Cooled Diesel Engine - Built for durability and heavy-duty use
Direct Injection System - Optimised combustion for reduced fuel consumption and high efficiency
Electric & Recoil Start Options - Reliable ignition in all conditions
Keyway Shaft Output (25.4mm / 1") - Compatible with pumps, compressors, generators, and custom equipment
Low Fuel Consumption (275-280 g/kWh) - Economical operation with extended runtime
5.5L Fuel Tank - Supports hours of continuous use

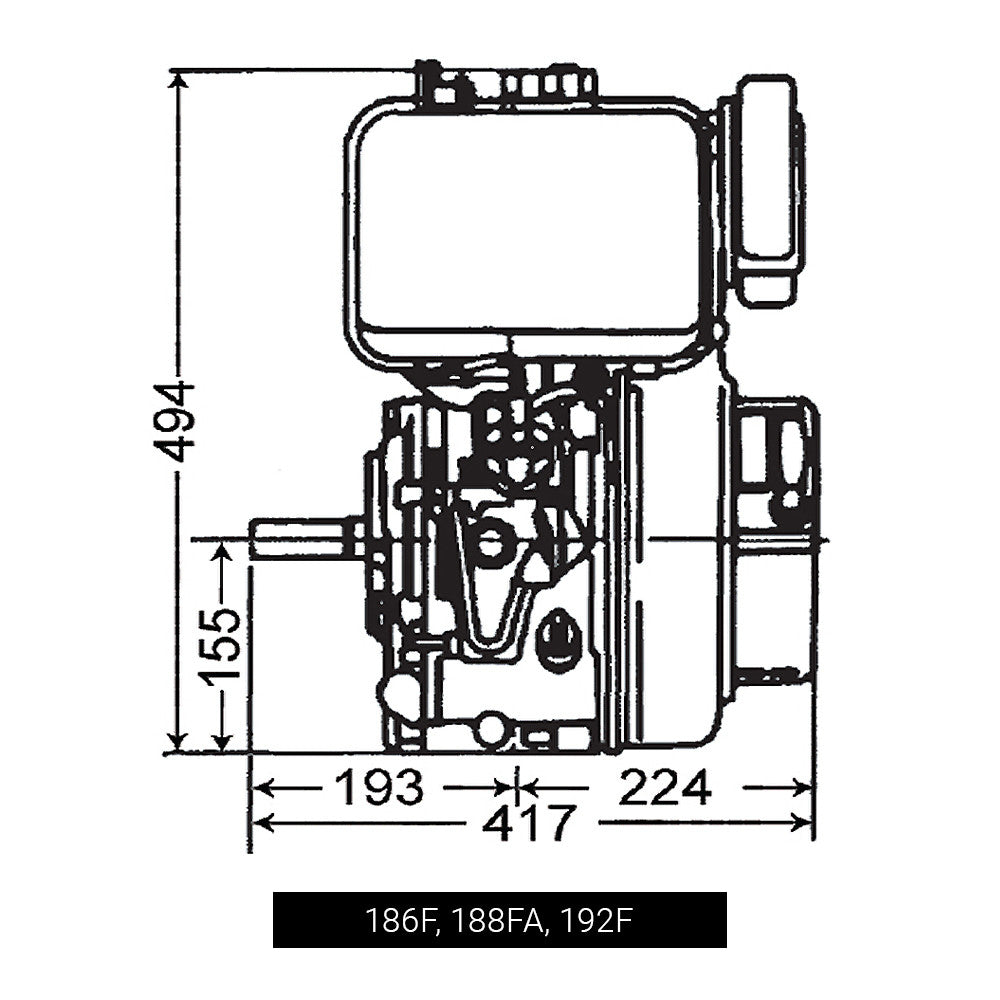

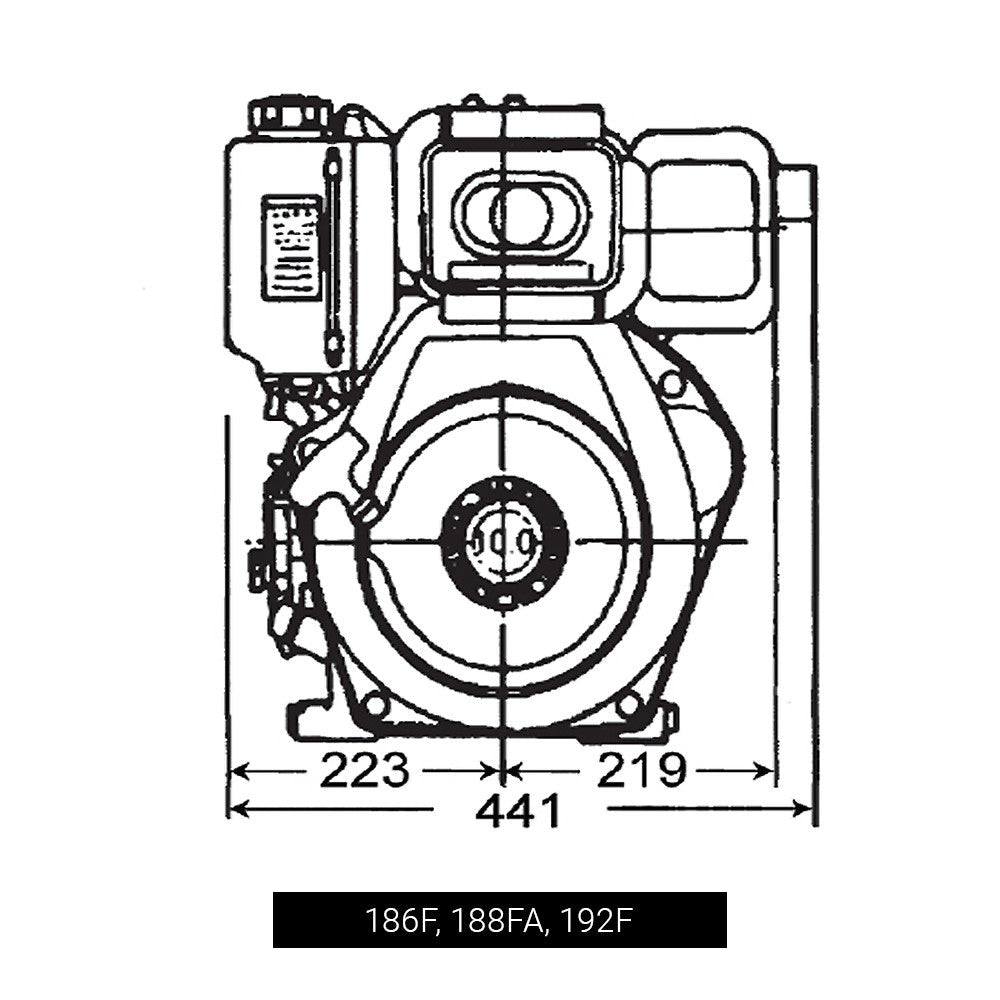

Compact Size (417 x 441 x 494mm) - Easy to fit into confined spaces or portable machines
High Compression Ratio (19.5:1) - Delivers powerful, consistent torque under load
Clockwise Rotation (Viewed from Flywheel) - Standard configuration for most equipment
Technical Specifications:
Specification | Details |
---|---|
Model | D192FAE |
Engine Type | 4-Stroke Single Cylinder, Air-Cooled |
Combustion System | Direct Injection |
Bore x Stroke | 92mm x 75mm |
Displacement | 499cc |
Compression Ratio | 19.5:1 |
Rated Speed | 3000 RPM |
Rated Power | 12HP |
Starting System | Recoil + Electric Start |
Fuel Tank Capacity | 5.5L |
Lubrication Capacity | 1.65L (SAE10W30, CD grade or higher) |
Fuel Type | 0# (summer), -10# (winter) Diesel |
Fuel Consumption | 275-280 g/kWh |

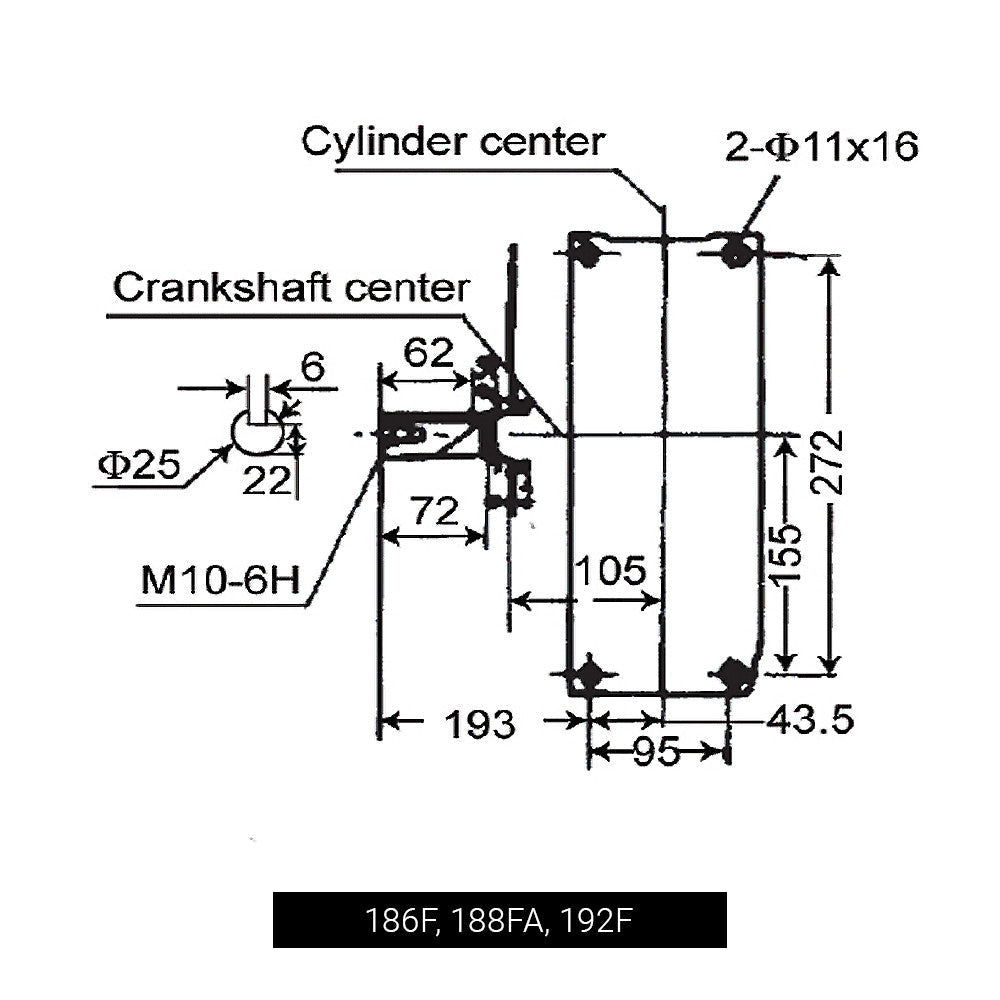

Shaft Size | 25.4mm (1") with 6.5mm Keyway |
Dimensions (LxWxH) | 417mm x 441mm x 494mm |
Net Weight | 60kg |
Rotation Direction | Clockwise (Viewed from Flywheel) |
Applications:
Water Pumps (Irrigation, Firefighting, Drainage)
Portable and Standby Generators
Agricultural Machinery
Construction Equipment
Custom-Built Machines
If you need rugged, reliable diesel power for your machinery or remote-site applications, the Koop 12HP Diesel Engine delivers the strength, compatibility, and fuel efficiency to get the job done-day in, day out.
MPN: 192FAE
