Collect 562 Everyday Rewards points

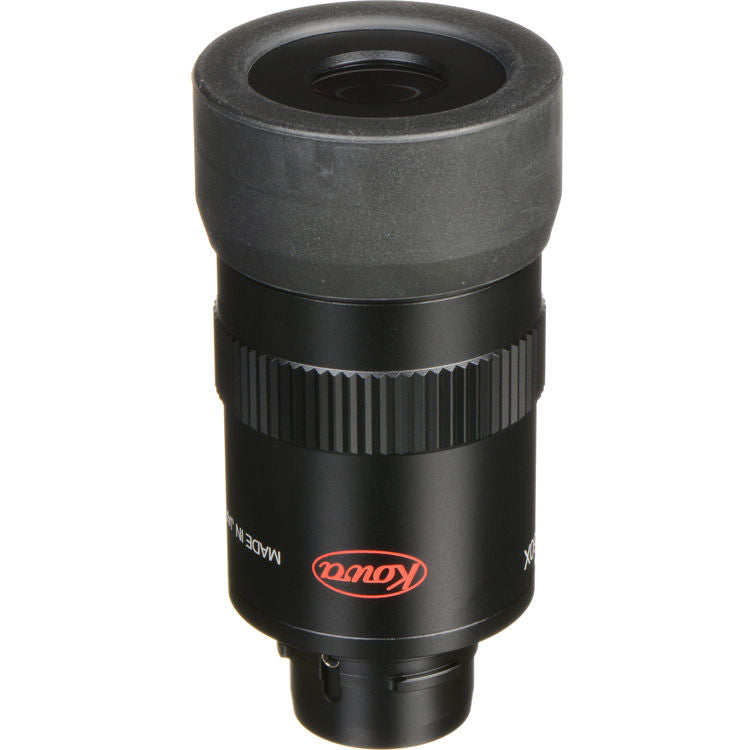

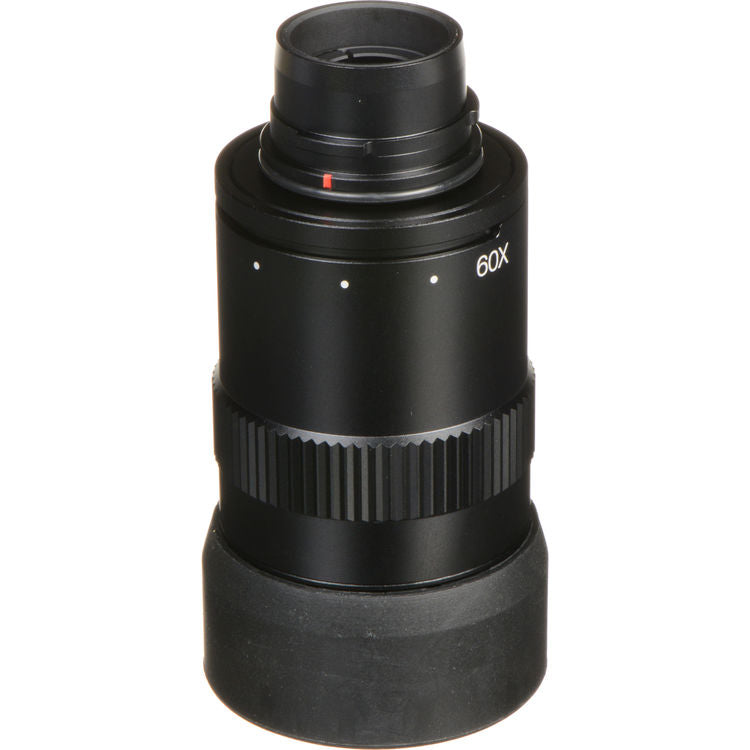

Kowa's TE-9Z 20-60x Zoom Spotting Scope Eyepiece is compatible with TSN-82SV, TSN-660, and TSN-600 series spotting scopes to provide a wide magnification range that will satisfy most of your observational needs. Using a simple bayonet mount, it instals easily, and the knurled dial makes changing the zoom quick and sure. The TE-9Z features a wide apparent field of view - 42-126o with 60mm and 66mm scopes and 40-126o with the 82mm scope - and a 16/16.5mm eye relief value for comfortable glassing, even with eyewear.
Specs:
Magnification: 20-60x (TSN 600/660) 20-63x (TSN 82SV)
Exit pupil: 3.0-1.0mm (TSN 600) 3.3-1.1mm (TSN 660) 3.9-1.3mm (TSN-82SV)
Field of view at 1000M: 33.2-17.5M (TSN 600/660) 31-17M (TSN 82SV)
Eye relief: 16.5-16mm
Field of view: 1.9-1.0 degrees (TSN 600/660) 1.8-0.95 degrees (TSN 82SV)
Relative brightness: 9.0-1.0 (TSN 600) 10.9-1.2 (TSN 660) 6.8-1.7 (TSN 82SV)
Twilight Factor: 34.6-60.0 (TSN 600) 36.3-62.9 (TSN 660) 41.5-71.9 (TSN 82SV)
Weight: 370g
In the Box:
Kowa TE-9Z 20-60x Zoom Spotting Scope Eyepiece
GTIN: 4987067391615
Estimated Delivery Time Frame:3-10 business days
Ask a Question About This Product
Reference ID: 9953821
