Overview

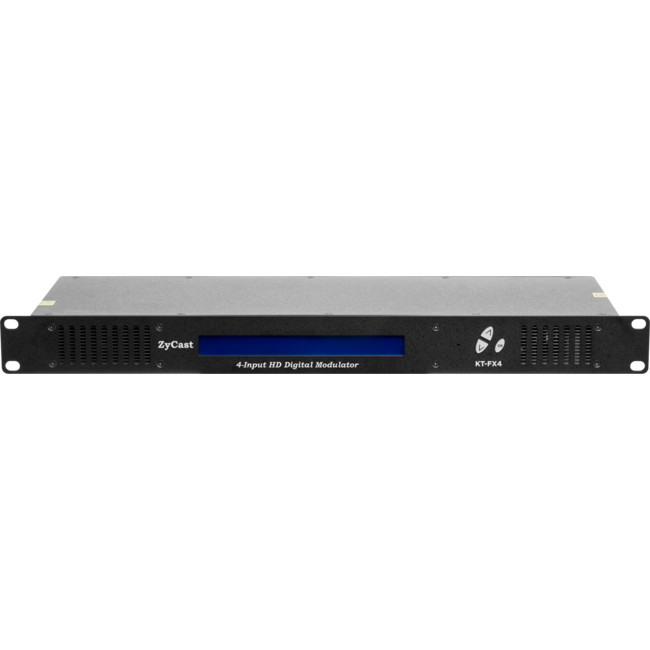

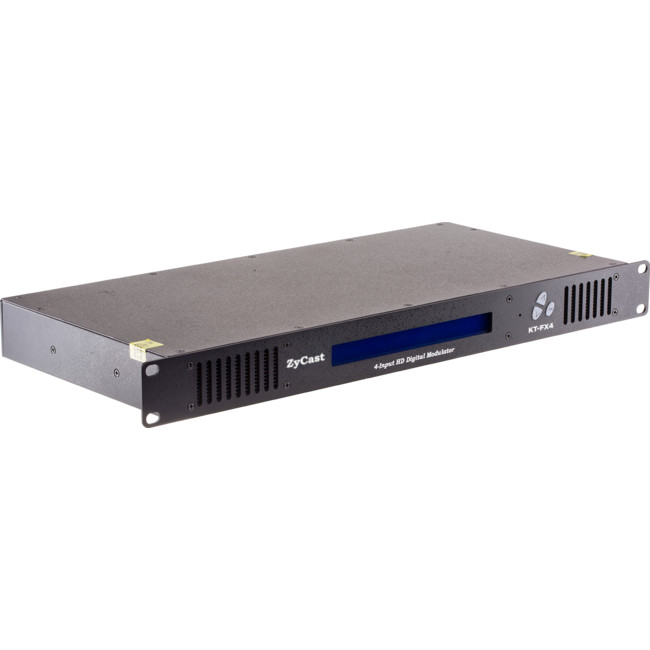

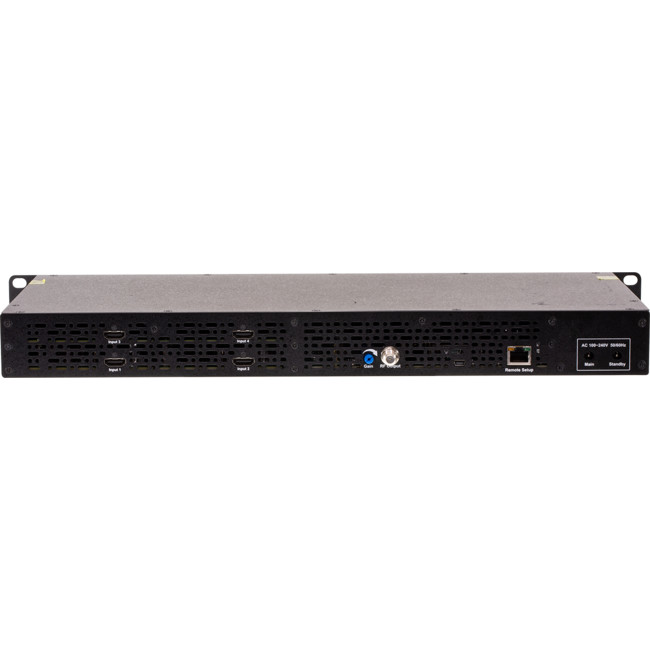

KT-FX4 4 INPUTS FOXTEL HD MODULATOR

The KT-FX4 is a Foxtel-approved quad input (HDMI) HD digital modulator that encodes HDMI signal to any DTV channels.

Pre-programmed with a Foxtel-approved channel listing andwith an output level of 90dB and MER of >38dB, the KT-FX4 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute four crystal-clear HD pictures over newor existing coaxial cable.

Programming of the KT-FX4 is done via a web GUI and front LCD panel. It uses a frequency range of 177.5MHz to 816.5MHz (6 to 69).

Specifications
Specifications

Foxtel Approved Number F31061
Input Number of Inputs 4
Video Input HDMI
Video Input Level 0.7 - 1.4V (Peak to Peak)
Video Mode PAL
Audio Input Stereo
Audio Input Level 0.4 to 4.8V (Peak to Peak)
Output Frequency Range 177.5 MHz to 816.5 MHz (6 to 69)
HDMI Loop Through No
Output Level 85dB
MER >38dB
Delayed Audio Delayed Audio Output No
Modulation Video Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compression H.264 AVC (MPEG-4)
Audio Compression MPEG Layer II / AAC
Video Bitrate SD 1Mbps to 9Mbps (Default 5Mbps)
Video Bitrate HD 12Mbps to 24Mbps (Default 24Mbps)
LCN AU (APN)
Carrier 2K / 8K
GI 1/32
FEC 7/8
Constellations 16 QAM / 64 QAM
Management / Programming Front LCD Yes
Web GUI Yes
General Power Supply Type External
Power Supply 2 × 12V DC 4Amp
Redundant PSU Yes
Operating Temperature 0°C to +45°C
Storage Temperature −0°C to +60°C
Packaging Dimensions 482mm × 208mm × 44mm
Weight 2.5kg
Warranty 3 years
