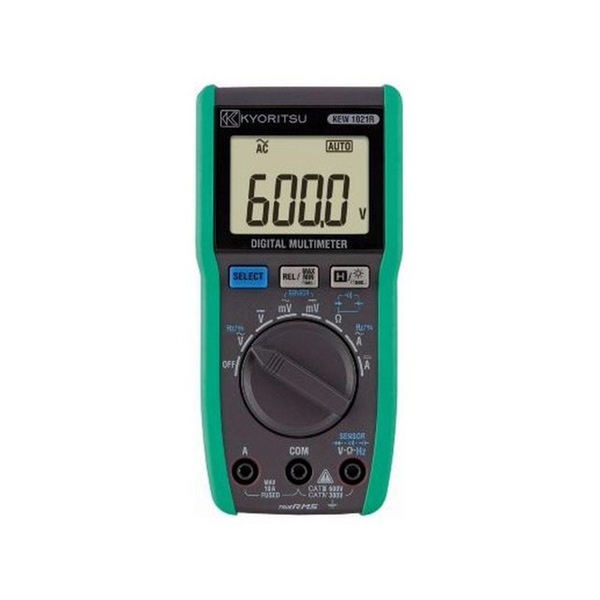

This powerful Kyoritsu digital multimeter KEW1021R allows you to measure voltage, AC or DC current, resistance, continuity, diode testing, capacitance, frequency, duty and more. True RMS reading. This meter includes test leads, ceramic fuse, carrying case, flat-type holder and a wing type holder. Suitable for electricians and tradies.
Elegant and easy-to-use cabinet
Large display with 6000 counts and Backlight
Enhanced current measuring function using an external clamp sensor
Two detachable holders, flat and wing type
Accurate reading with True RMS
Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V
DC V 6.000/60.00/600.0V (auto range) ±0.5%rdg ±3dgt
DC mV 600.0mV ±1.5%rdg ±3dgt
DC Clamp Sensor 60.00/200.0A (auto range) ±1.5%rdg ±3dgt + Sensor accuracy
AC V 6.000/60.00/600.0V (auto range) ±1.0%rdg ±3dgt [40 - 500Hz]
AC mV 600.0mV ±2.0%rdg ±3dgt [40 - 500Hz]
AC Clamp Sensor 60.00/200.0A (auto range) ±2.0%rdg ±3dgt + Sensor accuracy [40 - 500Hz]
DC A 6.000/10.00A (auto range) ±1.5%rdg ±3dgt
AC A 6.000/10.00A (auto range) ±1.5%rdg ±3dgt[45 - 500Hz]
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (auto range)
±0.5%rdg ±4dgt (600Ω),
±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ)
±1.5%rdg ±3dgt (40MΩ)
Continuity buzzer 600Ω (Buzzer sounds below 90Ω)
Diode test Open-loop voltage: < 3.0V
Capacitance 60.00/600.0nF/6.000/60.00/600.0/1000µF
±2.0%rdg ±5dgt (60/600nF)
±5.0%rdg ±5dgt (6/60/600/1000µF)
Frequency ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt, ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt
DUTY 10.0 - 90.0% ±1.0%rdg ±3dgt [50/60Hz]
Applicable standards IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V, IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS)
Power source R03 (1.5V) × 2
Dimensions 155(L) × 75(W) × 40(D)mm
Weight 250g Approx. (including batteries)
Included Accessories Wing-type holder, Flat-type holder, 7066A (Test leads),
8919 (Ceramic fuse [10A/600V]) × 1 (included),
9097 (Carrying case), R03 × 2, Instruction manual
Optional Accessories 7234 (Alligator clip), 8161 (AC clamp adaptor), 8115 (AC/DC clamp sensor), 9189 (Magnet hanger strap)
12 Months
