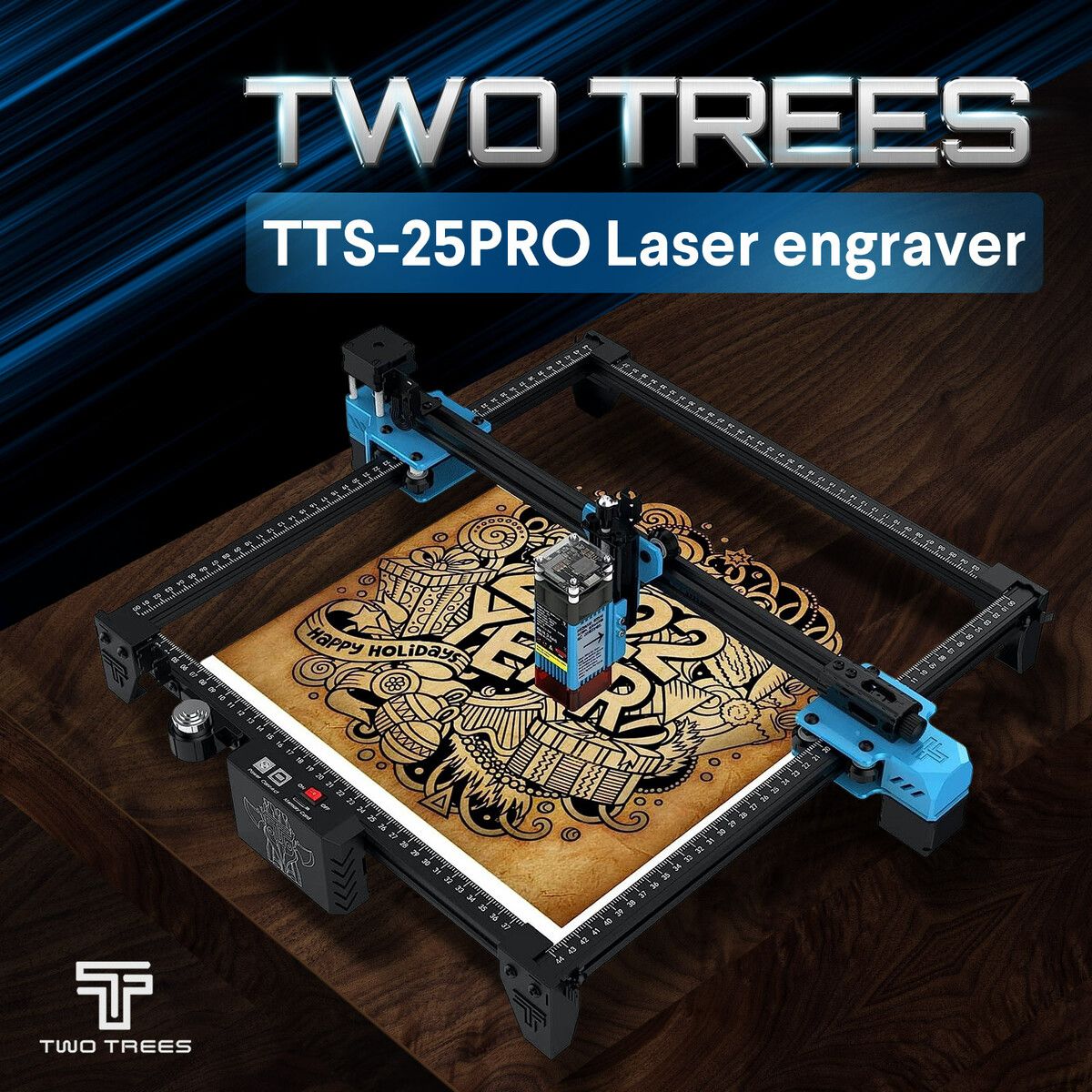

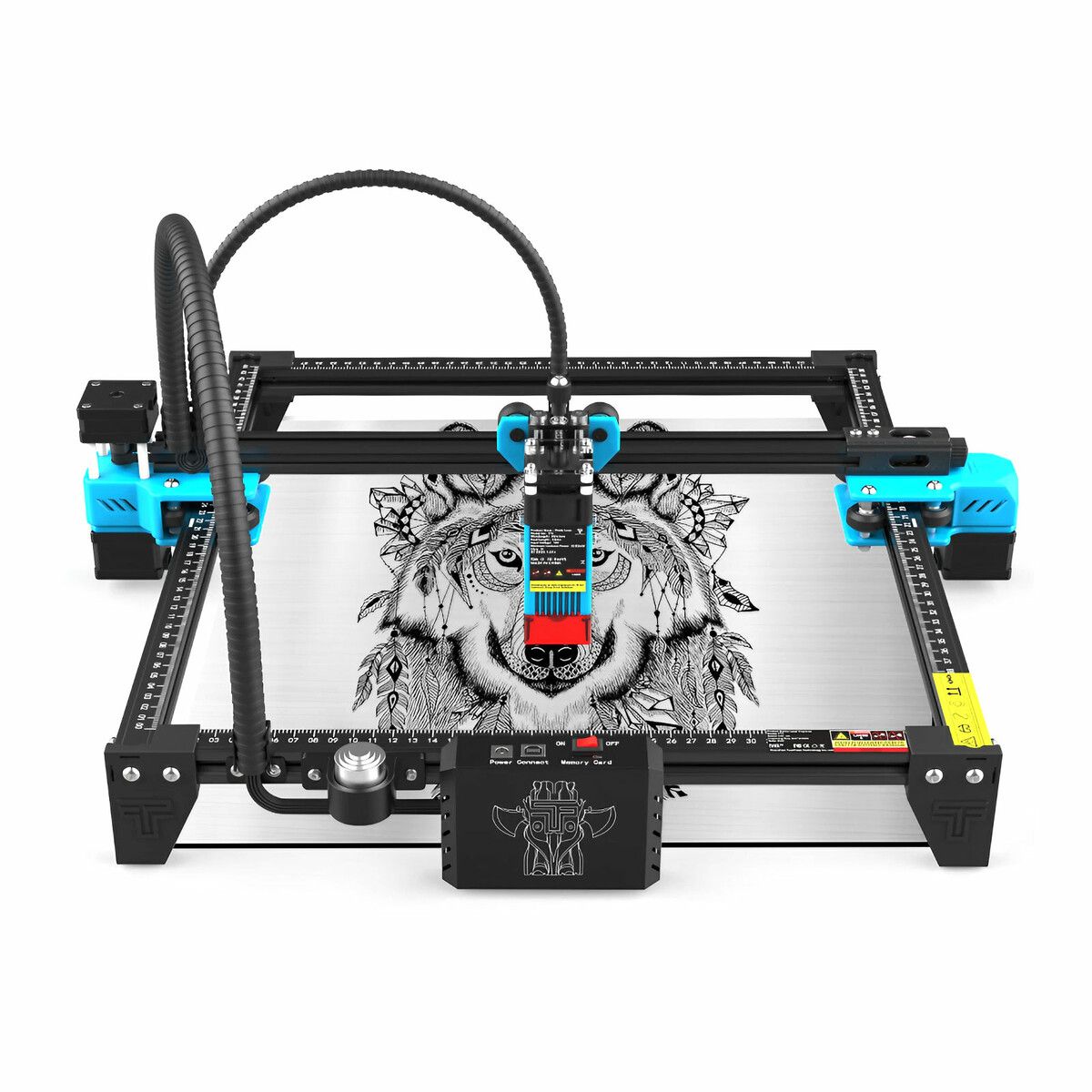

Laser Engraving Cutter Cutting Machine For Wood Leather Aluminum Acrylic Paper Plywood DIY 20w High Accuracy Online Off-line Connect

1 Review

Laser Engraving Cutter Cutting Machine For Wood Leather Aluminum Acrylic Paper Plywood DIY 20w High Accuracy Online Off-line Connect

1 Review

Hurry! 2 items left!

$269.95

Collect 269 Everyday Rewards points

Sold & shipped by Ausway

Secure ways to pay at checkout

(0)

This engraving cutting machine has a fixed focus laser, you don't have to adjust the focus before using it, which is convenient and saves working time. It also has powerful engraving accuracy, reaching 0.01 mm. Besides, the motherboard adopts a 32-bit dual-core MCU, which has a faster processing speed, and the engraving speed can reach 10000 mm per minute. The laser can engrave online, while the TF card supports offline engraving. Thanks to the built-in WiFi module, you can also use a mobile phone app or the Internet for engraving. Furthermore, our engraver cutter has the world's most popular paid carving software, which is easy to catch. You can choose Laser GRBL or Lightburn to apply. When it comes to mobile apps, you can download MKS Laser from your app store to connect to the appliance, both Android and iOS systems are available. What's more, the powerful capabilities enable the marking machine to engrave wood, plywood, paper, leather, bamboo, sponge paper, alumina, acrylic, etc.

Specifications:

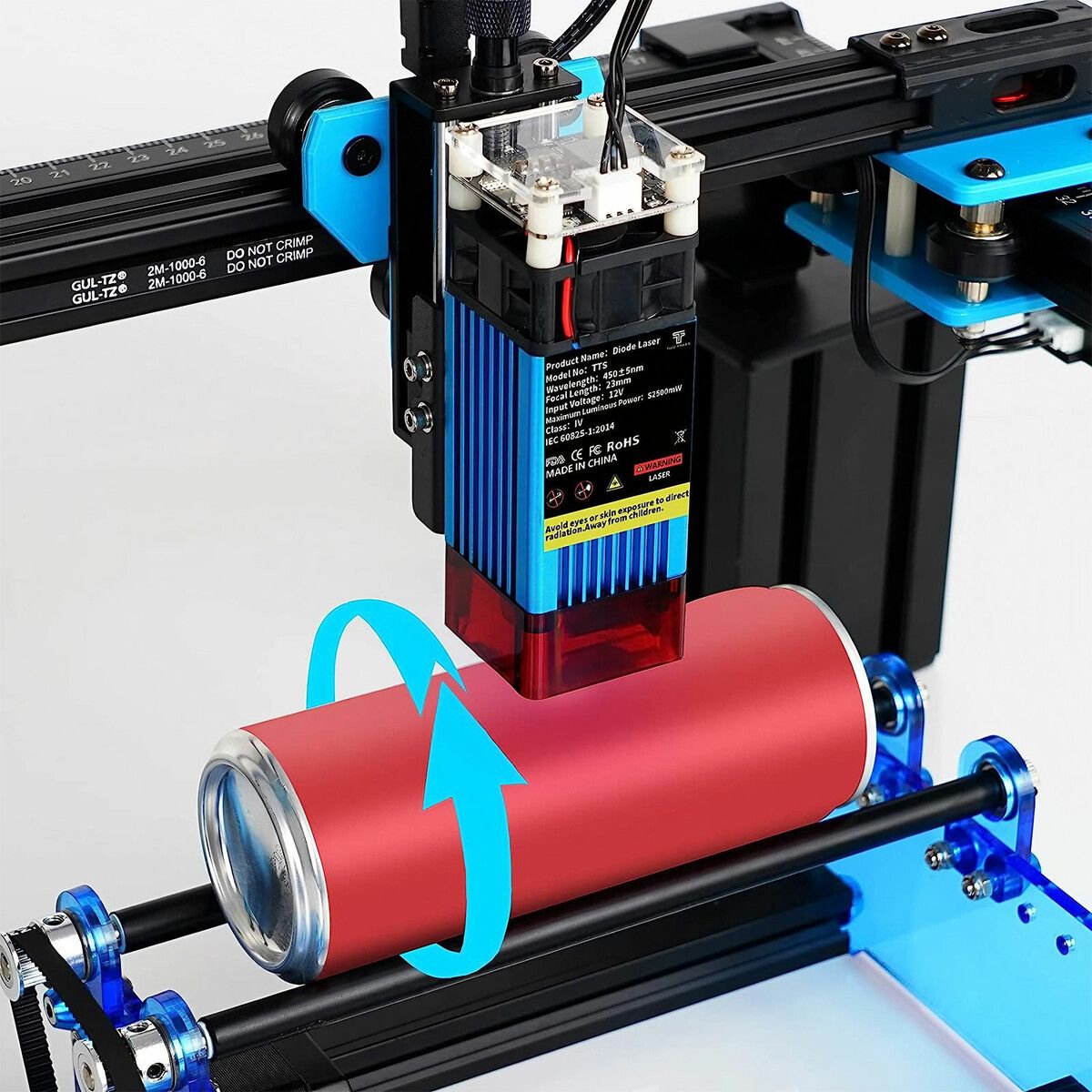

Can be used with Laser Rotary Cylinder Engraving Module
Perfect for most desktop laser engravers, where you can adjust the Z-height or reposition the base to provide the necessary clearance for the rollers
Flexible setting: 5 roller positions, each 15mm apart and setting range is 30-90mm
Supported workpiece dimensions: cylinder diameter from 22to 125 mm, length from 20 to 220 mm

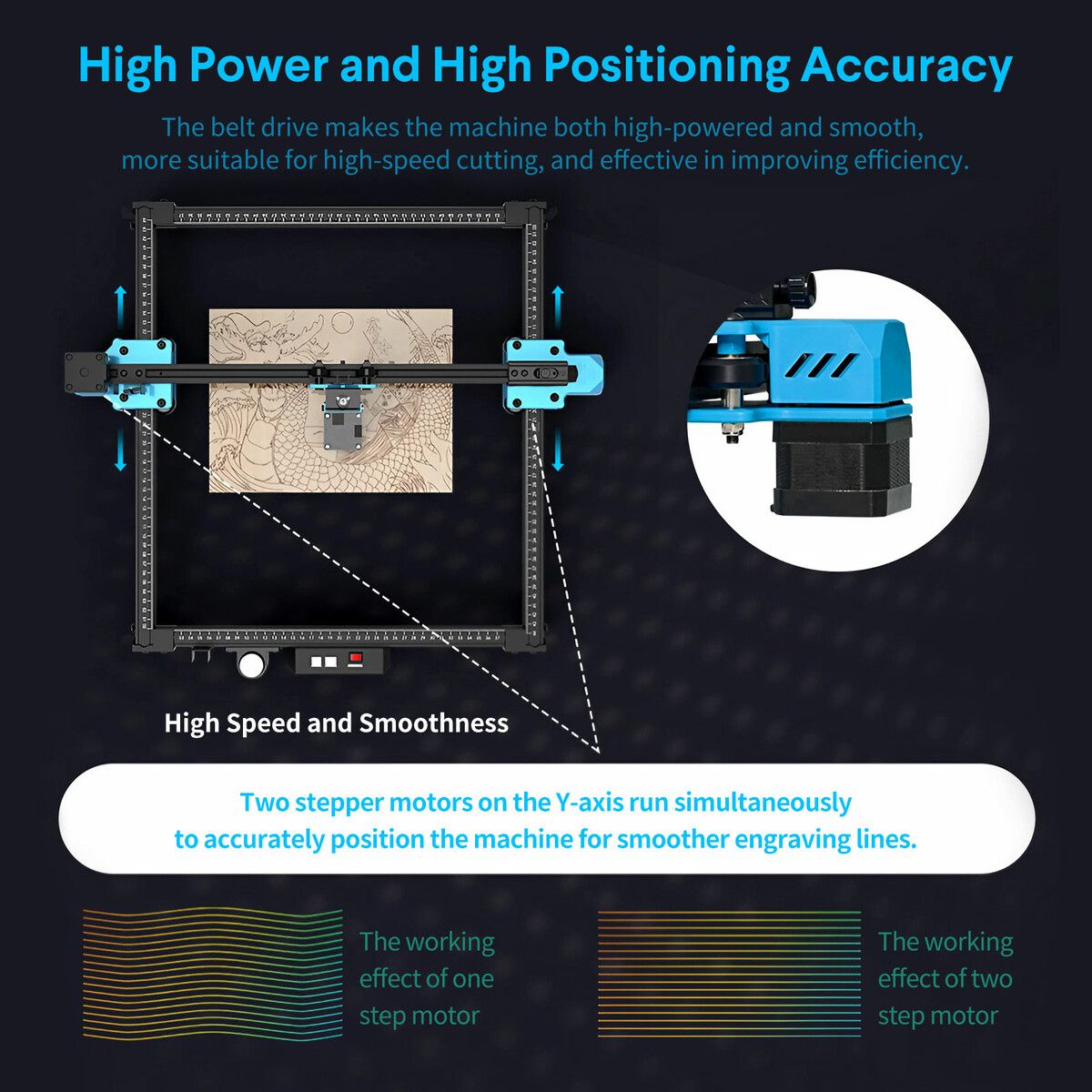

Synchronous dual motors make the Y-axis drive smoother (Other brands of machines that use a single motor drive will have one-sided lag when moving)
The left and right Y-axis extrusions are driven by 4 POM wheels, which are quiet at high speed, light in weight, and small in inertia, making them suitable for high-speed engraving
Easy expansion of the engraving area
Strong scalability: the extension set lengthens the y-axis to make it optimal
Maximum expansion area from left: 420 mm to 400 mm
EESS number: E2023106157

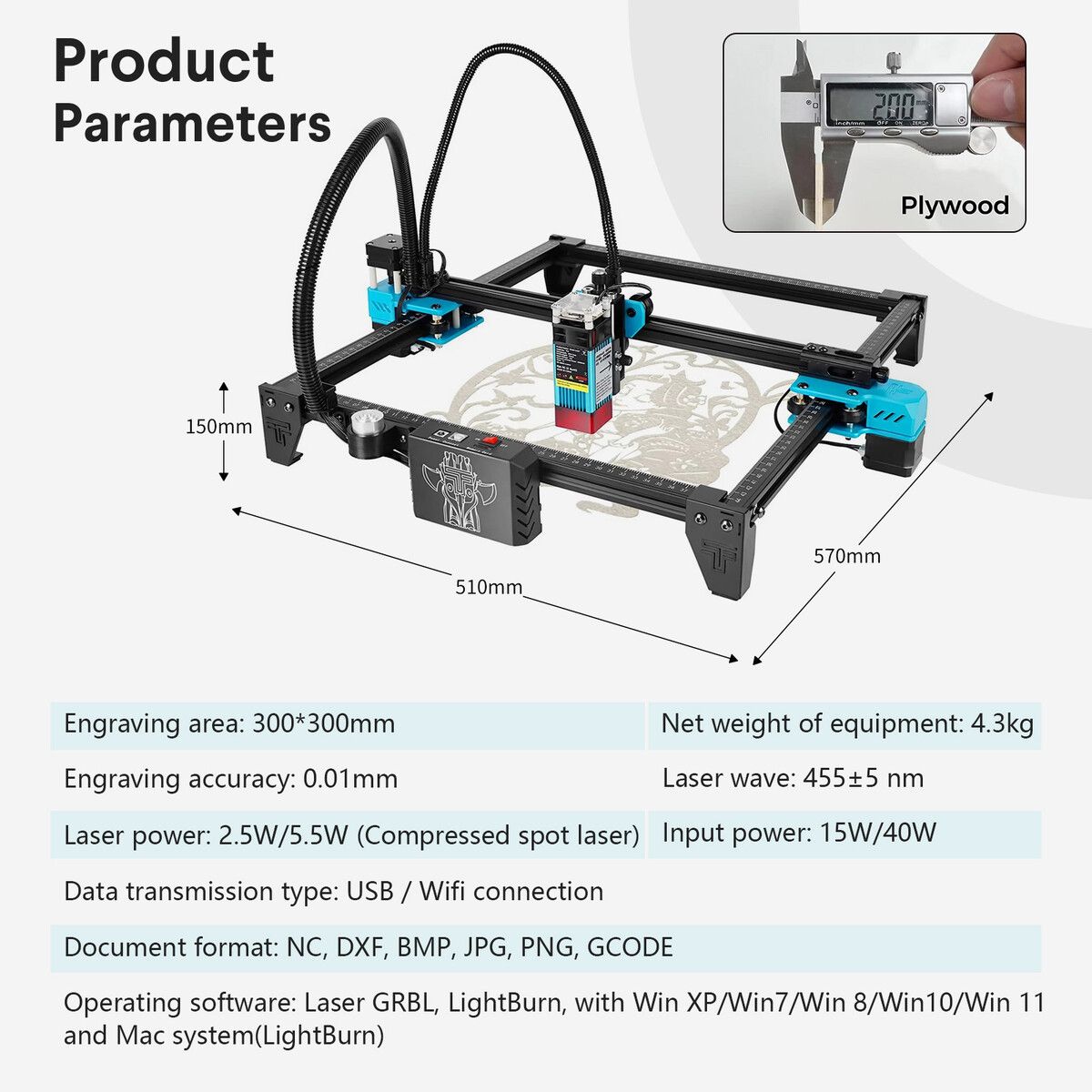

Print Size	300*300mm

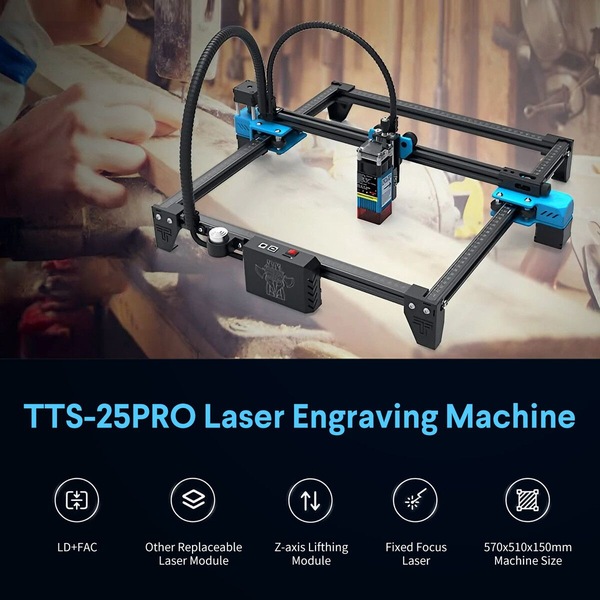

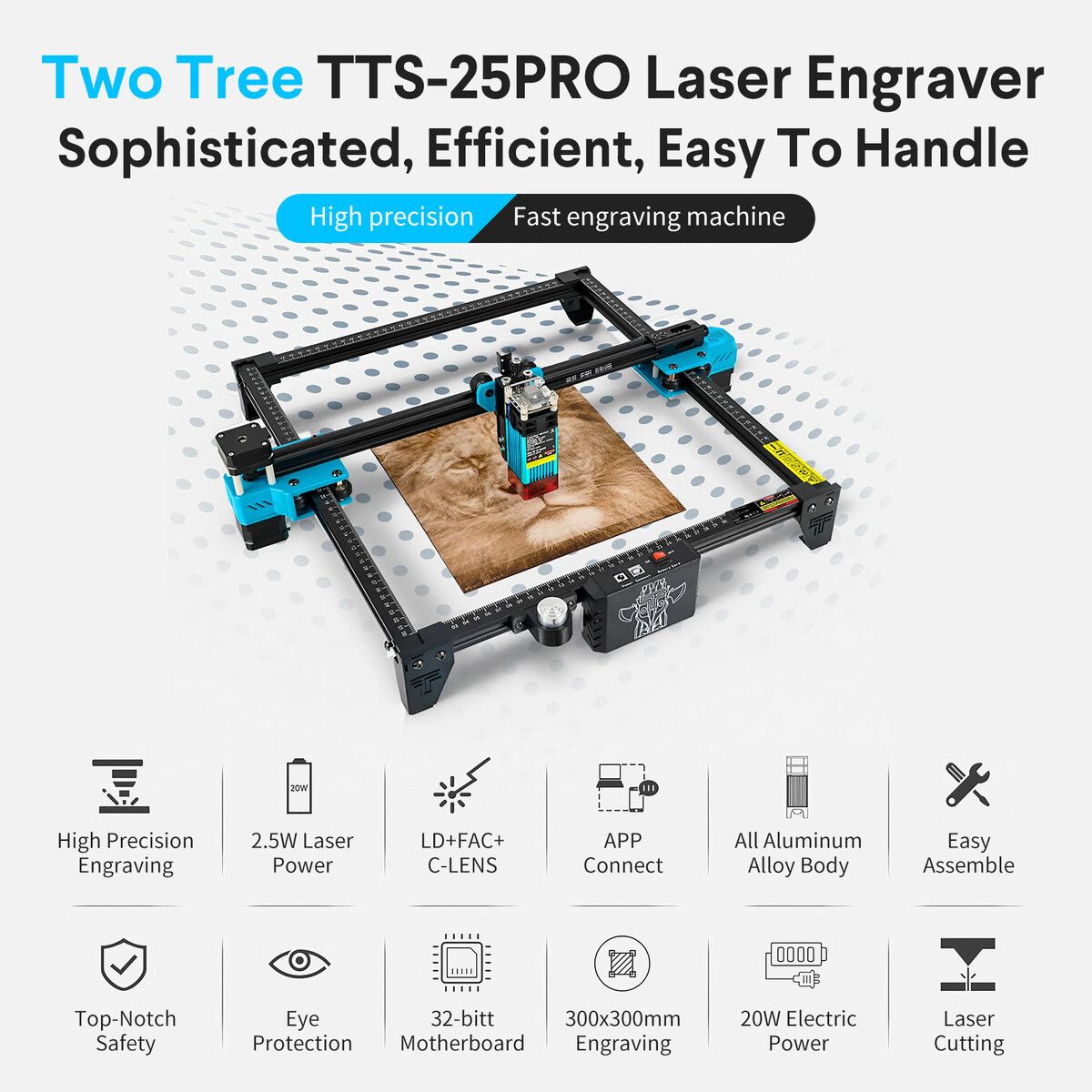

Name	TTS-25 Pro
Machine Power	20W

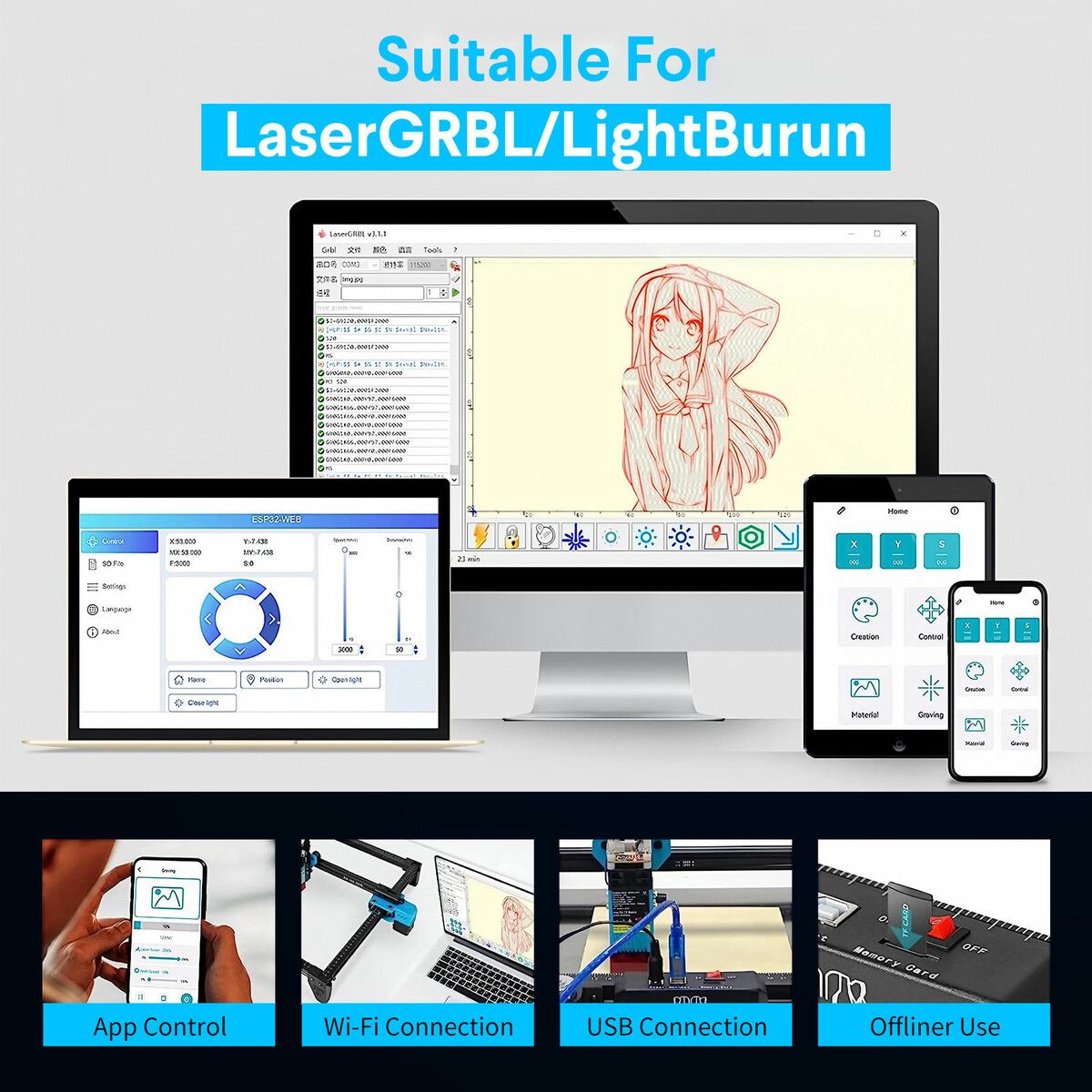

Operating software	Laser GRBL, LightBurn(support Win XP / Win 7 / Win 8 / XP / Win 10 system.) NOTE: Macbook can only use LightBurn program
Input Format	NC.DXF.BMP.JPG.PNG.GCODE
Data transmission method	USB connection. Built-in WIFI module, you can use the mobile phone online.
Equipment net weight	4.1
Equipment si Carving Objectsze	All wood, bamboo, paper, plastic, leather, PCB board, Aluminum oxide, non-reflective plating and lacquered metal
Cutting Objects	Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
Motherboard	32-bit ultra-efficient motherboard
Accuracy	0.01 mm
Engraving Speed	8000 mm / min
Carving method	Do not support offline TF card , support online.

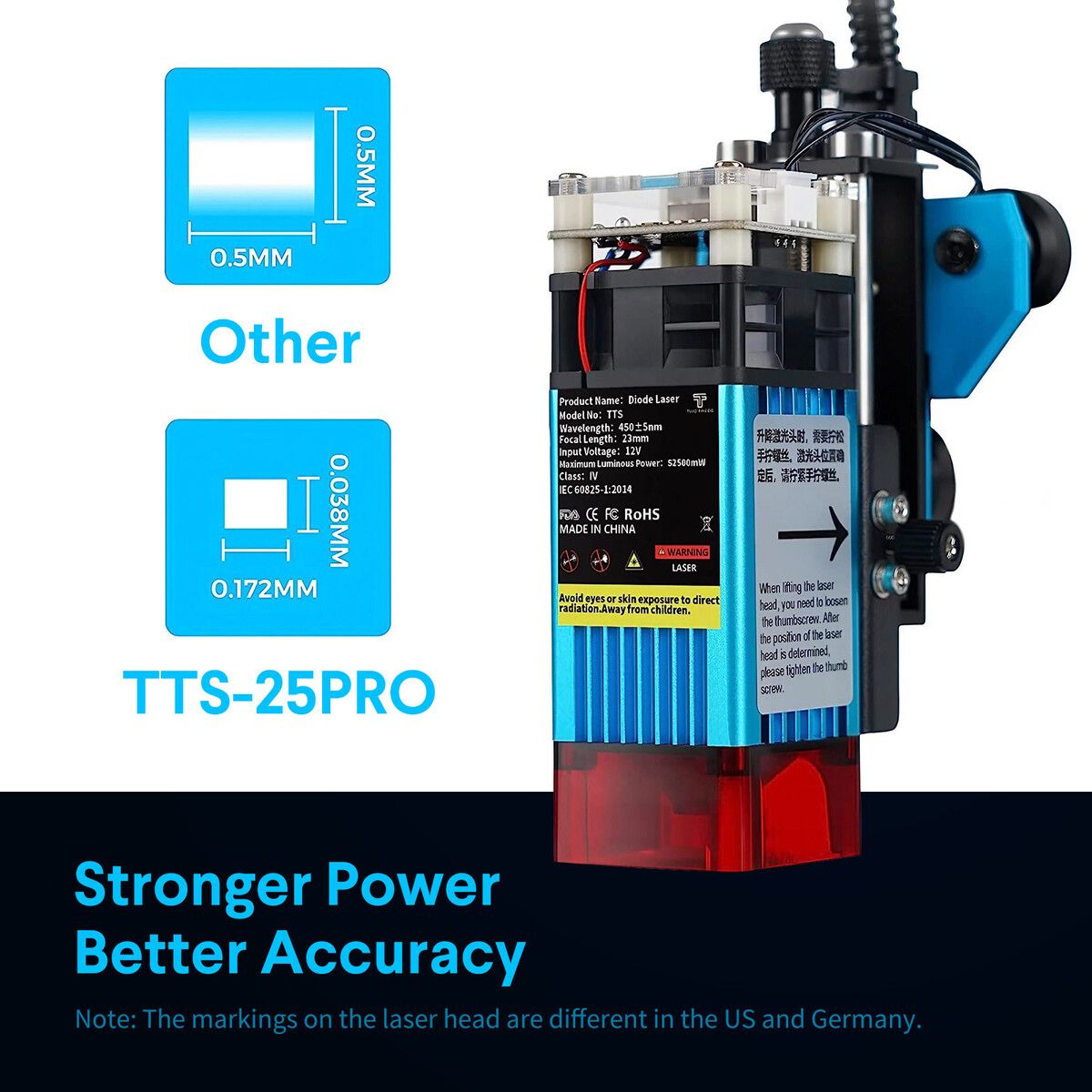

Laser Power	2.5W
Working environment	Temperature 5-40 degrees Celsius, humidity 20-60%RH
Power supply	12V 4A DC
