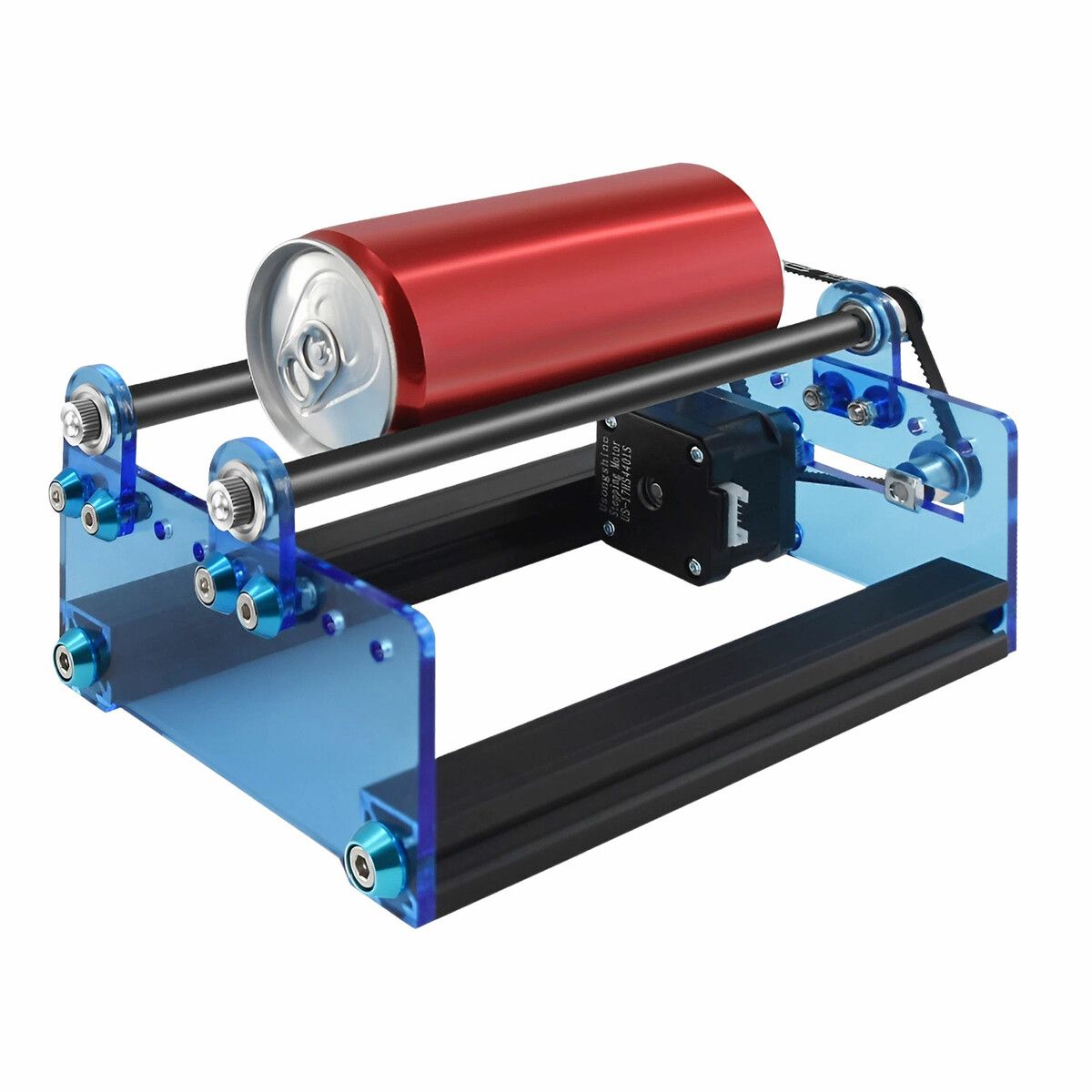

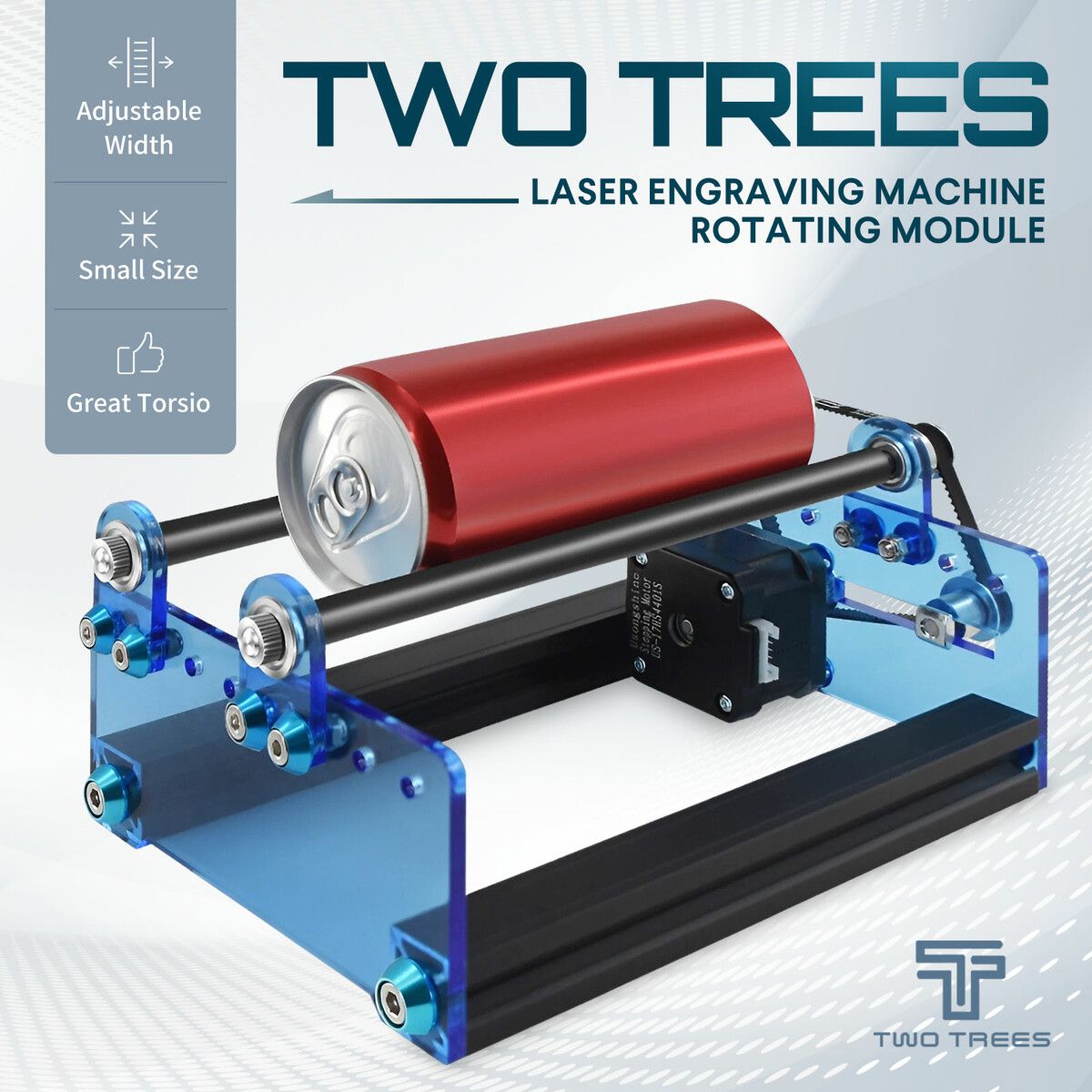

Laser Rotary Roller Cutter Cutting Machine Engraving Module for Cylindrical Objects Cans Adjustable Width

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Hurry! 1 items left!
$59.97

Collect 59 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ausway
Secure ways to pay at checkout

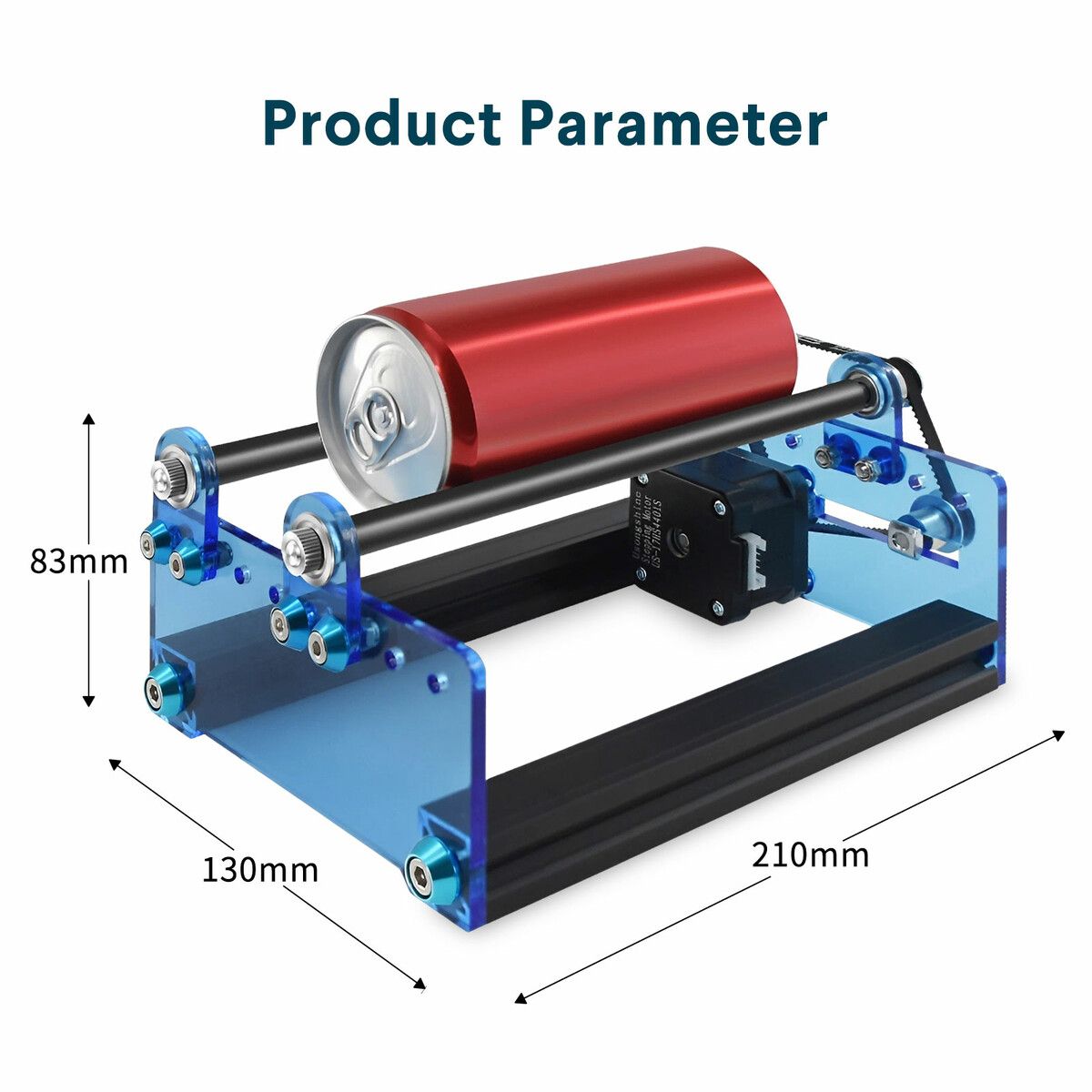

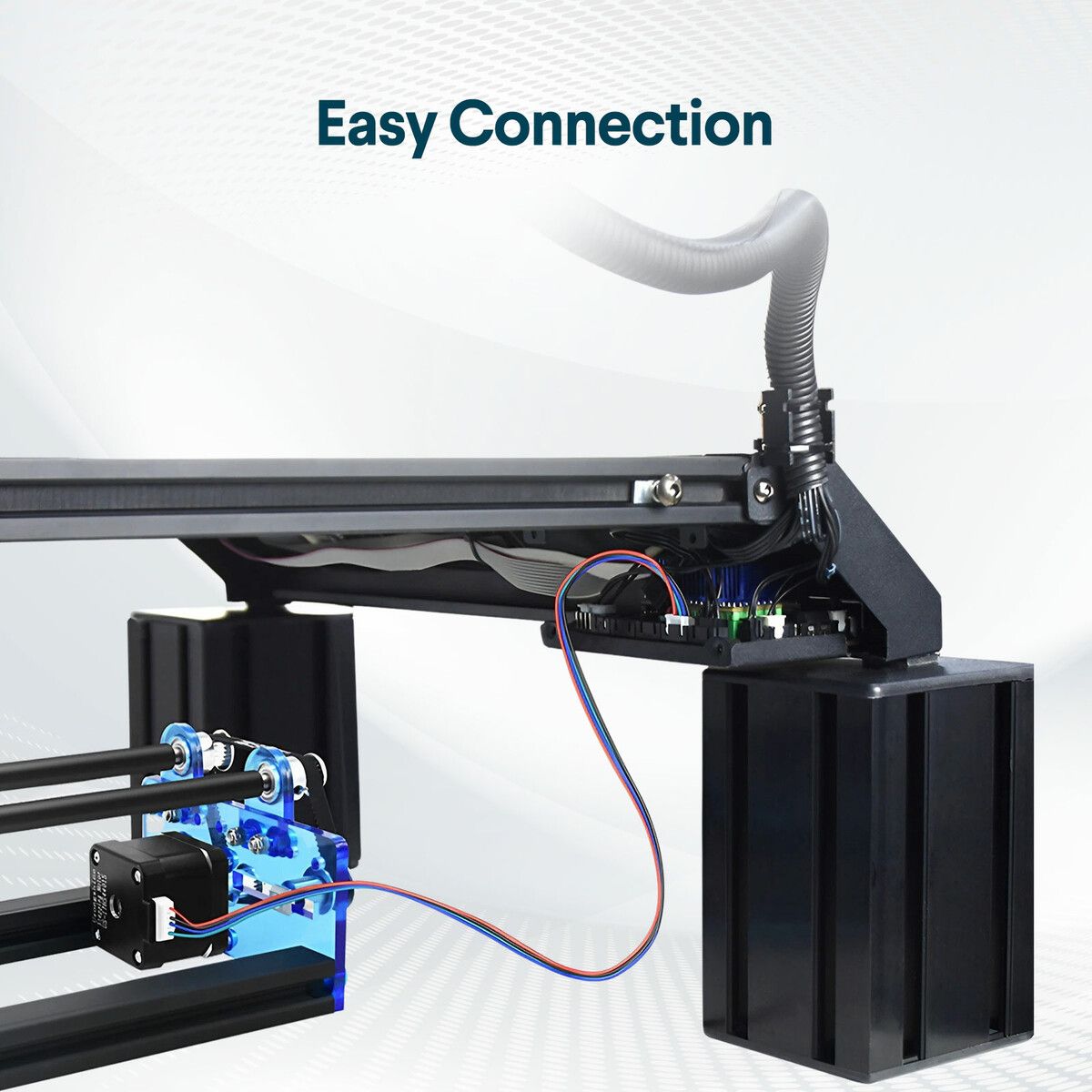

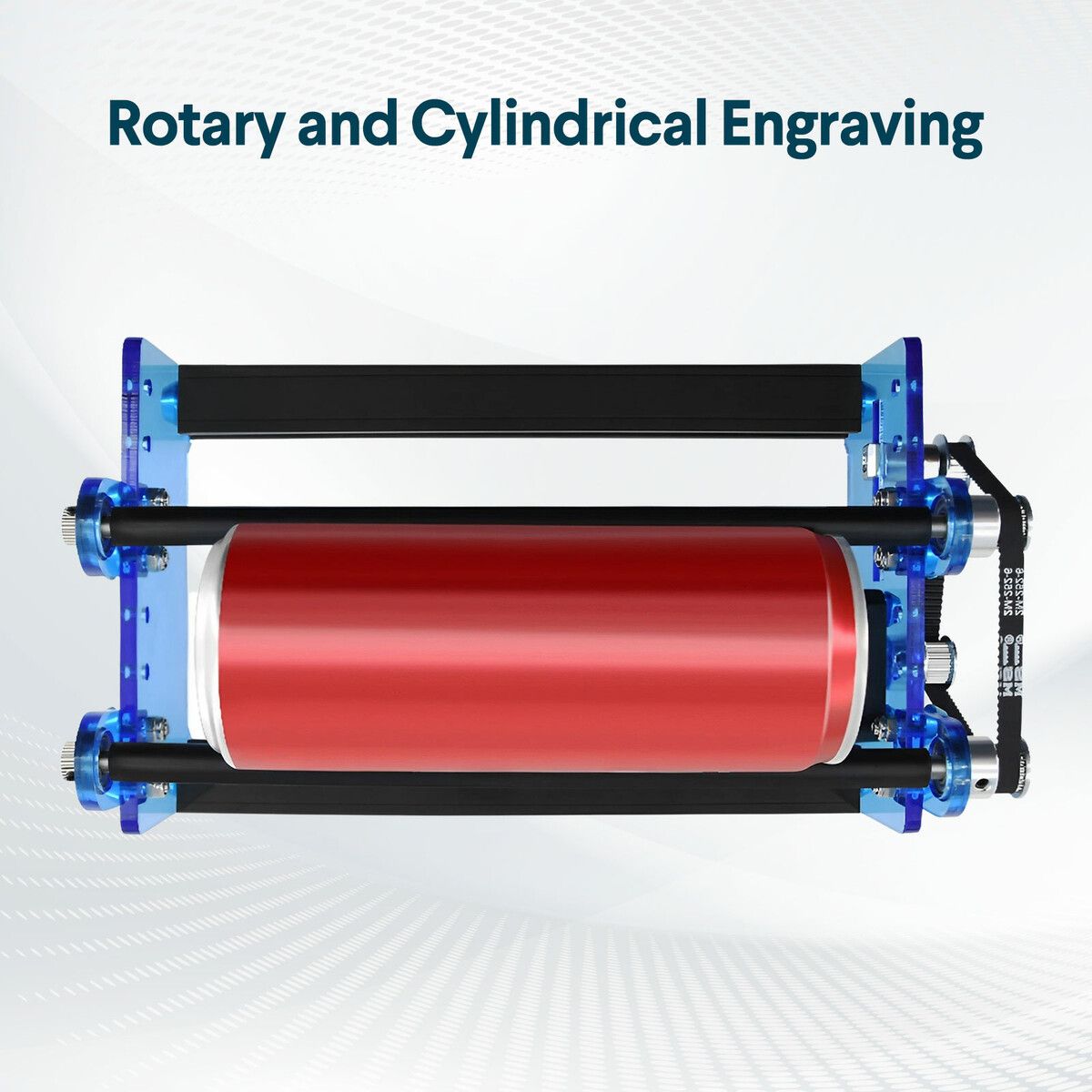

To provide you with a better engraving experience, this roller is made of T slot 2020 aluminum extrusion, sturdy 4.5mm thick plexiglass (blue transparent), and a Nema 17 stepper motor with good torque and low self-interference. Meanwhile, it is adjustable to 5 roller positions at 15 mm intervals, from 20 mm diameter up to 200 mm length. Roller spacing is adjustable from 20 to 90 mm. compatible with cylindrical objects with a minimum diameter of 20 mm and a maximum diameter of 200 mm. What’s more, this is ideal for all-angle engraving on glasses, coated drinking cups, cans, wood, and other cylindrical objects. Connecting the Y-axis motor cable of the laser engraver to the motor of the rotary roller will be accessible. Rotary rollers are compatible with Lightburn and LaserGRBL.




Specifications:

  • No installation required, Easy and fast sliding adjustment

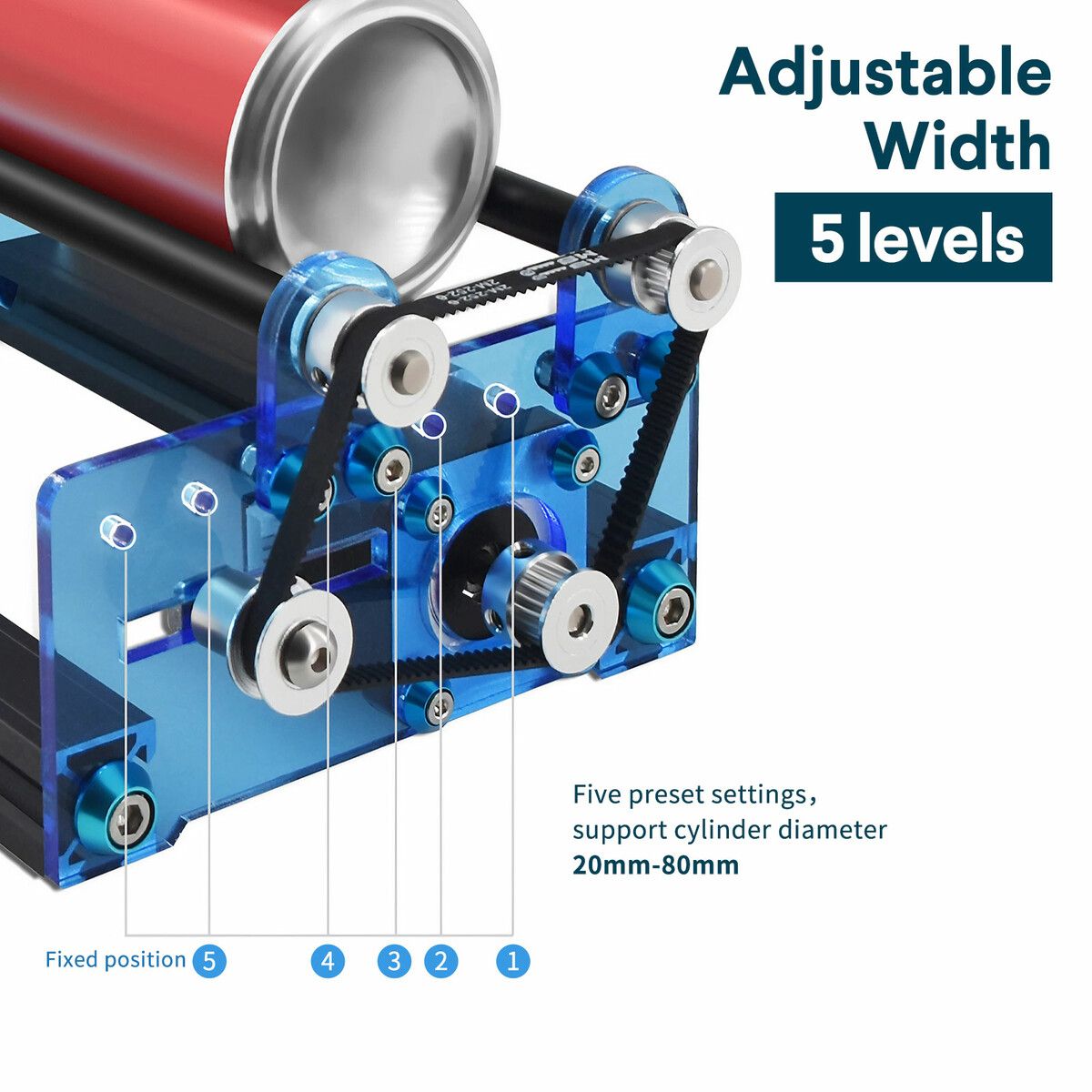

  • Adjustable Width ( 5 levels:Range 20mm-80mm diameter is accessible)

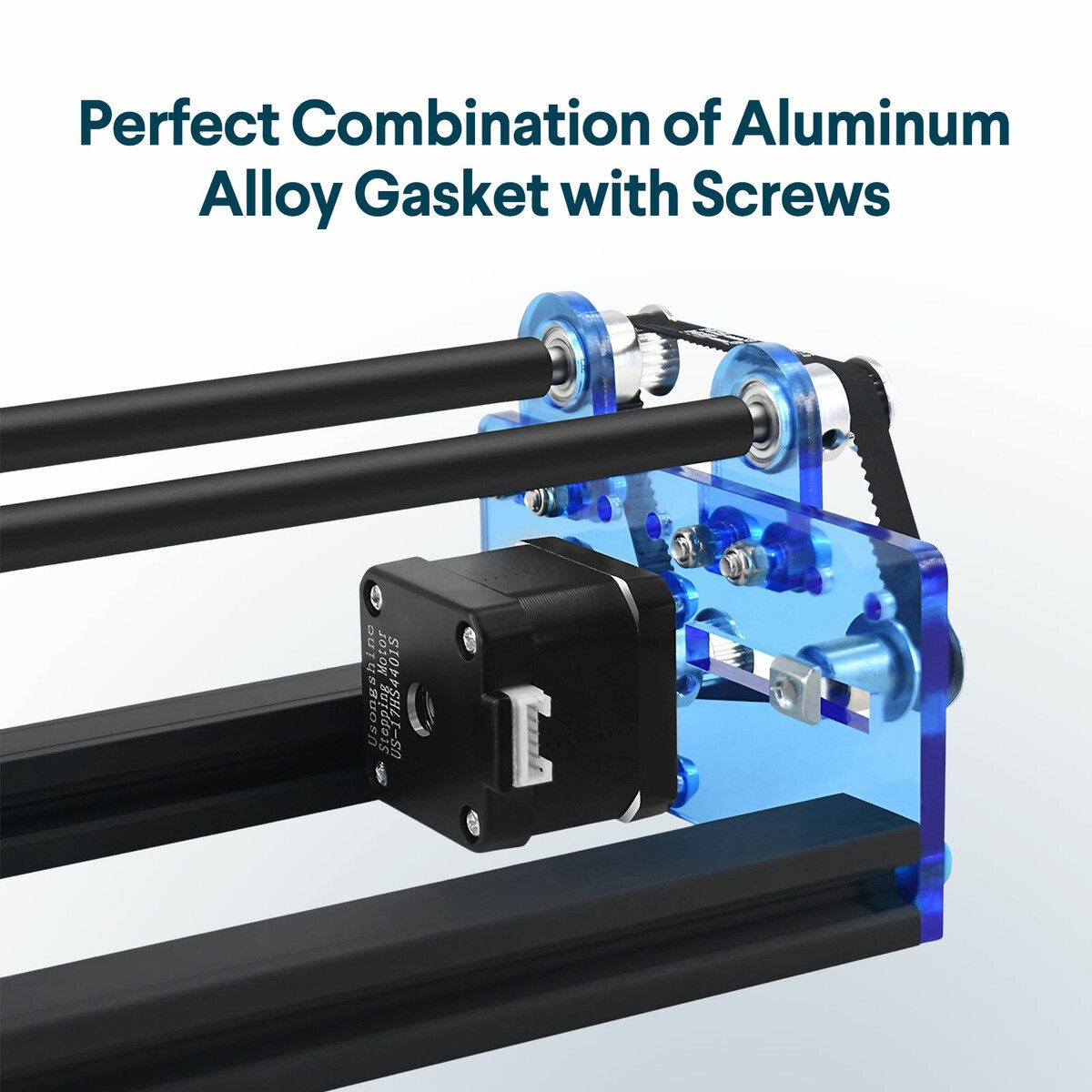

  • Perfect combination of aluminum alloy gasket with screws

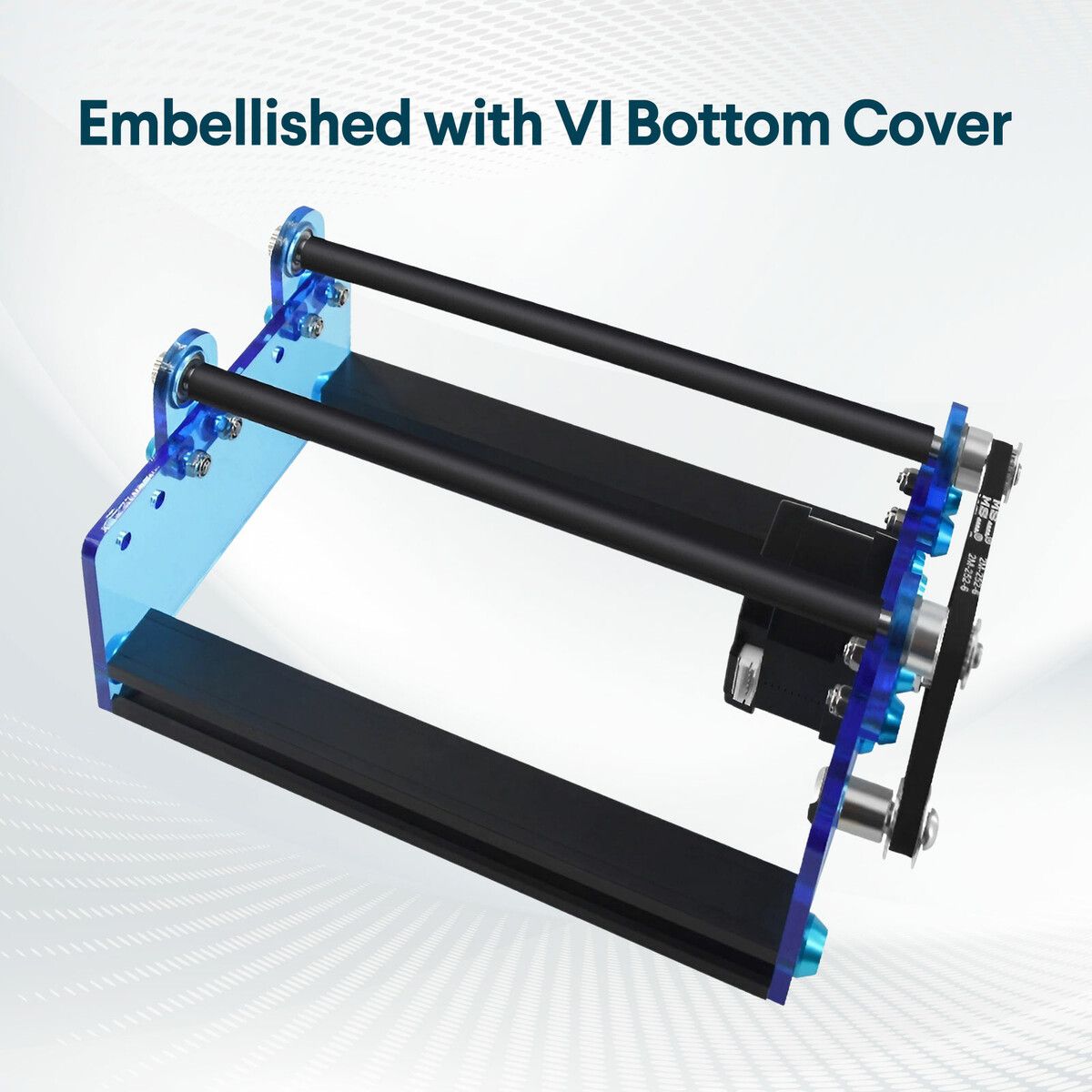

  • Embellished with VI bottom cover with VI bottom cover
  • Extensive compatibility with software and other brands of engraving machines

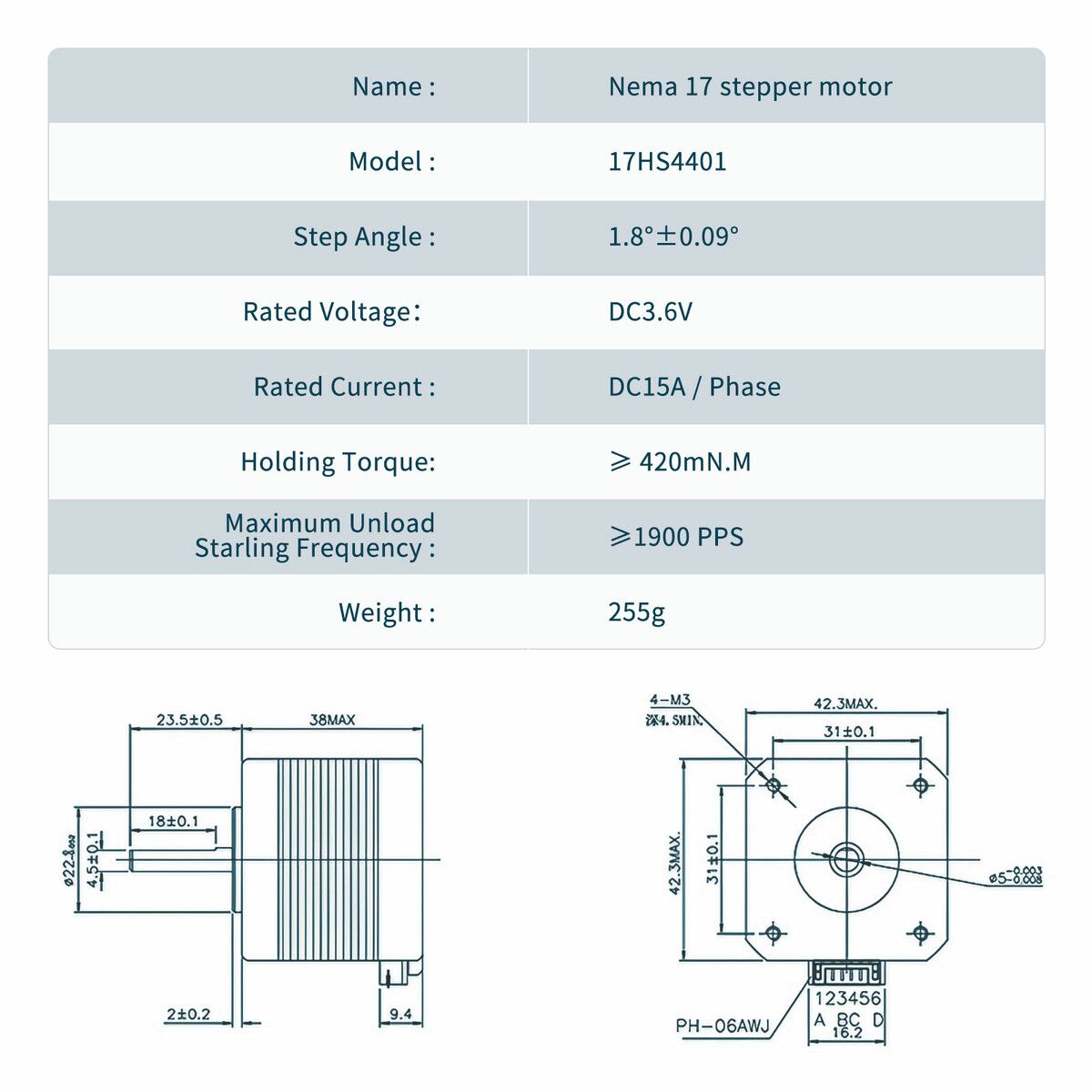

Name

Nema 17 stepper motor

Model

17HS4401

Step Angle

1,8° ± 0.09°

Rated voltage

DC 3.6V

Rated Current

DC 1.5A / Phase

Holding Torque

≥420mN.M

Maximum no load Starling frequency

≥1900 PPS

Weight

255 g



SKU: 297287
