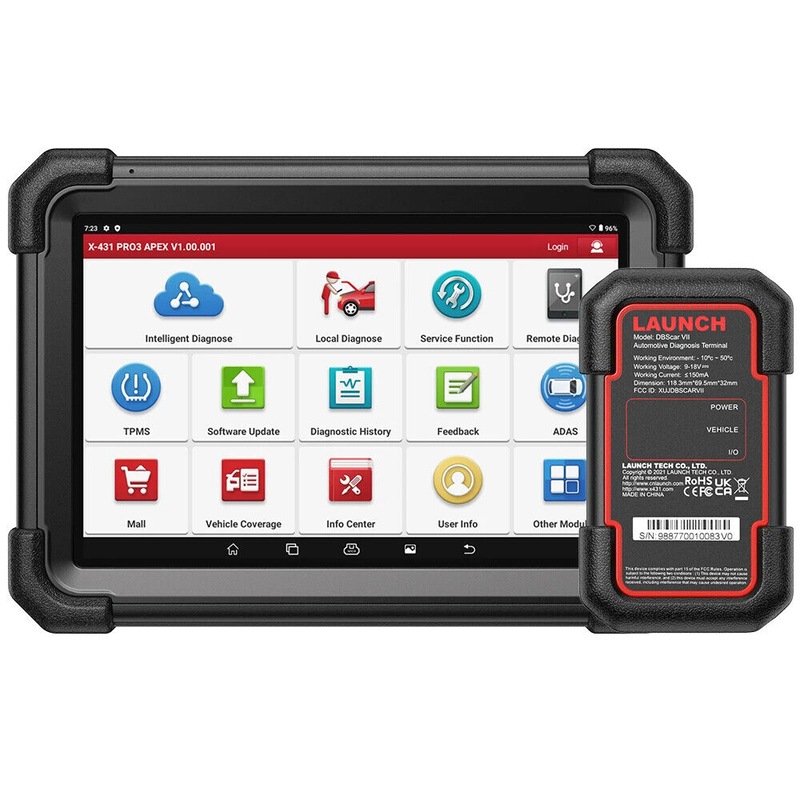

LAUNCH X431 PRO3 APEX – 2025 Professional OBD2 Diagnostic Scanner
Product Overview
As a new member of the X431 family, the LAUNCH X431 PRO3 APEX builds on the strengths of the X431 V while introducing innovative features for 2023. Equipped with a 2.0GHz 4-core processor, Android 10.0 OS, and 64GB storage, it offers lightning-fast diagnostics and seamless operation. From all-system scans to advanced coding and heavy-duty truck support (with optional HDIII module), this tool is designed to tackle 99% of automotive repair challenges.
Key Highlights
- Upgraded from X431 V: Enhanced hardware and new diagnostic functions.
- Topology Mapping: Visualizes system communication for 5x faster troubleshooting.
- ECU Coding: Online/offline coding to match modules and unlock hidden features.
- All-System Diagnostics: Comprehensive scans across all vehicle systems.
- Bi-Directional Control: Active tests to control vehicle components.
- 37 Reset Functions: Covers oil resets, TPMS, IMMO, and more.
- CANFD & DoIP: Supports modern vehicles (DoIP requires adapter).
- VAG Guided Functions: Free, step-by-step diagnostics for VW, Audi, Skoda, Seat.
- FCA AutoAuth: Access to 2018 FCA vehicles (Chrysler, Jeep, Dodge, etc.).
- Heavy-Duty Support: Compatible with 24V trucks via optional HDIII module.
- 2-Year Free Updates: No subscription fees for two years; lifetime use thereafter.
Detailed Features
All-System Diagnostics
The PRO3 APEX provides OE-level access to all vehicle systems, including:
- Core Systems: Engine, transmission, ABS, airbags, immobilizer.
- Comfort & Safety: Seats, doors, HVAC, cruise control, steering angle.
- Advanced Electronics: TPMS, 4WD, suspension, gateway, parking assist.
- Capabilities: Retrieve ECU info, read/erase generic and manufacturer-specific DTCs, and display live data in 12-in-1 graphs.
This comprehensive scan identifies faults across the entire vehicle, saving time and ensuring accuracy.
Topology Mapping
A groundbreaking feature, Topology Mapping offers:
- Visual Layout: Displays system health and communication status in color-coded maps.
- Efficiency: Speeds up diagnostics by 5x, pinpointing issues without menu navigation.
- Real-Time Insight: Highlights faulty modules and interconnections instantly.
Bi-Directional Active Tests
Perform active tests to:
- Control components like radiator fans, windows, mirrors, and lights.
- Test actuators (e.g., fuel pump, throttle) without vehicle controls.
- Diagnose subsystems quickly by observing responses to commands.
Examples: Turn on/off the sound horn, cycle the A/C clutch, or test door locks.
Advanced ECU Coding
Enhance vehicle performance with:
- Module Matching: Sync new ECUs post-repair (e.g., after replacing a BCM).
- Online Coding: Access cloud-based coding for BMW, Benz, VW, Porsche, etc.
- Hidden Features: Unlock options like auto-folding mirrors or disable Start-Stop.
- Retrofits: Add modules like ADAS or upgraded headlights.
- Process: Download codes, clear DTCs, and apply adaptive data seamlessly.
Note: Coding options vary by vehicle model.
37 Special Functions
Address 99% of maintenance needs with:
- Oil Reset: Reset oil life after service.
- EPB Reset: Manage electronic parking brakes.
- TPMS Reset: Relearn tire pressure sensors.
- BMS Reset: Register new batteries.
- IMMO Reset: Add or disable keys (basic systems; advanced with X-PROG3).
- Injector Coding: Program injectors for precise fuel delivery.
- SAS Reset: Calibrate steering angle sensors.
- Throttle Matching: Restore idle settings.
- Additional Services: Sunroof reset, headlamp initialization, suspension calibration, and more.
Explore further functions via “Vehicle Brand > System > Special Functions.”
VAG Guided Functions
Simplify diagnostics for VW, Audi, Skoda, and Seat with:
- Step-by-Step Guidance: On-screen instructions for matching, coding, and settings.
- No Extra Cost: Free feature, no reliance on external resources.
- User-Friendly: Ideal for novices and pros alike.
Vehicle Coverage
Extensive Compatibility
- 160 Brands, 20,000 Models: Covers vehicles from 1996 to 2024:
- USA: Ford, GM, Chrysler, Dodge, Jeep, Lincoln, Buick, Cadillac.
- Europe: BMW, Benz, Audi, VW, Porsche, Renault, Fiat, Peugeot, Volvo, Jaguar.
- Asia: Toyota, Honda, Nissan, Hyundai, Kia, Mazda, Subaru, Isuzu.
- Australia: Holden, Ford AU.
- FCA SGW Access: Diagnose 2018 Fiat, Chrysler, Jeep with AutoAuth login.
- Renault SGW: Supports 2019 models like Clio V, Captur II, Megane IV.
Modern Protocols
- CANFD: Faster data transfer for 2020 GM and Chrysler vehicles.
- DoIP: Supports Volvo, BMW F/G, Land Rover (adapter required).
Heavy-Duty Diagnostics
- 24V Trucks: Pair with the optional X-431 HDIII module for Benz, Volvo, Scania, Mack, etc.
Hardware Specifications
Tablet Specs
- Processor: 2.0GHz 4-Core
- OS: Android 10.0
- RAM/Storage: 4GB / 64GB
- Display: 10.1-inch HD touchscreen (1280x800)
- Battery: 6300mAh (47880mWh, 7.6V), up to 20 hours
- Camera: 8MP rear
- Connectivity: Dual Wi-Fi (2.4GHz/5GHz), Bluetooth via DBScar VII
- Interfaces: USB Type-A, Type-C
- Dimensions: 274 x 190.5 x 40.5mm
- Working Temp: 0°C to 50°C
Software & Support

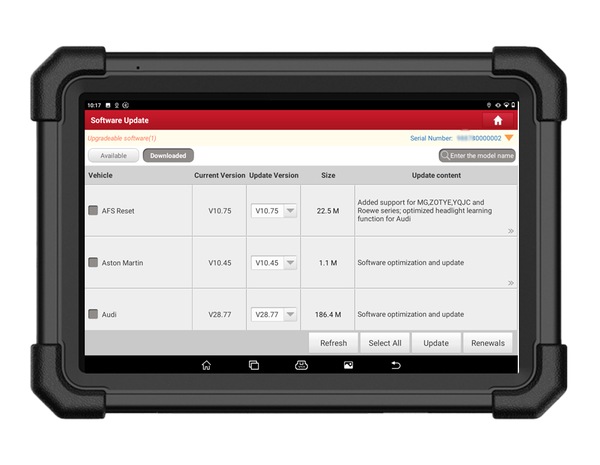

- 2-Year Free Updates: One-click upgrades for software and firmware.
- 22 Languages: English, German, Spanish, French, Japanese, Russian, etc.
- Diagnostic Reports: Auto-generate, save, and share repair records.
- Remote Diagnostics: Connect with experts for real-time assistance.
- Feedback System: Submit issues to LAUNCH for prompt solutions.
- Info Center: Includes DTC help, operation tips, and tech handbooks.

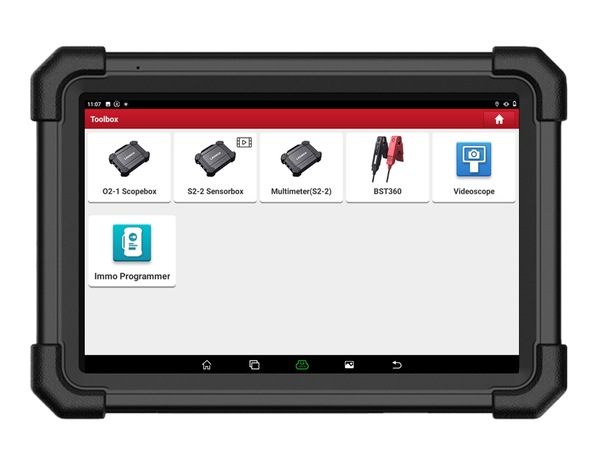

Add-On Modules (Sold Separately)
Enhance diagnostics with:
- X-PROG3: Advanced IMMO and key programming.
- X-431 TSGUN: TPMS activation and programming.
- BST360: Battery health testing.
- VSP-600 Videoscope: Inspect hidden areas.
- HDIII Module: 24V truck diagnostics.
- ADAS Kit: Calibrate driver-assistance systems.
- Wi-Fi Printer: Print reports instantly.
- EV Diagnostic Kit: Battery pack analysis for electric vehicles.
Why Choose LAUNCH X431 PRO3 APEX?
- Next-Level Diagnostics: Outperforms X431 V with topology mapping and modern protocols.
- Cost-Effective Power: Same features as PRO3S V5 at a lower price.
- Versatility: Covers cars, trucks, and EVs with expandable options.
- User-Friendly: Intuitive interface with guided functions for all skill levels.
- Future-Proof: Updates to 2024 models and beyond.
