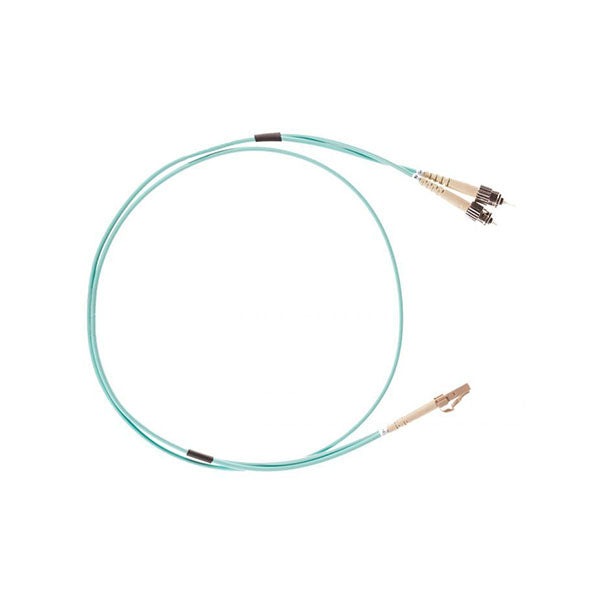

LC TO ST OM4 MULTIMODE FIBRE OPTIC CABLE AQUA
OM4 is backwards compatible with OM3 Fibre optic.
Fibre patch cables are thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.
OM4 laser optimised multimode fibre optic patch leads are immune to EMI/ RFI frequency, The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards, ensuring minimal toxic gas emission in the event of a fire, this is often a requirement for many data centres and critical area applications. LSZH (Low Smoke Zero Halogen) sometimes referred to as LS0H is the material of choice for a green installation for the environmentally-conscious consumer.
Multimode Fibre Optics leads provide a cost-effective solution for your cabling requirements.
FEATURES
OM4 fibre patch leads conform to ISO/IEC 11801 & to ITU-T G.651.1, TIA/EIA 492AAAC and 492AAAD
Individually labelled for lead tracing
Low smoke zero halogen (LSZH) cable
Manufactured with stringent quality control
100% optically tested for insertion loss to guarantee quality
All leads are supplied with a factory test report
Machine UPC (Ultra Physical Contact) connector
All ends are polished and individually inspected for correct polishing
Supports high-speed multi-channel data, voice & video applications
Supports up to 100Gb transfer speeds
Duplex – Aqua jacket zip cord
UL approved fibre optic cables
OM4 thickness 50 / 125μm (Core/Outside Cladding) Multimode (backwards compatible with OM3)
SPECIFICATIONS
Available Lengths: 0.5m, 1m, 2m, 15m, 20m

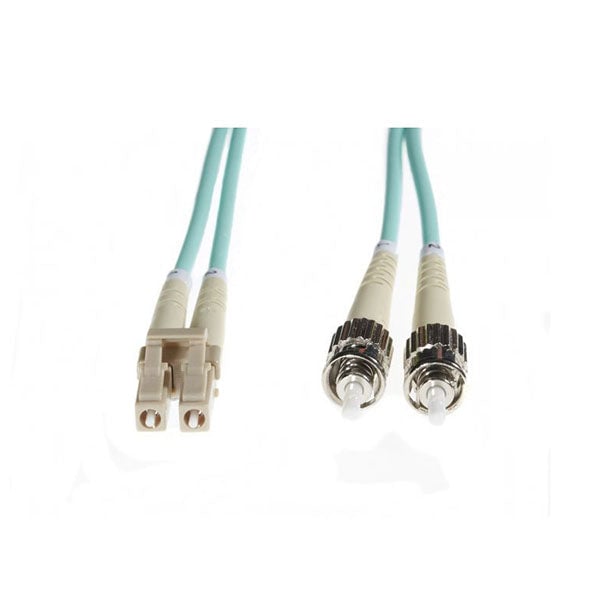

LC-ST Fibre Termination
Colour: Aqua
Oversleeving: 2mm
Crush (N): 1000
Simplex/Duplex: Duplex
Strength Member: Aramid
Typical Insertion Loss: ≤0.3dB
Tensile Load: 7.0kg
Bend Radius: 3.8cm
Operating Temperature (C°): Minus 20° to 60°
Attenuation (dB): 2.8 @ 850nm/0.8 @ 1310nm
Bandwidth OFL (MHz x km): 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm
IL: RL<0.25dB
UPC Singlemode: >55dB
UPC Multimode RL: >35dB
APC: RL>65
PACKAGE CONTENTS
1 x Lc To St Om4 Multimode Fibre Optic Cable Aqua
