Features:

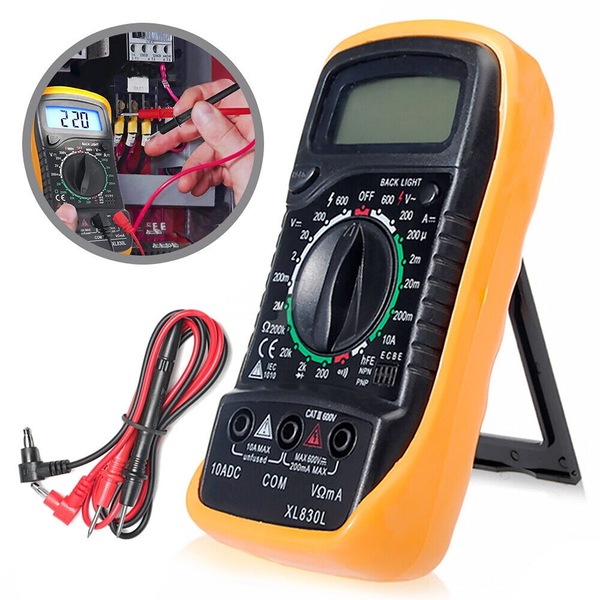

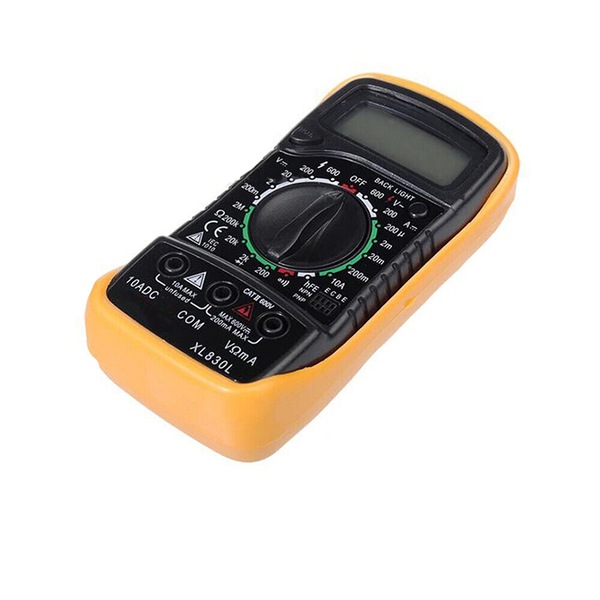

-The meter is a handheld 3 to 1, 2 digital multimeter for measuring DC and AC Voltage, DC Current, Resistance, Diode, Transistor test.

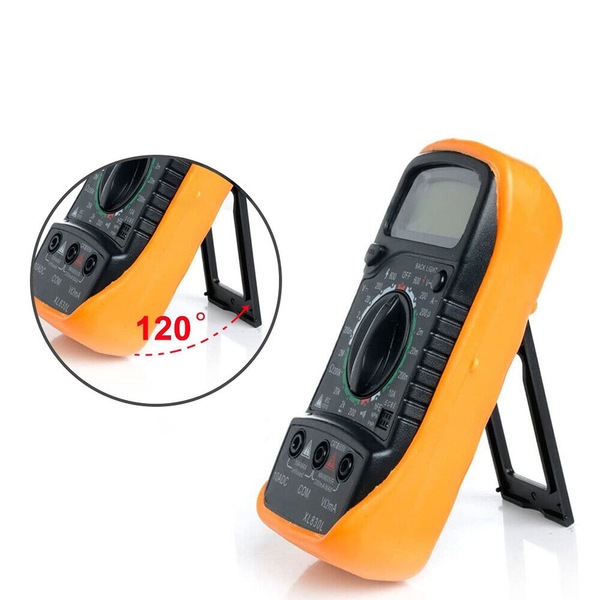

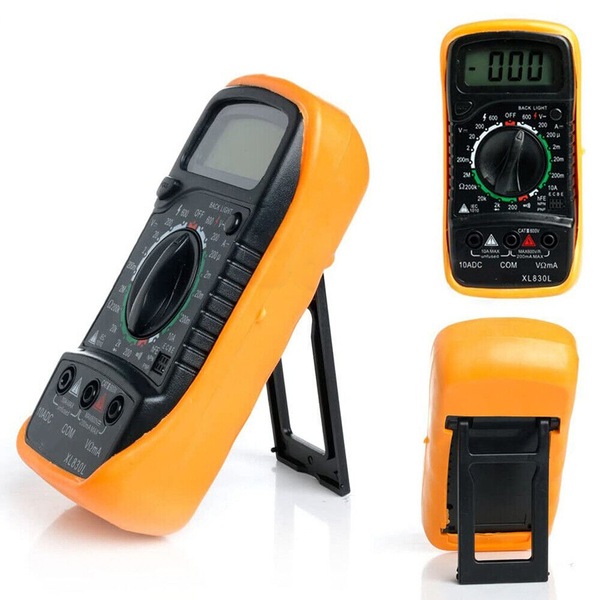

-Portable and compact design, easy to operate and the readings indicated directly on the screen.
-Diode assembly test Transistor, P-N junction test, Transistor HFE test.
-Overload Protection: F 200 mA, 250 V fuse. 10 A range not fused.
-With Battery Operated Free
-Continuity test with buzzer sound in circuit.
-Low Battery Voltage Indication

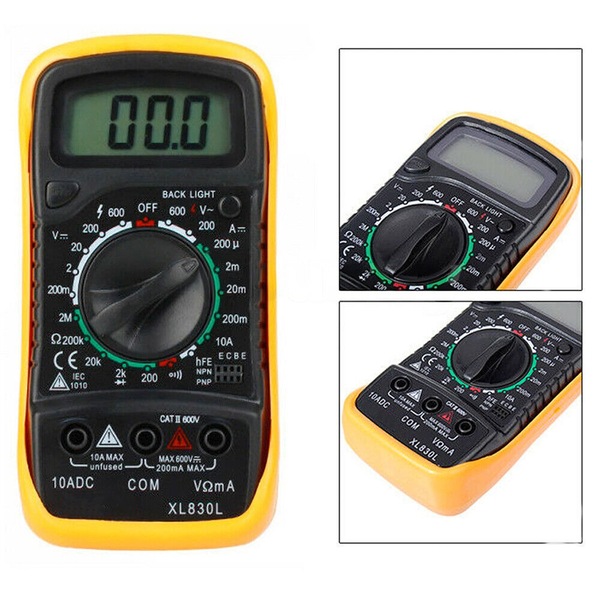

-Max display: 1999, Auto polarity display. 3 to 1, 2 digits large LCD display with max.
-It can be use to overhaul all kinds of circuit boards.
-Ideal teaching instrument for students, and ideal for use in fields, such as laboratory, workshop, and home application.
-Notice:
-Remove the pen and cut off the power before replacing battery and fuse.
-Overload protection 600 V DC or RMS AC for all other ranges. Frequency range 40 Hz to 400 Hz.
-Response: Average responding calibrated in RMS of a Sine wave.
-Do not change the inner circuit to avoid damaging the ammeter.
-Do not connect it to the voltage over 1000VDC or 750VAC.
-Do not use the ammeter if the back cover is wrong.
Specifications:
-DC Voltage: 2V, 20V, 200V, 600V
-AC Voltage: 200V, 600V
-DC Current: 20µA, 200Mu A, 2mA, 20mA, 200mA, 10A
-Resistance: 200 omega, 2K omega, 20K omega, 200K omega, 2M omega
-Size: Approx. 138mm × 69mm × 31mm
-Weight: Approx. 160g
-Maximum Voltage between terminals and Earth Ground: CAT II 600 V.
-Fuse Protection: F 200 mA, 250 V
-Power: 9V Battery NEDA 1640
-LCD Display: 1999 Counts, updates 2 to 3 per second
-Measuring Method: Dual-slope integration ADC
-Over-range Indication: 1 on the display
-Polarity Indication: Negative Symbol
Operating Environment: 0 degrees C to 40 omega -Storage Temperature: -10 omega to 50 omega
Package Inclusions:
-1 x Digital Multimeter

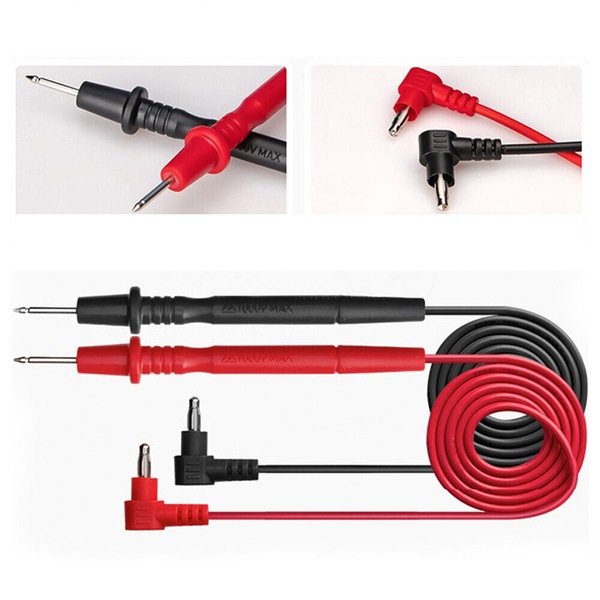

-1 x Set of Test Leads (Black and Red)
-1 x Battery
-1 x Manual
Notes:
-Actual colors may vary due to computer monitors displaying colors differently.
-Due to the nature of the manufacturing process and manual measurement, product sizing may vary slightly.
