| Specifications | |
|---|---|
| Type | LED |
| Shape | Square |
| Voltage | 12/24V |
| Mount | Surface |
| Width (mm) | 100 |
| Height (mm) | 100 |
| Depth (mm) | 22 |
Features
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
7 x High Intensity Red LED's and 7 x High Intensity Amber LED's with White PCB
Red and Amber Optical Hardened Acrylic Lens with unique Diamond lens pattern and inbuilt Retro Reflector
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
| Specifications | |
|---|---|
| Type | LED |
| Shape | Square |
| Voltage | 12/24V |
| Mount | Surface |
| Width (mm) | 100 |
| Height (mm) | 100 |
| Depth (mm) | 22 |
Features
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
7 x High Intensity Red LED's and 7 x High Intensity Amber LED's with White PCB
Red and Amber Optical Hardened Acrylic Lens with unique Diamond lens pattern and inbuilt Retro Reflector
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation

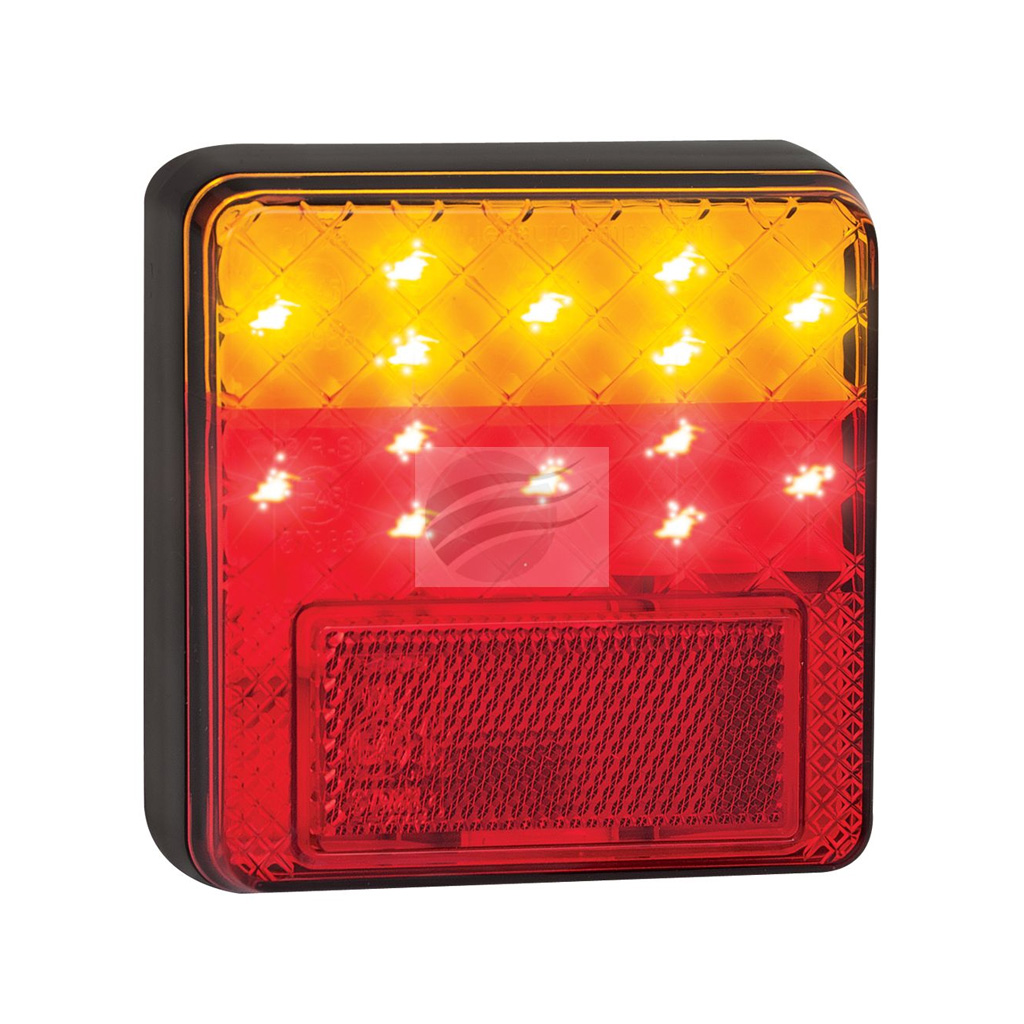

LED Autolamps 100 Series LED Square Stop/Tail/Indicator Lamp
0.13amps at 12 Volt and 0.12amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.06amps at 24 Volt Current Draw for Tail function
0.12amps at 12 Volt and 0.07amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 37986
ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 37985
ADR 47/00 Reflector specifications approved- CRN 38102
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warrant
MPN: 100ARM
