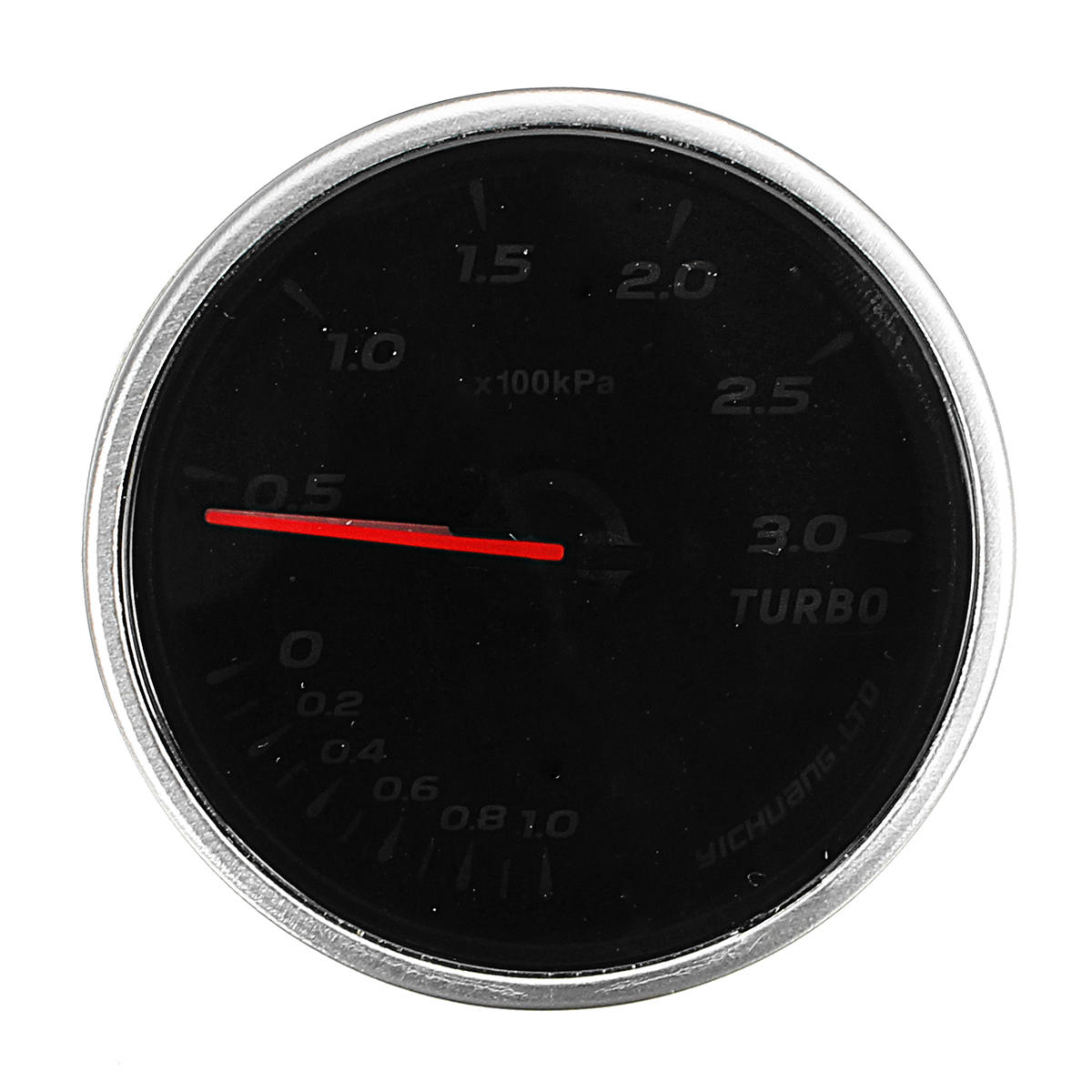

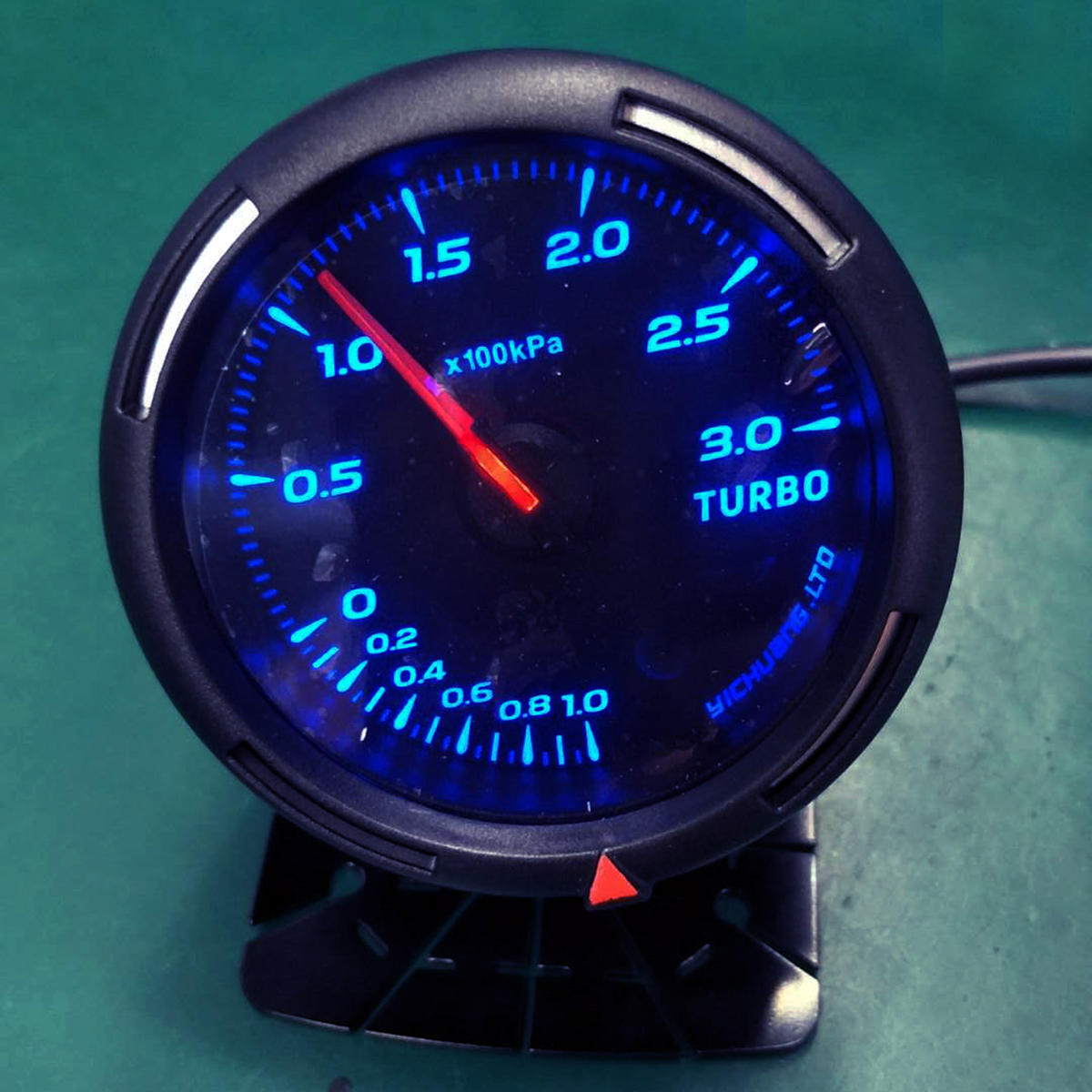

Specifications:

Color: Black

Material: Plastic cover + aluminum + Iron

Pressure: 300KPa

Diameter: 60mm

Power-supply voltage : 10V to 16V DC (12V vehicles only )

Current consumption : the maximum value obtained when connecting one gauge

+B wire : 200mA (IGN ON )

ILM wire : 0.5mA

Temperature range : Temperature range for storage Temperature range for operation

Gauge

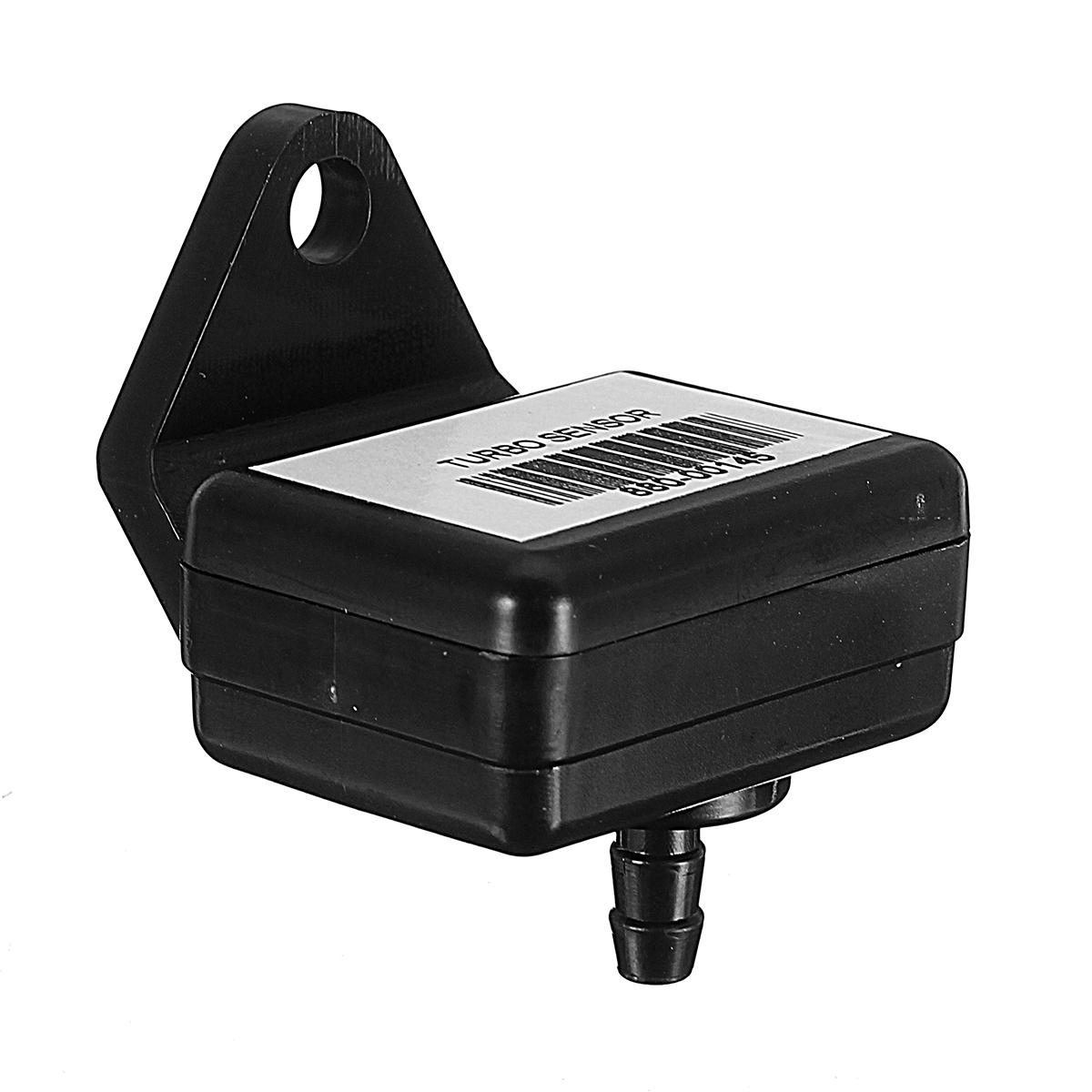

Boost sensor

Pressure sensor

Te

mperature sensor

Exhaust temperature sensor

-30(-22) ~+ 80(176)

-30(-22) ~+100(212)

-30(-22) ~+140(284)

-30(-22) ~+150(302)

-30(-22) ~+130(266)

-30(-22) ~+60(140)

-30(-22) ~+ 80(176)

-30(-22) ~+120(248)unit °C (°F)

-30(-22) ~+150(302)

-30(-22) ~+130(266)

?M?The sensing part of exhaust temp . sensor is not included in the temperature range above .

?

How to attach Mounting bracket set

1) Open the package and take out the double-sided tape as Figure 2 to attach the bottom of

the bracket(as Figure 1).

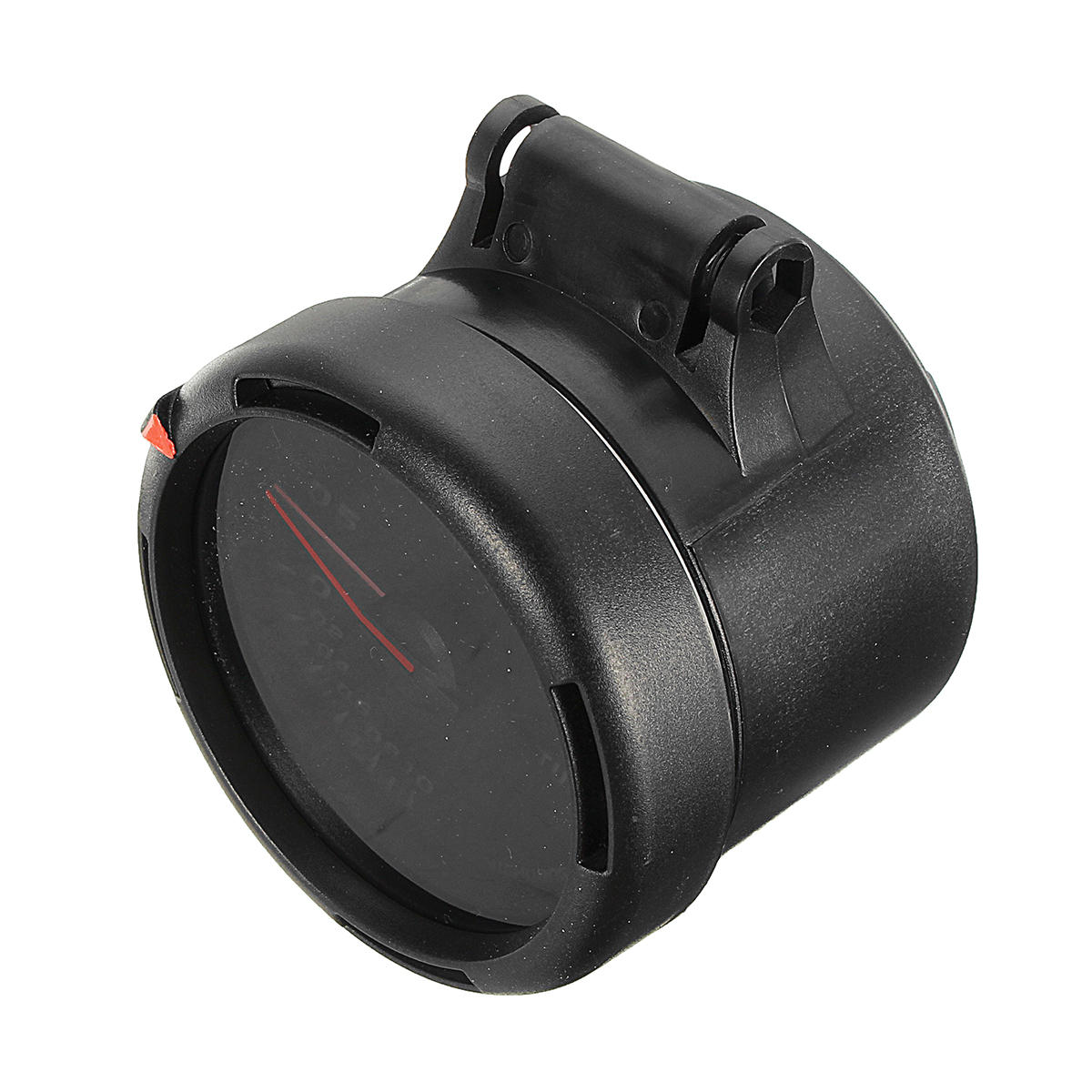

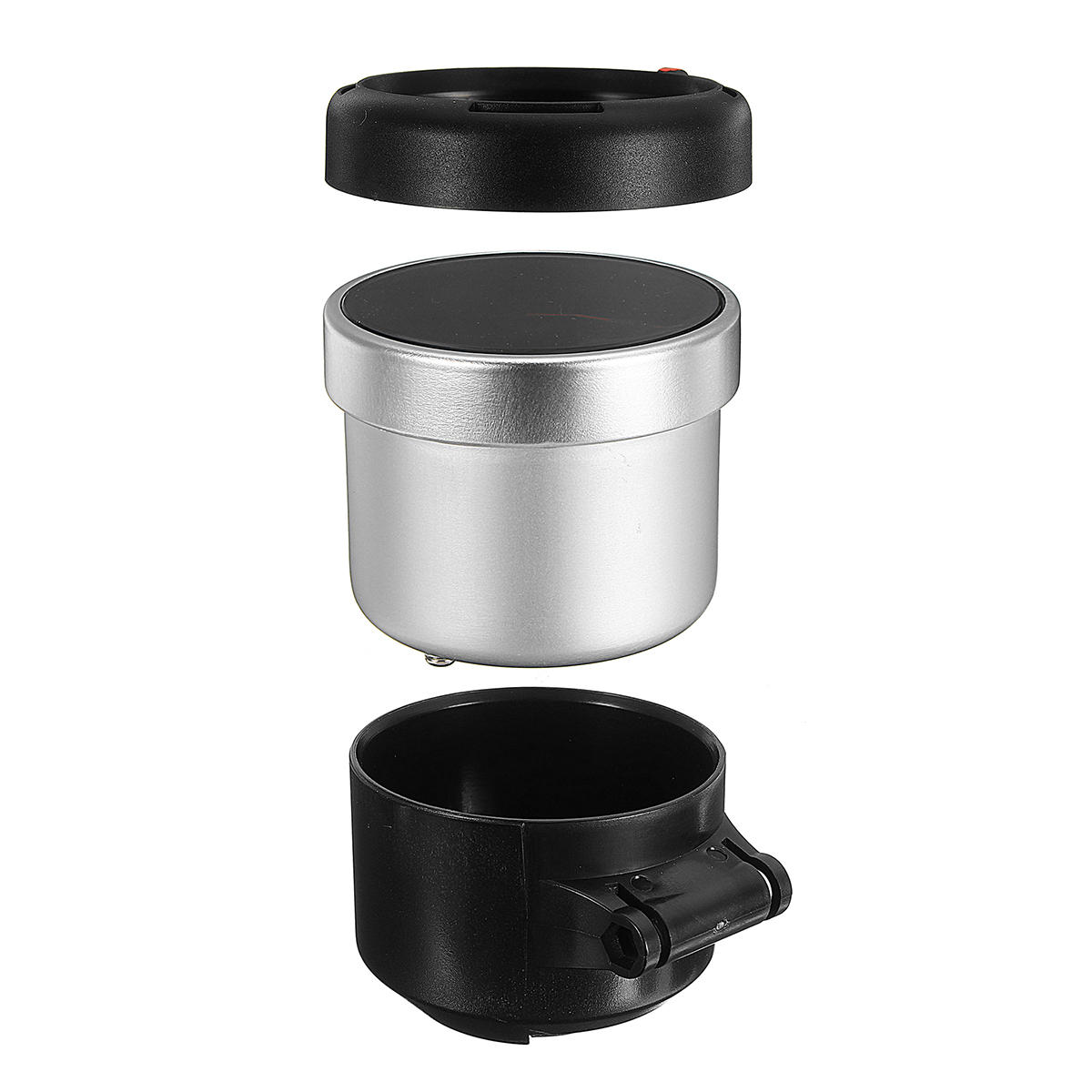

2) Insert the protruding part of the bracket into the meter cup, using the bolts, nuts and washers

to fix the bracket(as Figure 3)

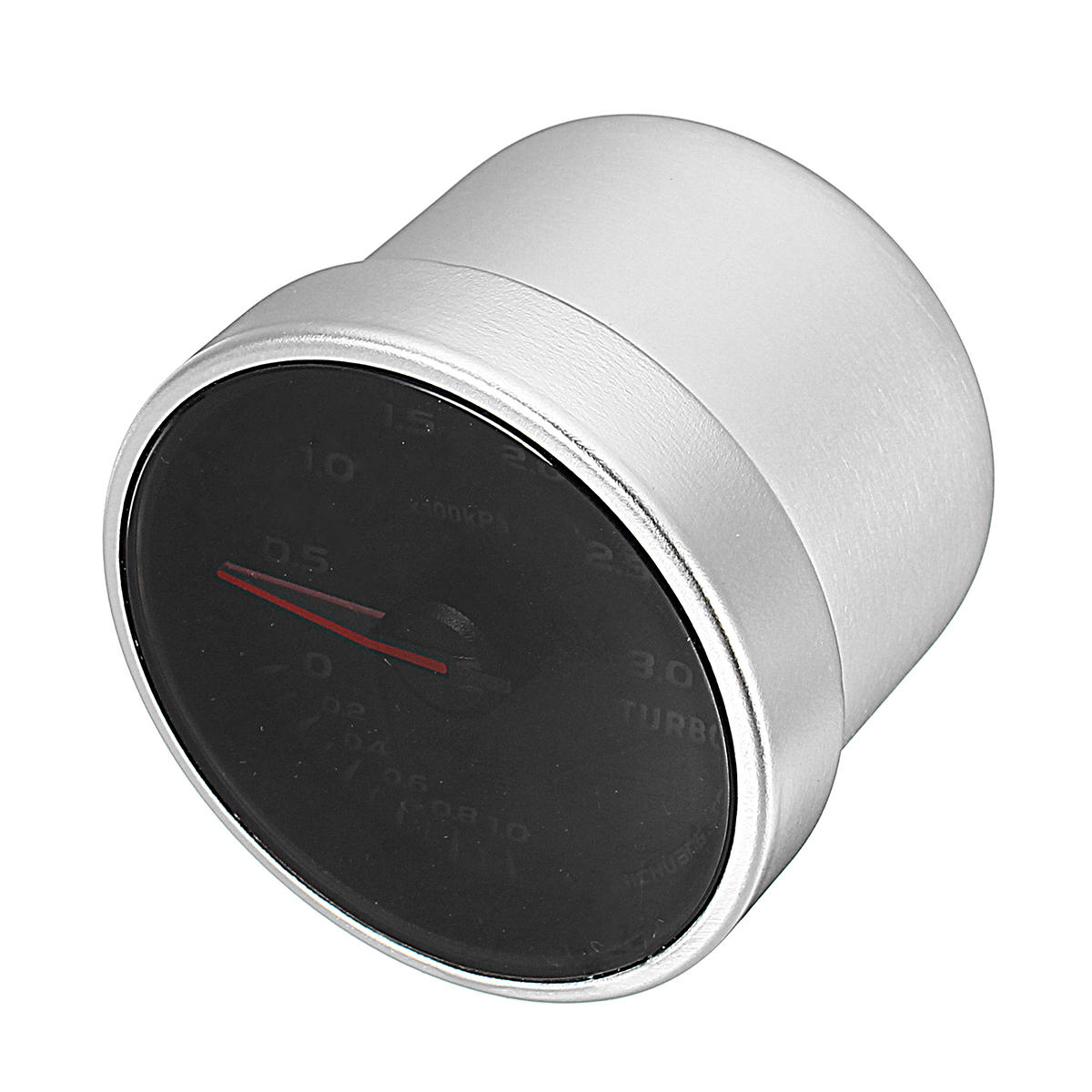

3. Attach 1~2 pieces of double-sided tape to the aluminum case

as buffer (as Figure 4).

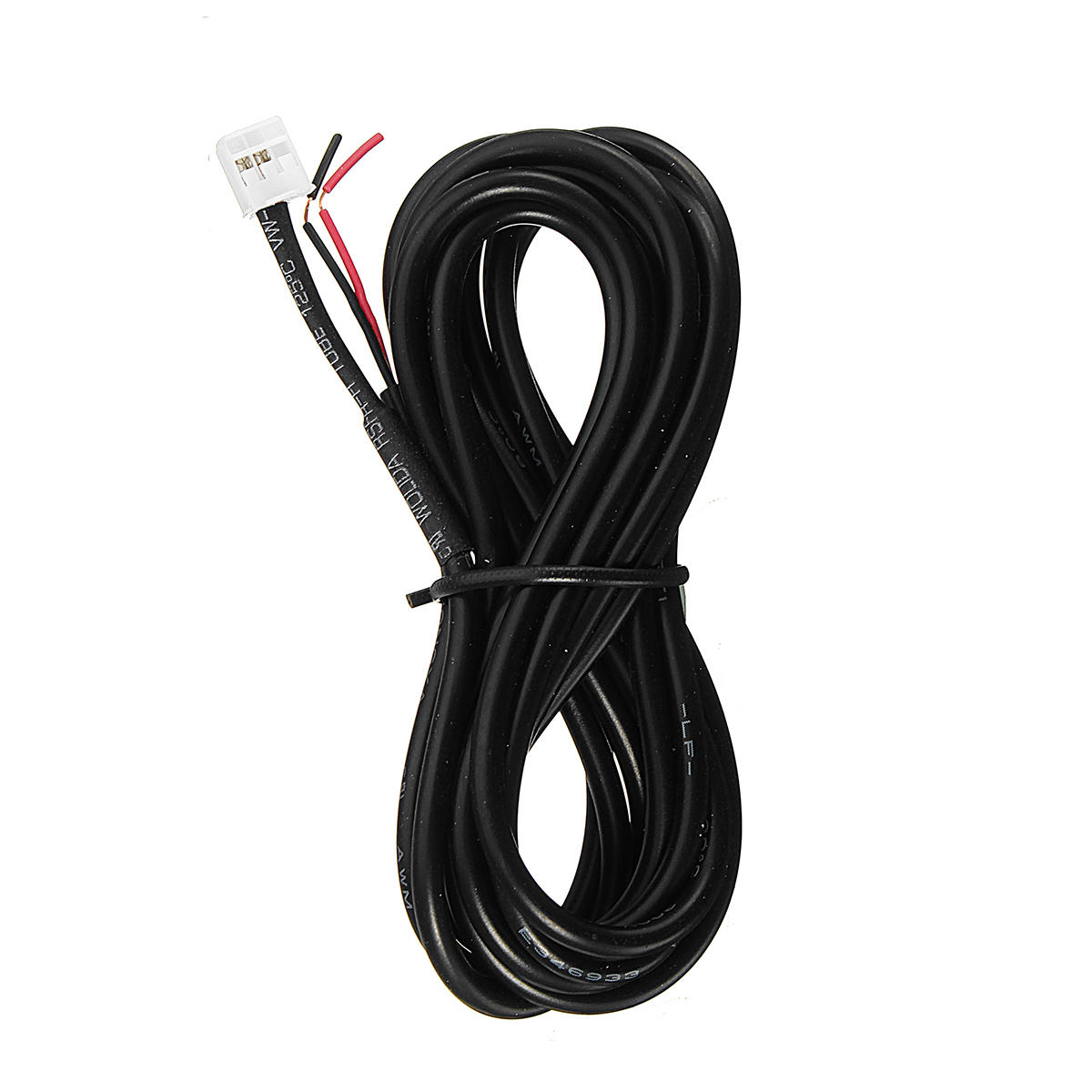

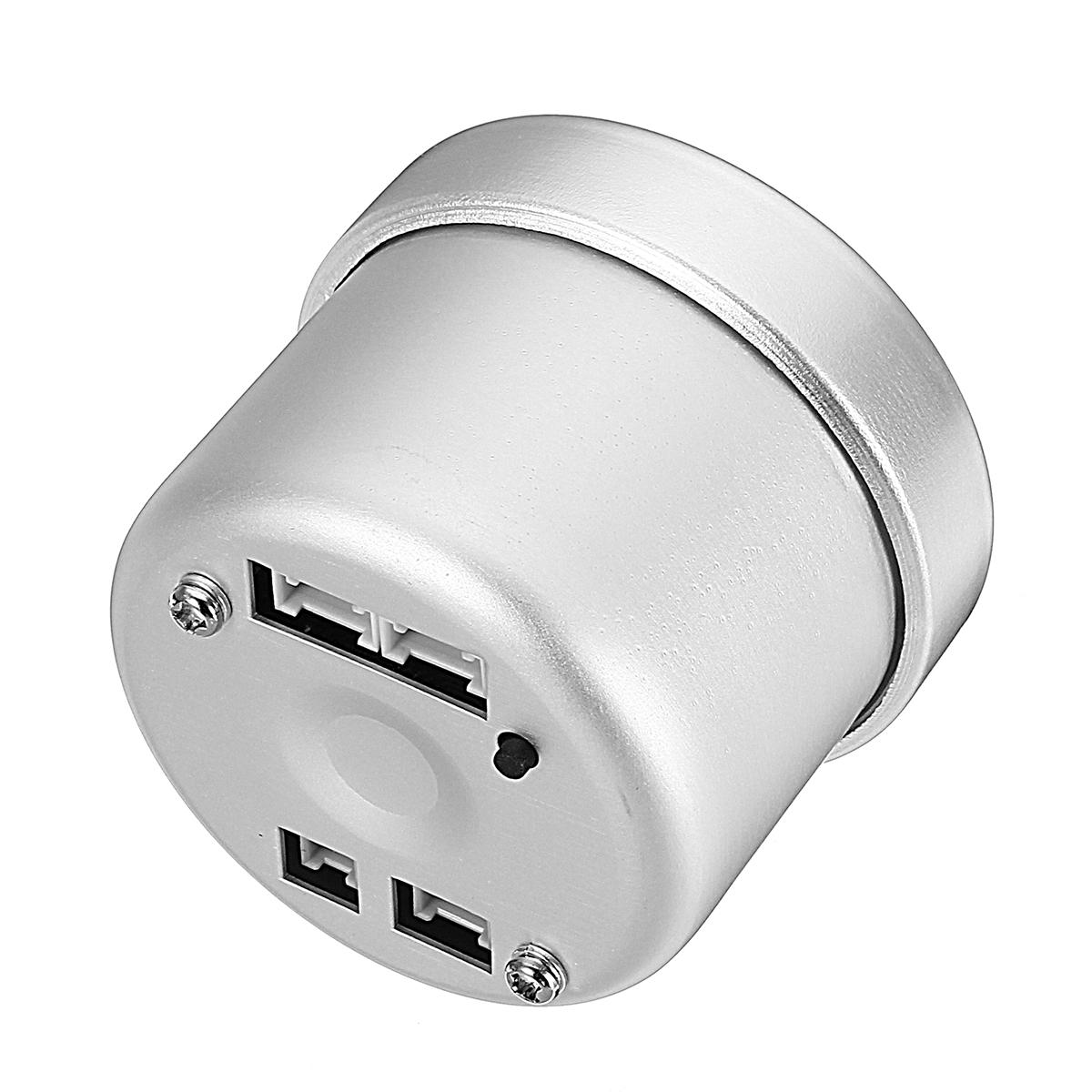

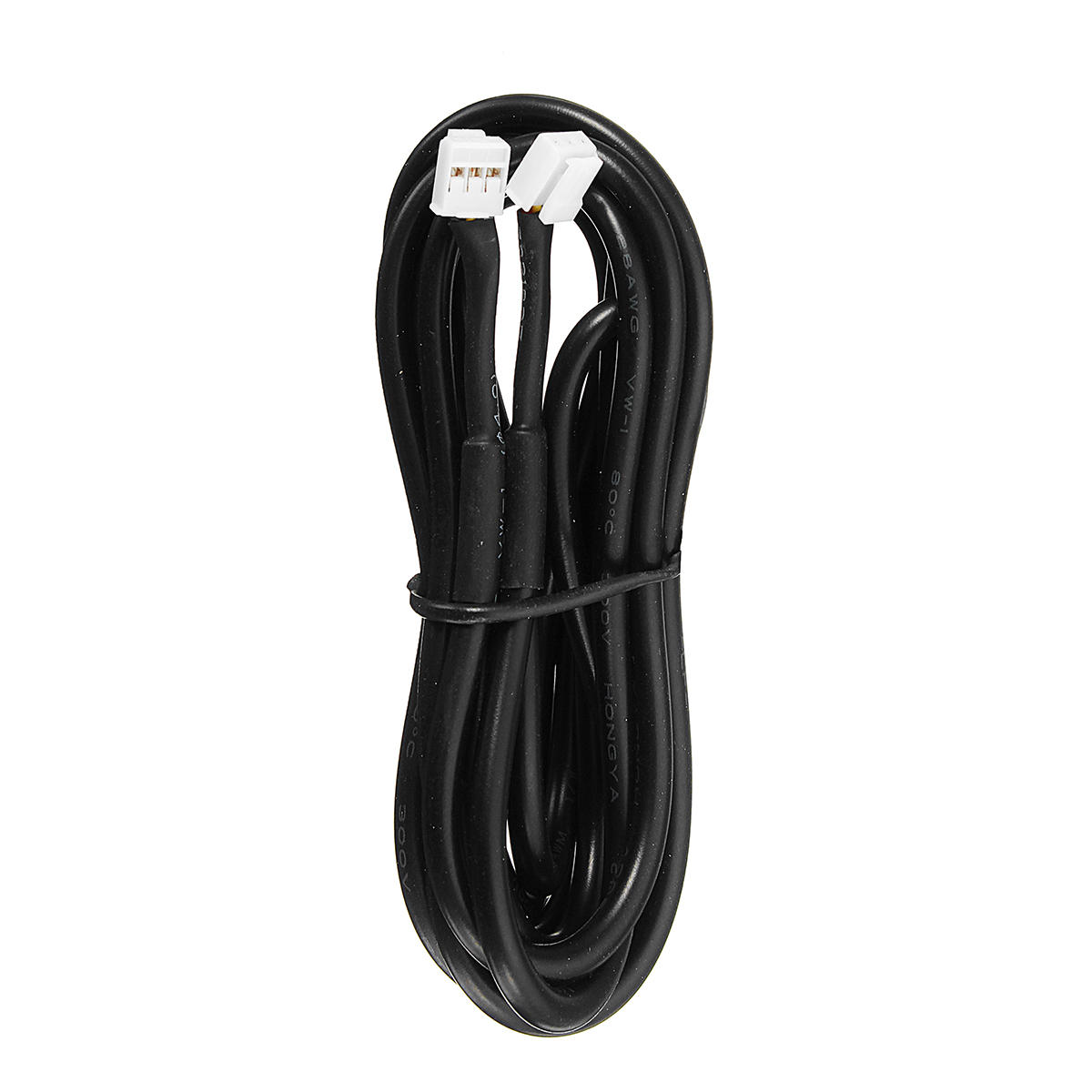

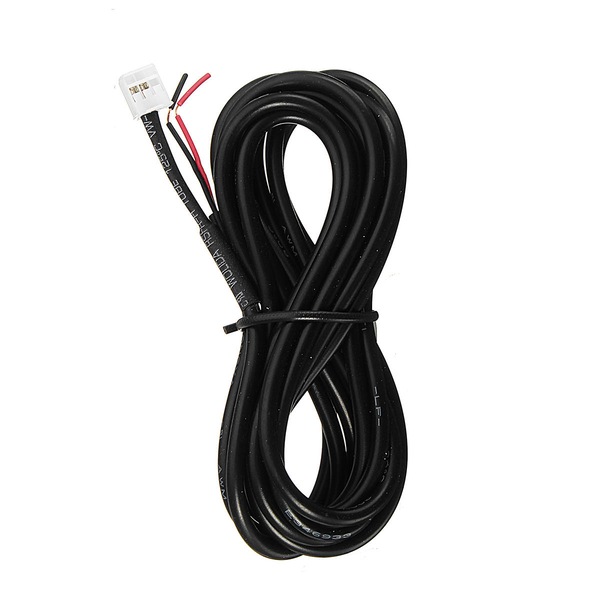

4) Pass the meter wires through the hole of the meter cup and connect them to the gauge.

5) Place the gauge in the meter cup making sure that wires are not sandwiched .

6) Attach double sided tape on the back of the mounting bracket as shown in figure 5 . Bend the

mounting bracket to conform to the structure of the location where you intend to attach it.

?

?

Package Included:

1 x Turbo charging meter with pressure sensor kit
