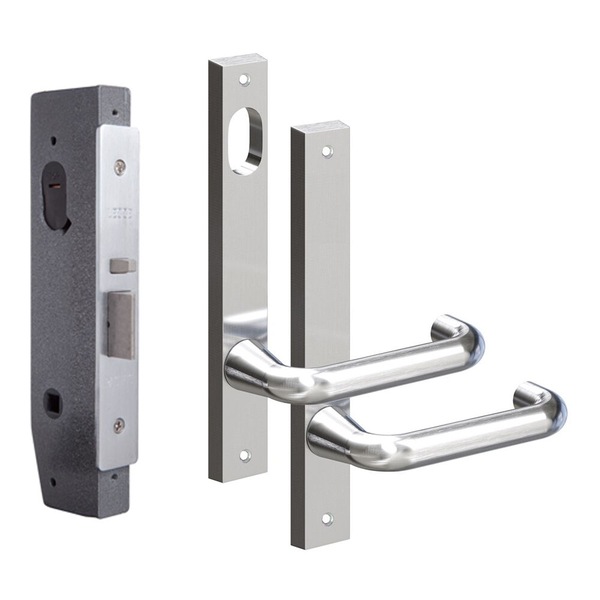

Legge 995MF Classroom Kit
5300/5306/29SSS L95V31/53SSK1

Classroom Lever suitable for use in school classroom applications.

Classroom Lever Function - Outside lever locked and unlocked by key. Inside lever always unlocked.

Includes:

• 1 x Legge Exterior 5300 Cylinder Lever Handle Satin Stainless Steel 5300/29SSS
• 1 x Legge Interior 5306 Plain Plate Lever Handle Satin Stainless Steel 5306/29SSS
• 1 x Legge 995V Vestibule Lock L95V31/53SSK1

Legge Exterior 5300 Cylinder Lever Handle
5300/29SSS

Features:

• Constructed of quality components, with cast 316 grade stainless steel levers and plates
• The heavy duty spring provides a smooth, fast return action of the lever and eliminates droop extending the life of the furniture
• The handing mechanism of this Series allows the furniture to be handed on site, prior to installation by rotating the lever to the preferred hand and fitting the stop block to secure it's position
• The Alpha lever is AS1428:1-2009 compliant

Specifications:

• Application: External Plate
• Function: Cylinder Plate
• Door Type: Timber or metal
• Door Thickness: 32mm - 50mm
• Fixing Centres: 148mm
• Plate Height: 185mm
• Plate Width: 25mm
• Plate Thickness: 12mm
• Materials: Cast 316 grade stainless steel
• Finish: Satin Stainless Steel

 Compliance:

• Compliant to the AS 1428:1-2009 Design for Access and Mobility.

Legge Interior 5306 Plain Plate Lever Handle
5306/29SSS

Features:

• Constructed of quality components, with cast 316 grade stainless steel levers and plates
• The heavy duty spring provides a smooth, fast return action of the lever and eliminates droop extending the life of the furniture
• The handing mechanism of this Series allows the furniture to be handed on site, prior to installation by rotating the lever to the preferred hand and fitting the stop block to secure it's position
• The Alpha lever is AS1428:1-2009 compliant

Specifications:

• Application: Internal Plate
• Function: Cylinder Plate
• Door Type: Timber or metal
• Door Thickness: 32mm - 50mm
• Fixing Centres: 148mm
• Plate Height: 185mm
• Plate Width: 25mm
• Plate Thickness: 12mm
• Materials: Cast 316 grade stainless steel
• Finish: Satin Stainless Steel

 Compliance:

• Compliant to the AS 1428:1-2009 Design for Access and Mobility.

Legge 995 Primary Narrow Stile Mortice Lock
995MF

Features:

• Multi function narrow stile mortice lock
• Commercial grade
• Stainless steel latchbolt and auxiliary bolt
• Brass faceplate and strike
• Accepts 7.6-8 mm furniture spindles
• Reversible
• Designed to be compatible with most electric strikes

Specifications:

• Anti-lockout Function: No
• Compatible With Most Restricted Keying Systems: Yes
• Holdback Function Built-in: No
• Lock Grade: Commercial
• SCEC Endorsed: No
• Door Thickness: 35mm - 48mm
• Backset: 30mm
• Fire Rated: No
• Face Plate Length: 155mm
• Face Plate Thickness: 3mm
• Face Plate Width: 25mm
• Handing: Non-handed
• Mortice Lock Case Depth: 45mm
• Mortice Lock Case Height: 196mm
• Mortice Lock Case Thickness: 20mm
• Uses Cylinder/Plug Type: 570 Oval
• Finish: Satin Chrome
