LENKENG 1080P HDMI Extender with KVM Support Over Single Cat6/6A Cable. Supports Mouse&KeyboardExtension via USB. Up to 70m.

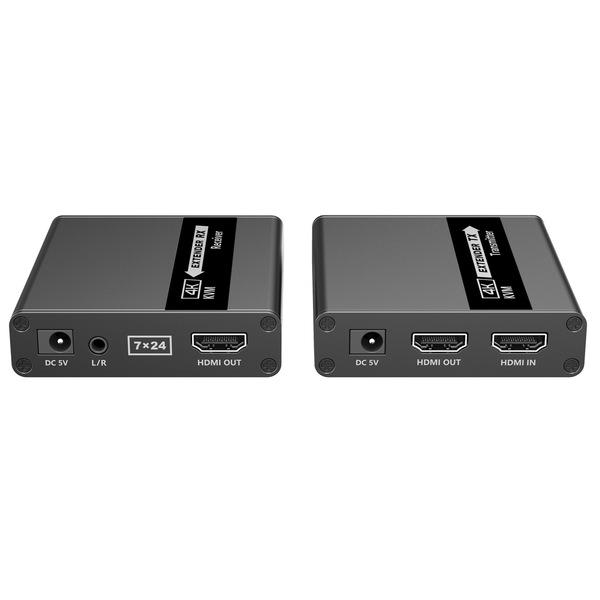

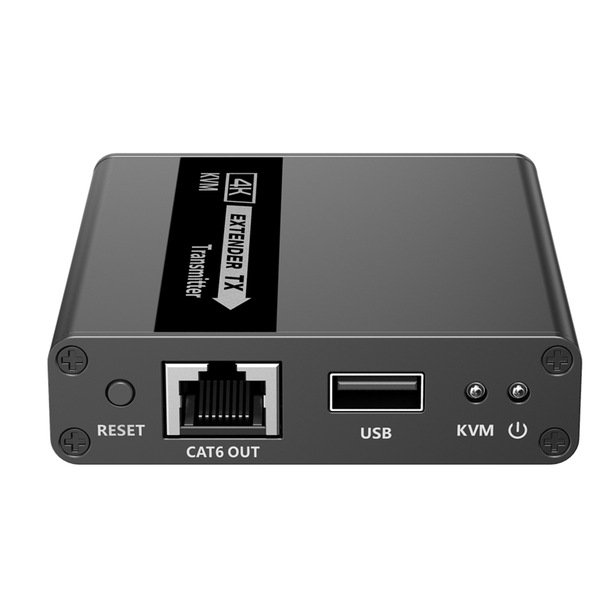

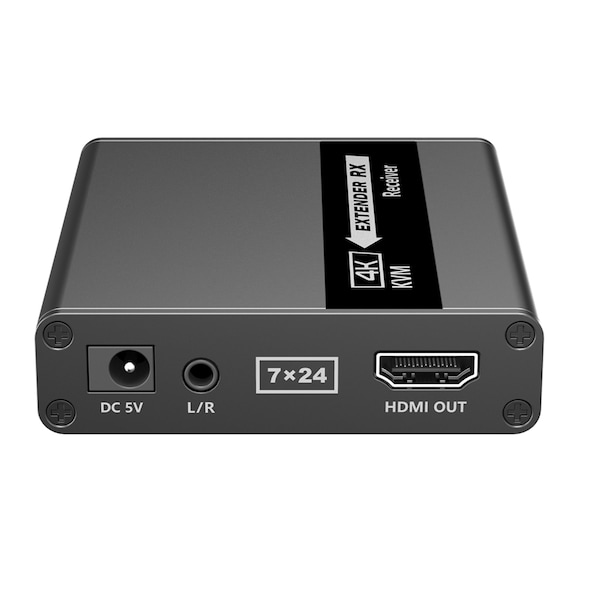

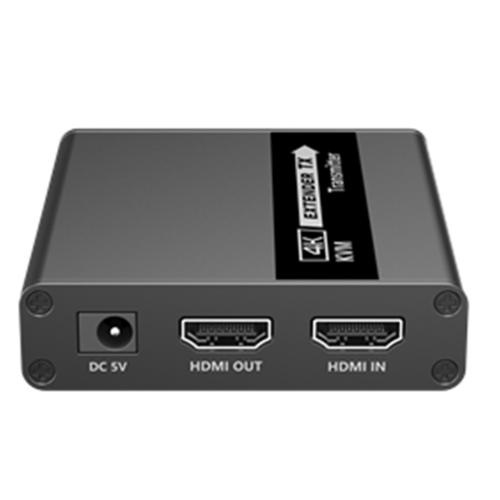

HDMI Extender includes a transmitter unit and a receiver unit, allowing the HDMI signal to be transmitted up to 70m at 1080p resolution using a CAT6/6A/7 network cable. It adopts a point-to-point connection configuration. Supports KVM remote control and 3.5 mm stereo audio output.
- Zero latency
- Supports up to 4K@30Hz resolution
- Supports CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70 meters, 4K@30Hz transmission distance is up to 40 meters
- Supports KVM remote control and management
- Supports HDR10
- Supports EDID passthrough
- Transmitter supports HDMI loop-out
- Receiver supports 3.5mm stereo audio output
- Automatically adjusts parameters to match different network cables and achieve the best display performance
- Lightning, Surge, and ESD Protection

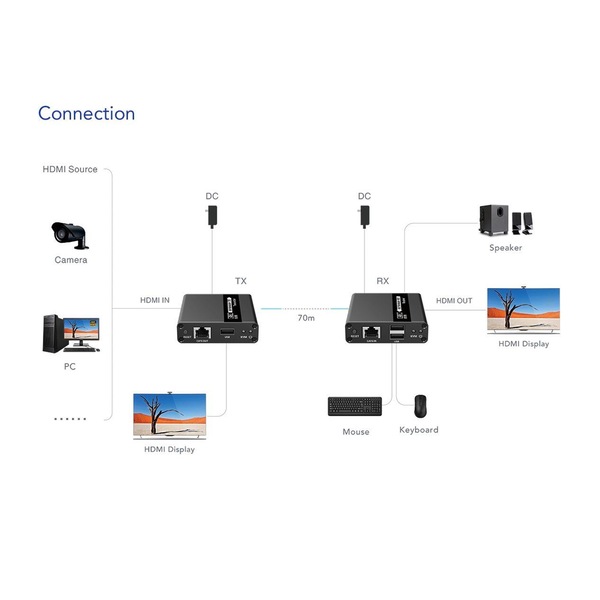

70M and zero latency transmission
Support CAT6/6A/7 network cable, the maximum transmission distance can reach 70m
4k@30Hz HDR for visually lossless transmission
Supports 4K@30Hz HDR, the image can be more clear, higher saturation and show more outstanding details.

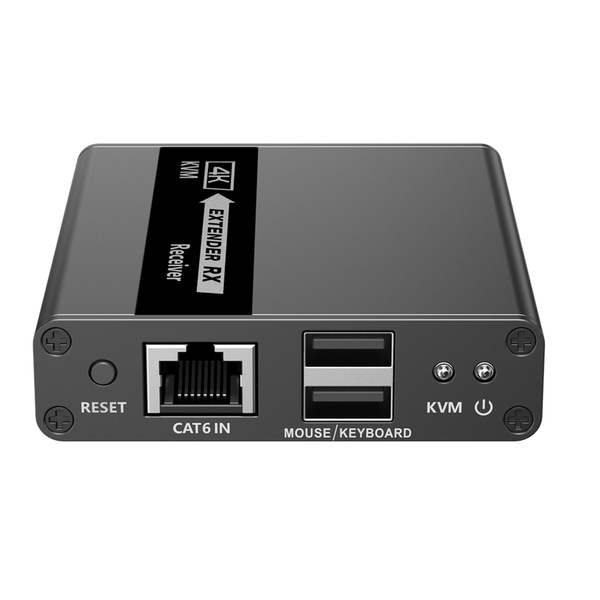

Support KVM control
Supports KVM remote control, especially for real-time monitoring and management fo traffic control centres, moniter centres, medical institutions, etc.
Adaptive technology
The product can automatically adjust parameters to match different network cables and achieve the best display performance
Lightning protect, surge protection, ESD protection
Product can process higher reliabilty and signal can be transmitted with more stability with high-performance digital chip.

Voltage/Current
DC5V/1A
Power consumption
TX<2.5W RX<2.5W
HDMI compliance
HDMI 1.3
HDCP compliance
HDCP 1.4
HDMI resolution
800x600?1024x768?1280x720? 1280x960?1366x768?1440x900? 1680x1050?1920x1080?480i@60Hz? 480p@60Hz?576i@50Hz? 576p@50Hz?720p@50/60Hz? 1080i@50/60Hz? 1080p@24/25/30/50/60Hz
Supports audio formats PCM, LPCM, DTS HD, DTS Audio
Input and output TMDS
signal 0.7~1.2Vp-p(TMDS)
Input and output DC
signal 5Vp-p(TTL)
Input cable length
=8m(AWG24)
Output cable length
=8m(AWG24)
Cat6/6A/7
1080p@60Hz=70m
Electrostatic protection of the whole machine
Implementation of the standard: IEC61000-4-2 1a Contact discharge level 2 (4KV) 1b Air discharge level 3 (8KV)
Working temperature
-20~60?
Storage temperature
-30~70?
Humidity (no condensation)
0~90%RH
Dimension
75.0(L) x 85.0(W) x 20.0(H)mm
Material Aluminum
alloy material + crystal panel
Treatment process
Grit blast
Color
Black
Weight
TX:180g RX:180g
- MPN: LKV223KVM

GTIN: 9420065706616
