LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 4K 30Hz. Zero Latency, Send [LKV223P]

Image 1
Image 2
Image 3
Hurry! 11 items left!
$125.22

Collect 125 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

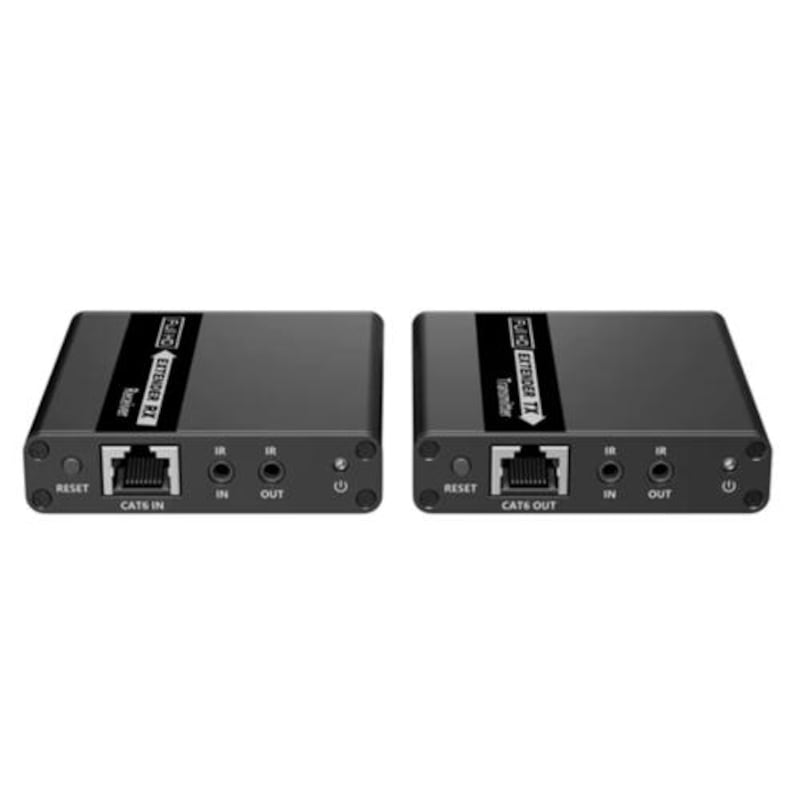

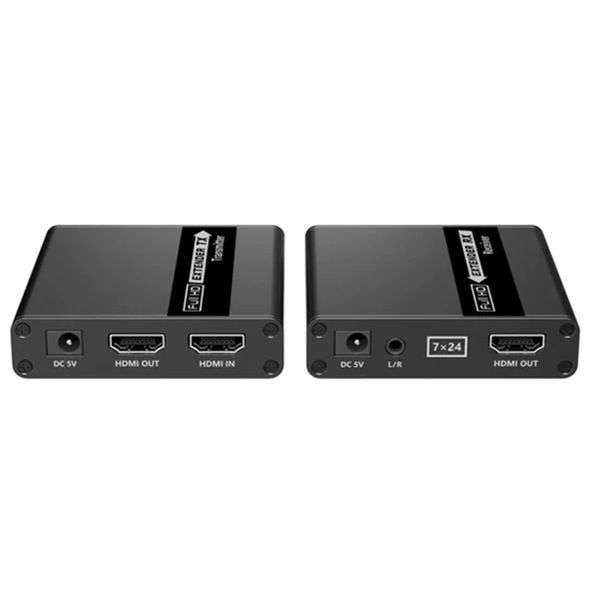

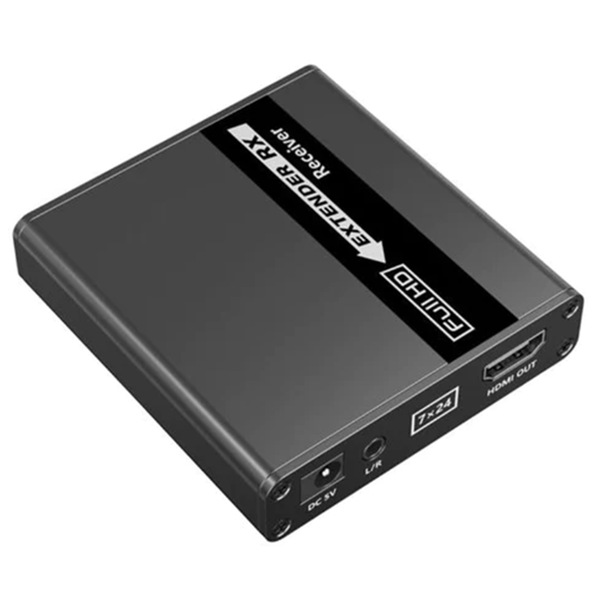

LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 4K 30Hz. Zero Latency, Send Signal up to 70m,Built-in 3.5mm Input, IR Passback, HDMI Loop-out, EDID Pass Through. Includes TX & RX. Supports POC

LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 1080P@60Hz. Zero Latency, Send Signal up to 70m, Built-in 3.5mm Input, IR Passback, HDMI Loop-out, EDID Pass Through. Includes TX & RX
This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports bi-directional.
- Zero-latency
- Support up to 1080p@60Hz resolution
- Supports Cat6/6A/7 network cables, the transmission distance is up to 70 meters
- Support bi-directional IR pass-back function (20~60KHz).
- Support 1080p HDR10, YUV4:4:4. 6. Support EDID passthrough.
- Transmitter supports HDMI loop-out.
- Receiver supports 3.5mm stereo audio output.
- Audio formats supported: PCM, LPCM, DTS HD, DTS Audio.
- Automatically adjusts parameters to match different network cables and achieve the best display performance.
- Lightning Protection, Surge Protection, ESD Protection

HDMI compliance
HDMI1.4
HDCP compliance
HDCP1.4
Transmission medium
CAT6/CAT6A/CAT7
Transmission distance
1080@60Hz Transmission = 70 meters; 4K@30Hz Transmission = 40m
Video bandwidth
10.2Gbps
Video support
800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz
Audio support
PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH
1080P HDR10 (YUV4:4:4)
Support
HDMI Loop-out
Support
EDID through
Support
Bi-directional IR passback
Support
Input TMDS signal
0.7~1.2Vp-p
Input DDC signal
5Vp-p
Input
HDMI×1, DC2.1×1, 3.5mm jack ×1 (IR)
DC2.1×1, RJ45×1, 3.5mm jack ×1 (IR), 3.5mm L/R ×1
Output
HDMI×1, RJ45 ×1, 3.5mm jack ×1 (IR)
HDMI×1, RJ45×1, 3.5mm jack ×1 (IR)
HDMI connector
Type A 19 Pins, Female
Network cable standard
CAT5E/CAT6/CAT6A/CAT7 , follow IEEE-5688 standard
Housing
Aluminium alloy material+crystal panel
Dimensions (L×W×H mm)
80.0 (L) x 75.0 (W) x 18.0 (H) mm
Net weight
160g
Power supply
5V/2A
Power consumption
<4W
Operation tempertaure
-20°C~60°C
Storage temperature
-30°C~70°C
Relative humidity
0%~90% (no condensation)
- MPN: LKV223P

GTIN: 9420065706272
