LENKENG LKV100USB 4-Port USB-A Extender Over Cat5e/6/7 Network Cable. Extend up [LKV100USB]

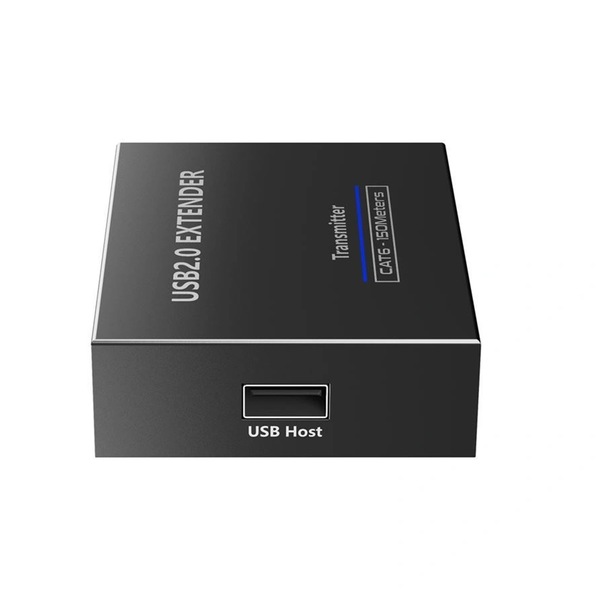

Image 1

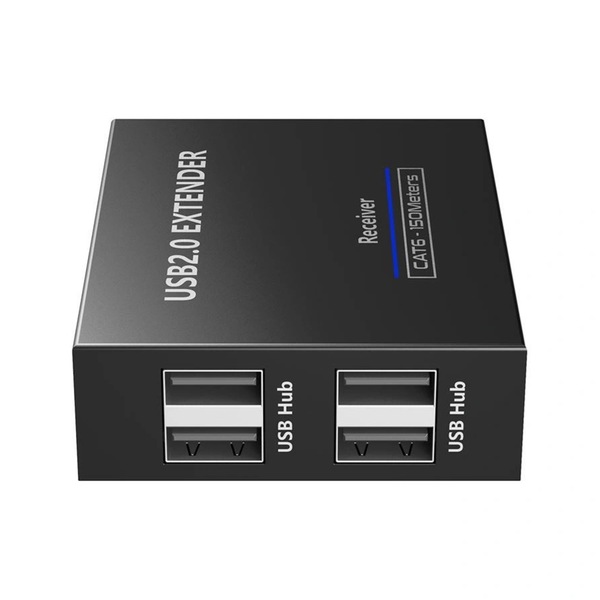

Image 2

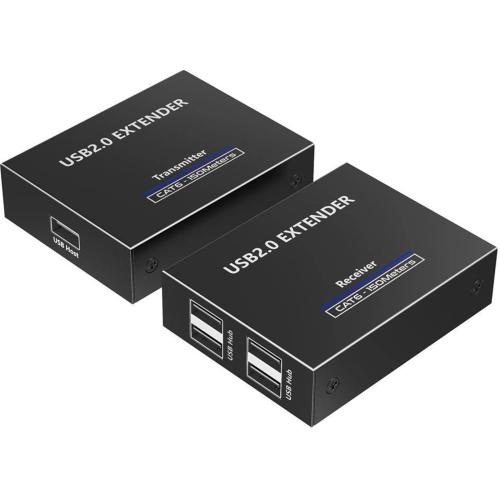

Image 3

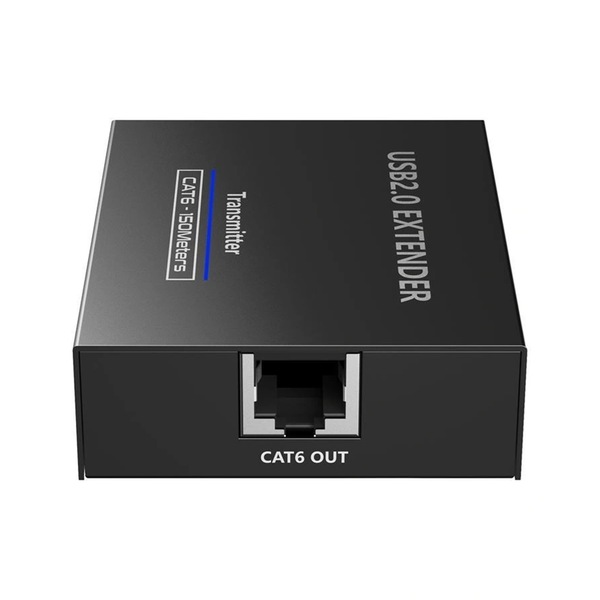

Image 4
Hurry! 2 items left!
$146.28

Collect 146 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
LENKENG LKV100USB 4-Port USB-A Extender Over Cat5e/6/7 Network Cable. Extend up to 150m (Cat6). Easy Plug&Play. Includes Both Tx & Rx Units Rx Includes 4x USB-A, 1x RJ45 In Ports. Tx 1x USB-A, 1x RJ45 Out.

This Lenkeng LKV100USB 150m 4-Ports High-Speed USB2.0 Extender supports connection through CAT5E/6/7 network cables, with a transmission distance of up to 100m for CAT5E and up to 150m for CAT6 and above.
Supports all USB 2.0 devices up to 480Mbps
Support printers, scanners, cameras, USB drives, keyboards, mice and more, also can be compatible for USB1.1 (12Mbps) and SUB1.0 (1.5Mbps). Which can be widely applied in daily office, computer teaching systems, video conferences, monitoring and more.
- Support USB 2.0 High-Speed, Compatible with USB 1.1 Full-Speed, USB1.0 Low-Speed
- Support 4xUSB 2.0 inputs and 1xUSB 2.0 outputs
- Transmits up to 100m with CAT5E and up to 150m with CAT6/7 cables
- Support USB hub connection
- The transmitter is powered by the input device, no additional power supply required
- Support switch relay, the transmission distance can be increased through the switch
- Support hot-plugging of USB devices and automatically identify USB speed
- Lightning, surge, ESD protection
- Plug and play

USB Compliance
USB2.0 and backwards compatible with USB1.1, USB1.0

USB Rate
compatible with High-Speed, Full-Speed, Low-Speed

Transmission Distance
CAT5E=100m; CAT6/6A/7=150m

USB Device
Printer, camera, scanner, U disk, keyboard, mouse, touch screen

Switch
Support Gigabit switch extension

USB Hot-Plug
Support

System
Windows, MacOS, Linux, Android

Output
USB-A×1, RJ45 ×1

Network cable standard
CAT5E/CAT6/CAT6A/CAT7 , follow IEEE-5688 standard

Housing
Iron

Dimensions(L×W×H mm)
77.0(L) x 60.0(W) x 21.0(H) mm

Net weight
Transmitter: 123g
Receiver: 128g

Power supply
Transmitter: Power from the input device
Receiver: 5V/1A

Power consumption
=2W

Operation temperature
-20°C~60°C

Storage temperature
-30°C~70°C

Relative humidity
0%~90% (no condensation)

Protection
Lightning Protection, Surge Protection, ESD Protection

Application
Industrial Control, KVM Extension, Professional Audio-Visual, Security and monitoring, Medical Device Connectivity
- MPN: LKV100USB

GTIN: 9420065706906
