LENKENG LKV372P HDMI & IR Extender Kit Over Cat6/6A. 1080p up to [LKV372P]

LENKENG LKV372P HDMI & IR Extender Kit Over Cat6/6A. 1080p up to [LKV372P]


LENKENG LKV372P HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70mRecievers.Supports PoC, Supports EDID & IR Passback. Support PoC network cable power supply, only TX power supply is needed. Not Suitable for Cat5/5e

LENKENG HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70m. Supports EDID & IR Passback. Support PoC network cable power supply, only TX power supply is needed. Not Recommended for Cat5/5e

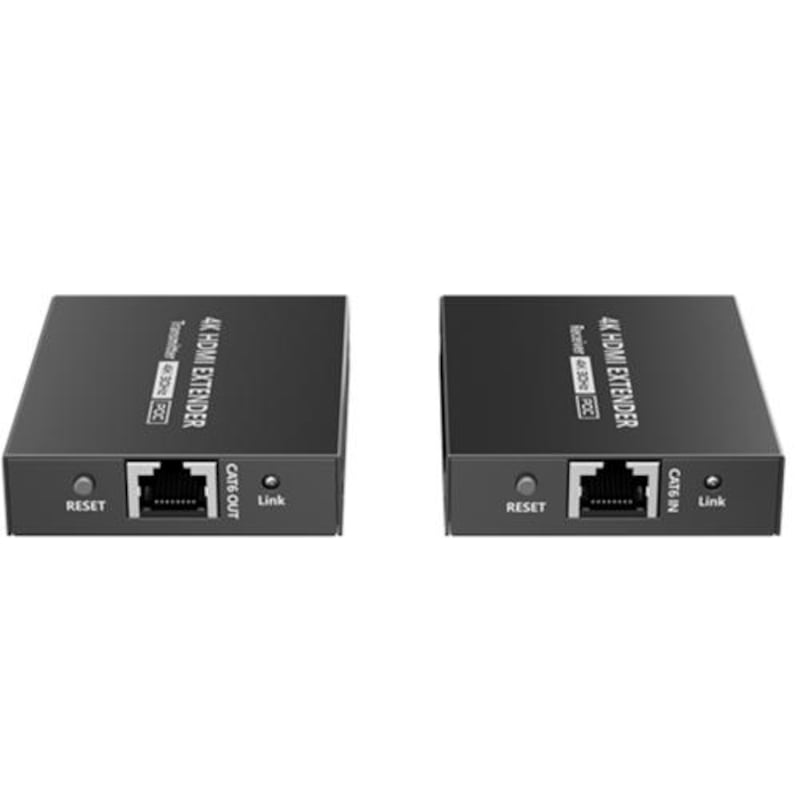

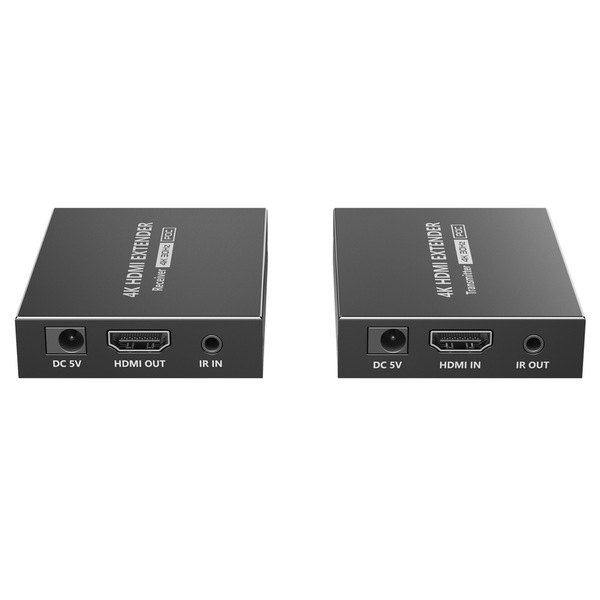

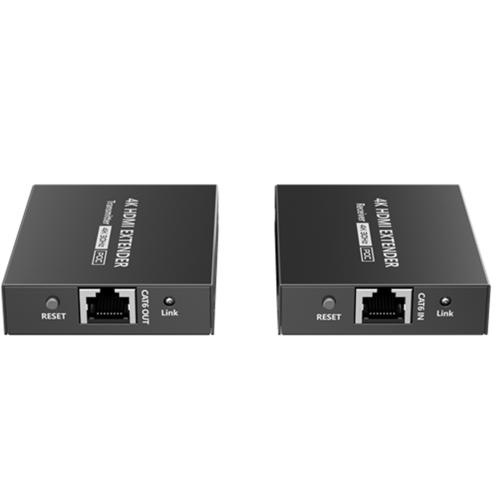

This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.
- Zero latency
- Support up to 4K@30Hz resolution
- Support CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70meters, 4K@30Hz transmission distance is up to 40 meters
- Support IR pass-back function (20KHz~60KHz)
- Support HDR10
- Support EDID passthrough
- Support PoC network cable power supply, only TX power supply is needed

Power Supply
Voltage/Current
DC 5V/2A
Power consumption
TX+RX
HDMI Performance and Interface
HDMI resolution
800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 3840x2160@24/25/30Hz
Audio formats
DTS, DTS-HD, PCM, LPCM
HDR
Support
EDID through
Support
IR Pass-back
Frequency Range: 20KHz~60KHz
Input and output TMDS signal
0.7~1.2Vp-p (TMDS)
Input and output DDC signal
5Vp-p (TTL)
Transmission Distance
Cat6/6A/7
1080p@60Hz transmission 70 metres 4K@30Hz transmission 40 metres 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV)
Protection Level
Electrostatic protection of the whole machine
Implementation of the standard: IEC61000-4-2
Operating Environment
Working temperature
-20°C~60°C
Storage temperature
-30°C~70°C
Humidity (no condensation)
0%~90% RH
Body Properties
Dimension
75.0(L) x 60.0(W) x 16.5(H) mm
Weight
TX:127g
- MPN: LKV372P
GTIN: 9420065707156
