LENKENG LKV565P HDMI 2.0 Extender over Cat6/6e with PoE for Rx. Supports up [LKV565P]

Image 1
Image 2
Image 3
Hurry! 5 items left!
$172.57

Collect 172 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

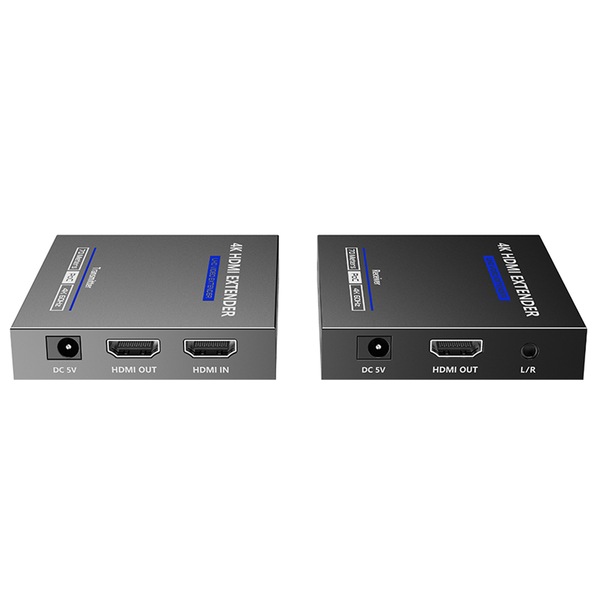

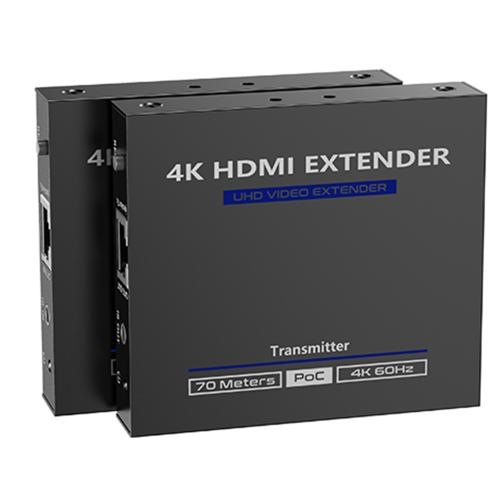

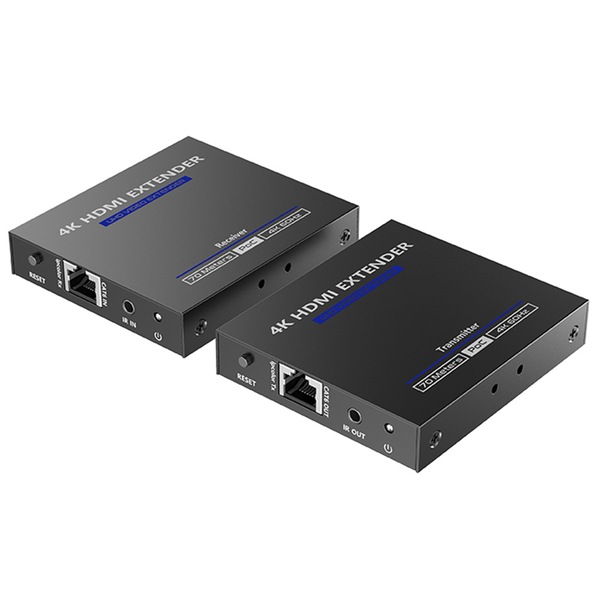

LENKENG LKV565P HDMI 2.0 Extender over Cat6/6e with PoE for Rx. Supports up to 4K60Hz.ZeroLatency. One Way IR Remote Control. Transmit HDMI Signal up to 70m. EDID Passback. L/R Audio Output Rx

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, IR passthrough, 3.5mm audio output, etc. This kit is a reliable, ultra-high-definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.
Zero Latency Transmission for 70 Meters
Support CAT6/6A/7 network cable, the maximum transmission distance can reach 70 meters

4k A 60Hz HDR for Visually Lossless Transmission
Support 3840x2160 HDR, with ipcolor IMAGE - a new standard for visually lossless transmission solution, the image can be more clear, higher saturation and show more outstanding details.

Support PoC-Power over Network Cable
Only TX Power Supply Needed.

HDMI Length
=5m
Maximum transfer rate
18Gbps
Maximum transmission bandwidth
600MHz
EDID passthrough
Yes
Compatibility
HDMI 2.0(Deep color, 4K, HDR, YUV4:4:4)
HDCP 2.2
Resolutions
720p @ 50/60Hz?1080i @ 50/60Hz?1080p @ 50/60Hz? 3840x2160 @ 24/25/30/50/60Hz?4096x2160 @ 24/25Hz? 1280x960?1280x800?1280x768?1680x1050? 1360x768?1366x768?1600x900?1024x768?800x600
Transmission distance
CAT6/6A/7=70m
Audio formats
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
IR interface
TX:1x 3.5mm IR OUT Female
RX:1x 3.5mm IR IN Female
Receiving range=
=5m
Infrared frequency
20KHz~60KHz
Power Supply
TX:DC5V/2A
RX:DC5V/2A
Power Consumption
TX:<4W
RX:<4W
Working temperature
-20?~60?
Storage temperature
-30?~70?
Humidity
0~90%RH(No condensation)
Housing
Metal
Weight
TX:140g
RX:140g
Color
Black
Dimensions
TX/RX:85.0(L)*75.5(W)*16.5(H)mm
- MPN: LKV565P

GTIN: 9420065706029
