LENKENG LKV676KVM-P 4K HDMI Extender with KVM Support Over Single CAT6/6A [LKV676KVM-P]

Image 1
Image 2
Image 3
Hurry! 2 items left!
$401.04

Collect 401 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
LENKENG LKV676KVM-P 4K HDMI Extender with KVM Support Over Single CAT6/6A Cable. SupportsMouse&Keyboard Extension via USB. Supports IR Passback. Up to 70m 4Kx2K 60Hz UHD. Supports Power Supply for TX Unit.

LENKENG 4K HDMI Extender with KVM Support Over Single CAT6/6A Cable. Supports Mouse & Keyboard Extension via USB. Supports IR Passback. Up to 70m 4Kx2K@60Hz UHD. Supports Power Supply for TX Unit.

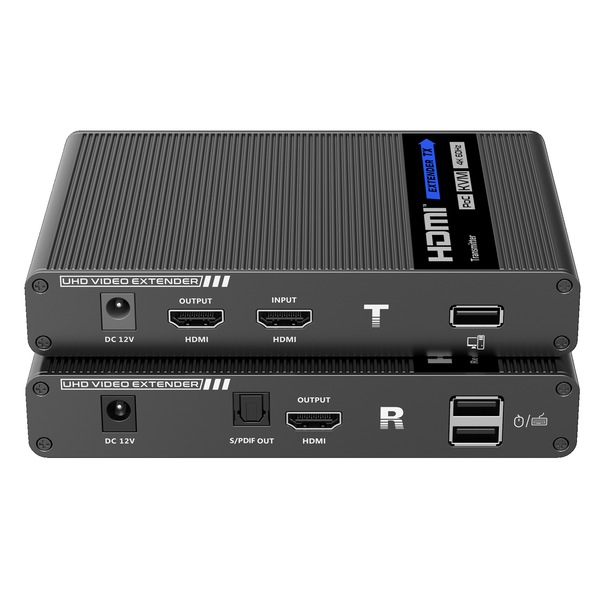

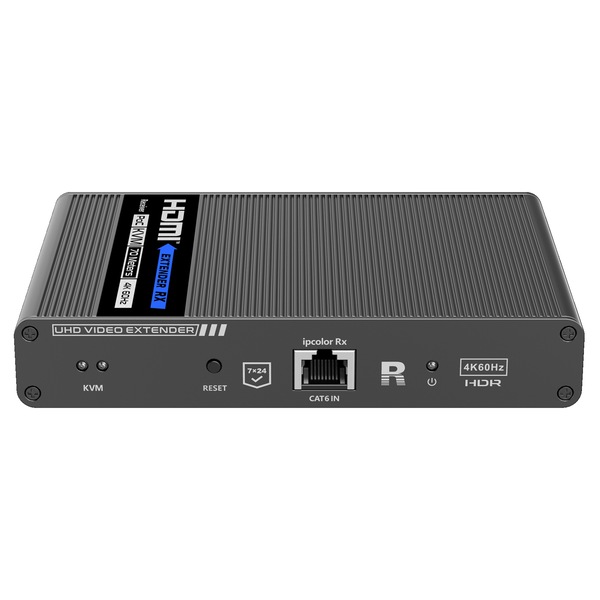

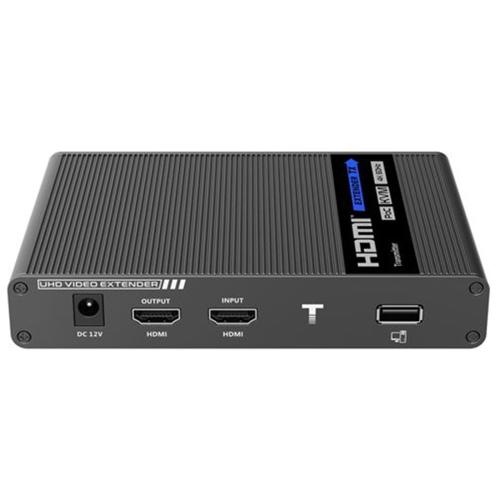

This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, video clips, monitor
- Zero latency.
- 4K@60Hz HDMI signal can be transmitted 70 meters through a
- CAT6/6A/7 network cable.
- The receiver can extract the digital audio from the transmitter through
- the S/PDIF port.
- Supports HDR10.
- Supports EDID passthrough, Auto downscaling.
- Transmitter support one HDMI loop-out.
- Support KVM function.
- Lighting protection, surge protection, ESD protection.
- Support bi-drectional

HDMI compliance
HDMI2.0,compatible HDMI1.4
HDCP compliance
HDCP2.2,compatible HDCP1.4
Transmission medium
CAT6/CAT6A/CAT7
Transmission distance
=70 meters
Video bandwidth
18Gbps
Video support
1280x960,1280x800,1280x768,1680x1050, 1360x768,
1366x768,1600x900,1024x768,800x600
480i @ 60Hz,480p @ 60Hz,576i @ 50Hz,576p @ 50Hz, 720p @ 50/60Hz,1080i @ 50/60Hz,1080p @ 50/60Hz,
3840x2160@24/25/30/50/60Hz,
4096x2160@24/25/30Hz
HDR10(YUV4:4:4)
support
HDMI Loop-out
support
S/PDIF out
support
EDID through
support
KVM function
Keyboard/Mouse
PoC
support
Input TMDS signal
0.7~1.2Vp-p
Input DDC signal
5Vp-p
Input
HDMI INx1
DC2.1×1
USB-A ×1
DC2.1×1
RJ45×1
USB-A×2
Output
HDMI OUT×1
RJ45 ×1
HDMI OUT×1
S/PDIF OUTx1
HDMI connector
Type A 19 Pins,Female
Network cable standard
CAT6/CAT6A/CAT7 ,follow IEEE-5688 standard
Material
Aluminium alloy material+crystal panel
Dimensions(L×W×H mm)
150.0(L) x 107.0(W) x 28.4(H)mm
Net weight
260g
Power supply
5V/2A
Power consumption
4W
Operation temperaure
-20~60?
Storage temperature
-30~70?
Relative humidity
0~90%(no condensation)
- MPN: LKV676KVM-P

GTIN: 6955361273485
