NBL-16-U516512G8

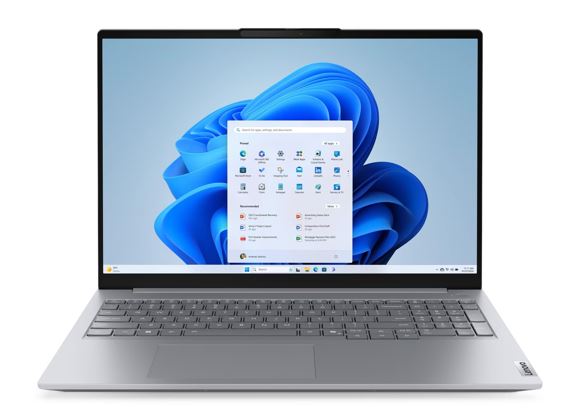

LENOVO ThinkBook 16 G8 16' WUXGA Intel U5-225U 16GB DDR5 512GB SSD WIN 11 PRO Intel Graphics AI PC NPU 12 TOPS 1yr OS 1.7kg

PERFORMANCE
Processor
Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB
AI PC Category
AI PC
NPU
Integrated Intel AI Boost, up to 12 TOPS
Graphics
Integrated Intel Graphics
Chipset
Intel SoC Platform
Memory
2x 8GB SO-DIMM DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-5600
Storage
512GB SSD M.2 2242 PCIe 4.0x4 NVMe
Max Storage Support
Up to two drives, 2x M.2 SSD
M.2 2280 SSD up to 2TB each
Storage Slot
Two M.2 2280 PCIe 4.0 x4 slots
Card Reader
SD Card Reader
Audio Chip
High Definition (HD) Audio, Realtek ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby Audio
Camera
FHD 1080p + IR Hybrid with Privacy Shutter
Microphone
2x, Array
Battery
45Wh
Power Adapter
65W USB-C (3-pin)
Special Features
Modern Standby
DESIGN
Display
16' WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz
Touchscreen
None
Color Calibration
None
Keyboard
Backlit, English
Touchpad
Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Color
Arctic Grey
Surface Treatment
Anodizing Sandblasting (Top), Texture (Bottom)
Case Material
Aluminium (Top), PC-ABS (Bottom)
Pen
Pen Not Supported
Dimensions (WxDxH)
356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches)
Weight
Starting at 1.7 kg (3.75 lbs)
SOFTWARE
Operating System
Windows 11 Pro, English (US) / English (UK)
Bundled Software
Office Trial
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi 6E, 802.11ax 2x2 + BT5.3
WWAN
Non-WWAN
Ethernet
100/1000M (RJ-45)
Standard Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort 1.4
1x USB-C (Thunderbolt 4 / USB4 40Gbps), with USB PD 3.0 and DisplayPort 2.1
1x HDMI 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x SD card reader
Docking
Various docking solutions supported via Thunderbolt or USB-C .
For more compatible docking solutions, please visit Docking for ThinkBook 16 G8 IAL
SECURITY PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks
Kensington Nano Security Slot , 2.5 x 6 mm
Other Security
Camera privacy shutter
IR camera for Windows Hello (facial recognition)
MANAGEABILITY
System Management
Non-vPro
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
1Y Onsite upgrade from 1Y Courier/Carry-in
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
ENERGY STAR 9.0
EPEAT Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications
T V Rheinland Low Blue Light (Software Solution)
Mil-Spec Test
