Specification:

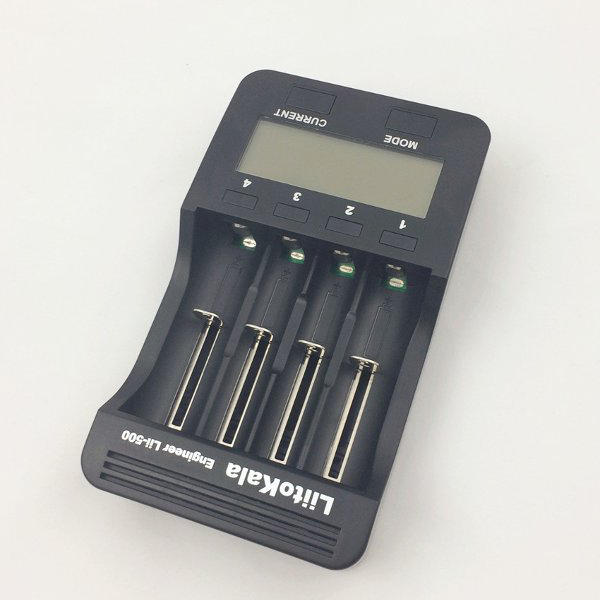

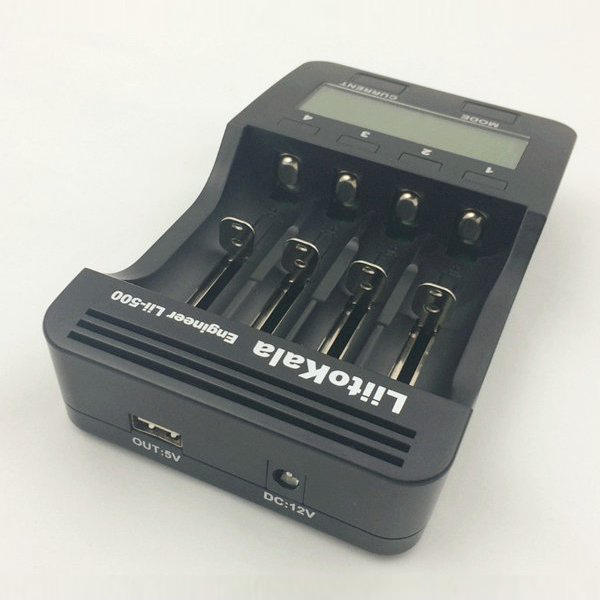

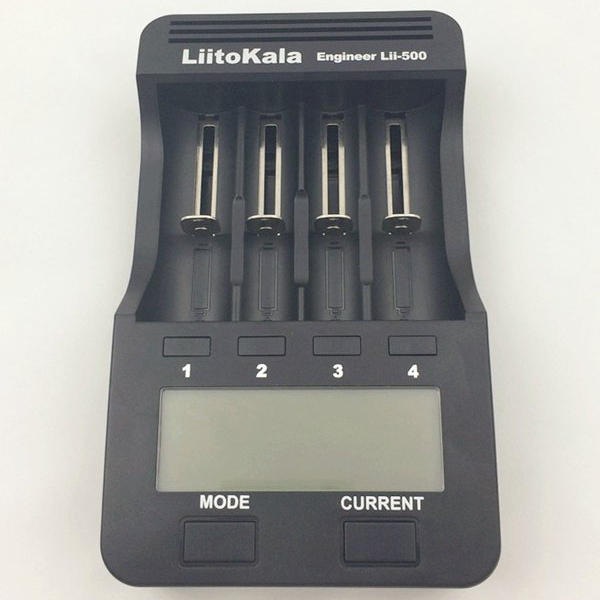

Product name:LiitoKala Lii-500 1.2V/3.7V Battery Charger

Brand:LiitoKala

Model:Lii-500

DC Input voltage:12V / 2.0A

Discharge current:250mA, 500mA

Li-ion battery charging current:4.2V 300mA / 500mA / 700mA / 1000mA

NiMH battery charging current:1.48V 300mA / 500mA / 700mA / 1000mA

Compatible Batteries:18650,26650,14500, AA, AAA, etc.(not included)

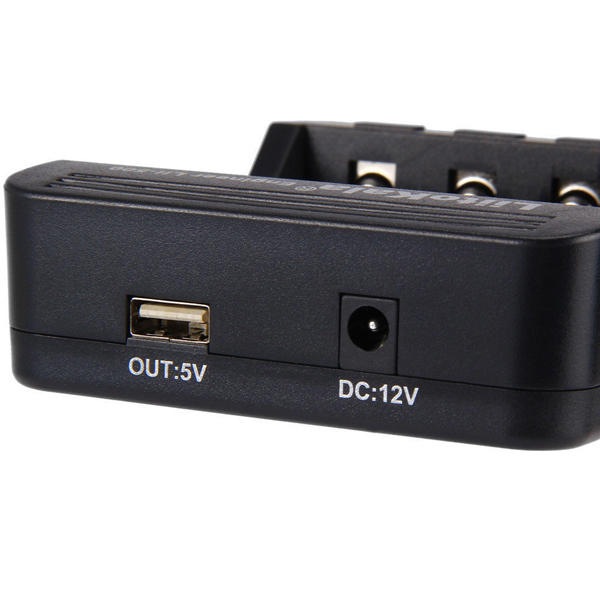

USB Output:5V --- 1000mA

Termination:Intelligent voltage monitoring

Weight:305g+120g+32g

Size:162mm(L) x 96mm(W) x 36mm(H)

Features:

1. Four kinds of charge current regulation (300mA / 500mA / 700mA / 1000mA)

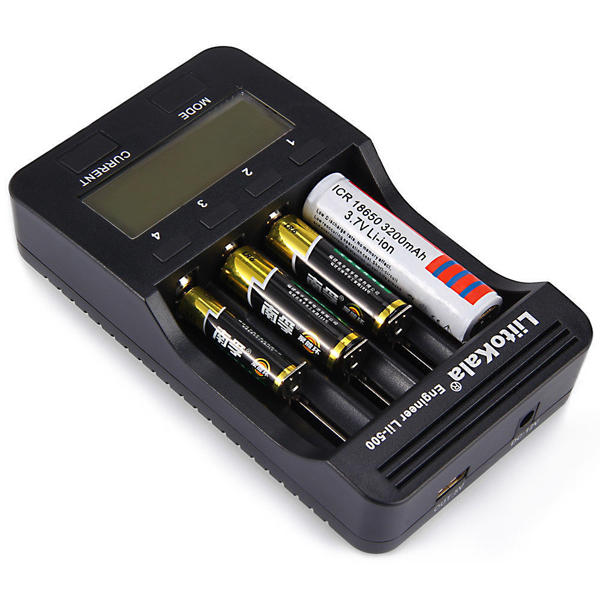

2. It can be of different size batteries while charging(18650/26650����/AA/AAA)

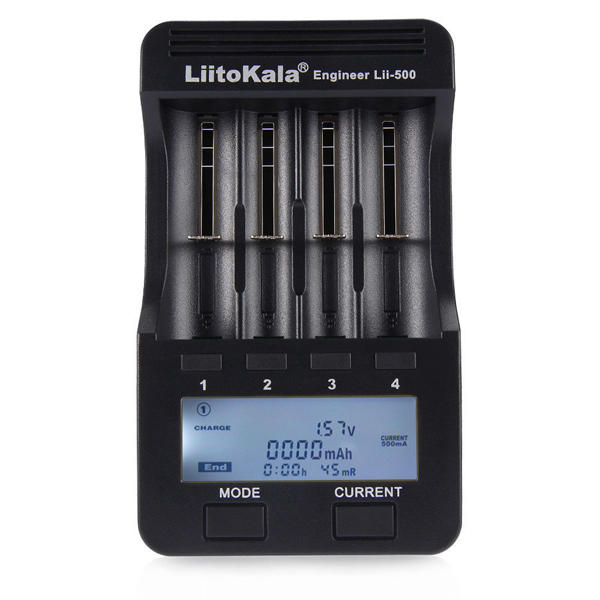

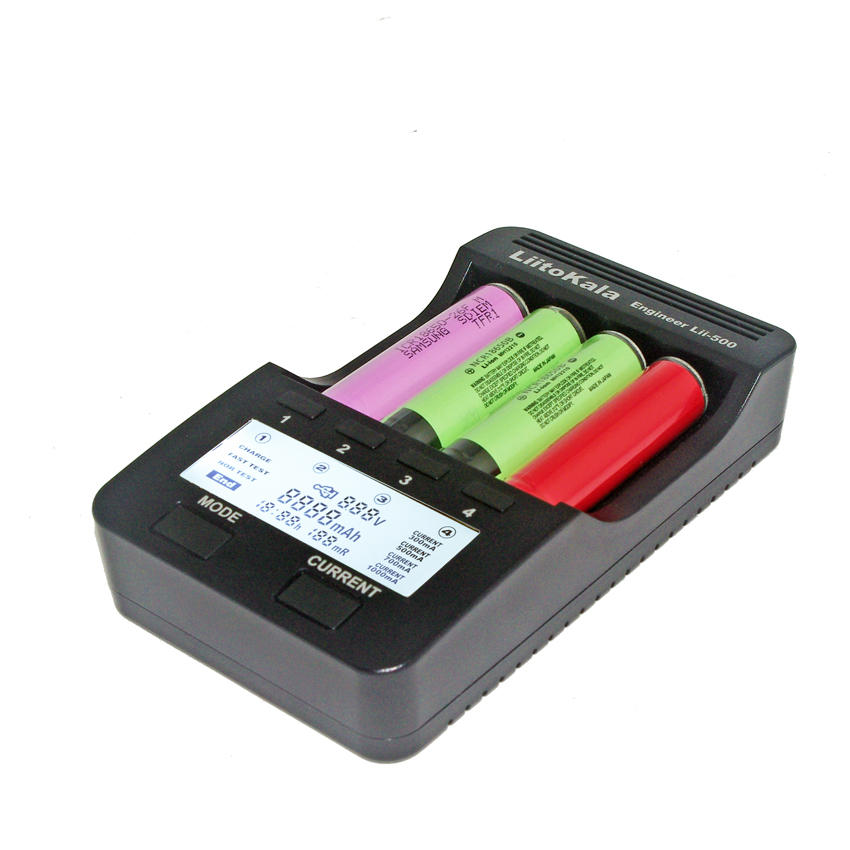

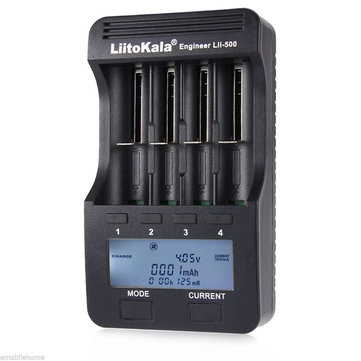

3. The charger preclude the use of a separate screen LCD display, voltage (V) Current (mA) Time (h) Capacity (mAh) resistance (mR)

4. Under charge mode, 4 channel work independently, you can select different charging current for charging and Hunching lithium-ion batteries and nickel-metal hydride batteries.

5. FAST TEST mode, 4 channels can quickly detect the battery capacity, regardless of the lithium-ion batteries and nickel-hydrogen batteries, are working independently. Rapid detection of battery capacity process (1 discharge, 2 full) by the two step

6. NOR TEST mode, the battery capacity is normally detected by the three step process (1 first charged, then discharged 2 and 3 refill), the detection process of the battery capacity;

7. CHARGE and FAST TEST / NOR TEST 3 modes can work simultaneously; independent set charge / fast capacity detection / normal capacity detection;

8. A variety of protection functions: overcharge and over discharge, short circuit, temperature, 0V voltage activation function, (- ��V & 0��V), 1.65V-2.2V can not be charged, intelligent recognition bad battery and reverse-battery detection protection.

9. With standard 5V / 1000 mA USB output: from 1 to 4 lithium batteries lithium batteries USB output is completed, the product can not be nickel-metal hydride battery with USB output.

Warning:

1. This charger can only charge a cylindrical lithium-ion batteries and nickel-metal hydride batteries, non-rechargeable lithium iron phosphate battery;

2. Before use, please carefully refer to the instructions, pay attention to the recommendation of the rechargeable battery charging current, do not exceed the recommended charging current;

3. Do not use other power adapter;

4. Chargers discharge may be hot, be careful not to burn;

5. Stop use, unplug the power, removing the battery;

6. it can only be used in normal room.

7. This product test data for reference only, please refer professional equipment.

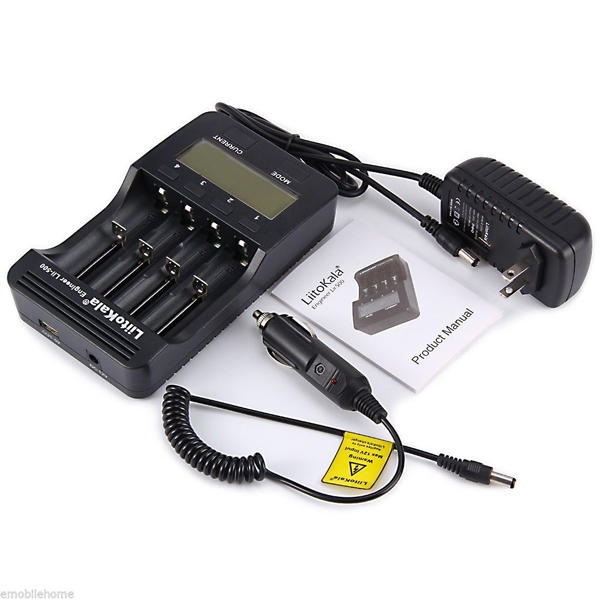

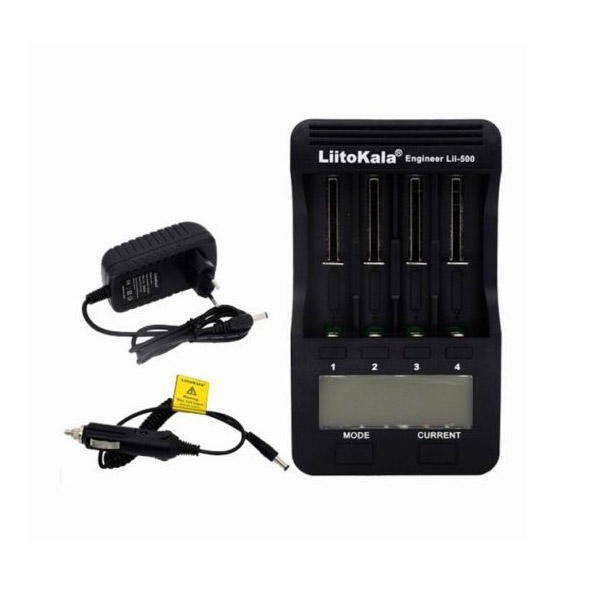

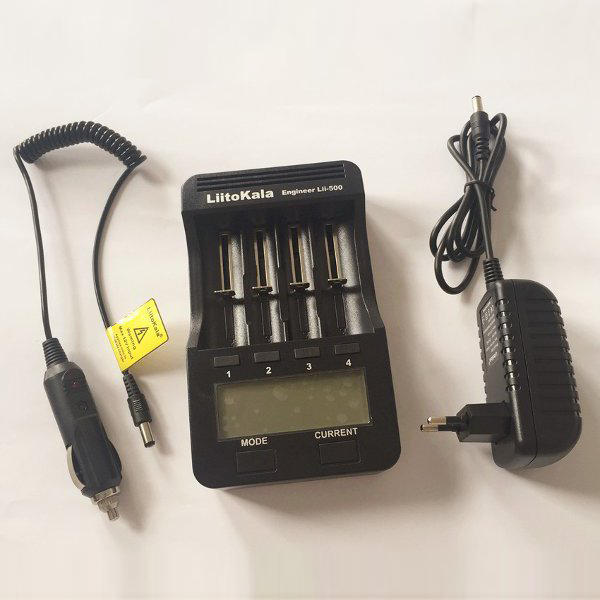

Package inlcuded:

1 X LiitoKala Lii-500 1.2V Or 3.7V Battery Charger

1 X 2A adapter

1 x Car charger
