Features:

A float switch is a device used to sense the level of liquid within a tank.

The switch may actuate a pump, an indicator, an alarm, or other device.

It can be easily converted from normally open to normally close by inverting the float.

Specification:

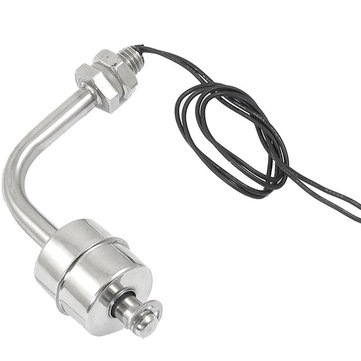

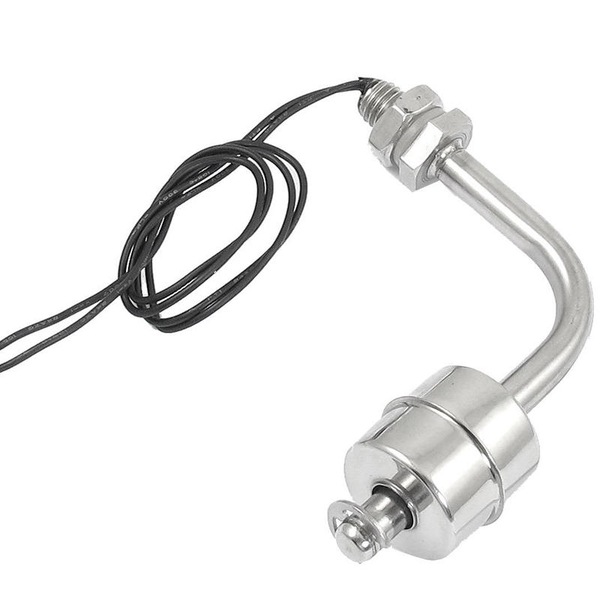

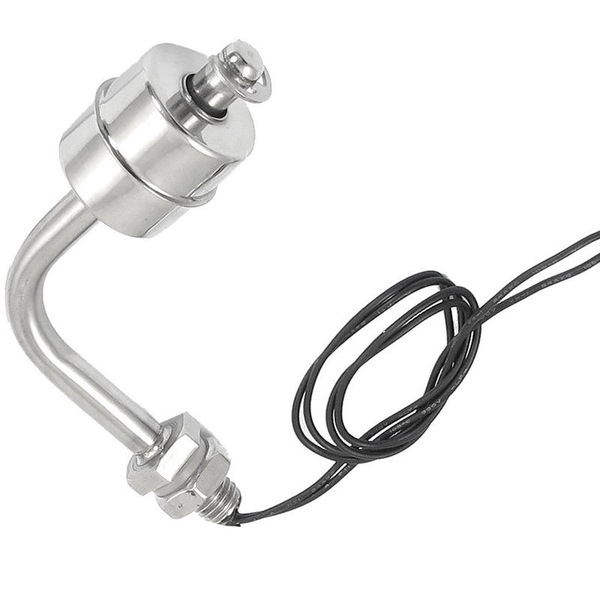

Product Name : Water Level Sensor

Contacts : NO+NC

Max Contact Rating : 10W

Max Switching Voltage : 100V DC / 220V DC

Max Switching Current : 0.5A / 0.7A

Max Breakdown Voltage : 220V DC / 400V DC

Max Carry Current : 1.0A / 1.5A

Max Contact Resistance : 100mΩ

Temperature Rating : -30 - +125�b?/span>

Float Ball Size(Approx) : 25 x 27mm / 1" x 1.1"(L*D)

Thread Dia(Approx) : 9.8mm / 0.386"

Hex Nut Size(Approx) : 19mm / 0.75"

Bottom Clip Dia(Approx) : 15mm / 0.6"

Body Total Length(Approx) : 81mm / 3.2"

Body Total Width(Approx) : 70mm / 2.8"

Cable Length : 31cm / 12.2";

Color : Silver Tone

Net Weight : 47g




Package Included:

1 x Water Level Sensor
