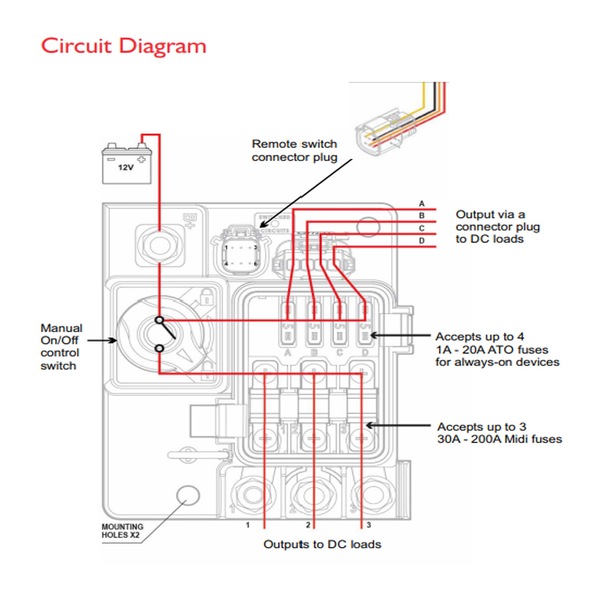

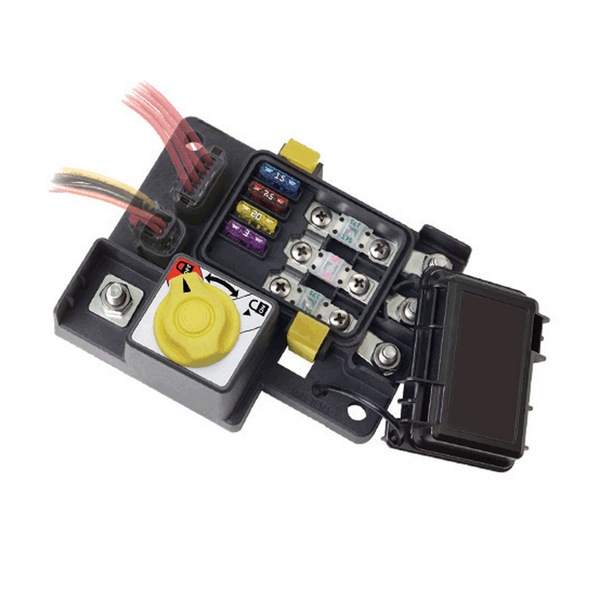

The 880076 SL series integrated fuse block is designed to power to 3 x switched high-amp circuits using either a remote switch or the manual switch on the block.

This block also includes 4 x low-amp always- on circuits to power loads like clock, alarms etc.

All 7 x output circuits are fuse protected.

Power is output via 3 studs (high-amp circuits) or a single 4 wire connector (low-amp circuits).

Notes: Auto fuses & Midi fuses and 2 x connectors are not included.

The 880076 SL series integrated fuse block is designed to power to 3 x switched high-amp circuits using either a remote switch or the manual switch on the block.

This block also includes 4 x low-amp always- on circuits to power loads like clock, alarms etc.

All 7 x output circuits are fuse protected.

Power is output via 3 studs (high-amp circuits) or a single 4 wire connector (low-amp circuits).

Notes: Auto fuses & Midi fuses and 2 x connectors are not included.

Voltage: 32VDC (limited by fuses).

Switch Continuous Ampere Rating: 300A at 85 C, 240A at 105 C

Switch Cranking Rating: 10 sec. 1000A

Max Operating Ampere Per Block: 240A (Midi fuse), 50A (Auto fuse)

Max Operating Ampere Per Circuit: 170A (Midi fuse), 20A (Auto fuse)

Minimum Input Cable Size*: 4/0 AWG (120mm )

Minimum Output Cable Size (Midi)*: 2/0 AWG (70mm )

Fuse Ampere Ratings: 30A-200A (Midi fuse), 1A-20A (Auto fuse)

Studs: Tin-plated copper, M8 x 1.25

Midi Fuse Screws: M5 x .8 x 10

Hardware: Stainless steel

Operating Temperature: -50 C to 105 C

Module Contents: Includes cover with gasket.

Mounting: Mount as close as possible to the battery, but not above vented lead acid batteries.

Mount in a dry protected location.

Where possible mount in a vertical orientation.

Unit must not be mounted upside down.

IP Rating: IP59K / IP66

Ignition Protected: SAE J1171, ISO 8846

Dimensions: 152 x 102 x 45mm
