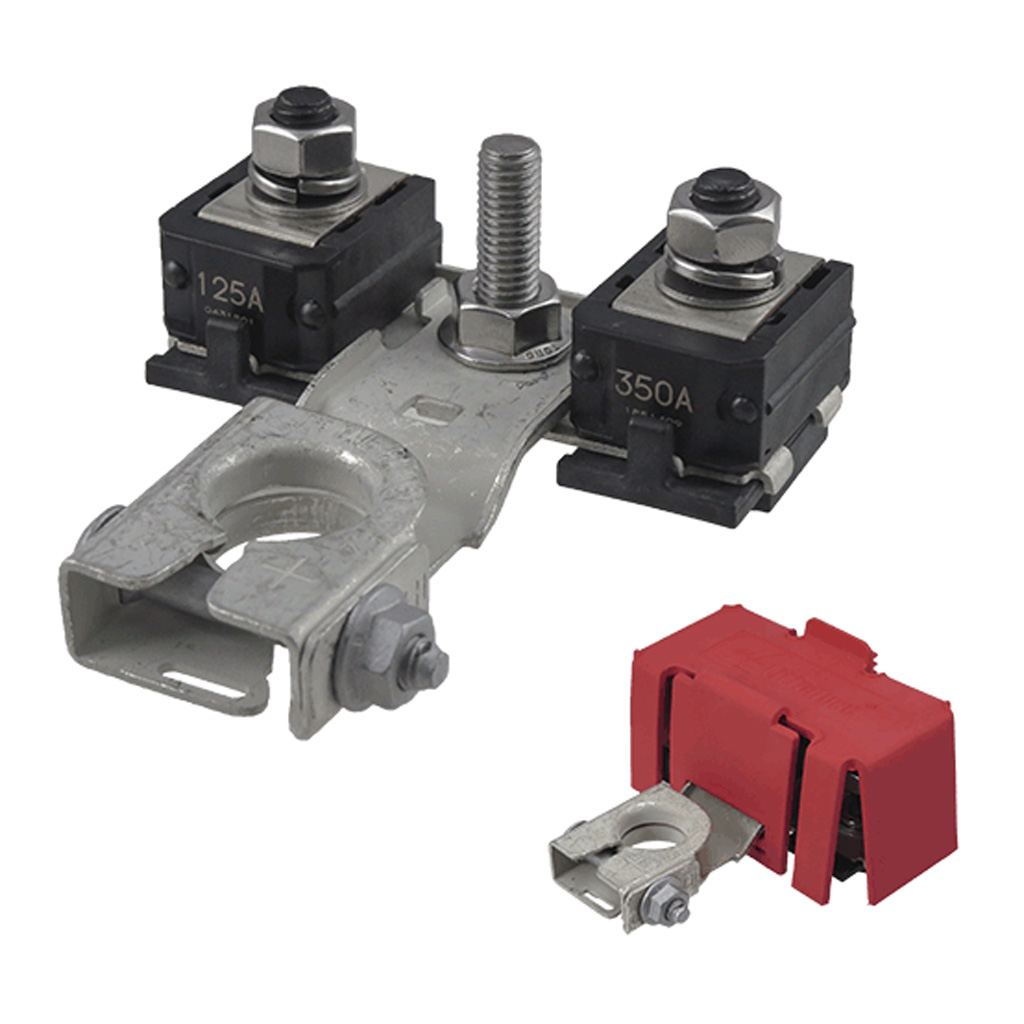

Littlefuse ZCase 2 Way Fuse Holder Bussed with Cover

Voltage: 32VDC

Rating: 275A max continuous.

Fuse Terminal Stud : Torque: M8 12 to 16 Nm

Mounting: Top Post Positive 19mm.

Kit Contents: Includes Battery Bar, Fuse Bar, Cover, S/S Nuts & Washers.

Operating . Temp : -40 C to 125 C.

Notes: Fuses not included. Zcase.

Littlefuse ZCase 2 Way Fuse Holder Bussed with Cover

Voltage: 32VDC

Rating: 275A max continuous.

Fuse Terminal Stud : Torque: M8 12 to 16 Nm

Mounting: Top Post Positive 19mm.

Kit Contents: Includes Battery Bar, Fuse Bar, Cover, S/S Nuts & Washers.

Operating . Temp : -40 C to 125 C.

Notes: Fuses not included. Zcase.

Littlefuse ZCase 2 Way Fuse Holder Bussed with Cover

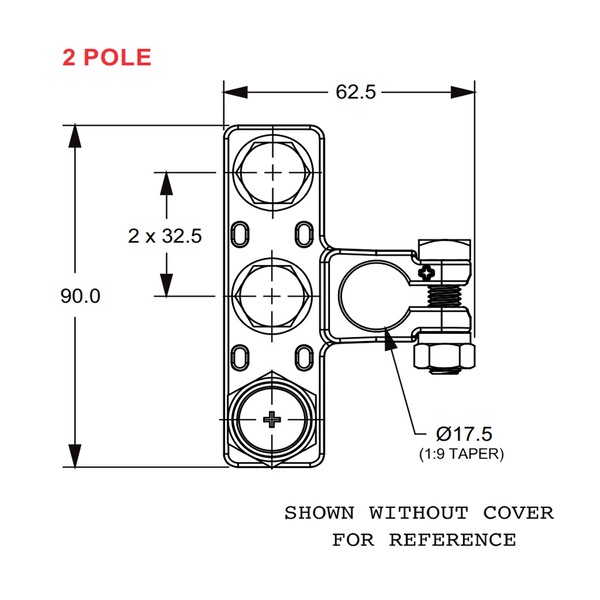

Mounts directly to a post style of battery

Available in 2 or 3 pole designs

Uses ZCASE single Fuses (M8) available 40-600A

Maximum continuous throughput 275A

Unlike other battery mount holders the BMZ series does not require a special nut due to isolated bus bar studs and can be installed using standard M8 nuts (sold separately)

Fusing directly at the battery allows location of larger power distribution boxes outside of the engine compartment while assuring protection of the
supply cables

The BMZ post mount fuse holder features a compact design which saves space and eliminates the need to wire in a separate fuse holder or power distribution module.

Additional circuits are added to the battery directly on top of the ZCASE fuse with wired ring terminals
