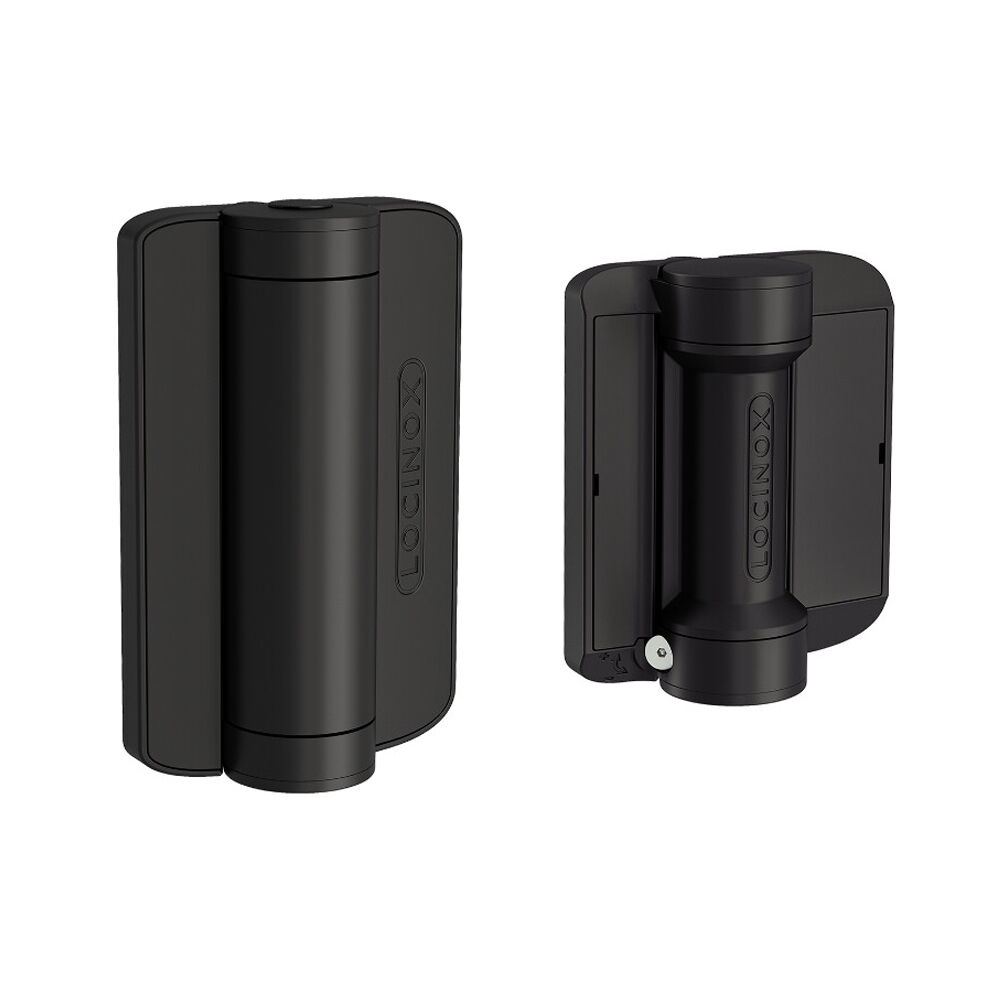

Locinox Caracal Hydraulic 180 Degree Gate Closer and Spring Hinge
P00010387

Hydraulic Gate Closers and Hinges are commonly used in residential, commercial, and industrial settings to ensure gates close automatically and securely without slamming.

Hydraulic Gate Closer and Hinge Function - automatically and smoothly closes a gate after it has been opened, providing controlled, self-closing functionality for security and convenience.

Features:

• Combines a hydraulic gate closer and hinge into a single unit, ensuring smooth and consistent self-closing action
• Allows gates to open fully to 180°, providing maximum accessibility
• Features adjustable closing speed, force, and final snap for customized operation
• Ensures consistent closing speed regardless of temperature variations
• Meets ADA requirements with a maximum opening force of 16 Nm (approximately 3.5 lbs) for gate widths of 3 feet or more
• Robust aluminum housing with powder-coated finish, designed for exterior use and resistant to weather conditions
• Engineered to prevent unauthorized adjustments and withstand tampering
• Quick-Fix mounting system allows for fast and straightforward installation
• Suitable for both left and right-handed gates
• Designed for long-term use without the need for regular maintenance

Specifications:

• Left-Right Adjustability: Yes
• Gate Weight: 0 - 65 kg
• Maximum Opening Angle: 180 Degrees
• Final Snap Adjustability: No
• Speed Adjustability: Yes

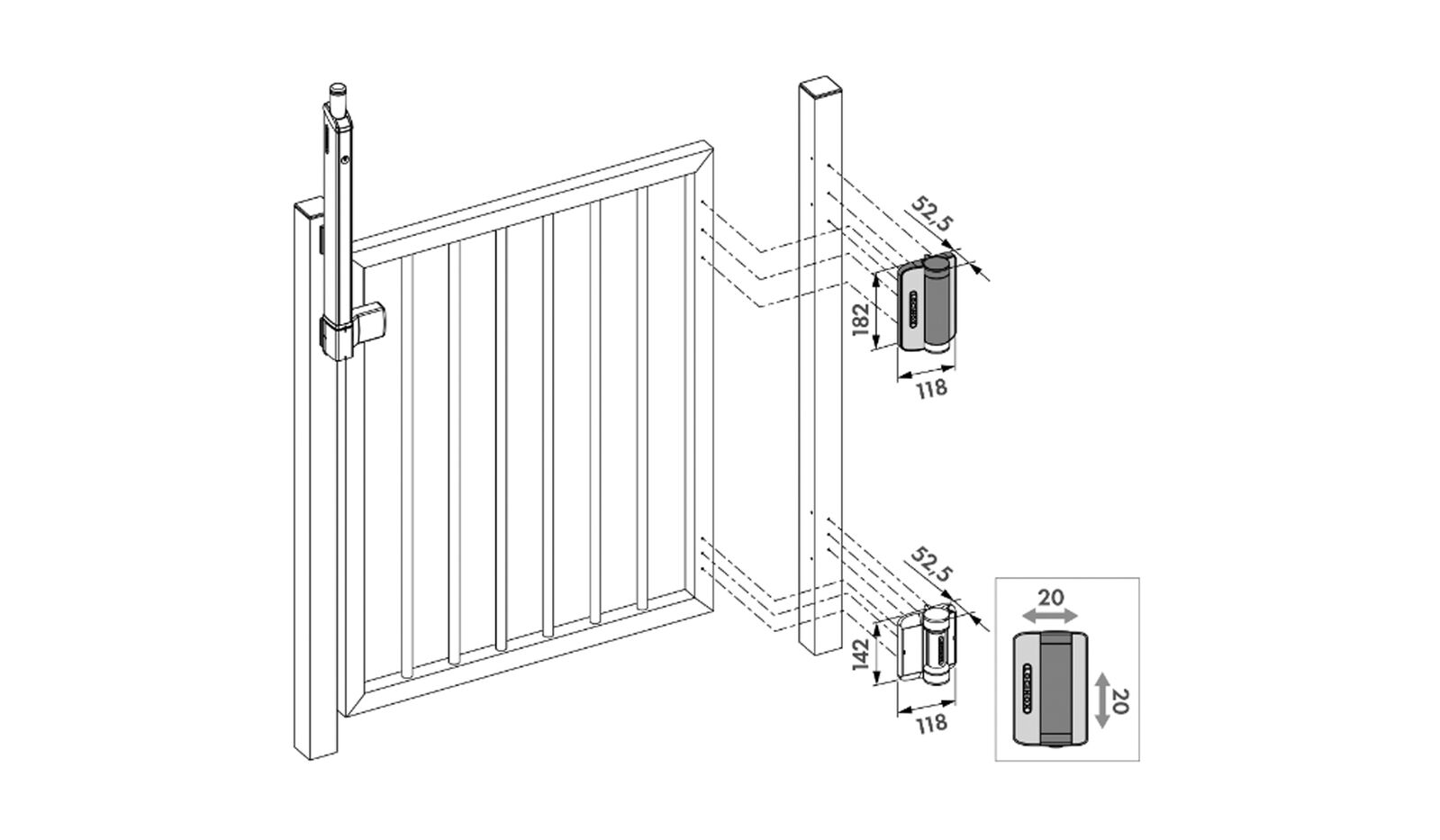

• Horizontal Adjustability: 20mm
• Vertical Adjustability: 20mm
• Depth Adjustability: 15mm
• Hydraulic Gate Closer: Yes
• Materials Main Part(s): Fiberglass Reinforced Polyamide
• Temperature Range: -30 Degrees Celsius / 70 Degrees Celsius
• Hours of Salt Spray Testing: 500
• Test Frequency: 500000
