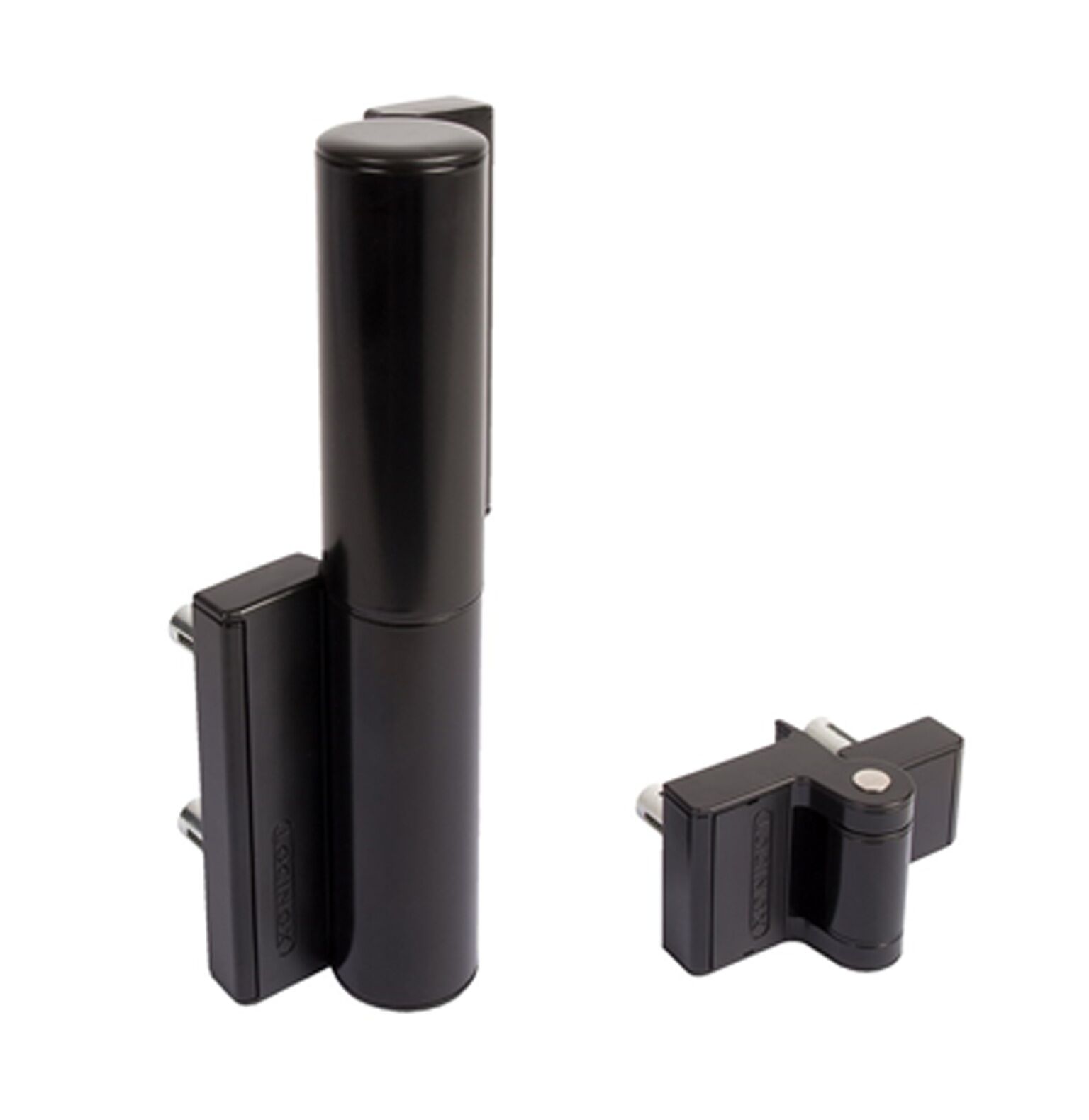

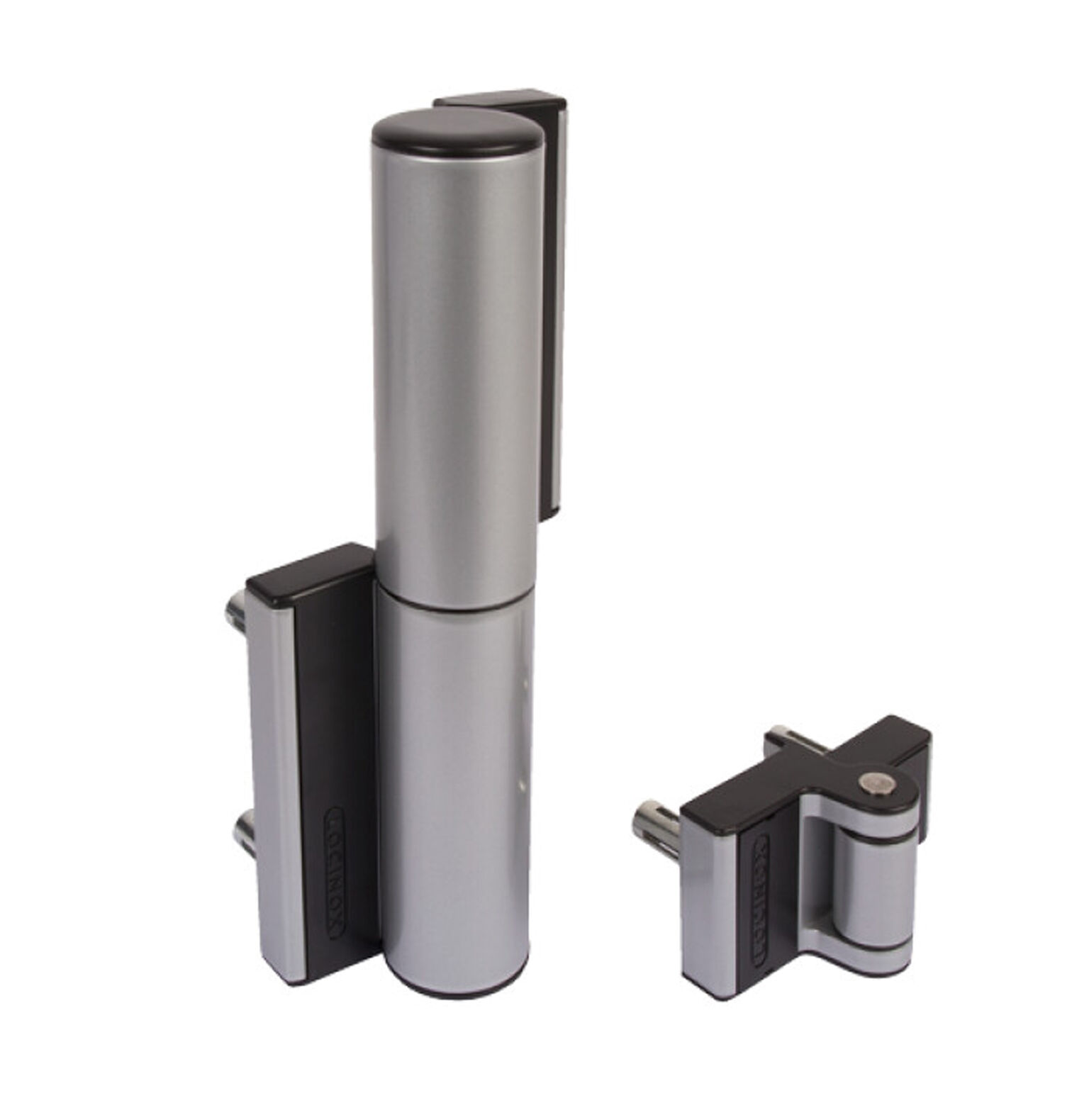

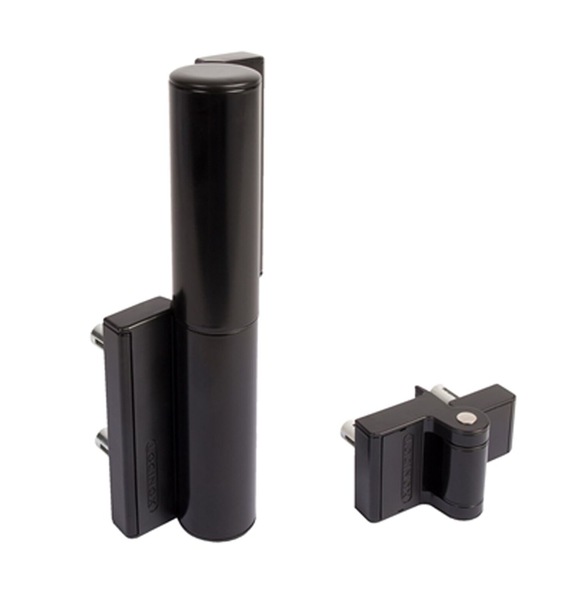

Locinox Tiger Compact Hydraulic Hinge and Gate Closer in One
P00008665-9005

Hydraulic Gate Closers and Hinges are commonly used in residential, commercial, and industrial settings to ensure gates close automatically and securely without slamming.

Hydraulic Gate Closer and Hinge Function - automatically and smoothly closes a gate after it has been opened, providing controlled, self-closing functionality for security and convenience.

Features:

• 180 degrees self-closing hydraulic hinge with precise adjustments on speed and final snap
• The aluminium powder coated housing and unique high-tech components allow the Tiger to function perfectly in any weather situation
• We highly recommend the Tigerdrill for an even more efficient installation
• The Puma hinge is included

Specifications:

• Left-Right Adjustability: Yes
• Gate Width: 0 to 1100mm
• Gate Weight: 0 to 75kg
• Force: 14Nm
• Maximum Opening Angle: 180 degrees
• Final Snap Adjustability: Yes

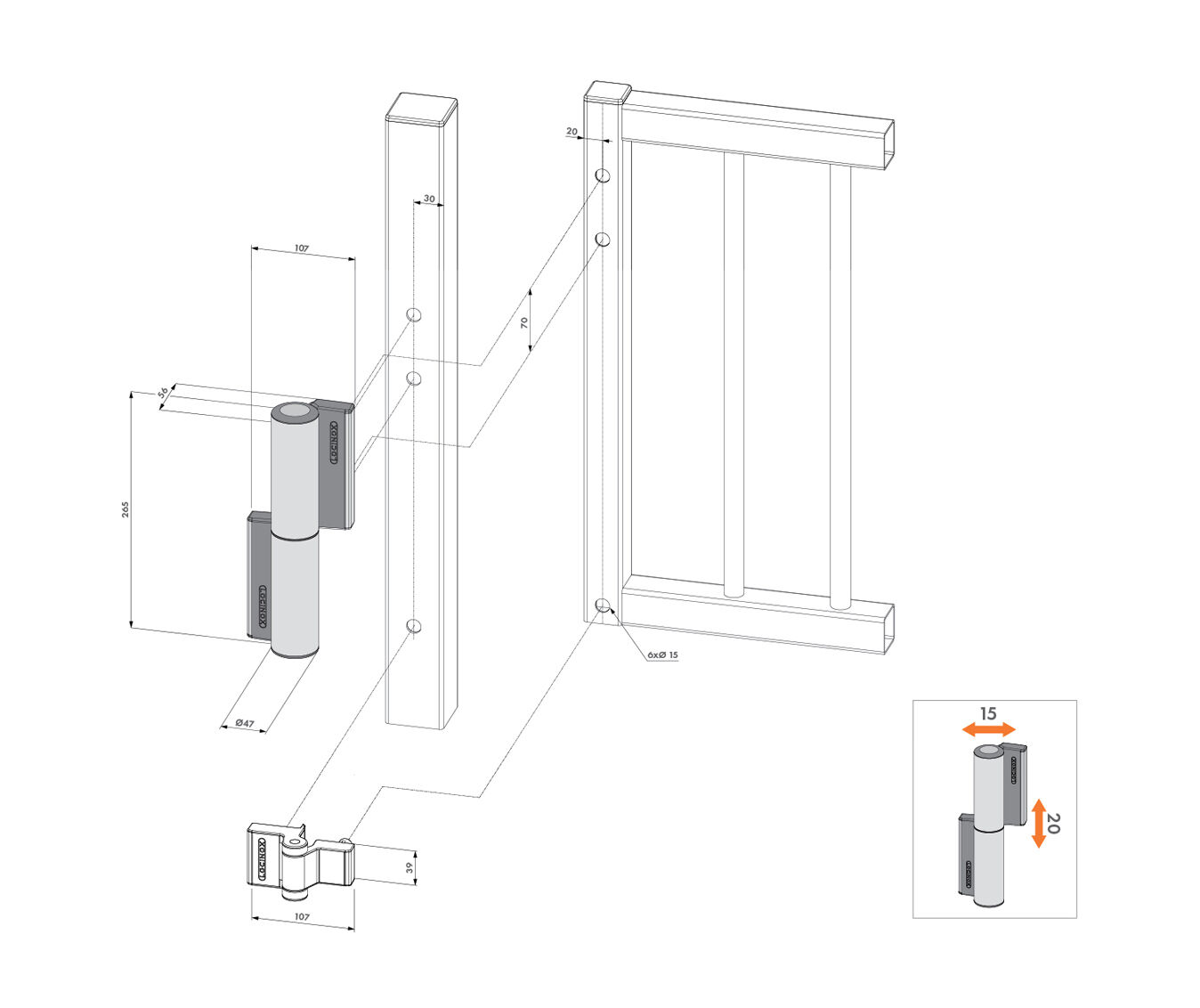

• Speed Adjustability: YesHorizontal Adjustability: 15mm
• Vertical Adjustability: 20mm
• Hydraulic Gate Closer: Yes
• Materials Main Parts: Powder Coated Aluminium
• Temperature Range: -30 degree Celsius to 70 degrees Celsius
• Norms:
  • ADA
  • PMR
  • ROSPA
• Hours of Salt Spray Testing: 500mm
• Test Frequency: 500000
• Finish: Matt Black
