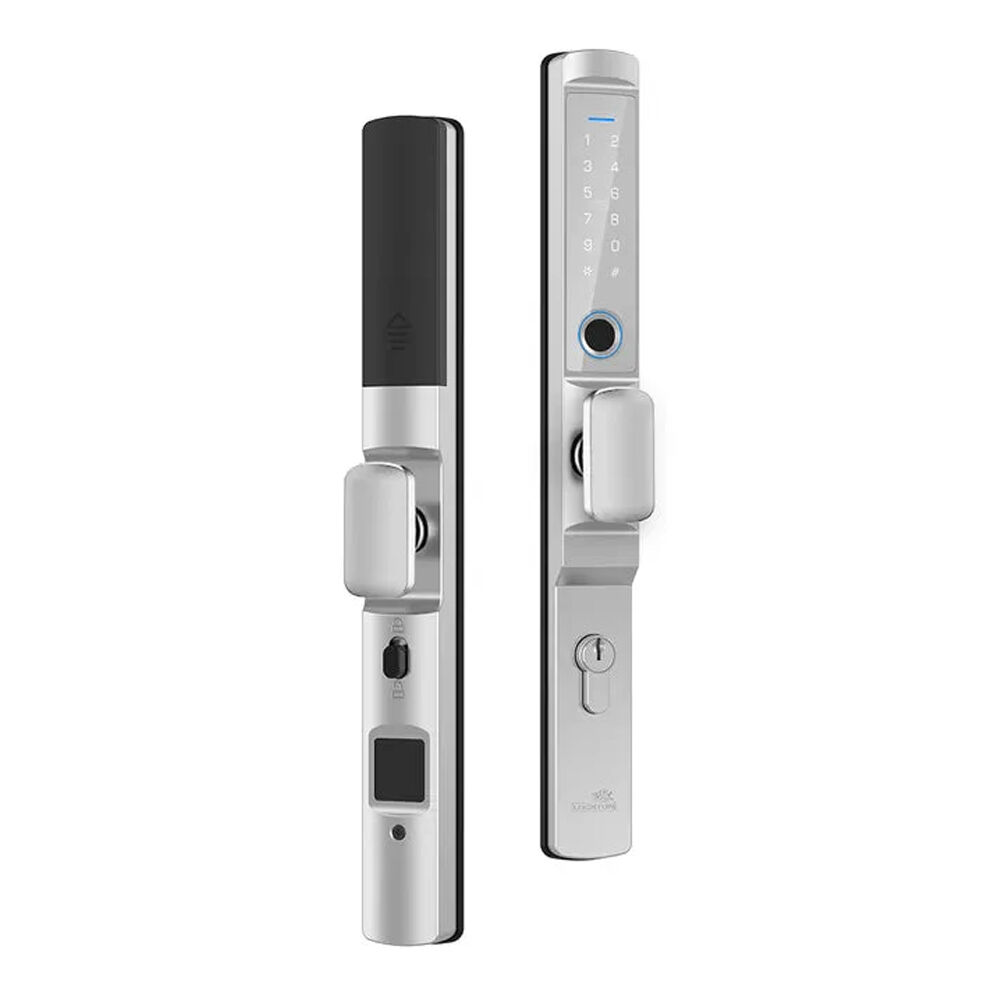

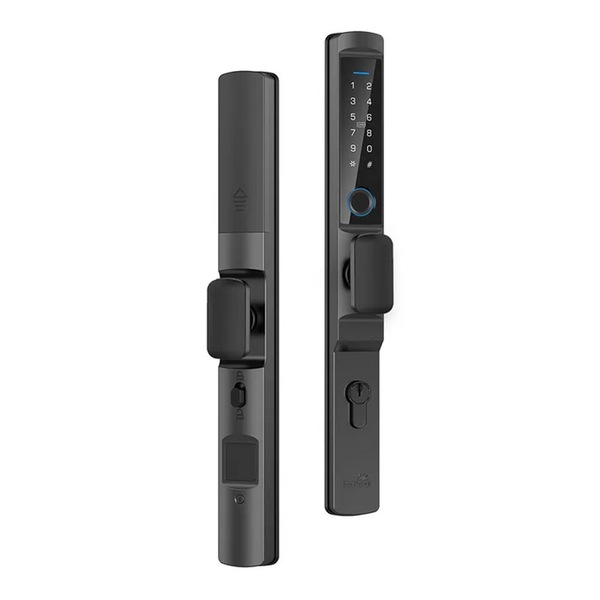

Lockton E-Series Smart Sliding Door Lock
ELEV36-BLK-S28

Smart Sliding Door Lock is commonly used in modern residential and commercial properties to provide secure, keyless access for sliding doors.

Smart Sliding Door Lock Functions - to enhance security and convenience by allowing keyless entry through fingerprint, PIN code, RFID tag, or smartphone access on sliding doors.

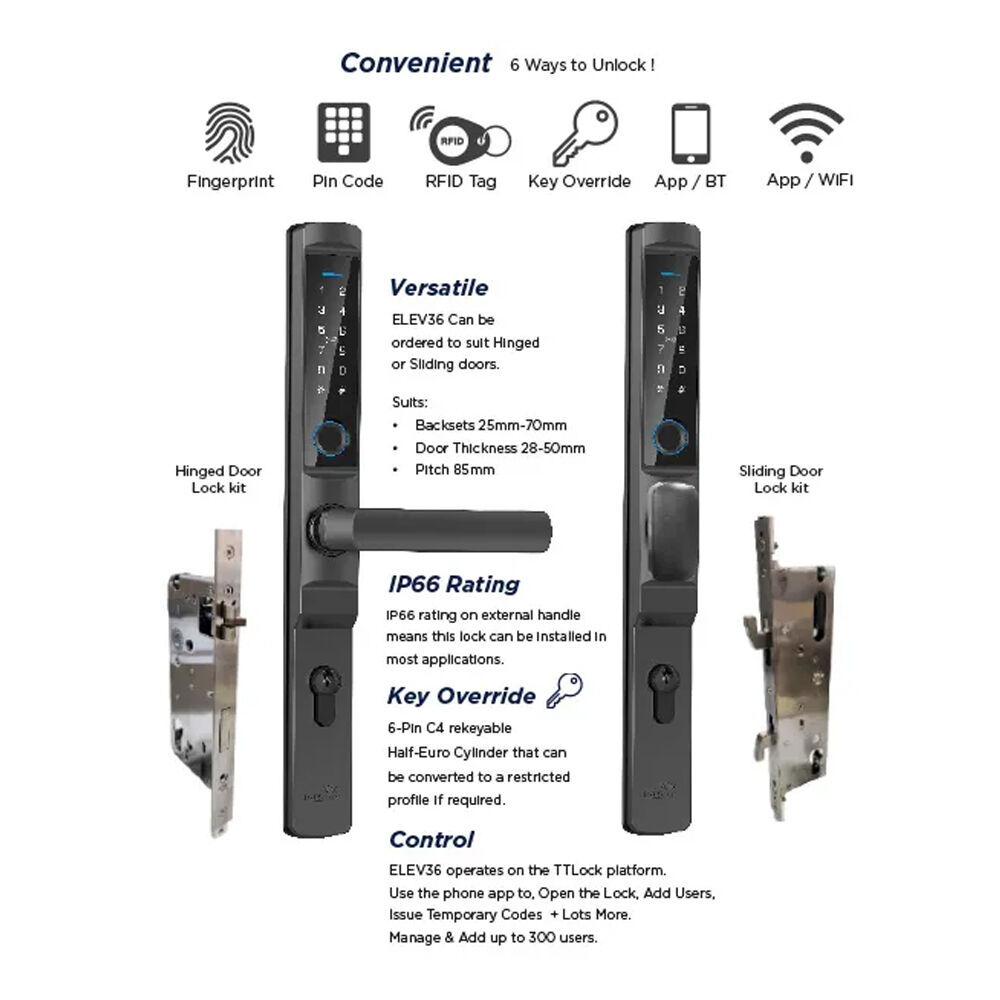

• LOCKTON 'E-Series' Narrow Leverset Smart Door Lock with Fingerprint, Digital PIN Code, RFID Tag and Mobile App functionality.

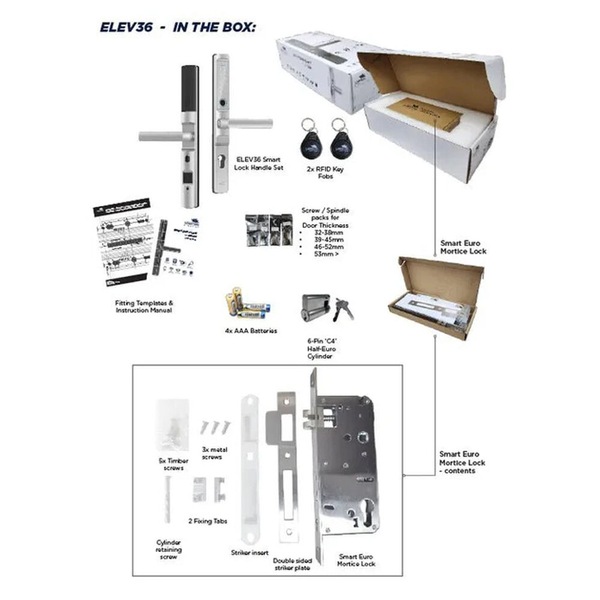

Includes:

• 1 x ELEV36 Smart Lock Handle Set
• 1 x Art. ELEV36-SLHD-BLK Set
• 2 x RFID Key Fobs
• 4 x Screw/Spindle Packs for varying door thicknesses
• 4 x AAA Batteries
• 1 x Smart Euro Sliding Mortice Lock (ordered to desired backset from dropdown)
• 1 x 6-pin C4 Half-Euro Cylinder
• 1 x Fitting Template
• 1 x Instruction Manual

Features:

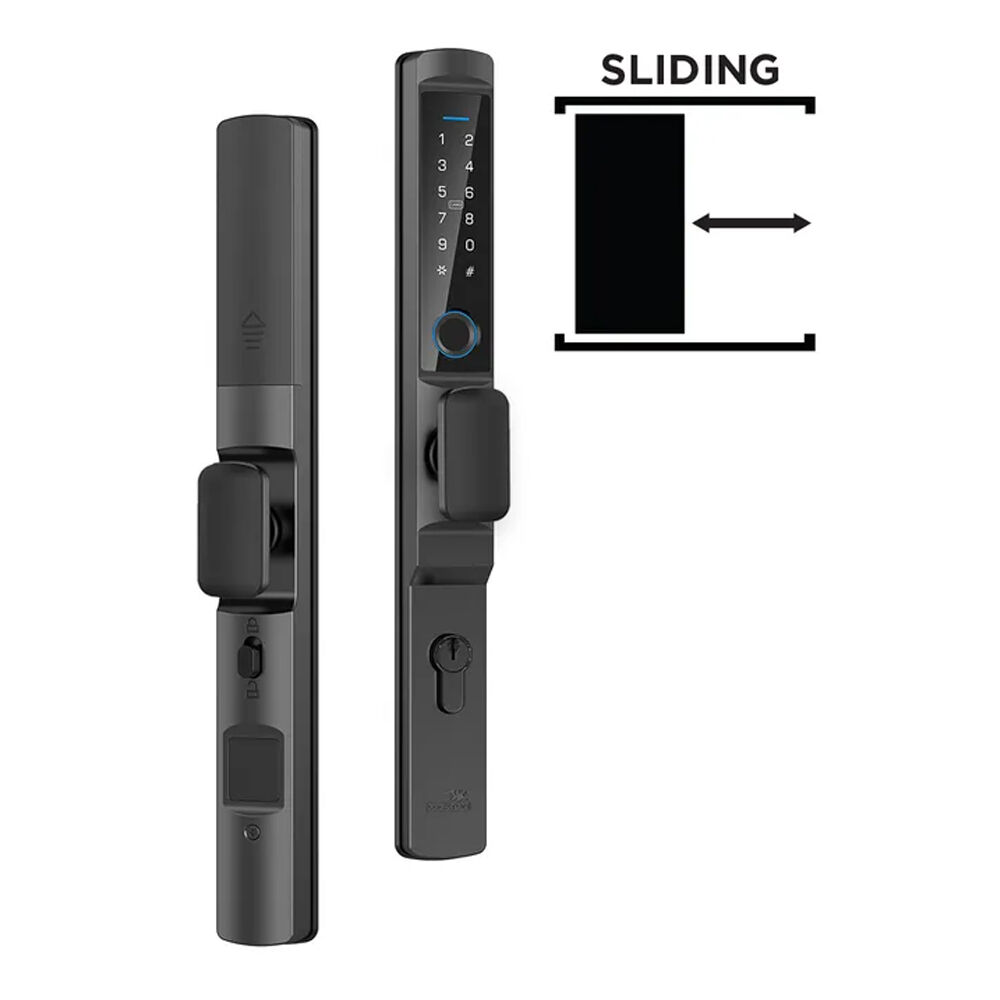

• Designed for Sliding Door installations
• The ELEV36 - Smart Euro Mortice Lock has a single throw two point locking mechanism to suit most sliding door locks
• IP66 Rating on external handle means this lock can be installed in almost any application
• Key Override via 6-Pin C4 Rekeyable Half Euro Cylinder that can be converted to restricted profiles
• Lock is available in multiple backset sizes (20-45mm) to suit most installations
• Step by step instructions ensure ease of installation and operation
• Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
• Add up to 300 x Users
• Fingerprint sensing area is perfectly located within proximity of the handle to naturally read a thumb print for quick entry
• Optional G2 and G3 Gateway accessories allow for remote access and control of lock via internet
• Lock has Art. ELEV36-SLHD-BLK supplied but not fitted

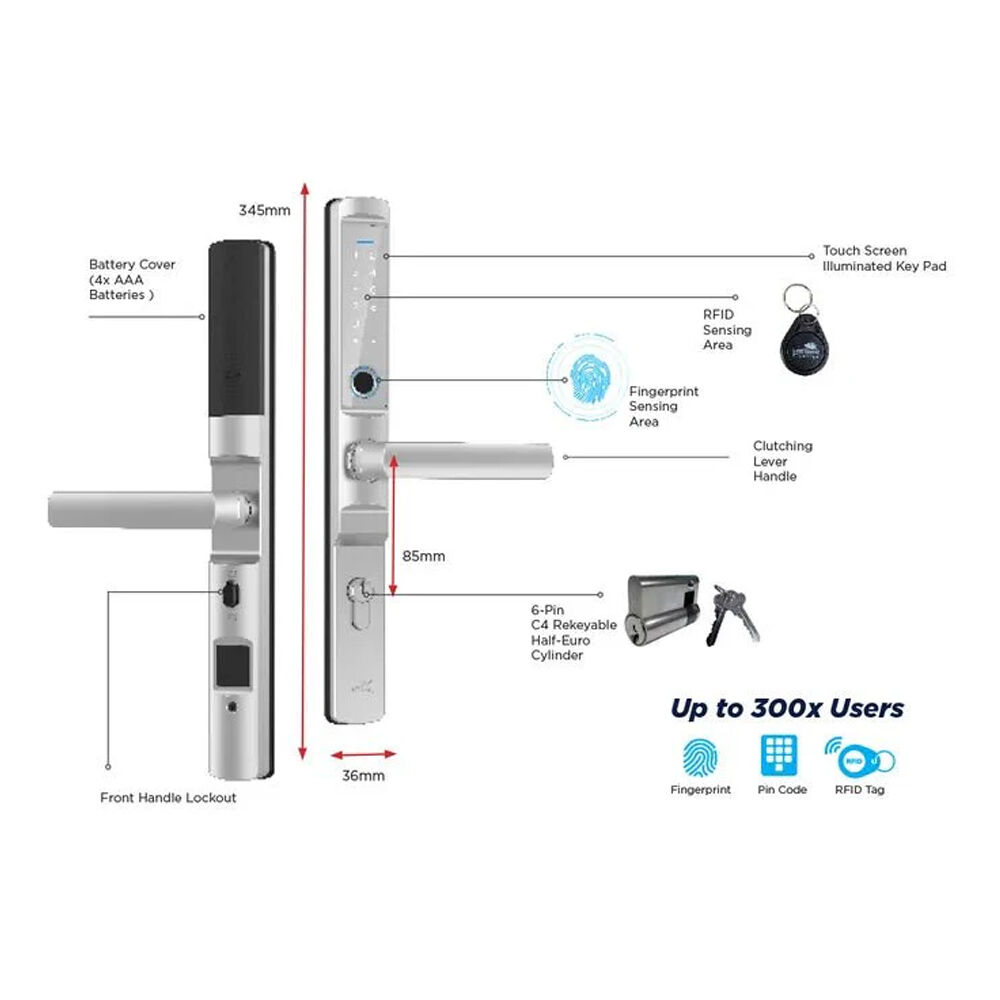

Specifications:

• Door Type: Sliding Doors
• Backset: 28mm
• Length: 345mm
• Width: 36mm
• Pitch: 85mm
• IP Rating: 66 (External Handle Only)
• Lock Backset Range: 20mm - 45mm
• Sliding Lock Face Plate:
  • Length: 270mm
  • Width: 22mm
• Sliding Lock Strike Plate Dimensions:
  • Length: 190mm
  • Width: 15mm
• Door Thickness: 28mm - 50mm
• Spindle Size: 8mm
• Screw Type: M5
• Handle Projection: 30mm
• Handle Height: 58mm
• Handle Width: 30mm
• External Handle: Protrudes 46mm from door
• Power Supply: 4 x AAA Alkaline Batteries
• Battery Life: Approx. 10,000 openings
• Safe Working Temperature: -20 Degrees Celsius to 50 Degrees Celsius
• Finish: Black
