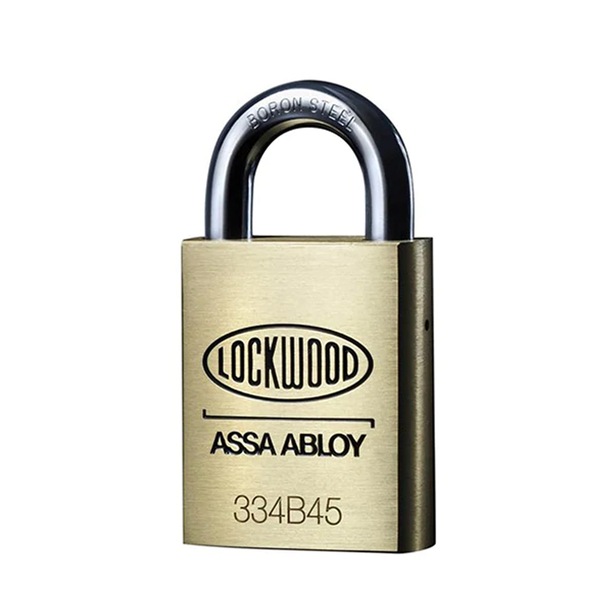

Lockwood Padlock
334B45/125/L03

Padlock used in both low and high security installations. e.g lockers, gates, fences, hasps, and chains to secure a wide variety of objects and areas

Padlock Function - a removable lock with a shackle that can be passed through a staple or link and then secured.

• Suitable for commercial and industrial application.

Features:

• Heavy Duty
• High Corrosion resistant
• Double ball locking
• Standard as latching function
• Can be converted to deadlocking (key retained) by simply relocating the cam plate pin in the cylinder assembly
• Spring loaded shackle, available with latching function where the key can be removed with the shackle in the open position (L) or deadlocking function where the the key is retained and can only be removed with the shackle in the locked position (D)

Specifications:

• Body Width: 45mm
• Body Height: 55mm
• Shackle: 25mm
• Boron Steel: 8.7mm
• Body Thickness: 20mm
• Clearance Width: 22mm
• Material:
  • Body: Brass
  • Shackle: Stainless Steel
• Cylinder: Rekeyable 334 type padlock cylinder. Inline pin cylinders can be keyed to 5 or 6 pins.
• Corriosion Resistance Rating: C4
• Physical Security Rating: SP6

Standards and Compliance:

• Physical Security grades are employed for padlocks. These grades are defined in part by the effective differs and key combinations. Padlocks Physical Security (SP) grade range from 6?8.
• Corrosion Resistance Rating C4: Environments that are often wet and/or subject to slight pollution by sulphur dioxide, acid, alkali or salt, including some particularly damp interiors and the majority of exterior environments.
• Designed and tested to the Australian Padlock Standard AS4145.4 2002 and are rated for both security and corrosion resistance.
