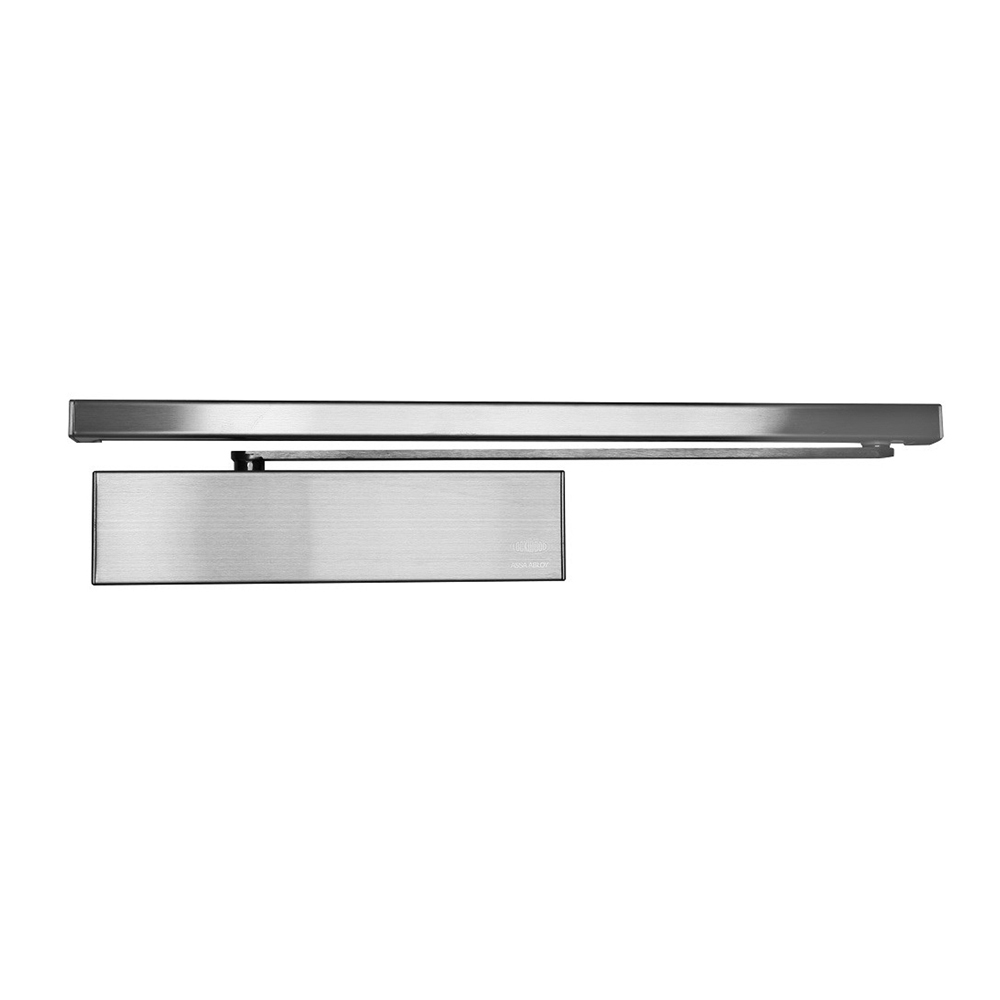

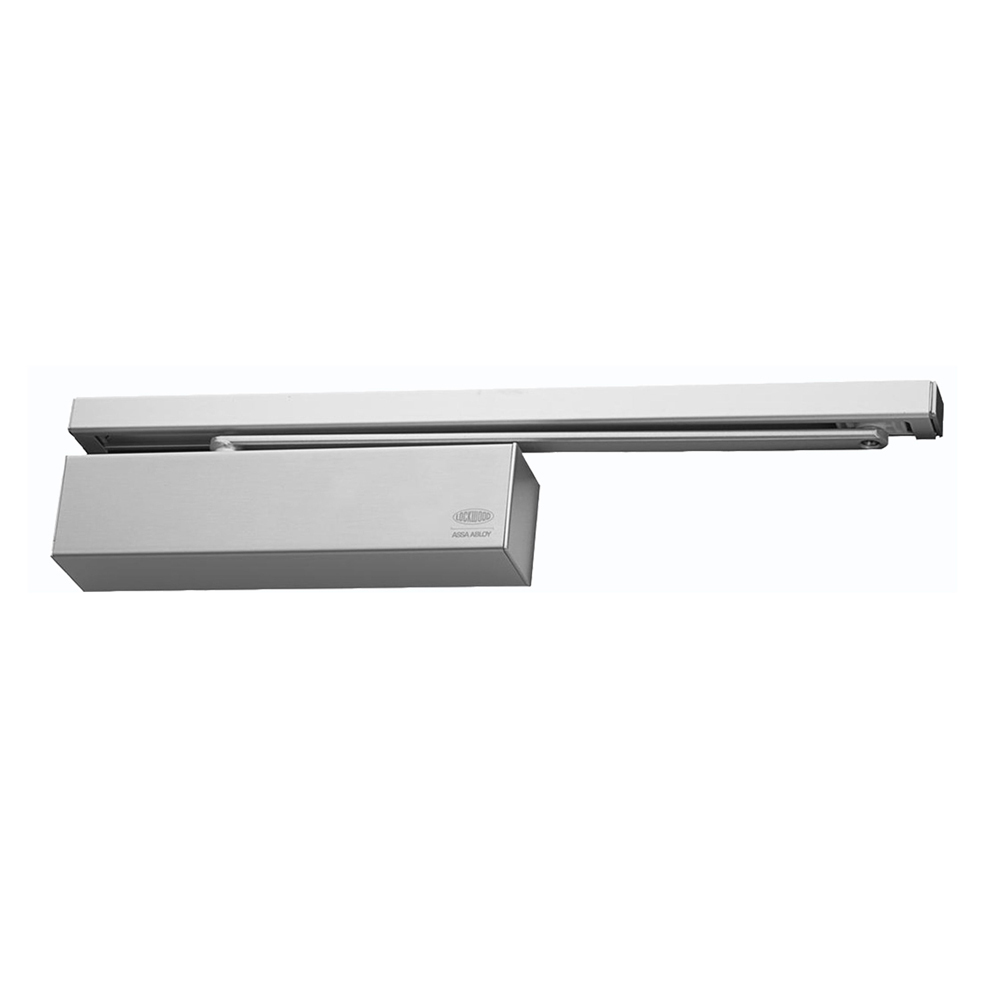

Lockwood EN1-5 Cam Action Door Closer
2615DASIL

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Has a very high efficiency of 70% - 80%
• EN adjustable power from 1 to 5
• Adjustable hold-open can be set at any angle up to 120° of opening
• Non-handed
• Cast aluminium body manufactured from high performance silicon alloy

Specifications:

• Spring Strenght: EN 1 to 5
• Back Check: Adjustable
• Hold Open: Adjustable Hold-open can be set atany angle up to 120° of opening
• Handing: Non-handed
• Cover: Formed metal cover
• Materials: Cast aluminium body manufactured from high-performance silicon alloy
• Mechanism: CAM action
• Mounting: Pull side, push side and over-door mounting
• Valves: Two pressure relief valves are a standard feature to protect against abuse
• Delayed Action: Adjustable
• Closing Speed: Adjustable
• Latching Speed: Adjustable
• Finish: Silver

Standards and Compliance:

• Fire Rated: Has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets. Note: Hold open option is not approved on any fire door.
• Disabled Access Australian Standard (AS1428.1) Design for access and mobility.
