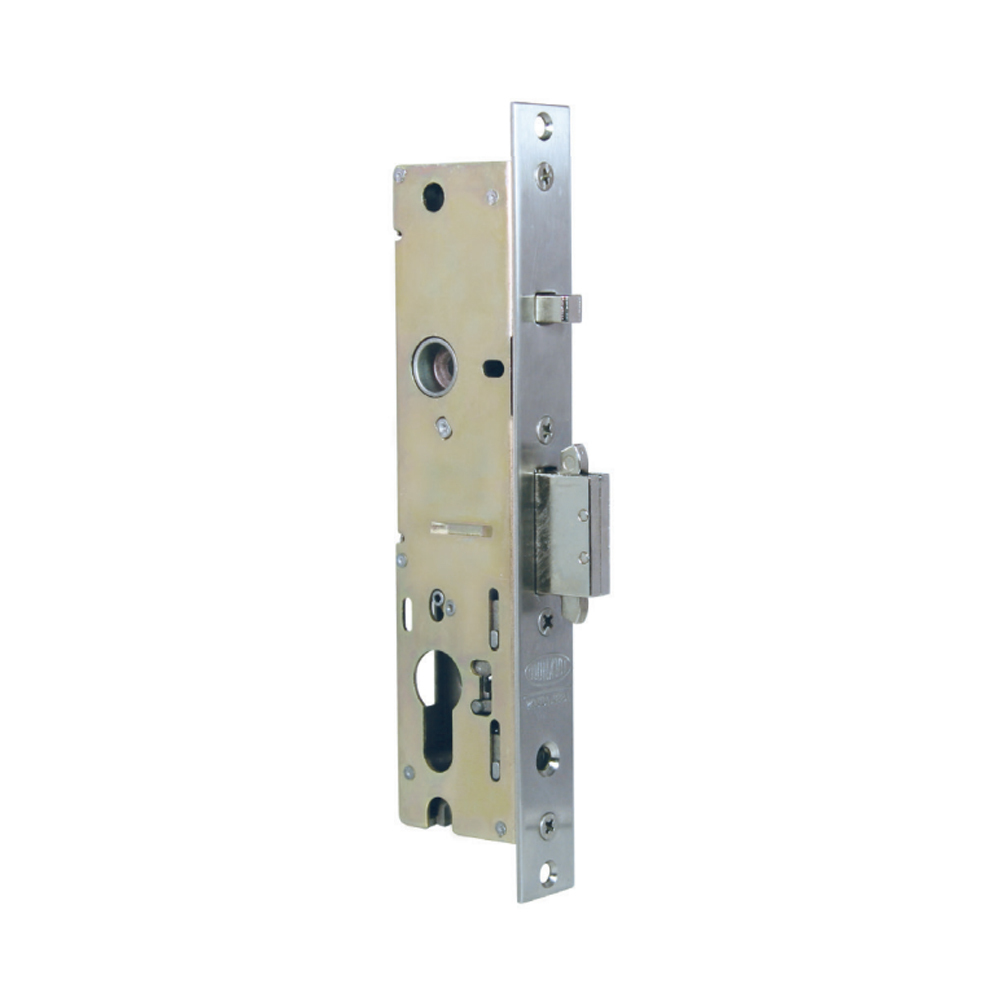

Lockwood Optimum Sliding Door Mortice Lock
OP30/1SDN/SS

Mortice Lock provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

Features:

• Designed to improve functionality in sliding door applications. Lock features the unique security of a single deadbolt with dual flyout beaks which prevent the door from being lifted.
• Anti-lift deadbolt locking
• Anti-slam pin protection prevents accidental damage to the lock bolt
• Durable mechanism and stainless steel faceplate
• 30mm and 40mm backset variants available
• Door thickness: 32mm to 45mm
• Lock Status Indication available when used with Palladium Xtra cylinder escutcheons
• Lock Status Indicators

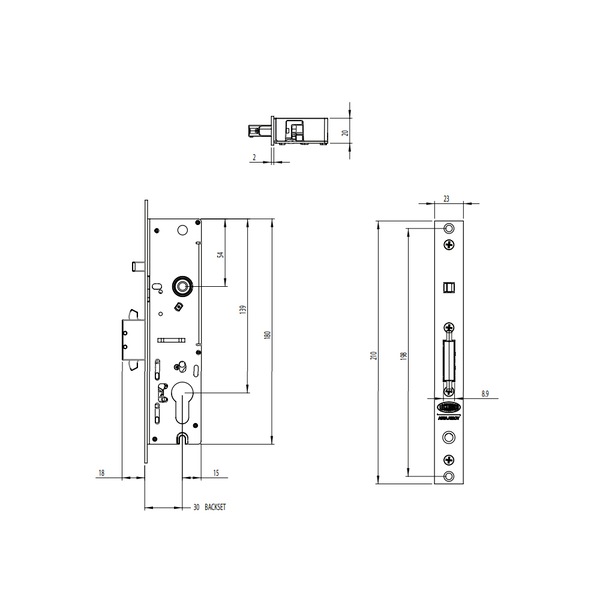

Specifications:

• Backset: 30mm
• Can be Master Keyed or Keyed Alike: Yes
• Keyway: C4 5Pin or 6 Pin
• Material: Composite
• Spindle Size: 7.6mm or 8mm
• Door Thickness: 32mm to 45mm
• Finish: Satin Stainless Steel
