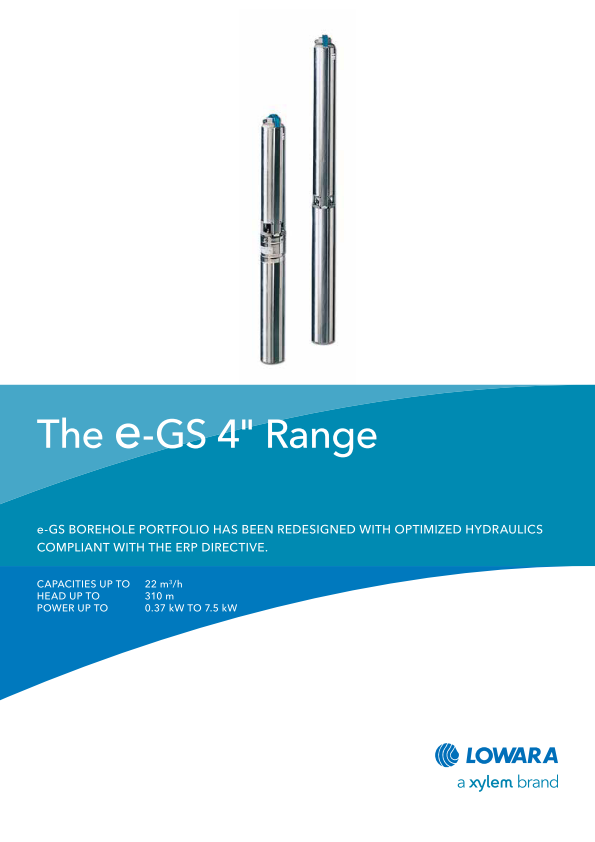

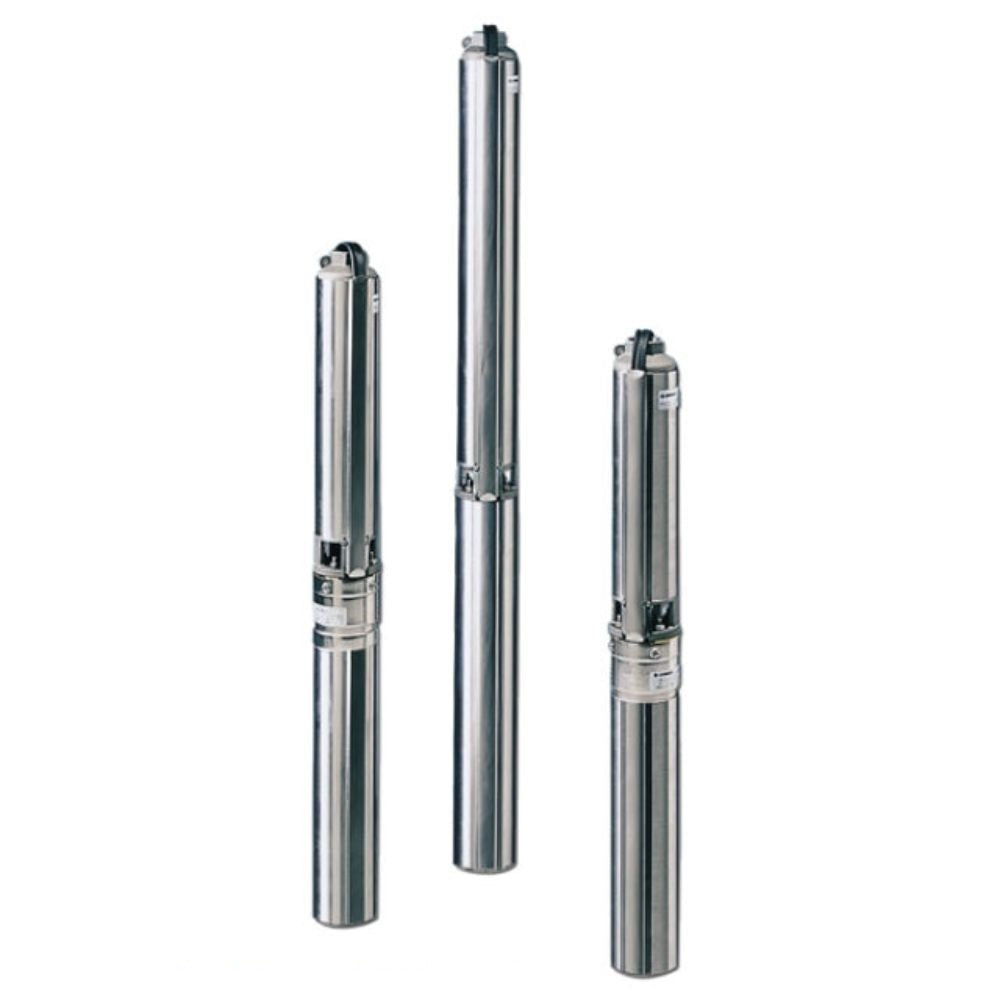

Lowara 4” Submersible Pump For Clean Water 415V 3 Phase50 Hz 3 Wire

High content of AISI 304 stainless steel. The floating impeller design ensures an excellent resistance to wear.

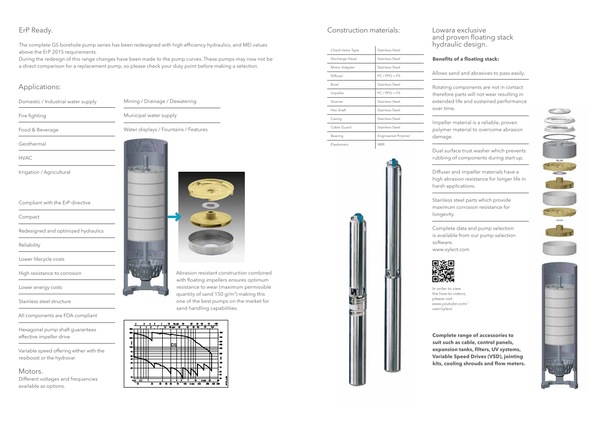

The upper and lower supports of the eGS submersible borehole pump are made of precision-cast stainless steel ensuring resistance to corrosion, strength and rigid coupling to the motor. The non-return valve is integrated in the head to support the weight of the column of water and protect against water hammer, thus safeguarding impellers and diffusers. The eGS Can also operate in a horizontal position.

Specifications:

• Delivery: up to 22 m³/h
• Head: up to 310 metres
• Power supply: three-phase and single-phase 50 Hz
• Motor Power: 0.37 kW to 7.5 kW
• Water temperature: 0°C to +35°C
• Maximum immersion depth: 300 metres

  Applications:

• Water supply
• Irrigation / Agricultural
• Mining / Drainage / Dewatering
• Fire-fighting
• Food & Beverage
• Geothermal
• HVAC

Materials:

• Check valve type: Stainless steel
• Discharge head: Stainless steel
• Motor adaptor: Stainless steel
• Diffuser: PC / PPO + PS
• Bowl: Stainless steel
• Impeller: PC / PPO + PS
• Strainer: Stainless steel
• Hex shaft: Stainless steel
• Casing: Stainless steel
• Cable guard: Stainless steel
• Bearing: Engineered polymer
• Elastomers: NBR

Market Sectors:

• Residential
• Agriculture
• Mining

The product image shown is for illustration purpose only
